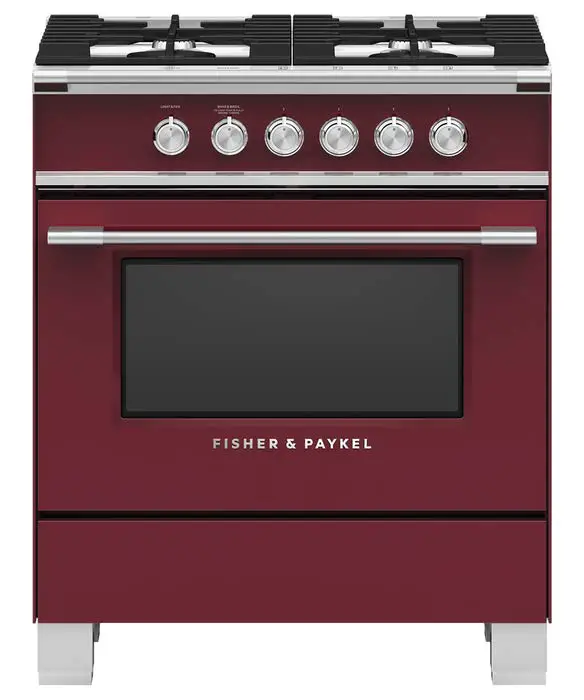

FISHER PAYKEL OR30SCG4R1 30 Inch Gas Range
Create a striking classic kitchen. Your freestanding range has a spacious oven capacity and four gas burners for precise control.
- Four burner gas cooktop with two dual wok burners
- Gas oven with 3.5 cu ft total capacity
- Three oven functions: Bake, Convection Bake and Maxi Broil

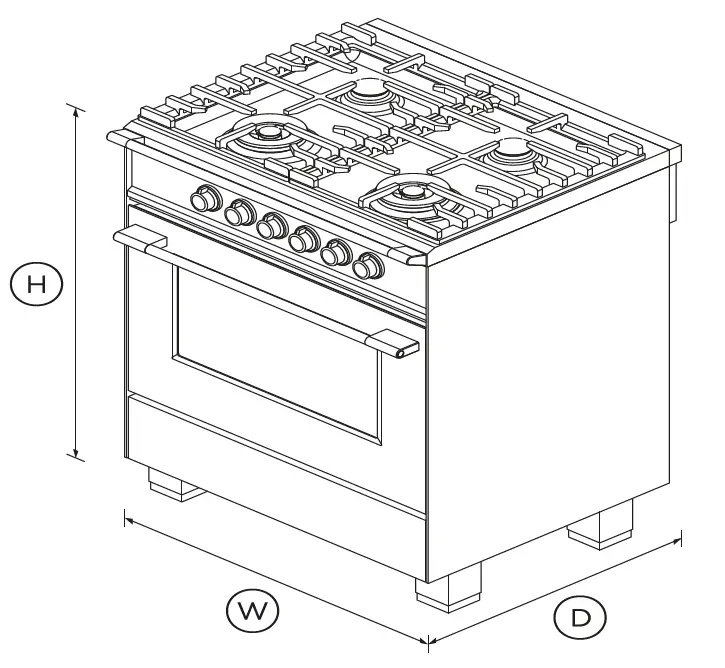

DIMENSIONS
| Height | 35 3/4 – 37 5/8″ |
| Width | 29 7/8″ |
| Depth | 25 1/4″ |
FEATURES & BENEFITS
Design quality
This range has been carefully crafted in every detail from performance to durability using quality materials including the balanced soft-close door and rounded hob rail.
Large capacity oven
The generous 3.5 cu.ft total capacity oven gives you plenty of space to cook multiple dishes at once, with enough room to fit a 26 lb turkey.
Performance power
Precise cooktop controls let you sear or stir fry over instant, powerful heat. Use the high burner power or simmer a delicate sauce using the gentlest of heats.
Easy cleaning
With its durable surface, your cooktop simply needs a quick wipe after cooking to keep it looking good as new for years to come.
SPECIFICATIONS
Accessories
| 2-pc grill system (Broil pan and | • |
| Broil pan | • |
| Chromed shelf runners | 1 set |
| Full Extension Telescopic | 2 sets (part 578776) |
| Kick strip, stainless steel | Part 81660 |
| Small pot support | 1 (part 533981 cast) |
Burner ratings
| Dual wok burner inner/outer | 1000 – 18000BTU |
| Dual wok burner inner/outer | 1000 – 18000BTU |
| Maximum burner power | 18000 BTU |
| Semi-rapid burner (LPG) | 1500 – 7600BTU |
| Semi-rapid burner (natural | 1500 – 8000BTU |
| Total cooktop power | 52000 BTU |
Capacity
| Total capacity | 3.5L |
Cleaning
| Acid resistant graphite enamel | • |
| Removable oven door | • |
| Removable shelf runners | • |
Controls
| Laser etched graphics | • |
Gas Requirements
| Supply Pressure (LPG) | 11″ W.C.P |
| Supply Pressure (natural gas) | 4″ W.C.P |
Oven features
| Auto re-ignition system | • |
| Concealed element | • |
| Convection | • |
| Electronic ignition | • |
| Full extension telescopic | • |
| Internal light | 2 x 25W halogen (rear) |
| Soft open/close door | • |
| Storage drawer | • |
Oven functions
| Convection bake | • |
| Number of functions | 3 |
Oven performance
| CoolTouch door | Triple glazed |
Power requirements
| Amperage | 15A |
| Supply frequency | 60Hz |
Product dimensions
| Depth | 25 1/4″ |
| Height | 35 3/4 – 37 5/8″ |
| Width | 29 7/8″ |
Rangetop features
| Hob rail | • |
| LPG/Natural gas compatible | • |
| Sealed range top | • |
Rangetop Performance
| Number of burners | 4 |
Safety
| ADA compliant | • |
| Advanced cooling system | • |
| Anti-tilt bracket | • |
| Balanced oven door | • |
| Full extension telescopic | • |
| Non-tip shelves | • |
| Spill containment | 1/2 gallon |
| SKU | 81715 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model
Other product downloads available at fisherpaykel.com
- User Guide
- Guide D’Utilisation
- Service & Warranty
- Installation Guide
- Guide D’Installation
- Data Sheet Gas Range
