QUICK REFERENCE GUIDE > OR30SDG4X1

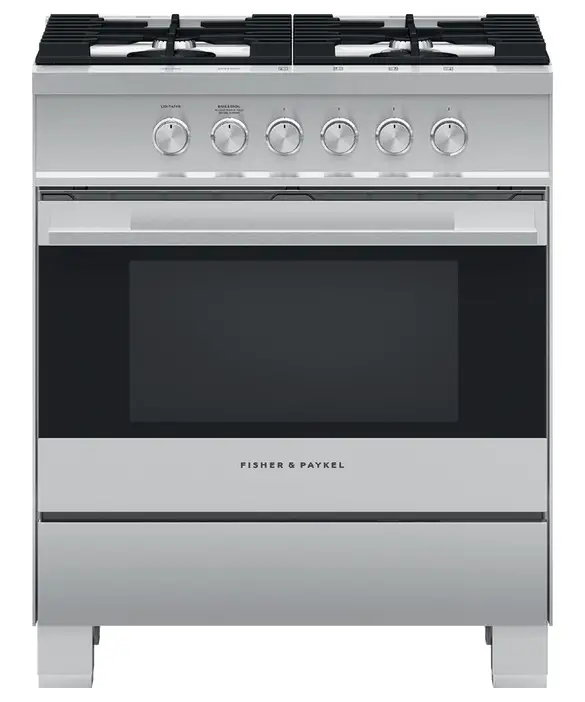

Gas Range, 30″
Series 7
Contemporary
Stainless Steel

Add contemporary style to your kitchen, and enjoy the instant response and precision of a gas-fueled oven and cooktop.

Four burner gas cooktop, with two dual-ring wok burners
Gas oven with 3.5 cu ft total capacity
Three oven functions: Bake, Convection Bake, and Maxi Broil

Contents hide

1 DIMENSIONS

2 FEATURES & BENEFITS

3 SPECIFICATIONS

4 Documents / Resources

4.1 References

5 Related Posts

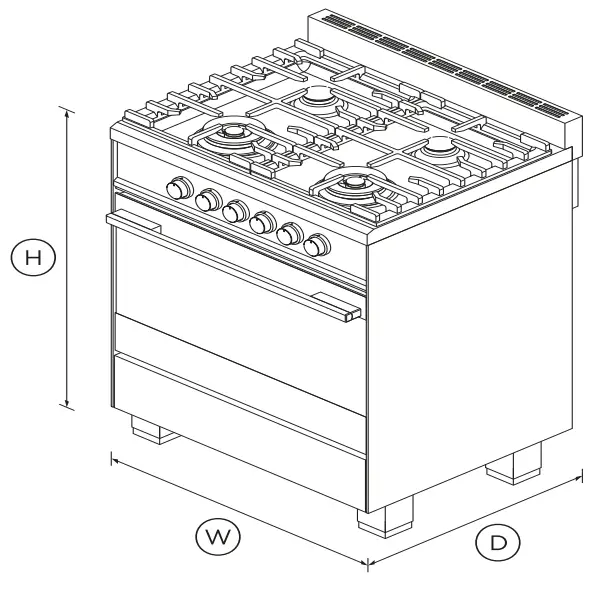

DIMENSIONS

Height	35³/₄-37⁵/_8″
Width	29⁷/_8″
Depth	25¼”

FEATURES & BENEFITS

Design quality
This range has been carefully crafted in every detail from performance to durability using quality materials including the balanced soft-close door and rounded hob rail.
Large capacity oven
The generous 3.5 cu. ft total capacity oven gives you plenty of space to cook multiple dishes at once, with enough room to fit a 26 lb turkey.

Performance power
Precise cooktop controls let you sear or stir fry over instant, powerful heat. Use the high burner power or simmer a delicate sauce using the gentlest of heats.
Easy cleaning
With its durable surface, your cooktop simply needs a quick wipe after cooking to keep it looking good as new for years to come.

SPECIFICATIONS

Accessories 2-pc grill system (Broil pan and Broil pan Chromed shelf runners Hob rear trim (optional) Kick strip, stainless steel Small pot support Wok stand	• • 1 set 3 1/8″ (part 81657) Part 81660 1 (part 533981 cast) 1 (part 534678)
Capacity Total capacity	3.5 cu ft
Cleaning Acid resistant graphite enamel Removable oven door Removable shelf runners	• • •
Controls Interior light Laser etched graphics	• •
Gas requirements Supply Pressure (LPG) Supply Pressure (natural gas)	11″ W.C.P 4″ W.C.P
Oven features Concealed element Convection Electronic ignition Full-extension telescopic Internal light Soft open/close door Storage drawer	• • • 2 sets (part 578776) 2 x 25W halogen (rear) • •
Oven functions Convection bake Maxi Broil Number of functions	• • 3
Oven performance CoolTouch door	Triple glazed
Power requirements Amperage Supply frequency Supply voltage	1A 60 120
Product dimensions Depth Height Installation cutout dimensions	25¼” 35³/₄-37⁵/_8″25¼”
Installation cutout dimensions Width	30″ 29⁷/_8″
Rangetop features Dishwasher safe trivets Hob rear trim LPG/Natural gas compatible Sealed range top	• 0 7/8″ • •
Rangetop Performance Max burner power Number of burner elements Semi-rapid burner (LPG) x2 Semi-rapid burner (natural Total cooktop power	18000BTU 4 1500 – 7600BTU 1500 – 8000BTU 52000BTU
Safety Advanced cooling system Anti-tilt bracket Balanced oven door CoolTouch door Full-extension telescopic Non-tip shelves Spill containment	• • • • • • 1/2 gallon
Warranty Parts and labor	2 years
