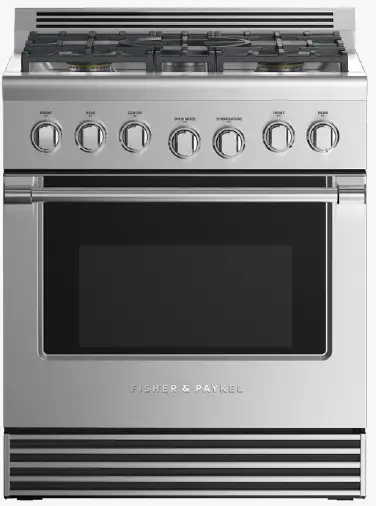

FISHER PAYKEL RGV2-305-L-N 30-Inch Gas Range

Professional style and performance, with powerful burners delivering high heat or the most gentle simmer.

Top burner heat of 19,000 BTU, for seriously fast boiling.
Gas oven with 4.6 cu ft total capacity.
Non-tip full-extension shelves for safe removal of hot dishes.

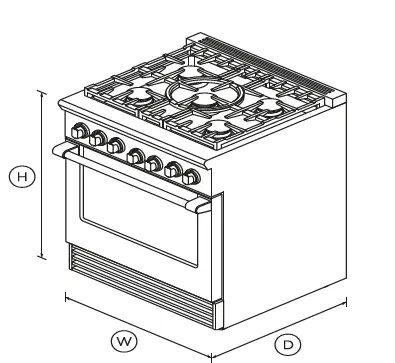

DIMENSIONS

Height	35 3/4 – 36 3/4
Width	29 7/8
Depth	29 1/8

FEATURES & BENEFITS

Cooktop power

Sealed Dual Flow Burners deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.

Total control

Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.

Easy to clean

A sealed cooktop surface coupled with a commercial-style stainless steel finish means your cooktop simply needs a quick wipe to keep it looking good as new.

Instant visibility

Control dials have halo-illumination glowing white – heating up; orange – temperature reached; red – self-cleaning mode. The oven is illuminated by two powerful incandescent lights.

Cooking flexibility

The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.

Design quality

This range has been carefully crafted in every detail from performance to durability using quality materials.

SPECIFICATIONS

Accessories

Square handle option

AH-R30

Burner ratings

Maximum burner power	19000 BTU
Power back left	11500BTU
Power back right	11500BTU
Power centre	19000BTU
Power front left	15000BTU
Power front right	15000BTU
Total cooktop power	72000 BTU

Controls

Electric circuit	3 wire
Metal illuminated dials

Gas Requirements

Fitting and pipe	½ NPT, min. ⅝ flex line
Supply Pressure LPG	11 to 14 W.C

Oven features

Full extension telescopic

Power requirements

Rated current	15A
Supply frequency	60Hz

Product dimensions

Depth	29 1/8
Height	35 3/4 – 36 3/4
Width	29 7/8

Range top features

Sealed Dual Flow Burners	5
Sealed range top
Vent trim included

Safety

ADA compliant
Full extension telescopic

SKU

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time.
