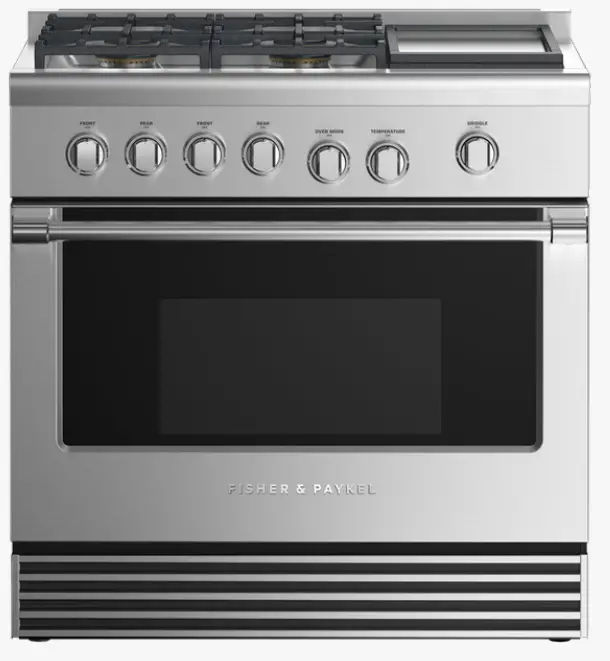

QUICK REFERENCE GUIDE > RGV2-364GD-N_N
Gas Range, 36″, 4 Burners with Griddle
Series 7 | Professional
Stainless Steel | Natural gas
Cook with flair and flexibility, with this large Professionally-styled range that includes four gas burners, griddle, and gas oven.
- Top burner heat of 23,500 BTU, for seriously fast boiling
- Gas oven with 5.3 cu ft total capacity and three functions
- Non-tip full-extension shelves for safe removal of hot dishes

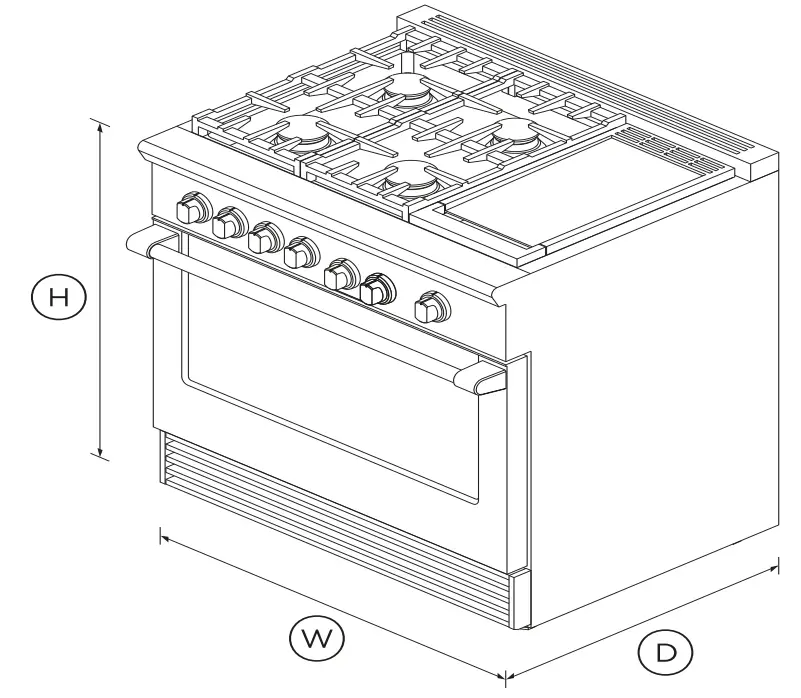

DIMENSIONS
| Height | 35 3/4 – 36 3/4″ |
| Width | 35 7/8″ |
| Depth | 29 1/8″ |
FEATURES & BENEFITS
Cooktop power
Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
Total control
Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
Easy to clean
A sealed cooktop surface coupled with a commercial-style stainless steel finish means your cooktop simply needs a quick wipe to keep it looking good as new.
Instant visibility
Control dials have halo-illumination glowing white – heating up; orange – temperature reached; red – self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
Cooking flexibility
The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full-size baking sheets.
<<Missing Feature Title>>
This range has been carefully crafted in every detail from performance to durability using quality materials.
SPECIFICATIONS
Accessories
| Square handle option | AH-R36 |
Capacity
| Capacity total (AHAM) | 5.3cu ft |
| Capacity usable (AHAM) | 4cu ft |
Gas Requirements
| Dishwasher proof trivets | • |
Installation Dimensions
| Electric circuit | 3 wire |
| Metal illuminated dials | • |
Oven Features
| Fitting and pipe | ½ NPT, min. ⅝” flex line |
Installation Dimensions
| Height (excluding vent trim) | 35 3/4 – 36 3/4″ |
Oven Features
| Full extension telescopic | • |
Oven performance
| Bake | 28000 BTU |
Power requirements
| Rated current | 15A |
| Supply frequency | 60Hz |
Product dimensions
| Depth | 29 1/8″ |
| Height | 35 3/4 – 36 3/4″ |
| Width | 35 7/8″ |
Rangetop features
| Sealed Dual Flow Burners™ | 4 |
| Sealed range top | • |
| Vent trim included | • |
Rangetop Performance
| Power back left | 18500 BTU |
| Power back right | 18500 BTU |
| Power front right | 18500 BTU |
| Power griddle | 16500 BTU |
Safety
| Full extension telescopic | • |
| SKU | 71352 |
TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
 | User Guide |
| Installation Guide |
| FP-DataSheet-RGV2-364GD-N-N-GasRange-CA-US-90001520A.pdf (fisherpaykel.com) |
| Planning Guide Gas Range |
