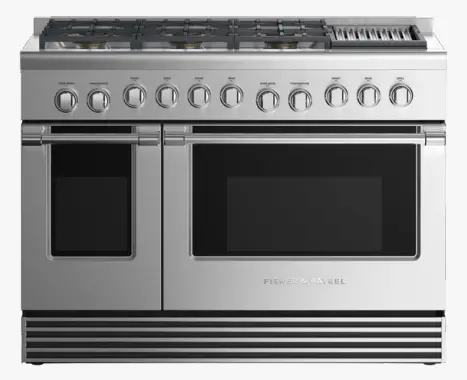

FISHER PAYKEL RGV2-486GL-N-N Gas Range
INTRODUCTION
With Professional styling, this large range has six burners delivering powerful high heat, a grill and two gas ovens.
- Top burner heat of 23,500 BTU, for seriously fast boiling
- Expansive 7.7 cu ft total oven capacity across two oven cavities
- Non-tip full-extension shelves in main cavity for safe removal of hot dishes

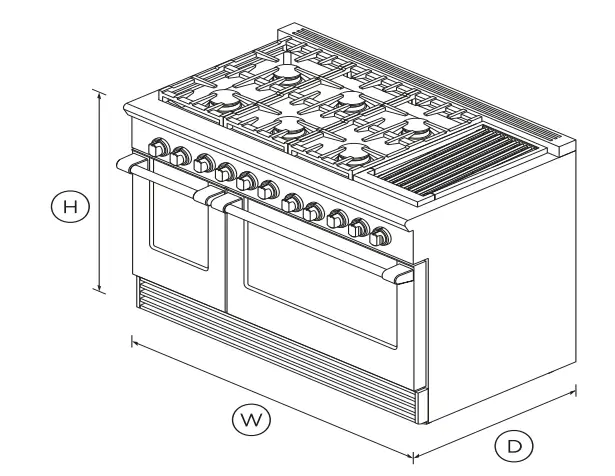

DIMENSIONS
| Height | 35 3/4 – 36 3/4″ |
| Width | 47 7/8″ |
| Depth | 29 1/8″ |
FEATURES & BENEFITS
COOKTOP POWER
Sealed Dual Flow BurnersTM deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
TOTAL CONTROL
Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
EASY TO CLEAN A
sealed cooktop surface coupled with a commercial-style stainless steel finish means your cooktop simply needs a quick wipe to keep it looking good as new.
INSTANT VISIBILITY Control
dials have halo-illumination glowing white heating up; orange temperature reached; red self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
COOKING FLEXIBILITY
The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
DESIGN QUALITY
This range has been carefully crafted in every detail from performance to durability using quality materials.
SPECIFICATIONS
| Accessories | |
| Square handle option | AH-R48 |
| Burner ratings | |
| Maximum burner power | 18500BTU |
| Power back centre | 18500BTU |
| Power back left | 18500BTU |
| Power back right | 18500BTU |
| Power front centre | 18500BTU |
| Power front left | 23500BTU |
| Power front right | 8500BTU |
| Power griddle | 12000BTU |
| Total cooktop power | 128000 BTU |
| Capacity | |
| Shelf positions | 5 |
| Shelf positions | 5 |
| Controls | |
| Electric circuit | 3 wire |
| Metal illuminated dials | • |
| Gas Requirements | |
| Fitting and pipe | ½ NPT, min. ⅝” flex lin |
| Supply Pressure (natural gas | 6″ to 9″ W. |
| Oven feature | |
| Full extension telescopic | • |
| Oven performance | |
| Main oven – Bake power | 28,000 BT |
| Main oven – Broil power | 19,000 BTU |
| Secondary oven – Bake power | 18,000 BTU |
| Power requirements | |
| Amperage | 15A |
| Rated current | 15A |
| Supply frequency | 60H |
| Product dimensions | |
| Depth | 29 1/8” |
| Height | 35 3/4 – 36 ¾” |
| Width | 47 7/8” |
| Rangetop features | |
| Sealed Dual Flow Burners™ | • |
| Sealed range top | • |
| Vent trim included | • |
| Safety | |
| ADA compliant | • |
| Full extension telescopic | • |
| Secondary oven feature | |
| Electronic oven control | • |
| Internal ligh | • |
| Secondary oven functions | |
| Bake | • |
| Number of secondary oven | 2 |
| Proof | • |
| SKU | 7134 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
