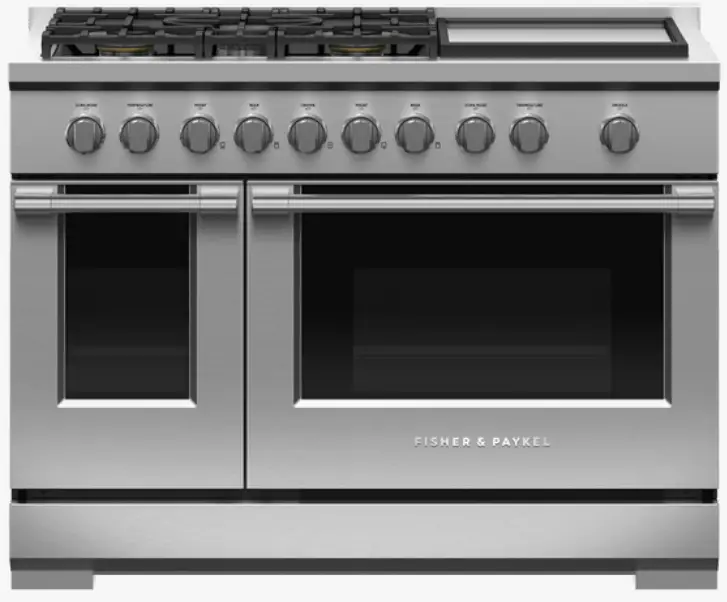

RGV3-485GD-L Gas Range
User Guide

QUICK REFERENCE GUIDE > RGV3-485GD-L
Gas Range, 48″, 5 Burners with Griddle, LPG
Series 7 | Professional
Stainless Steel | LPG
With Professional styling, this large range has five burners delivering powerful high heat, a griddle and two gas ovens.

Griddle with burners that deliver up to 17,000 BTU heat per burner, for seriously fast boiling
Expansive 7.7 cu ft total oven capacity across two oven cavities
Non-tip full-extension shelves in the main cavity for safe removal of hot dishes
Made from quality materials and real stainless steel

Contents hide

1 DIMENSIONS

2 FEATURES & BENEFITS

3 SPECIFICATIONS

4 Documents / Resources

4.1 References

5 Related Posts

DIMENSIONS

Height	35 3/4 – 36 3/4″
Width	47 7/8″
Depth	29 1/8″

FEATURES & BENEFITS

Generous capacity
Featuring a generous total capacity of 7.7 cu ft, with enough room to fit a 32 lb turkey. The griddle plate allows you to cook several foods at once.
Cooktop power
Sealed Dual Flow BurnersTM delivers cooktop power up to 17,000 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
Cooking flexibility
The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full-size baking sheets.
Design quality
This range has craftsmanship in every detail, with real stainless steel, cast-iron grates, and titanium-coated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful legs to the powerful cooktop, the Range is built to last.
Easy to clean
Cleaning up spills is effortless with the continuous, porcelain baseman. Your cooktop simply needs a quick wipe to keep it looking good as new.
Total control
Precise control across high and low settings is delivered through the halo-illuminated cooktop dials.

SPECIFICATIONS

Accessories
Square handle option	AH-R48
Burner ratings
Maximum burner power	16000 BTU
Power back left	11500BTU
Power back right	11500BTU
Power center	16000BTU
Power front left	15000BTU
Power front right	15000BTU
Power griddle	22000BTU
Total cooktop power	91000 BTU
Capacity
Shelf positions	5
Shelf positions	5
Shelf positions	5
Cleaning
Easy clean porcelain baseman	•
Controls
Electric circuit	3 wire
Metal illuminated dials	•
Gas Requirements
Fitting and pipe	½ NPT, min. ⅝” flex line
Supply Pressure (LPG)	11″ to 14″ W.C
Oven Features
Electronic oven control	•
Full extension telescopic	•
Infrared Broiler	•
Internal light	•
Titanium coated, illuminated	•
Oven functions
Bake	•
Broil	•
Convection bake	•
Slow cook	•
Oven performance
Main oven – Bake power	21,500 BTU
Main oven – Broil power	19,000 BTU
Secondary oven – Bake power	14,000 BTU
Power requirements
Amperage	15A
Rated current	15A
Supply frequency	60Hz
Product dimensions
Depth	29 1/8″
Height	35 3/4 – 36 3/4″
Width	47 7/8″
Rangetop features
Sealed Dual Flow Burners™	5
Sealed range top	•
Vent trim included	•

Recommended Back Guards Ventilation
Combustible situation	BGRV3-3048H
Non combustible situation	BGRV2-3048 / BGRV2-1248
Recommended hood	HCB48-12_N (48″”
Safety
ADA compliant	•
Full extension telescopic	•
Secondary oven features
3/4 Extension racks	2
Electronic oven control	•
Internal light	•
Secondary oven functions
Bake	•
Convection bake	•
Number of secondary ovens	4
Proof	•
Slow cook	•
SKU	81997

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
