RGV2-485GD-N-N Gas Range
User Guide

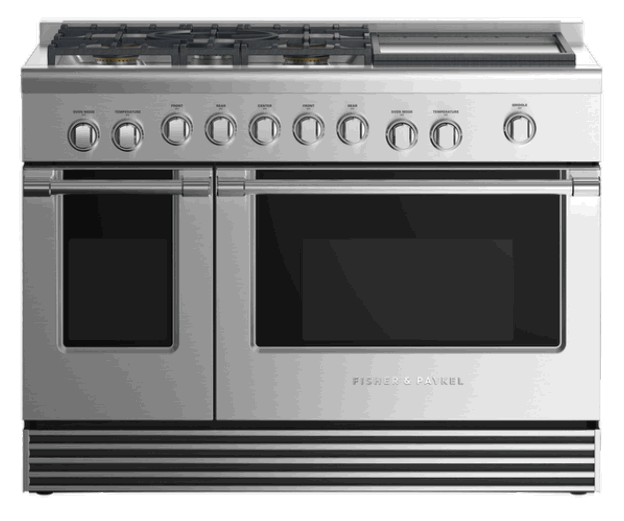

RGV2-485GD-N-N Gas Range
With Professional styling, this large range has five burners delivering powerful high heat, a griddle and two gas ovens.
- Top burner heat of 23,500 BTU, for seriously fast boiling
- Expansive 7.7 cu ft total oven capacity across two oven cavities
- Non-tip full-extension shelves in main cavity for safe removal of hot dishes

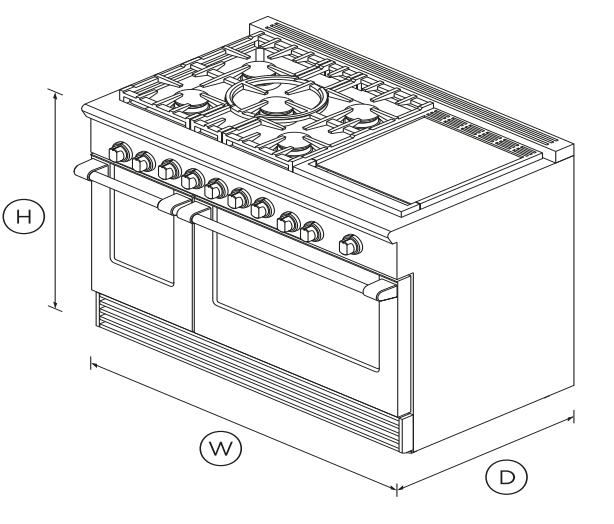

DIMENSIONS
| Height | 35 3/4 – 36 3/4″ |
| Width | 47 7/8″ |
| Depth | 29 1/8″ |
FEATURES & BENEFITS
Cooktop power
Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to aprecise 140°F full surface simmer with the entlest of flames.
Total control
Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise nd consistent temperatures.
Easy to clean
A sealed cooktop surface coupled with a commercial-style stainless steel finish means your cooktop simply needs a quick wipe to keep it looking good as new.
Instant visibility
Control dials have halo-illumination glowing white – heating up; orange – temperature reached; red – self-cleaning mode. The oven is illuminated by two powerful ncandescent lights.
Cooking flexibility
The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
Design quality
This range has been carefully crafted in every detail from performance to durability using quality materials.
SPECIFICATIONS
Accessories
| Square handle option | AH-R48 |
| Burner ratings | |
| Power back left | 18500 BTU |
| Power back right | 18500 BTU |
| Power centre | 23500 BTU |
| Power front right | 18500 BTU |
| Power griddle | 24000 BTU |
| Capacity | |
| Shelf positions | 5 |
| Cleaning | |
| QUICK REFERENCE GUIDE > | QUICK REFERENCE GUIDE > RGV2-485GD-N_N |
| Dishwasher proof grates | • |
| Controls | |
| Electric circuit | 3 wire |
| Metal illuminated dials | • |
| Gas Requirements | |
| Fitting and pipe | ½ NPT, min. ⅝” flex line |
| Oven features | |
| Full extension telescopic | • |
| Power requirements | |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Product dimensions | |
| Depth | 29 1/8″ |
| Height | 35 3/4 – 36 3/4″ |
| Width | 47 7/8″ |
| Rangetop features | |
| Sealed Dual Flow Burners™ | 5 |
| Sealed range top | • |
| Vent trim included | • |
| Safety | |
| Full extension telescopic | • |
| Secondary oven features | |
| Electronic oven control | • |
| Internal light | • |
| Secondary oven functions | |
| Bake | • |
| Number of secondary oven | 2 |
| Proof | • |
| SKU | 71344 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently vailable. ? Fisher & Paykel Appliances Ltd 2020
