QUICK REFERENCE GUIDE > RGV3-488-N

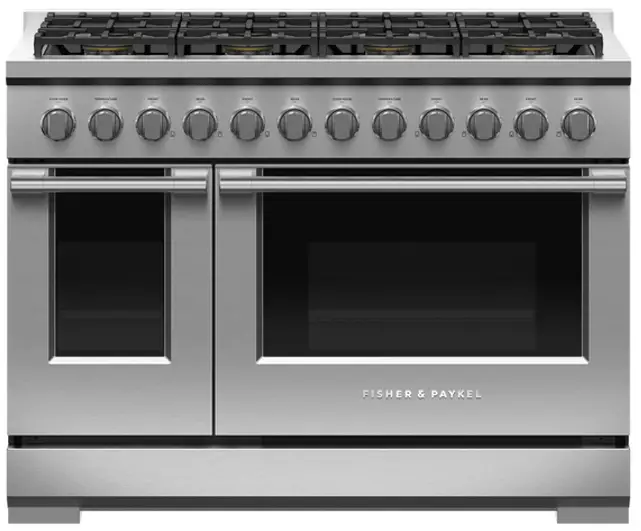

Gas Range, 48″, 8 Burners

Contents hide

1 Series 7 | Professional Stainless Steel | Natural gas

2 DIMENSIONS

3 FEATURES & BENEFITS

4 SPECIFICATIONS

5 Documents / Resources

5.1 References

6 Related Posts

Series 7 | Professional Stainless Steel | Natural gas

Size plus power. Eight burners deliver powerful 23,500 BTU heat, with two gas ovens for a combined 7.7 cu ft capacity.

Top burner heat of 23,500 BTU, for seriously fast boiling
Expansive 7.7 cu ft total oven capacity across two oven cavities
Non-tip full-extension shelves in the main cavity for safe removal of hot dishes
Made from quality materials and real stainless steel

DIMENSIONS

Height	35 3/4 – 36 3/4″
Width	47 7/8″
Depth	29 1/8″

FEATURES & BENEFITS

Generous capacity
Featuring a generous total capacity of 7.7 cu ft, with enough
room to fit a 32 lb turkey, or to cook several dishes at once.
Cooktop power
Sealed Dual Flow Burners™ deliver cooktop power up to 23,500
BTU for seriously fast boiling right down to a precise 140°F full
surface simmer with the gentlest of flames.
Cooking flexibility
The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full-size baking sheets.
Design quality
This range has craftsmanship in every detail, with real stainless steel, cast-iron grates, and titanium-coated dials. Each cavity features incandescent lights and full-extension telescopic racks. From the robust legs to the powerful legs to the powerful cooktop, the Range is built to last.
Easy to clean
Cleaning up spills is effortless with the continuous, porcelain baseman. Your cooktop simply needs a quick wipe to keep it looking good as new.
Total control
Precise control across high and low settings is delivered through the halo-illuminated cooktop dials.

SPECIFICATIONS

Accessories

Square handle option

AH-R48

Burner ratings

Maximum burner power	23500 BTU
Power back centre	18500BTU
Power back centre (2)	18500BTU
Power back left	18500BTU
Power back right	18500BTU
Power front centre	18500BTU
Power front centre (2)	18500BTU
Power front left	23500BTU
Power front right	23500BTU
Total cooktop power	158000 BTU

Capacity

Shelf positions

Cleaning

Easy clean porcelain baseman

•

Controls

Electric circuit	3 wire
Metal illuminated dials	•

Gas Requirements

Fitting and pipe	½ NPT, min. ⅝” flex line
Supply Pressure (natural gas)	6″ to 9″ W.C
Electronic oven control	•
Full extension telescopic	•
Internal light	•
Titanium coated, illuminated	•

Oven functions

Bake	•
Broil	•
Convection bake	•
Slow cook	•

Oven performance

Main oven – Bake power	28,000 BTU
Main oven – Broil power	18,500 BTU
Secondary oven – Bake power	18,000 BTU

Power requirements

Amperage	15A
Rated current	15A
Supply frequency	60Hz

Product dimensions

Depth	29 1/8″
Depth (excluding handles)	29 1/8″
Height	35 3/4 – 36 3/4″
Width	47 7/8″

Rangetop features

Sealed Dual Flow Burners™	8
Sealed range top	•
Vent trim included	•

Recommended Back Guards Ventilation

Combustible situation	BGRV3-3048H
Non combustible situation	BGRV2-3048 / BGRV2-1248
Recommended hood	HCB48-12_N (48″ Professional

Safety

ADA compliant	•
Full extension telescopic	•

Secondary oven features

3/4 Extension racks	2
Electronic oven control	•
Internal light	•

Secondary oven functions

Bake	•
Convection bake	•
Number of secondary ovens	4
Proof	•
Slow cook	•

SKU

81994

The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
