1890 Water Controls Water Control Flex

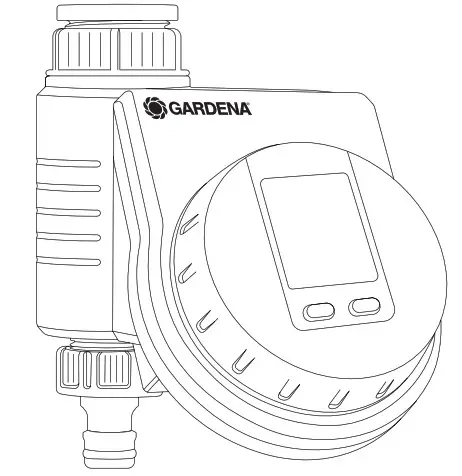

GARDENA Water Control Flex

Translation of the original instructions.
For safety reasons, children and young people under 16 as well as anyone who is not familiar with these operating instructions should not use the product. Persons with reduced physical or mental abilities may use the product only if they are supervised or instructed by a responsible person. Children must be supervised to ensure that they do not play with the product. Never operate the product when you are tired, ill or under the influence of alcohol, drugs or medicine.

Intended use:
The GARDENA Water Control is intended for private use in domestic and hobby gardens, exclusively for outdoor use, to control sprinklers and watering systems. The Water Control can be used for automatic watering during holidays.
DANGER! The GARDENA Water Control must not be used for industrial purposes or in conjunction with chemicals, foodstuffs, easily flammable and explosive materials.

SAFETY

Important!
Read the operator’s manual carefully before use and keep for future reference.

Battery:
To ensure the Water Control runs safely, only a 9V alkaline manganese battery (alkaline) type IEC 6LR61 must be used!

In order to stop the Water Control from failing because of a weak battery if you are away for a long time, the battery must be replaced when the battery symbol flashes.

Setting up:
The Water Control may only be set up vertically with the sleeve nut to the top to prevent water penetrating into the battery compartment.
The minimum water output to ensure that the Water Control functions correctly is 20 – 30 l/h.
For example, at least 10 x 2-litre Drip Heads are required to control the Micro-Drip-System.
At high temperatures (over 70 °C at the display) the LCD display may extinguish. This does not affect the program in any way. When the computer cools down the LCD display illuminates again.
The max. temperature for the water flow is 40 °C. Avoid tensile strain.
→ Do not pull the hose connected to the Water Control.

CAUTION! If the control section is removed when the valve is open, the valve remains open until the control section is reattached.
DANGER! Cardiac arrest!
This product makes an electromagnetic field while it operates. This field may under some conditions interfere with active or passive medical implants. To decrease the risk of conditions that can possibly injure or kill, we recommend persons with medical implants to speak with their physician and the medical implant manufacturer before you operate the product.

DANGER! Risk of suffocation!
Small parts can be easily swallowed. There is also a risk that the polybag can suffocate toddlers. Keep toddlers away when you assemble the product.

A video of the commissioning and setting processes is available here:

http://www.gardena.com/flexcontrol-video

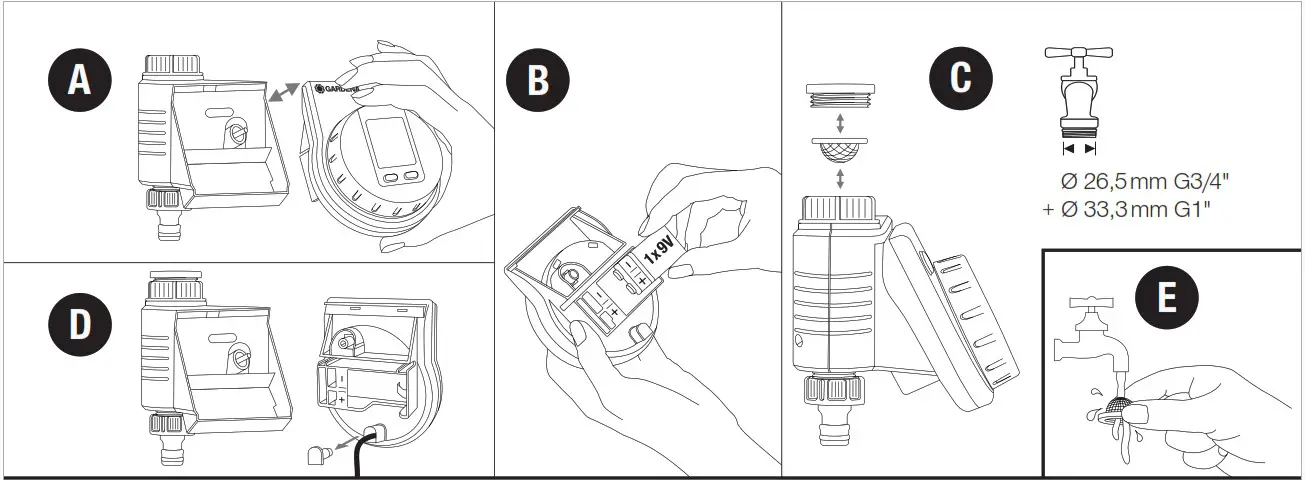

INITIAL OPERATION v (Fig. A – D)

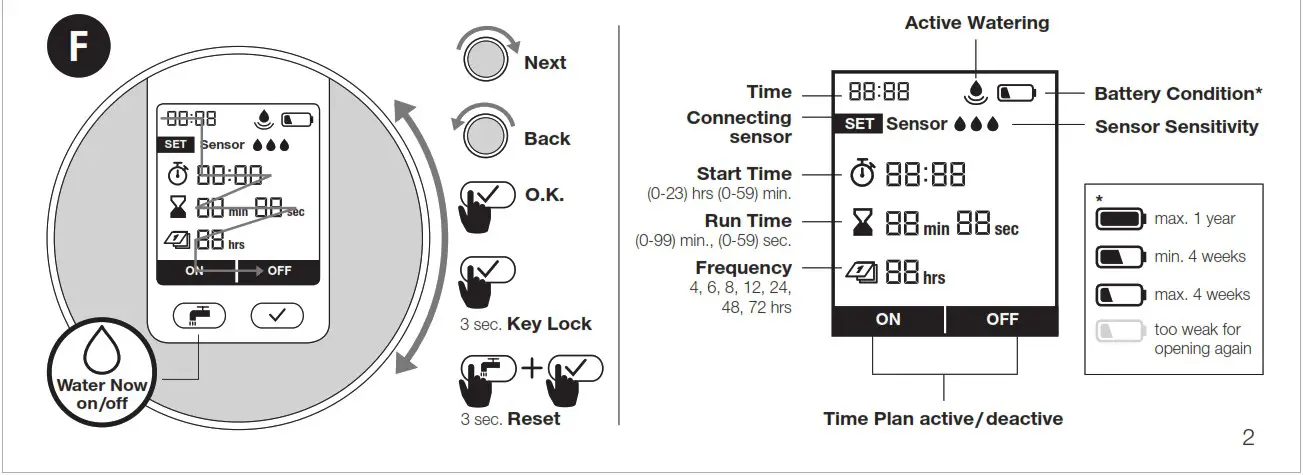

FUNCTION v (Fig. F)

The settings can be adjusted when the control panel is removed. You can change the settings or move to the next setting by turning the outer wheel. Pressing the button confirms the respective input. Pressing the button for a minimum of 3 seconds locks or unlocks the display.

	max. 1 year		max. 4 weeks
	min. 4 weeks		too weak for opening again

PROGRAMMING v (Fig. G – I)

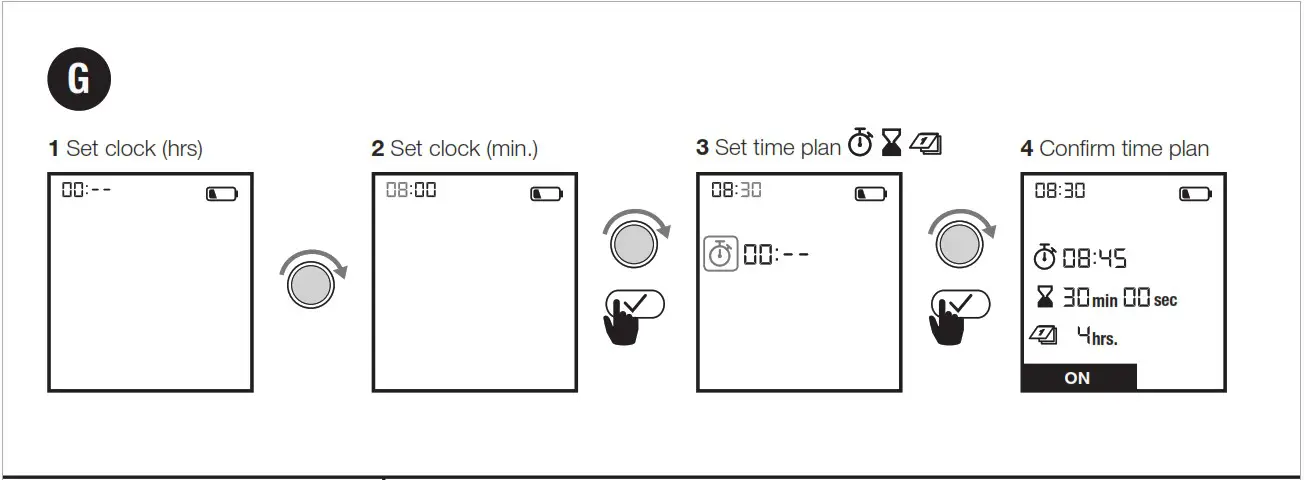

Fig. G: 1 Set time (hours) | 2 Set time (mins) | 3 Select schedule | 4 Confirm schedule

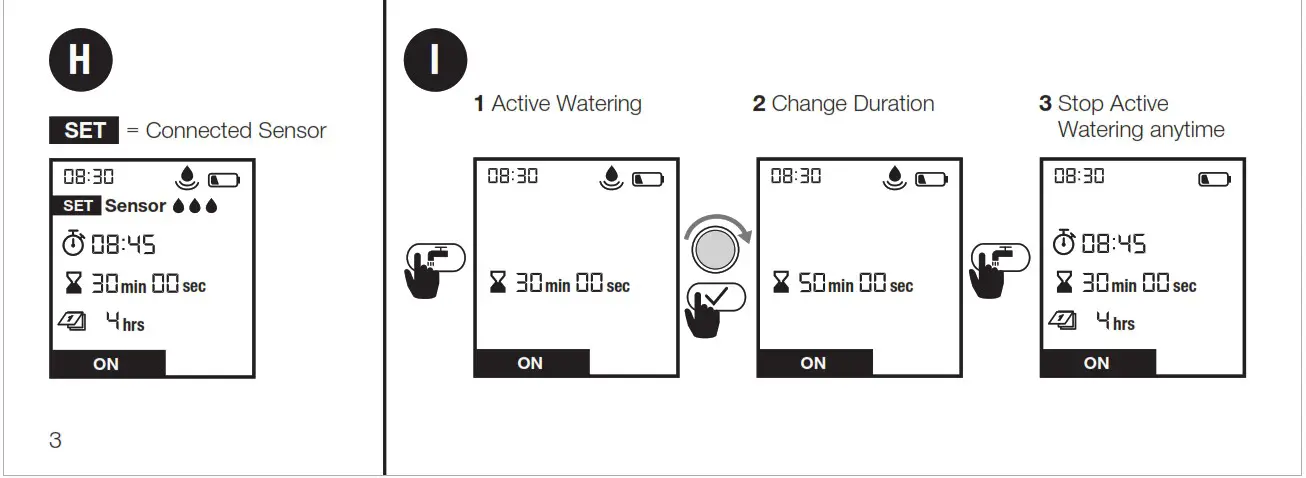

Fig. H: Set = Sensor connected
Fig. I: 1 Active watering | 2 Change watering duration |3 Stop active watering at any time
The saved watering schedule can be activated or deactivated by pressing on / off. By pressing the button, manual watering can be started or stopped at a desired time (see fig. I ).
Watering tip: For pot plants that required small amounts of water at regular intervals, short watering cycles are ideal in combination with a drip irrigation system.
Connect soil moisture sensor (optional) fig. D:
After a sensor has been connected, the “set sensor” display will appear. By selecting 3-drip /0-drip the sensor response will be activated /deactivated. After successful activation, the “set” display will disappear (see fig. H). If the soil is sufficiently moist, watering will be immediately stopped or prevented.

MAINTENANCE v (Fig. E)

STORAGE

To put into storage:
→ The product must be stored away from children.
→ To preserve the battery, it should be removed (fig. B).
→ Store the controller and the valve unit in a dry, enclosed and frost-free place.

Disposal: (in accordance with RL2012/19/EC)
The product must not be disposed of to normal household waste. It must be disposed of in line with local environmental regulations.

IMPORTANT! Dispose of the product through or via your municipal recycling collection centre.
Disposal of the battery: Please return a flat battery to a GARDENA dealer or dispose of it properly at your nearest recycling centre. Dispose of the battery only when discharged.

TROUBLESHOOTING

Problem	Possible Cause	Remedy
No display appears	Battery is inserted incorrectly.	→ Check the polarity markings match (+/-).
	Battery is flat.	→ Insert a new (alkaline) battery.
	Temperature on the display is higher than 70 °C.	→ Display appears after the temperature has dropped.
Manual watering Is not possible using the button	Low battery is continuously displayed.	→ Insert a new (alkaline) battery.
	Tap is turned off.	→ Tum the tap on.
	Controller is not connected.	→ Mount the controller on housing.
	Minimum pressure of 0.5 bar not available.	→ Ensure a pressure of at least 0.5 bar.
Watering program is not being undertaken (no watering)	Program entry/modification during or just before the start pulse.	→ Make program entry/modification outside the programmed start times.
	Valve was opened manually previously.	→ Avoid possible program overlaps.
	Tap is turned off.	→ Tum the tap on.
	Soil moisture or rain sensor registers damp.	→ If dry, check the setting/location of the soil moisture/rain sensor.
	Controller is not connected.	→ Mount the controller on housing.
	Low battery is continuously displayed.	→ Insert a new (alkaline) battery.
	Minimum pressure of 0.5 bar not available.	→ Ensure a pressure of at least 0.5 bar.
Water Control does not close	Minimum quantity of water drawn is less than 20 I/h.	→ Connect more drip heads.
Water Control does not close	Valve soiled.	→ Flush in the opposite direction to the normal flow direction.

NOTE: For any other malfunctions please contact the GARDENA service department.
Repairs must only be done by GARDENA service departments or specialist dealers approved by GARDENA.

TECHNICAL DATA

Water Control	Value / Unit
Min. / max. operating pressure	0.5 bar / 12 bar
Operating temperature range	5 °C to 50 °C
Flow medium	Clear fresh water
Max. liquid temperature	40 °C
No. of program-controlled watering sequences per day	6 (every 4 h), 4 (every 6 h), 3 (every 8 h), 2 (every 12 h), 1 (every24 h), every other day (every 48 h), every third day (every 72 h)
Water Control	Value / Unit
No. of program-controlled watering sequences per week	max. 42
Watering duration	1 sec. ‒ 99 min. 59 sec.
Battery required	1 x 9V alkaline manganese Typ IEC 6LR61
Operating time of the battery	approximately 1 year

ACCESSORIES

GARDENA Soil Moisture Sensor	Art. 1188
GARDENA Anti-theft device	Art. 1815-00.791.00 from the GARDENA Service

SERVICE / WARRANTY

Service:
Please contact the address on the back page.

Warranty:
In the event of a warranty claim, no charge is levied to you for the services provided.
GARDENA Manufacturing GmbH offers a 2-year warranty for this product (from the date of purchase) if the product has been used exclusively for private purposes.
This manufacturer’s warranty does not apply to used products purchased from a secondary market. This warranty includes all significant defects of
the product that can be proved to be material or manufacturing faults. This war ranty is fulfilled by supplying a fully functional replacement product or by repairing the faulty product sent to us free of charge; we reserve the right to choose between these options. This service is subject to the following provisions:

The product was used for its intended purpose as per the recommendations in the operating instructions.
Neither the purchaser nor a third party has attempted to repair the product.
Only original GARDENA spare and wear parts were used.

Normal wear and tear of parts and components, optical changes, as well as wear parts and consumables, are excluded from the warranty.
This manufacturer’s warranty does not affect warranty entitlements against the dealer / retailer.

If problems arise with this product, please contact our Service department. In the event of a warranty claim, please send the defective product together with a copy of the purchase receipt and a description of the defect, sufficiently stamped, to the GARDENA service address on the
back page.

Consumables:
Faults which occur as a result of incorrectly installed or leaking batteries are not covered by the guarantee.
Damage caused by frost is not covered by the warranty.

Product liability
In accordance with the German Product Liability Act, we hereby expressly declare that we accept no liability for damage incurred from our products where said products have not been properly repaired by a GARDENA-approved service partner or where original GARDENA parts or parts authorised by GARDENA were not used.

Description of the product: Water Control
Product type: Flex
Article number: 1890
EC-Directives: 2014/30/EC 2011/65/EC
GARDENA Technische : M. Kugler, 89079 Ulm
Year of CE marking: 2018
Ulm, 20.12.2018
