Eve Systems Aqua Smart Water Controller User Manual

Eve Systems Aqua Smart Water Controller User Manual

Eve Systems - logoAqua Smart Water Controller
User Manual

Get started

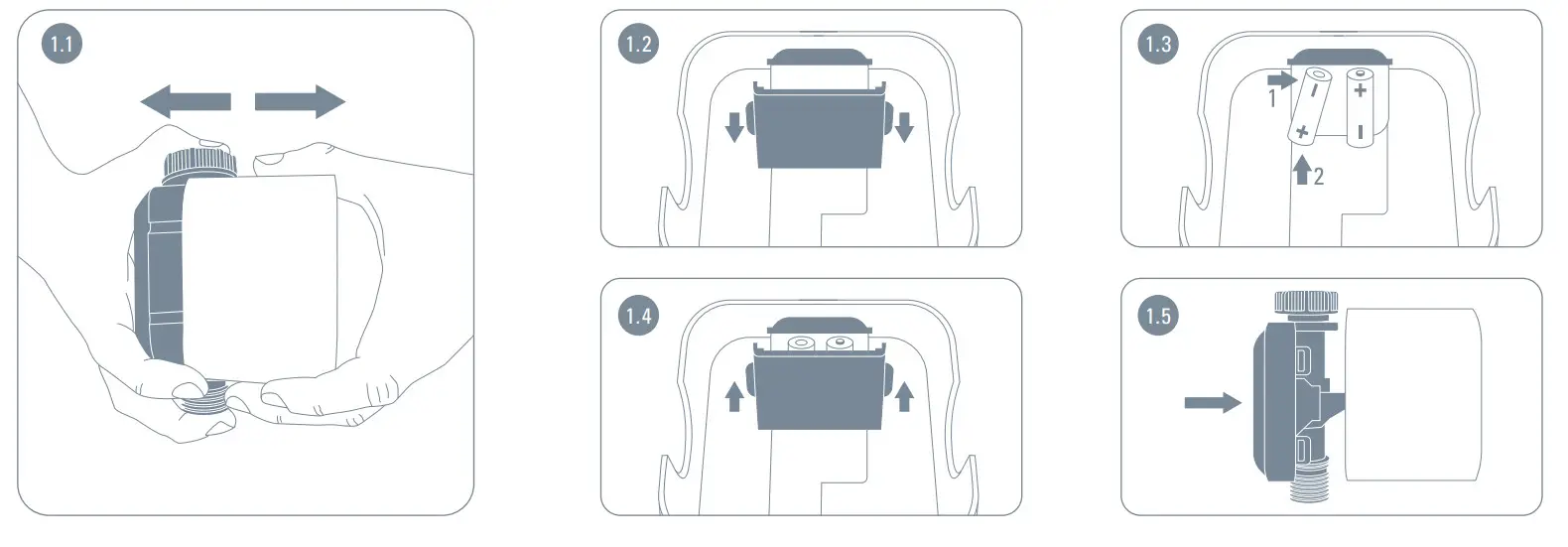

  1. Insert the included AA batteries before proceeding with the installation.
    Eve Systems Aqua Smart Water Controller

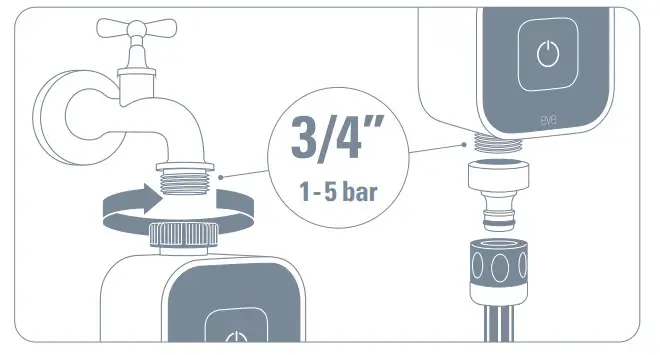

  2. Mount Eve Aqua on your faucet and connect a hose.
    Eve Systems Aqua Smart Water Controller - Figure 1KEMPPI A7 Cooler Colling Unit - NoteAttention: Always ensure that Eve Aqua is not exposed to frost.
  3. Download the Eve app from the App Store.
    Eve Systems Aqua Smart Water Controller - Figure 2
    Eve Systems Aqua Smart Water Controller - Figure 3
  4. Open the Eve app and tap Add Accessory. Eve will now guide you through the setup process.

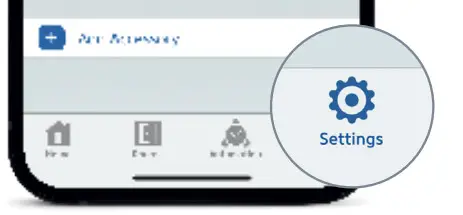

If you have already set up another accessory, go to Settings in Eve to add Eve Aqua to your home.

Enjoy

Eve Aqua can be controlled using the Eve app, the Home app, and Siri.

Eve Systems Aqua Smart Water Controller - icon 1Eve Systems Aqua Smart Water Controller - icon 7Eve Systems Aqua Smart Water Controller - icon 8
Eve Systems Aqua Smart Water Controller - icon 2Control
Eve Systems Aqua Smart Water Controller - icon 3Set schedules (no home hub required)
Eve Systems Aqua Smart Water Controller - icon 4Enable child lock
Eve Systems Aqua Smart Water Controller - icon 5Monitor water consumption
Eve Systems Aqua Smart Water Controller - icon 6Install firmware updates
Eve Systems Aqua Smart Water Controller - icon 9Control
Eve Systems Aqua Smart Water Controller - icon 10Configure guest access
Eve Systems Aqua Smart Water Controller - icon 11Control

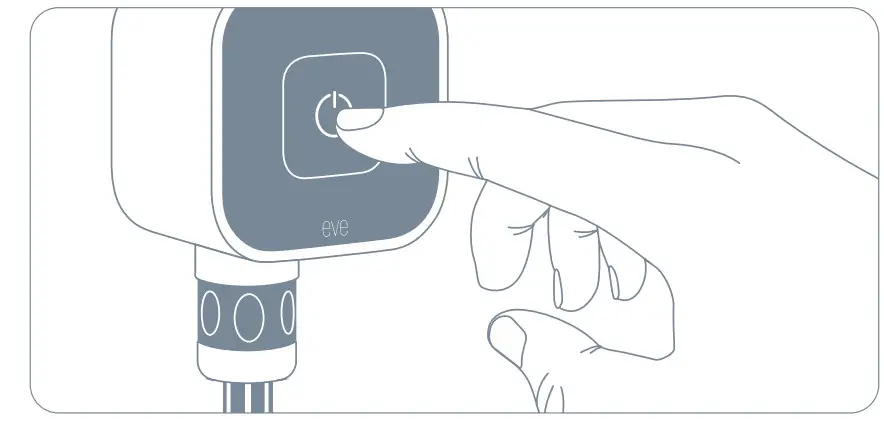

You can also press the button to start and stop watering.
Eve Aqua will turn off automatically when the default duration set via the Eve app has expired.Eve Systems Aqua Smart Water Controller - Figure 4

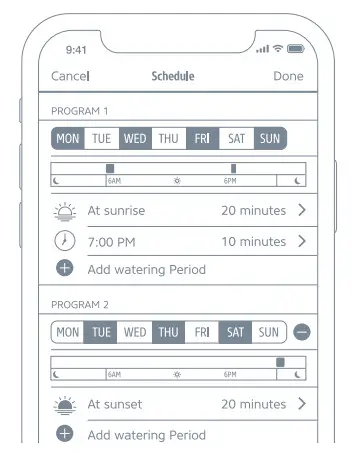

Schedules automatically control
Eve Aqua – completely autonomously, independently of your iPhone or home hub. Set schedules to water automatically at specific times using the Eve app.Eve Systems Aqua Smart Water Controller - Figure 5

Eve is designed to safeguard your personal data. All data is fully encrypted and only transferred directly between your Eve Aqua and iPhone, iPad or home hub.
Learn more at evehome.com/privacyEve Systems Aqua Smart Water Controller - Figure 6

Legal Information

This device complies with part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures: reorient or relocate the receiving antenna; increase the separation between the equipment and receiver; consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003.
This equipment complies with FCC RF, IC RSS-102 and CE radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Changes or modifications not expressly approved by Eve Systems could void your authority to operate this device.
Eve Systems Aqua Smart Water Controller - icon 12

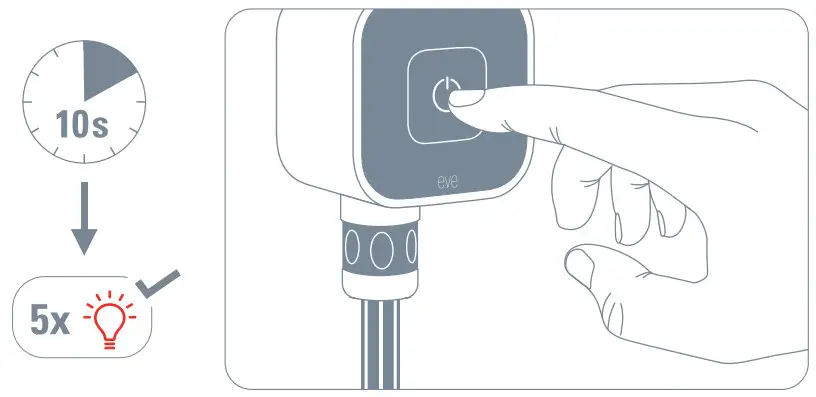

Reset

Eve Systems Aqua Smart Water Controller - Figure 7

important iconPlease keep your HomeKit Setup Code in a safe place.
You need it to securely add Eve to your home, and nobody but you has a copy.
