QUICK REFERENCE GUIDE > OR36SCG4R1
Gas Range, 36″, 5 Burners
Series 7 | Classic
Red
User Guide

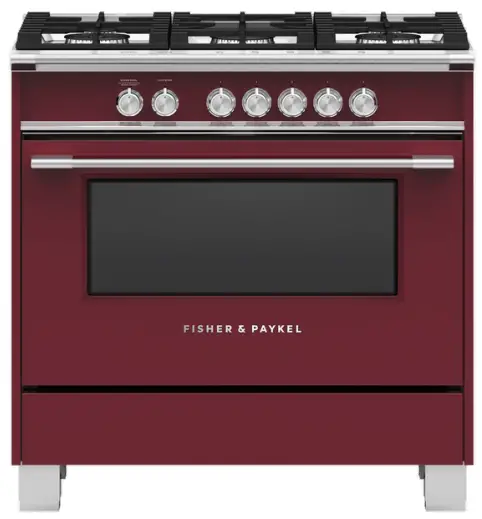

OR36SCG4R1 Gas Range
Make your range a focal point. With a large capacity oven and fiveburners, this is the perfect way to cook for a crowd.
- Five burner gas cooktop, including one dual ring and two triplering wok burners
- Gas oven with 4.9 cu ft total capacity and three functions including Bake and Broil

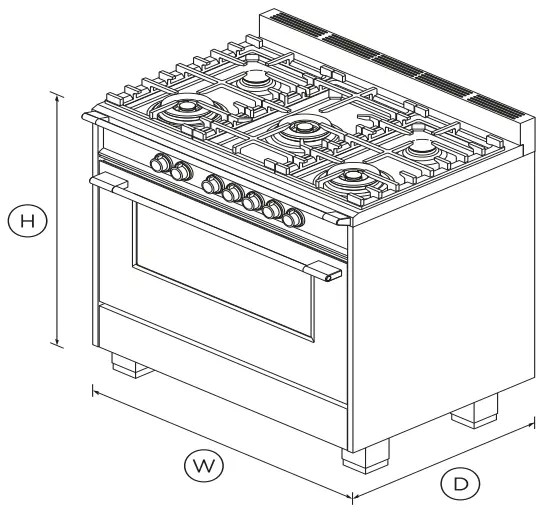

DIMENSIONS
| Height | 35 3/4 – 37 1/4″ |
| Width | 35 7/8″ |
| Depth | 25 1/4″ |
FEATURES & BENEFITS
DESIGN QUALITY
This range has been carefully crafted in every detail from performance to durability using quality materials including the balanced soft-close door and rounded rangetop rail.
LARGE CAPACITY OVEN
The generous 4.9 cu.ft total capacity oven gives you plenty of space to cook multiple dishes at once, with enough room to fit a 32 lb turkey.
PERFORMANCE POWER
Precise cooktop controls let you sear or stir fry over instant, powerful heat. Use the high burner power or simmer a delicate sauce using the gentlest of heats.
EASY CLEANING
With its durable surface, your cooktop simply needs a quick wipe after cooking to keep it looking good as new for years to come.
SPECIFICATIONS
| Accessories | |
| 2-pc grill system (Broil pan and | • |
| Broil pan | • |
| Broil rack | • |
| Chromed shelf runners | 1 set |
| Full Extension Telescopic | 2 sets (part 578744) |
| Kick strip, red (optional) | KICKOR36R1 |
| Kick strip, white (optional) | KICKOR36W1 |
| Small pot support | 1 (part 533981 cast) |
| Burner ratings | |
| Dual wok burner inner/outer | 1000 – 18000BTU |
| Dual wok burner inner/outer | 1000 – 18000BTU |
| Maximum burner power | 18000 BTU |
| Semi-rapid burner (LPG) | 7600BTU |
| Semi-rapid burner (natural | 8000BTU |
| Total cooktop power | 62000 BTU |
| Triple ring wok burner (LPG) | 6100 – 12000BTU |
| Triple ring wok burner (natural | 6100 – 14000BTU |
| Capacity | |
| Shelf positions | 7 |
| Cleaning | |
| Acid resistant graphite enamel | • |
| Removable oven door | • |
| Removable shelf runners | • |
| Controls | |
| Laser etched graphics | • |
| Gas Requirements | |
| Supply Pressure (LPG) | 11″ W.C.P |
| Supply Pressure (natural gas) | 4″ W.C.P |
| Oven features | |
| Auto re-ignition system | • |
| Concealed element | • |
| Convection | • |
| Electronic ignition | • |
| Full extension telescopic | • |
| Internal light | 4 x 25W halogen (2 side & 2 |
| Soft open/close door | • |
| Storage drawer | • |
| Oven functions | |
| Bake | • |
| Broil | • |
| Convection bake | • |
| Number of functions | 3 |
| Oven performance | |
| CoolTouch door | Quadruple glazed |
| Power requirements | |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Product dimensions | |
| Depth | 25 1/4″ |
| Height | 35 3/4 – 37 1/4″ |
| Width | 35 7/8″ |
| Rangetop features | |
| Hob rail | • |
| LPG/Natural gas compatible | • |
| Sealed range top | • |
| Rangetop Performance | |
| Number of burners | 5 |
| Safety | |
| ADA compliant | • |
| Advanced cooling system | • |
| Anti-tilt bracket | • |
| Balanced oven door | • |
| Full extension telescopic | 2 sets (part 578744) |
| Full extension telescopic | • |
| Non-tip shelves | • |
| Spill containment | 5/8 gallon |
| SKU | 81704 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
