Engo Easybatb Wired Battery Thermostat User Guide

ENGO EASYBATB Wired Battery Thermostat

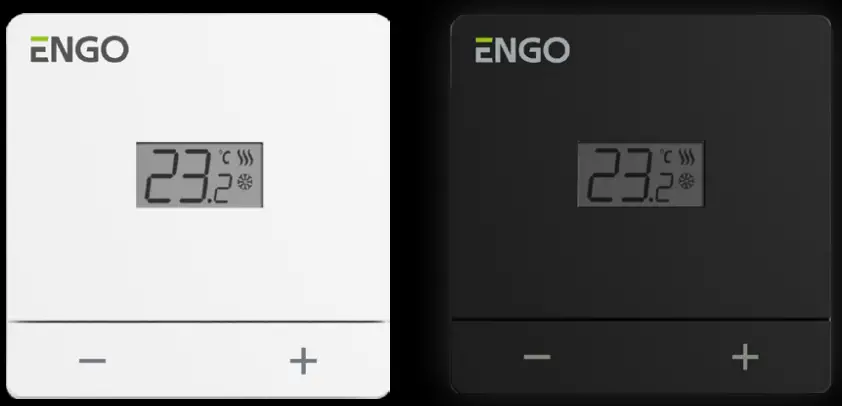

Wired, non-programmable thermostat, battery powered (2xAAA) or 230V AC powered. It is used for wired control of heating or cooling devices and systems. It works by maintaining comfortable conditions in the room, in line with the setpoint temperature set by the user. It is connected directly to a heat source or wiring centre. For a better fit, the model is available in two colors. Safe, reliable, easy to use.

Product Compliance

This product complies with the following EU Directives: 2014/53/EU, 2011/65/EU.

Technical Informations

Connection description for EASY230W / EASY230B

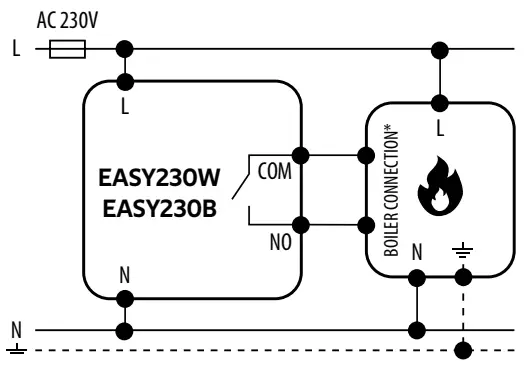

• Connection diagram for gas boiler

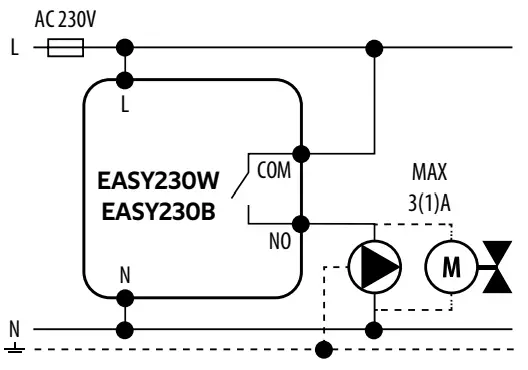

• Connection diagram to pump / actuator

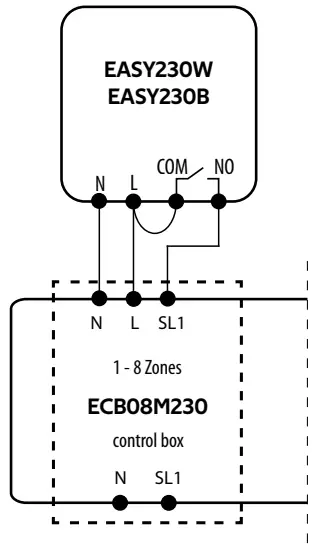

• Connection diagram to the control box



Connection description for EASYBATW / EASYBATB

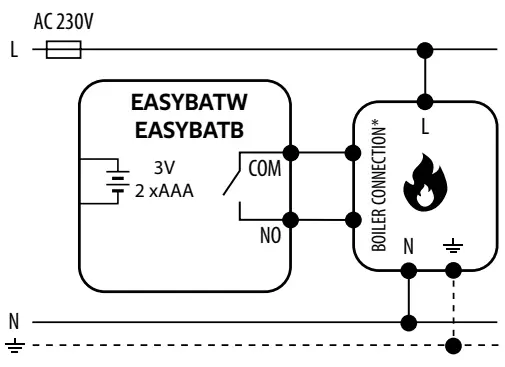

• Connection diagram for gas boiler

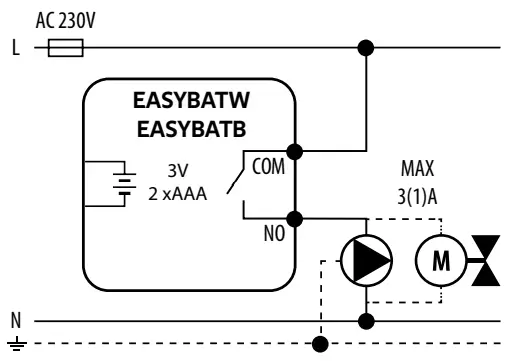

• Connection diagram to pump / actuator

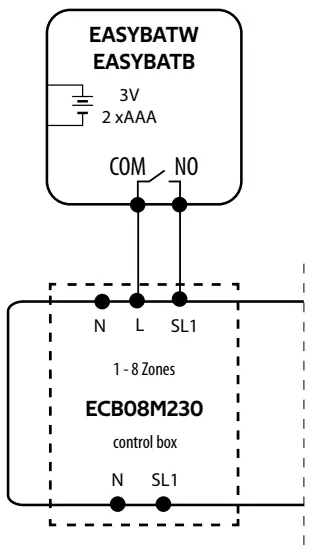

• Connection diagram to the control box

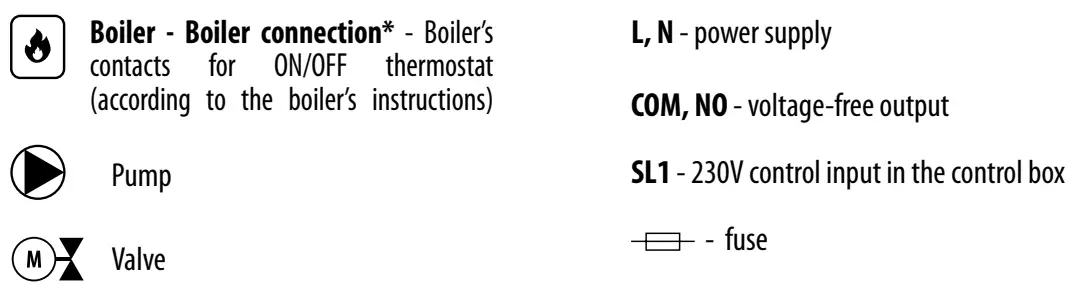

Legend:

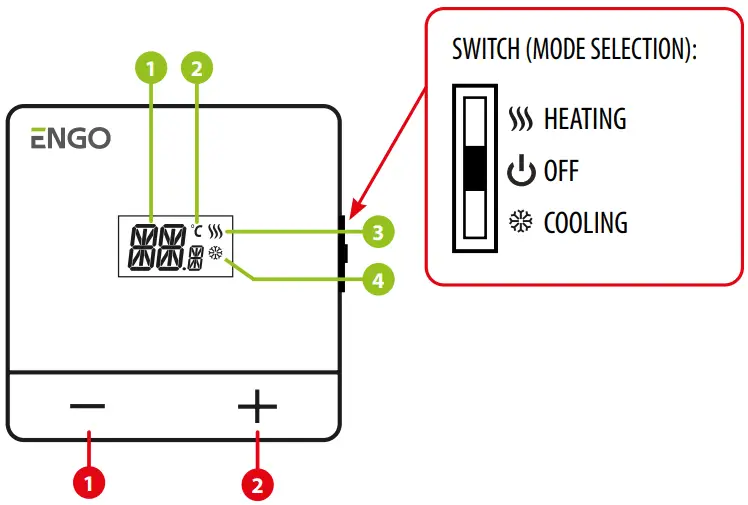

Description of the LCD display + description of the buttons

1. Current / set room temperature
2. Temperature unit
3. Heating mode icon
4. Cooling mode icon
   1. “MINUS” button
   2. “PLUS” button

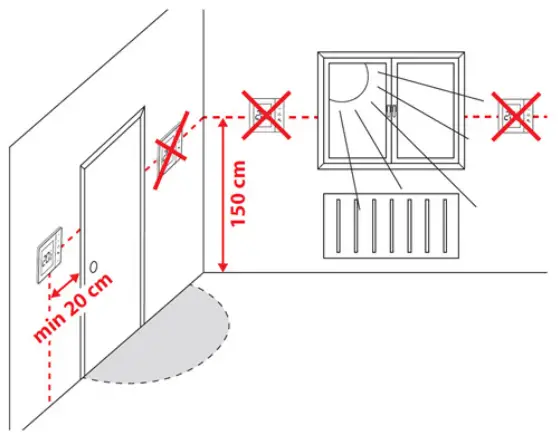

Proper thermostat location

For the thermostat to work properly, it must be installed in a suitable place. Preferably approx. 150 cm above floor level, away from sources of heat or cold. In addition, the thermostat should not be installed behind curtains or other obstacles or in places with high humidity, as this will prevent an accurate measurement of the temperature in the room. It is not recommended to install the thermostat on an outside wall, in a draft or in a place where it will be exposed to direct sunlight.

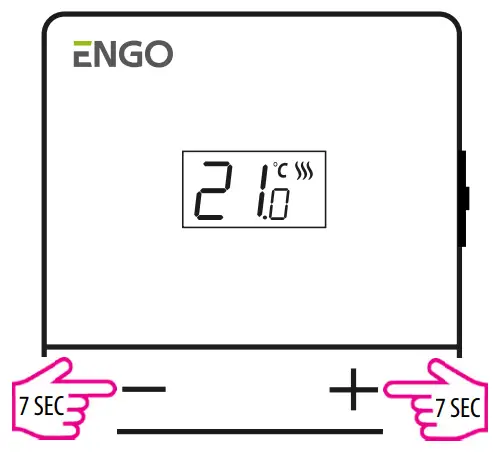

Lock / Unlock the thermostat’s keys

• To lock the keys on the thermostat, press and hold simultaneously – and + buttons for 7 seconds. After the screen appears, release the keys. Thermostat is locked.
• To unlock the keys on the thermostat, press and hold simultaneously – and + buttons for 7 seconds. After the screen appears,

Installer parameters

WARNING!

• After entering the service menu, use – or + buttons to choose parameter.
• For the parameter selection to be confirmed, wait 3 seconds.
• The screen will appear with the settings that you can change with – or + buttons.
• Wait 3 seconds for the selection to be confirmed.
• The thermostat will go to the home screen.

1. MAIN SCREEN
   To enter the service menu, press and hold „MINUS” and „PLUS” buttons for 5 seconds.

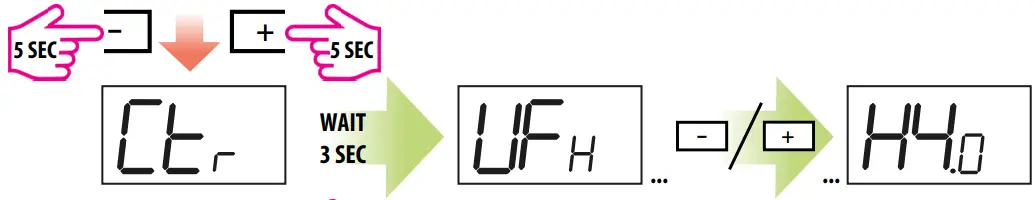

2. CHOOSE A CONTROL ALGORITHM
   • UFH – underfloor heating
   • RAD – radiator heating
   • ELE – electric heating
   • H – hysteresis in the range from 0,4°C to 4,0°C
   • Example: H = 0,4°C = ±0.2°C

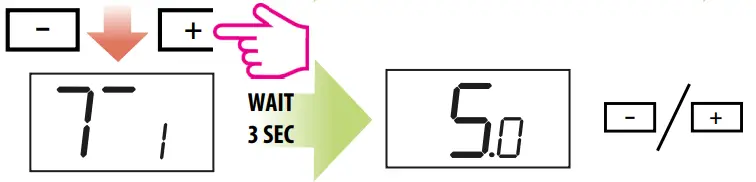

3. MIN. TEMP SETPOINT LIMIT
   Set the minimum temperature setpoint limit.

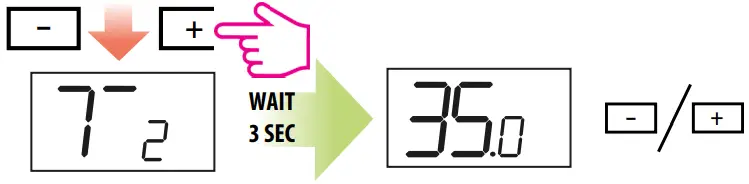

4. MAX. TEMP SETPOINT LIMIT
   Set the maximum temperature setpoint limit.

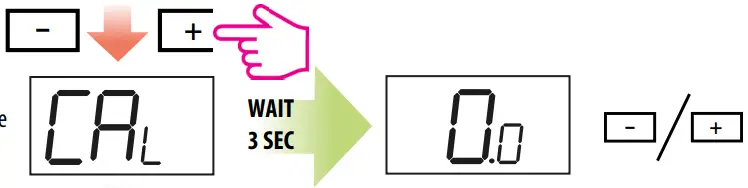

5. TEMPERATURE CALIBRATION
   Displayed (measured) temperature can be calibrated in steps of 0.1°C (from -3.5°C to + 3.5°C).

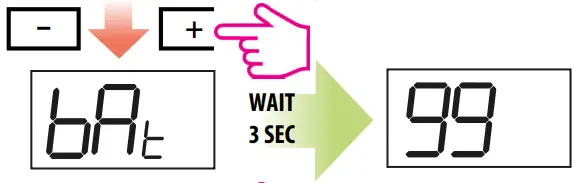

6. BATTERY STATUS*
   Check the current battery status (%). *only for battery version

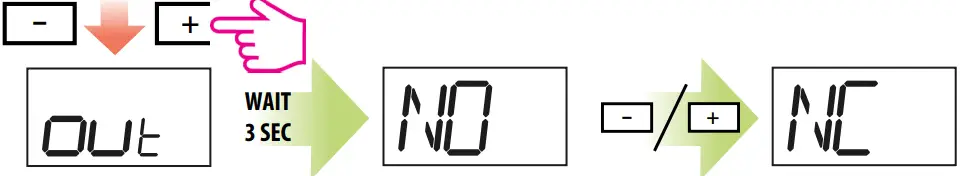

7. OUTPUT CONTROL
   Select whether the thermostat output has to work as NO = Normally Open or NC = Normally Closed.

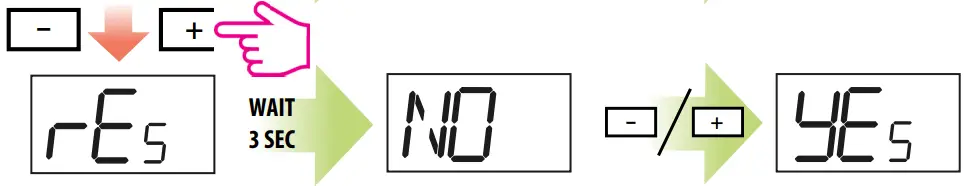

8. RESET
   Reset thermostat settings to default values
