ENGO EASYBATW Wired Thermostat, 230V
Wired Thermostat, 230V
Producer: Engo Controls S.C. 43-200 Pszczyna 3E Gornośląska St. Poland
Distributor:
QL CONTROLS Sp z o.o. Sp. k. 43-262 Kobielice 4 Rolna St. Poland
Ver. 1 Release date: l| 2022 www.engocontrols.com
Wired, non-programmable thermostat, battery powered (2xAAA) or 230V AC powered. It is used for wired control of heating or cooling devices and systems. It works by maintaining comfortable conditions in the room, in line with the setpoint temperature set by the user. It is connected directly to a heat source or wiring centre. For a better fit, the model is available in two colors. Safe, reliable, easy to use.
Product Compliance
This product complies with the following EU Directives: 2014/53/EU, 2011/65/EU
Technical Informations
| Power supply | 230V or 2xAAA batteries |
| Max current | 3 (1) A |
| Temperature range | 5 – 35°C |
| Display temperature accuracy | 0,1°C |
| Control algorithm | TPI or Hysteresis (±0.2°C to ±2°C) |
| Communication | Wired |
| Output control | COM / NO (voltage-free) |
| IP protection class | IP30 |
| Dimension [mm] | 80 x 80 x 22 mm |

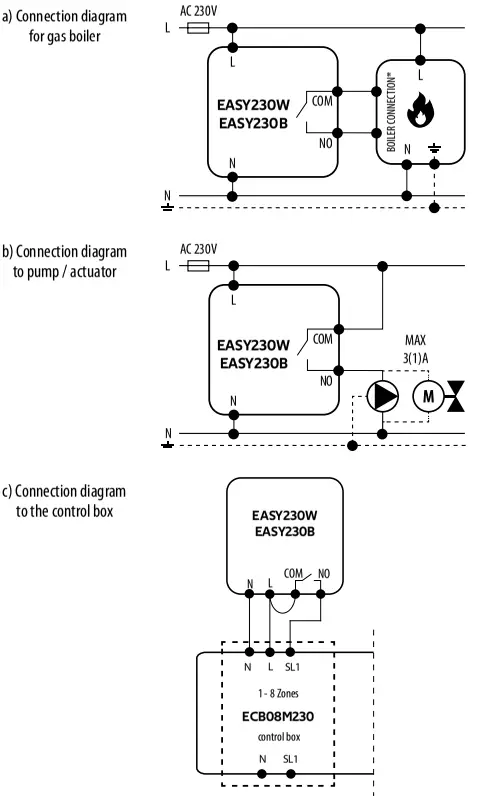

Connection description
EASY230W / EASY230B

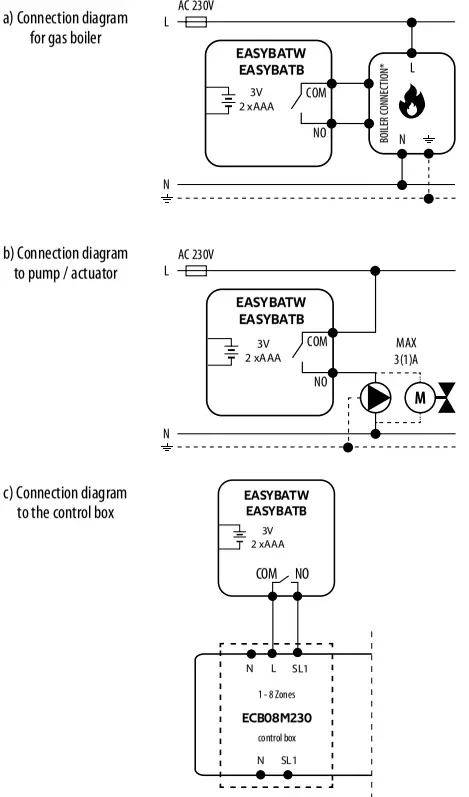

EASYBATW / EASYBATB

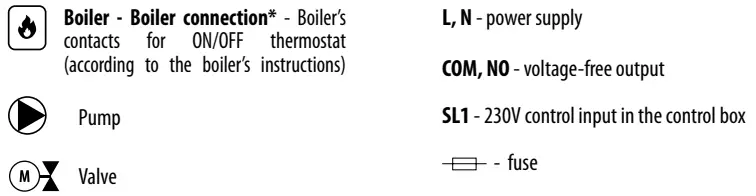

Legend:

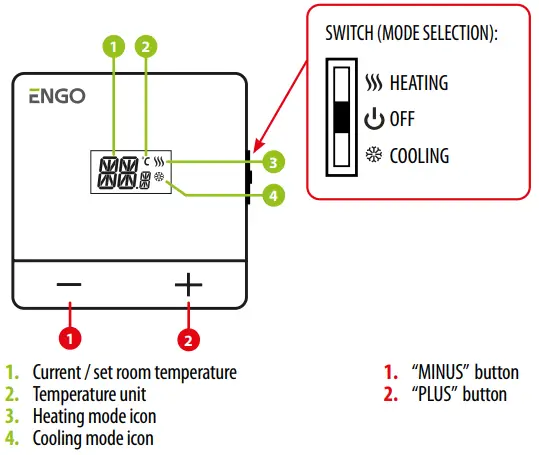

Description of the LCD display + description of the buttons

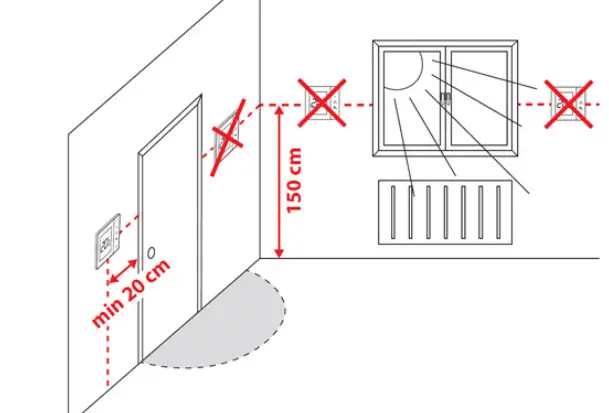

Proper thermostat location
For the thermostat to work properly, it must be installed in a suitable place. Preferably approx. 150 cm above floor level, away from sources of heat or cold. In addition, the thermostat should not be installed behind curtains or other obstacles or in places with high humidity, as this will prevent an accurate measurement of the temperature in the room. It is not recommended to install the thermostat on an outside wall, in a draft or in a place where it will be exposed to direct sunlight.

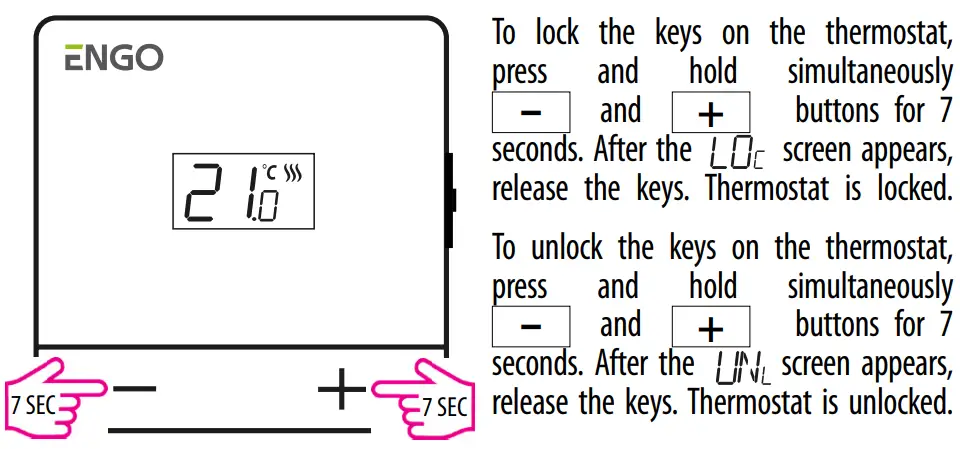

Lock / Unlock the thermostat’s keys

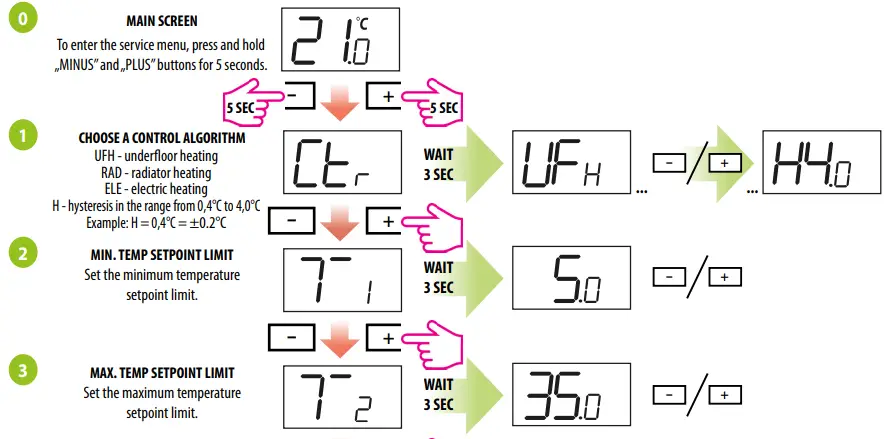

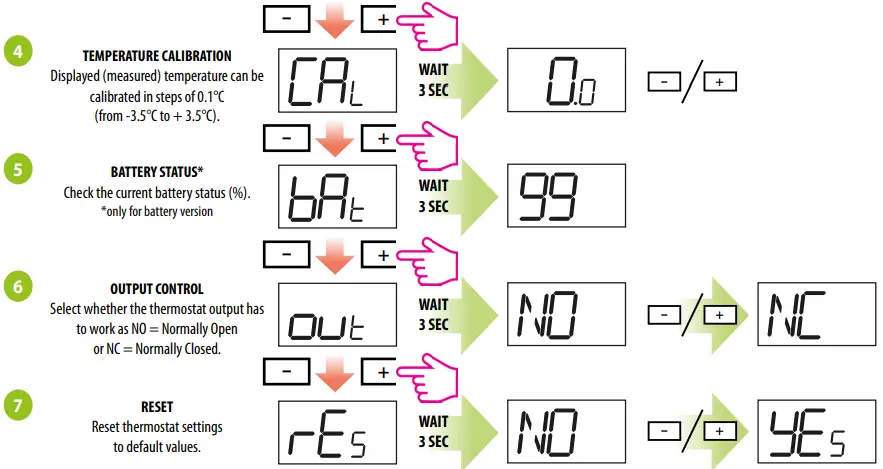

Installer parameters
WARNING!
- After entering the service menu, use – or + buttons to choose parameter.
- For the parameter selection to be confirmed, wait 3 seconds. The screen will appear with the settings that you can change with – or + buttons.
- Wait 3 seconds for the selection to be confirmed.
- The thermostat will go to the home screen.
