Tio 230v Thermostat
APPLICATION
This thermostat range has been developed to control electric underfloor or water heating or water/gas boiler system. These units are designed for use in commercial, industrial, civil, and domestic properties.
FEATURES
- Simple installation
- Acrylic face plate
- Large, backlit display
- Sleek, contemporary design
- Elegant chrome frame
- Feather touch control panel
- 5+1+1 six period per day programming
- Simple, one-touch temperature control over- ride. Pre-set temperatures maintained within
+/- 1°C Internal and external sensors allow control of - both air and/or floor temperatures
- Suitable for installation in a standard single back box
- WIFI/ZIGBEE/MODBUS communication optional
TECHNICAL INFORMATION
- Sensor：NTC Accuracy：±1℃
- Power Consumption：< 1.5W Timing Error：<1％
- Power Supply：95 ~ 240VAC, 50 ~60Hz
- Current Load：5A（water heating, water/gas boiler), 16A（electric heating)
- Shell material：PC+ABS (flame retardant) Dimension： 86x86x13.3mm
- Ambient Temp.：0-45℃，5-95％RH （Non-condensing）
- Storage Temp.：-5-55℃ Installation Hole distance: 60mm

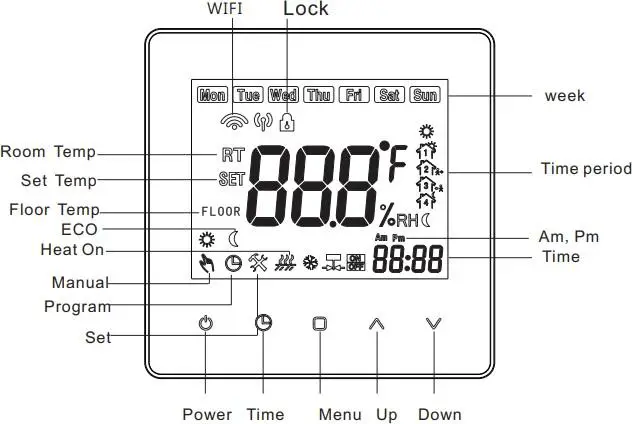

LCD DISPLAY REFERENCE

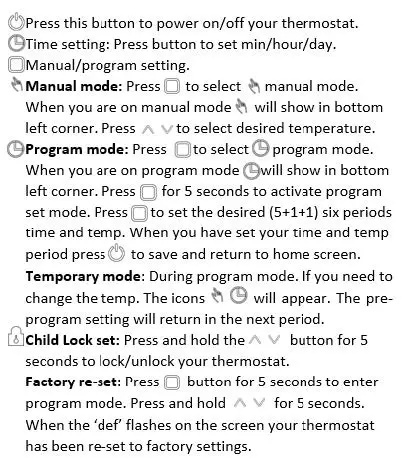

QUICK FUNCTIONS

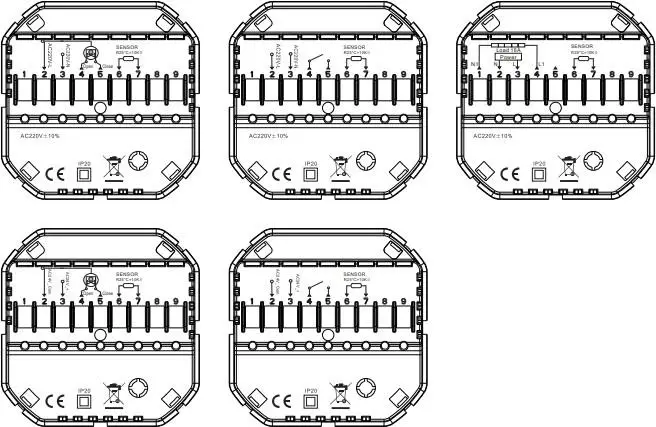

WIRING DIAGRAM
Note: Water heating & Gas boiler heating Item4 select IN Electric heating item4 select ALL.

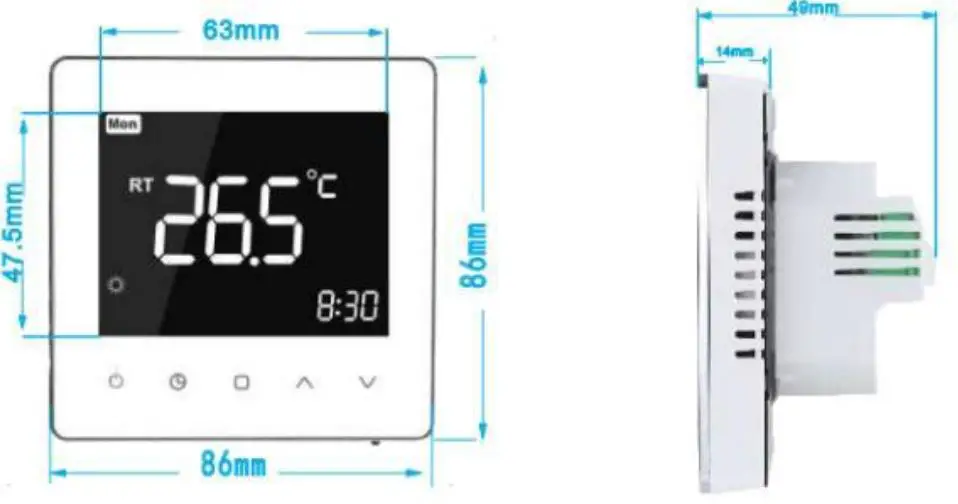

DIMENSIONS

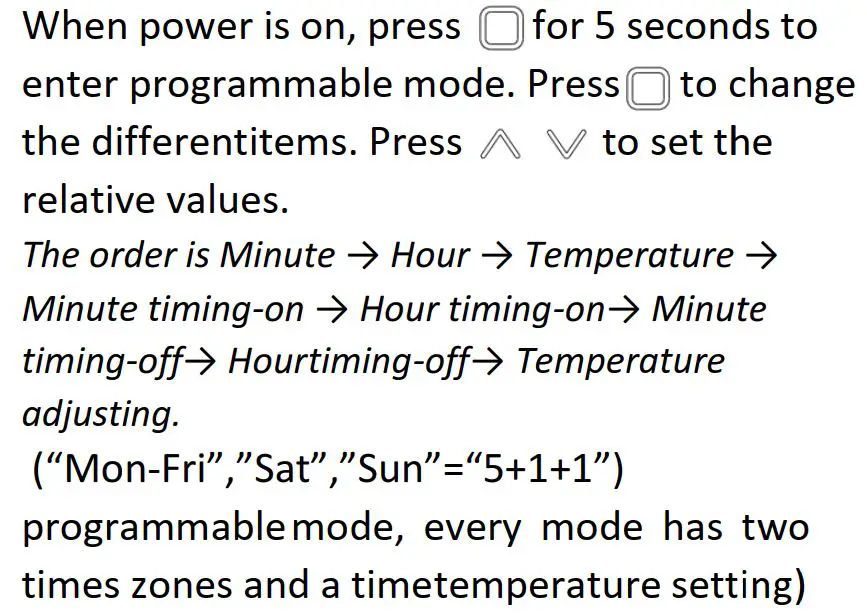

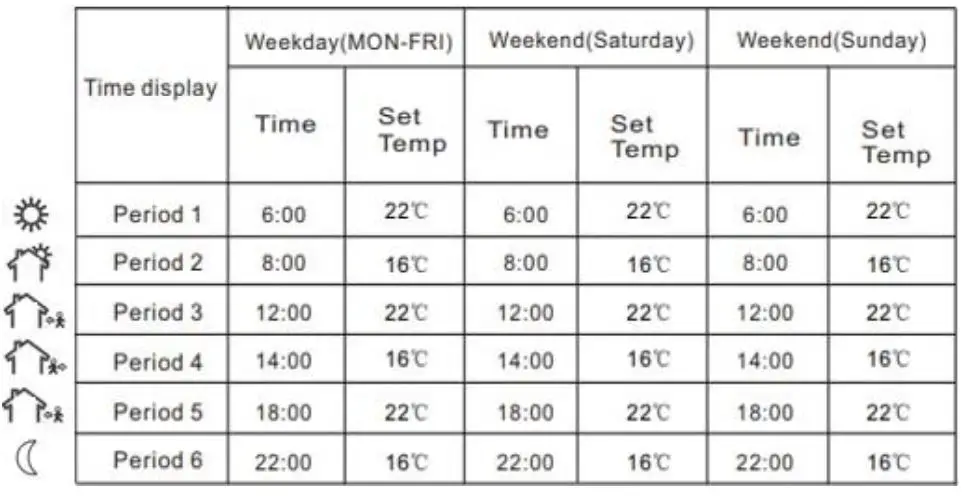

PROGRAM SETTINGS

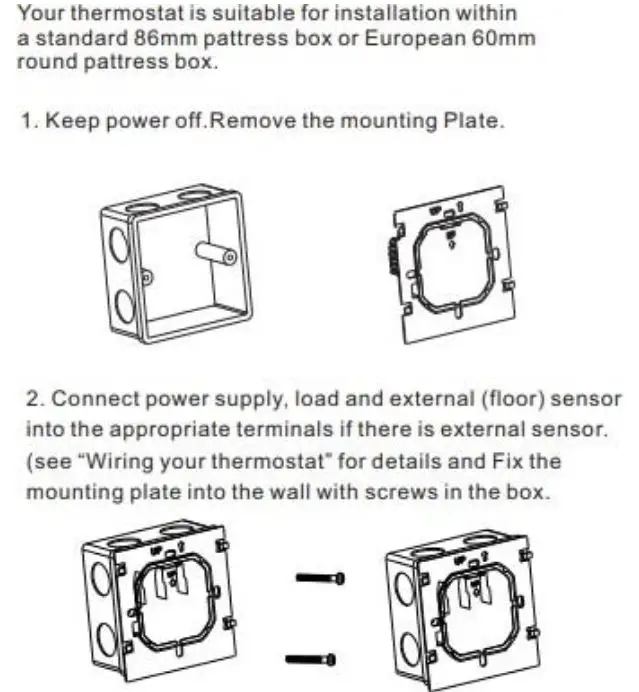

INSTALLATION
