USER MANUAL
TC 200
THERMOSTAT

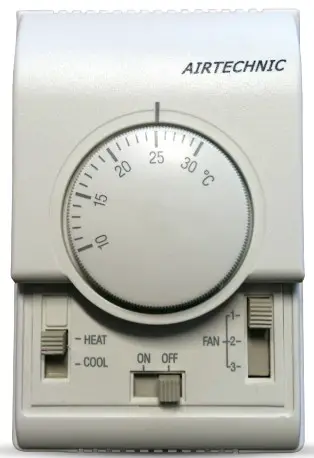

TC 200 Thermostat
The AIRTECHNIC TC 200 thermostat is suitable for 2-pipe and 4pipe fan coil installations.
FEATURES
- Dual diaphragm sensing element ensures close temperature control for all loads and applications.
- Attractive and modern design makes the thermostat ideal for demanding installations like offices or hotels.
- Temperature selection range : 10…30 C.
- Switching differential 1K (heating & cooling at 20 C / 50%).
- Fan speed selection switch (1 to 3 speeds).
- Heat / Cool selection switch. Heat anticipator for improved temperature control in both heating and cooling operation.

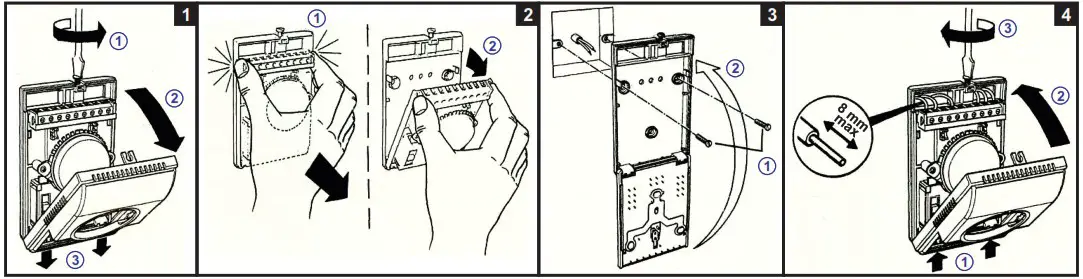

- Suitable for wall installtation or on conduit box.
- Operating environment temperature range : 0…40 C.
- Protection class IP30.
- Supply voltage 230 V, 50…60 Hz.

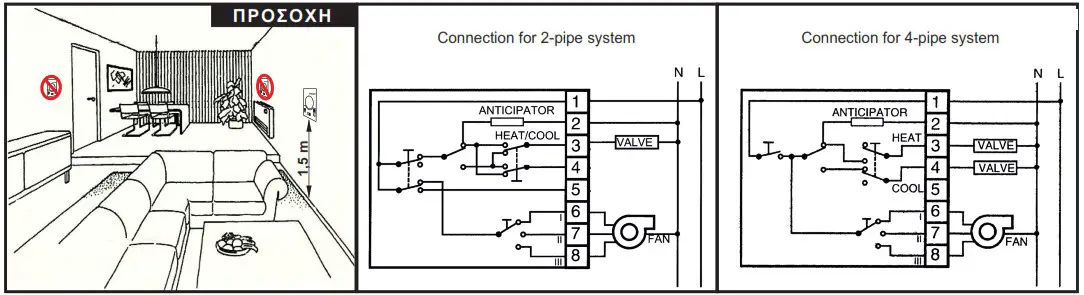

Placement
