Honeywell Thor Vm3 Vehicle-mounted Computer Instruction Manual

Granit™ Long-Range Laser – Serial Interface
Serial Kit: 1D, FR focus, red scanner (1280iFR-3),
RS-232 black, DB9 Female, 3 m (9.8 ft) coiled cable (CBL-020-300-C00), with vibrator.
Note: Refer to Honeywell pricing tool for additional configurations and accessories.

Granit Long-Range 1D/2D Scanner – Serial Interface
Serial Kit: 1D/2D, FR focus, red scanner (1980iFR-3), RS-232, black, DB9 Female, 3 m (9.8 ft), coiled, 5V external power with option for host power on pin 9, industrial-grade (CBL-020-300-C00-01), with vibrator. Note: Refer to Honeywell pricing tool for additional configurations and accessories.

Granit Long-Range 1D/2D Scanner – Bluetooth® Interface
Scanner, 1D/2D, FR focus, red, Bluetooth Class 1, with vibrator.
Note: Refer to Honeywell pricing tool for additional configurations and accessories.

Spare Battery for Bluetooth Granit
Spare Battery for Granit 1981.
Note: Refer to Honeywell pricing tool for additional configurations and accessories.

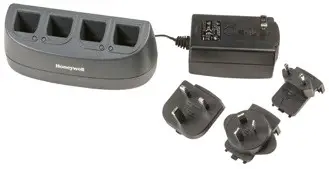

4-Bay Gang Charger for Granit Batteries
4-Bay Gang Charger for Granit 1981 Scanner Battery.
Note: Refer to Honeywell pricing tool for additional configurations and accessories.

RAM Mount Kit for MP Compact Mobile
RAM mount kit for MP Compact Mobile. Includes
RAM mount ball 57.2 mm (2.25 in), adapter plate and hardware.

Right-Angle DC Power Cable (Spare)
Thor VM series DC power cable right angle (spare); replaces VM1054CABLE and CV41054CABLE; one cable is included with some dock models as noted.

Power Cable
Adapts VM dock to 851-070-003 DC/DC converter, which is used in the 203-950-002 kit, 30 cm (12 in).

DC Adapter Cable
Adapter cable for VX5, VX6, VX7 DC power cable.
Note: Adapts a VX6/VX7 power cable to the dock power connector.

DC Adapter Cable
Adapter cable for AC power supply.
Note: Required for use with VM1301PWRSPLY or VM1302PWRSPLY. Not environmentally sealed – do
not use where there is exposure to moisture.

DC Adapter Cable
VX8/VX9 to Thor VM2 DC power adapter cable with screen blanking support.
Note: Adapts a VX8/VX9 power cable to Thor VM1/ VM2 dock, and reuses existing screen blanking box.

DC Adapter Cable
Adapter cable for CV60 DC power cable.
Note: Adapts a CV60 power cable to the dock power connector.

DC Adapter Cable
Adapter cable for CV61 DC power cable.
Note: Adapts a CV61 power cable to the dock power connector.

VC5090 Power Cable Adapter
Connects a previously installed VM5090 power cable to a VM series dock.

DC Adapter Cable
Thor VM series DC power cable (spare) with in-line fuse kit.
Note: One of these cables is included with many dock models as noted.

DC Power Fuse Kit
Thor VM series in-line fuse kit.
Note: Included with VM3054CABLE and VM3 series docks that include a power cable. Not included in VM1 series docks.

DC Power Supply
DC/DC 50 – 150V trucks, 60W.
Note: Required for installations requiring more than the dock maximum input voltage of 60V DC.
Replaces VX89303PWRSPLY.

Replacement UPS Battery
Thor VM1A, VM1 and CV41 replacement UPS battery.

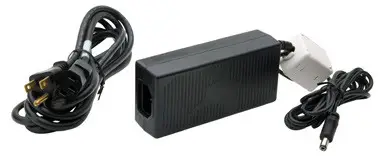

AC/DC Power Supply, U.S.
FCC approvals, U.S. cord included.
Note: Requires VM1078CABLE. Not environmentally sealed – do not use where there is exposure to moisture.

AC/DC Power Supply, U.S.
FCC approvals, U.S. cord included.
Note: Requires VM1078CABLE. Not environmentally sealed – do not use where there is exposure to moisture.

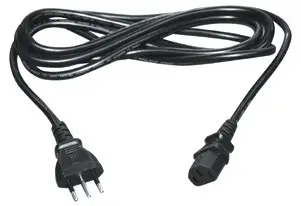

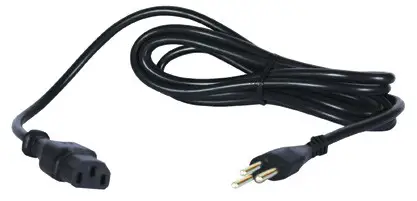

AC Power Cable, Europe
C14 type power cable, Schuko (Europe).

AC Power Cable, Denmark
C14 type power cable, Denmark 3-pin.

AC Power Cable, Denmark
C14 type power cable, Denmark 3-pin.

AC Power Cable, Denmark
C14 type power cable, Denmark 3-pin.

AC Power Cable, UK
C14 type power cable, UK 3-blade.

AC Power Cable, Australia
C14 type power cable, Australia.

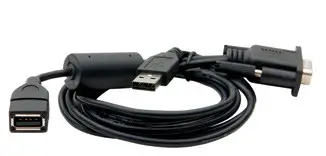

USB Y Cable
USB Y cable – D9 male to USB type A plug 1.8 m (6 ft) host and USB type A socket 0.15 m (0.5 ft) client.
Note: Adapts the USB port on VM1 series docks and the USB1 port on VM3 series dock to a USB type A host socket and a USB Type A client plug.

USB Y Cable
Thor VM3 USB Y cable –D15 male to two USB type A plug 254 mm (10 in) hosts.
Note: Adapts the USB2 port on VM3 series dock to two USB type A host sockets.

Audio Adapter Cable
Audio adapter cable, 152.4 mm (6 in) D15 to 4-pin quick disconnect connector.
Note: This cable can plugged into the dock port labeled CANBUS/AUDIO and will split the port to support either CANbus or Audio. This connector can be used for either audio or CANbus but not on the same vehicle.

CANbus Y Cable
D15 to 9-pin F SAE J1939 (Deutsch) and 9-pin M SAE J1939 (Deutsch), 1.8 m (9 ft).
Note: This cable can plugged into the dock port labeled CANBUS/AUDIO and will split the port to support either CANbus or Audio. This connector can
be used for either audio or CANbus but not on the same vehicle. Thor VM1A does not support CANbus.

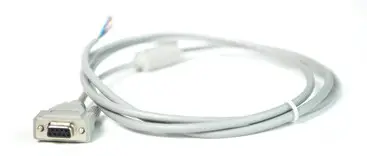

Screen Blanking Box Cable
Thor VM series screen blanking box cable, D9F to bare wires, 1.8 m (6 ft).

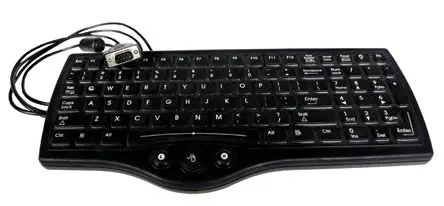

Keyboard Adapter Cable
PS2 to USB adapter cable for keyboards (D9M – D9F).
Note: This cable is used to adapt older PS/2-style keyboards (9000151KEYBRD, 9000154KEYBRD, VX89151KEYBRD, VX89152KEYBRD, VX89153KEYBRD, VX89154KEYBRD) to Thor VM series docks. For the laptop-style rugged keyboard, the mouse function is
not supported. For the 60-key rugged keyboard, the backlight will not automatically come on at boot up.
The backlight can be controlled by simultaneously pressing Ctrl-2nd-F10.

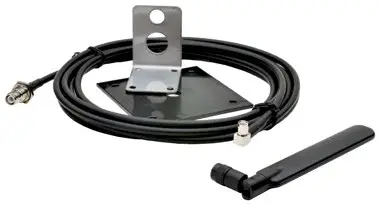

WLAN Remote Antenna Kit
Remote 802.11 dual-band antenna kit 4.6 m (15 ft); includes antenna, cable, flat bracket and rightangle bracket. Use with all Thor VM series models.

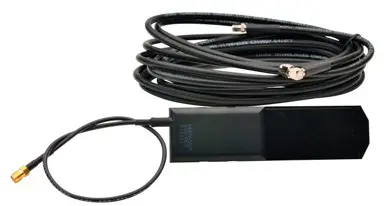

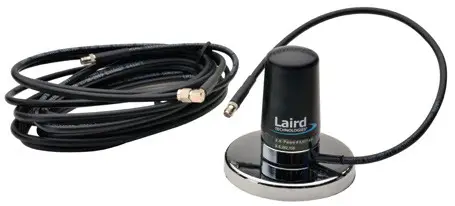

WWAN Remote Antenna Kit
Mobile WWAN 7-band antenna kit, 4 m (14 ft), magnetic mount. Use with Thor VM1 or VM2.
Note: Kit includes antenna and cable. Bracket not required.

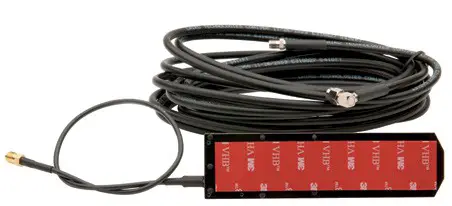

WWAN Remote Antenna Kit
Mobile WWAN 7-band antenna kit, 4 m (14 ft), adhesive mount. Use with Thor VM1 or VM2.
Note: Kit includes antenna and cable. Bracket not required.

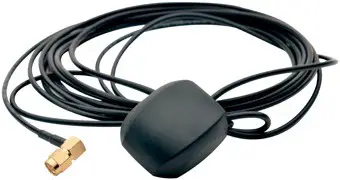

GPS Remote Antenna Kit
GPS antenna kit, 4 m (14 ft), adhesive and magnetic mount. Use with all Thor VM series models.
Note: Kit includes antenna and cable. Bracket not required.

WLAN Local Antenna Kit
Set of two dual-band WLAN whip antennas – attach directly to computer.
Use with Thor VM1A, VM2 or VM3.

WWAN Remote Antenna Kit
Mobile WWAN LTE antenna kit, ETSI, magnetic mount. Use with Thor VM3 outside the U.S.
Note: Kit includes antenna and cable. Bracket not required.

WWAN Remote Antenna Kit
Mobile WWAN LTE antenna kit, ETSI, adhesive mount. Use with Thor VM3 outside the U.S.
Note: Kit includes antenna and cable. Bracket not required.

WWAN Remote Antenna Kit
Mobile WWAN LTE antenna kit, U.S., magnetic
mount. Use with Thor VM3 in the U.S.
Note: Kit includes antenna and cable. Bracket not required.

WWAN Remote Antenna Kit
Mobile WWAN LTE antenna kit, U.S., adhesive mount. Use with Thor VM3 in the U.S.
Note: Kit includes antenna and cable. Bracket not required.

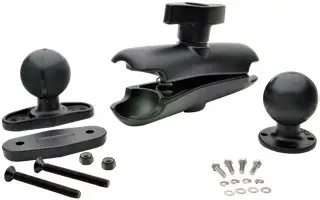

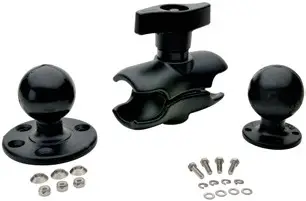

RAM Mount Kit – Round Base, Short Arm
RAM mount kit; includes round base, short arm, 128 mm (5 in), “D” ball for vehicle dock rear.
Note: Kit includes round base with a “D” (57 mm/2.25 in) ball for mounting to the vehicle. Hardware for mounting to the dock is included. Hardware for
mounting the base to the vehicle is not included. This mount typically requires drilling holes in the vehicle.

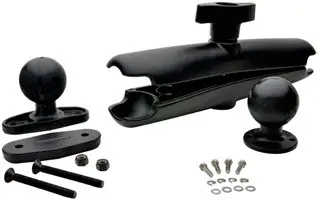

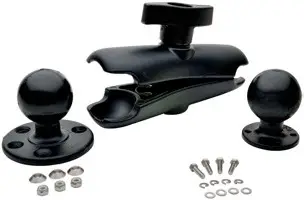

RAM Mount Kit – Round Base, Medium Arm
RAM mount kit; includes round base, medium arm, 215 mm (8.5 in), “D” ball for vehicle dock rear.
Note: Kit includes round base with a “D” (57 mm/2.25 in) ball for mounting to the vehicle. Hardware for mounting to the dock is included. Hardware for mounting the base to the vehicle is not included. This mount typically requires drilling holes in the vehicle.

RAM Mount Kit – Round Base, Long Arm
RAM mount kit; includes round base, long arm, 330 mm (13 in), “D” ball for vehicle dock rear.
Note: Kit includes round base with a “D” (57 mm/2.25 in) ball for mounting to the vehicle. Hardware for mounting to the dock is included. Hardware for
mounting the base to the vehicle is not included. This mount typically requires drilling holes in the vehicle.

RAM Mount Kit – Clamp Base, Short Arm
RAM mount kit; includes clamp base, short arm,
128 mm (5 in), “D” ball for vehicle dock rear.
Note: Kit includes a flat clamp type RAM ball for mounting to the vehicle. The clamp base attaches directly to the roof support arm of most forklift vehicles without the need for additional mounting hardware. Includes hardware for
mounting to the dock. Drilling holes not required.

RAM Mount Kit – Clamp Base, Medium Arm
RAM mount kit; includes clamp base, medium arm, 215 mm (8.5 in), “D” ball for vehicle dock rear.
Note: Kit includes a flat clamp type RAM ball for mounting to the vehicle. The clamp base attaches directly to the roof support arm of most forklift vehicles without the need for additional mounting hardware. Includes hardware for
mounting to the dock. Drilling holes not required.

RAM Mount Kit – Clamp Base, Long Arm
RAM mount kit; includes plate base, long arm, 330 mm (13 in), “D” ball for vehicle dock rear.
Note: Kit includes a flat clamp type RAM ball for mounting to the vehicle. The clamp base attaches directly to the roof support arm of most forklift vehicles without the need for additional mounting hardware. Includes hardware for
mounting to the dock. Drilling holes not required.

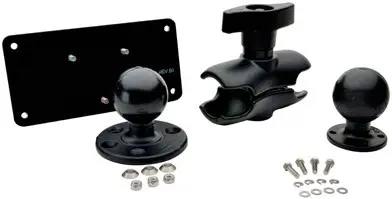

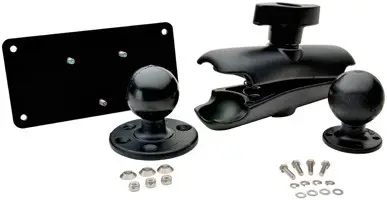

RAM Mount Kit – Plate Base, Short Arm
RAM mount kit; includes plate base, short arm, 128 mm (5 in), “D” ball for vehicle dock rear.
Note: Kit includes metal plate with a “D” (57 mm/2.25 in) ball for mounting to the vehicle. Hardware for mounting to the dock is included. Hardware for
mounting the base to the vehicle is not included. This mount typically requires drilling holes in the vehicle.

RAM Mount Kit – Plate Base, Medium Arm
RAM mount kit; includes plate base, medium arm, 215 mm (8.5 in), “D” ball for vehicle dock rear.
Note: Kit includes metal plate with a “D” (57 mm/2.25 in) ball for mounting to the vehicle. Hardware for mounting to the dock is included. Hardware for
mounting the base to the vehicle is not included. This mount typically requires drilling holes in the vehicle.

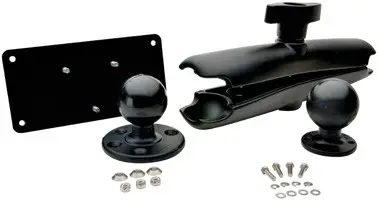

RAM Mount Kit – Plate Base, Long Arm
RAM mount kit; includes plate base, long arm, 330 mm (13 in), “D” ball for vehicle dock rear.
Note: Kit includes metal plate with a “D” (57 mm/2.25 in) ball for mounting to the vehicle. Hardware for mounting to the dock is included. Hardware for
mounting the base to the vehicle is not included. This mount typically requires drilling holes in the vehicle.

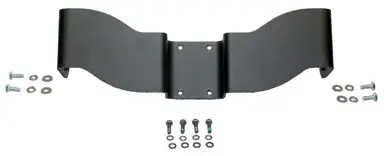

U-Bracket Mount Kit
Thor U-bracket mount kit; includes U-bracket, adapter bracket and hardware.

U-Bracket Adapter Bracket
Adapts a Thor VM series to fit a VX1, VX2, VX4, VX6 and VX7 U-bracket mount.

VC5090 U-Bracket Adapter
Enables reuse of an existing VC5090 U-Bracket installation.
Note: Select a dock SKU that does not include a RAM ball.

RAM Mount Kit for VMC and Keyboard – Round Base, Short Arm
RAM mount kit for computer and keyboard; computer mount includes round base “D” ball, short
“D” arm 128 mm (5 in), “D” ball for vehicle dock rear. Keyboard mount includes dock plate, “C” ball for dock plate, “C” arm 145 mm (5.7 in), keyboard mount plate with “C” ball.
Note: Kit includes round base with a “D” (57 mm/2.25 in) ball for mounting to the vehicle. Hardware for mounting to the dock is included. Hardware for mounting the base to the vehicle is not included. This mount typically requires drilling holes in the vehicle.

RAM Mount Kit for VMC and Keyboard – Round Base, Medium Arm
RAM mount kit for computer and keyboard; computer mount includes round base “D” ball,
medium “D” arm 215 mm (8.5 in), “D” ball for vehicle dock rear. Keyboard mount includes dock plate, “C” ball for dock plate, “C” arm 145 mm (5.7 in), keyboard mount plate with “C” ball.
Note: Kit includes round base with a “D” (57 mm/2.25 in) ball for mounting to the vehicle. Hardware for mounting to the dock is included. Hardware for mounting the base to the vehicle is not included. This mount typically requires drilling holes in the vehicle.

RAM Mount Kit for VMC and Keyboard – Round Base, Long Arm
RAM mount kit for computer and keyboard; computer mount includes round base “D” ball, long
“D” arm 330 mm (13 in), “D” ball for vehicle dock rear. Keyboard mount includes dock plate, “C” ball for dock plate, “C” arm 145 mm (5.7 in), keyboard mount plate with “C” ball.
Note: Kit includes round base with a “D” (57 mm/2.25 in) ball for mounting to the vehicle. Hardware for mounting to the dock is included. Hardware for mounting the base to the vehicle is not included. This mount typically requires drilling holes in the vehicle.

RAM Mount Kit for VMC and Keyboard – Clamp Base, Short Arm
RAM mount kit for computer and keyboard; computer mount includes clamp base “D” ball, short “D” arm 128 mm (5 in), “D” ball for vehicle dock rear. Keyboard mount includes dock plate, “C” ball for dock plate, “C” arm 145 mm (5.7 in), keyboard mount plate with “C” ball.
Note: Kit includes a flat clamp type RAM ball for mounting to the vehicle. The clamp base attaches
directly to the roof support arm of most forklift vehicles without the need for additional mounting
hardware. Includes hardware for mounting to the dock. Drilling holes not required.

RAM Mount Kit for VMC and Keyboard – Clamp Base, Medium Arm
RAM mount kit for computer and keyboard; computer mount includes clamp base “D” ball, medium “D” arm 215 mm (8.5 in), “D” ball for vehicle dock rear. Keyboard mount includes dock plate, “C” ball for dock plate, “C” arm 145 mm (5.7 in), keyboard mount plate with “C” ball.
Note: Kit includes a flat clamp type RAM ball for mounting to the vehicle. The clamp base attaches
directly to the roof support arm of most forklift vehicles without the need for additional mounting
hardware. Includes hardware for mounting to the dock. Drilling holes not required.

RAM Mount Kit for VMC and Keyboard – Clamp Base, Long Arm
RAM mount kit for computer and keyboard; computer mount includes clamp base “D” ball, long “D” arm 330 mm (13 in), “D” ball for vehicle dock rear. Keyboard mount includes dock plate, “C” ball for dock plate, “C” arm 145 mm (5.7 in), keyboard mount plate with “C” ball.
Note: Kit includes a flat clamp type RAM ball for mounting to the vehicle. The clamp base attaches
directly to the roof support arm of most forklift vehicles without the need for additional mounting
hardware. Includes hardware for mounting to the dock. Drilling holes not required.

RAM Mount Kit for VMC and Keyboard – Plate Base, Short Arm
RAM mount kit for computer and keyboard; computer mount includes plate base “D” ball, short
“D” arm 128 mm (5 in), “D” ball for vehicle dock rear. Keyboard mount includes dock plate, “C” ball for dock plate, “C” arm 145 mm (5.7 in), keyboard mount plate with “C” ball.
Note: Kit includes metal plate with a “D” (57 mm/2.25 in) ball for mounting to the vehicle. Hardware for mounting to the dock is included. Hardware for mounting the base to the vehicle is not included. This mount typically requires drilling holes in the vehicle.

RAM Mount Kit for VMC and Keyboard – Plate Base, Medium Arm
RAM mount kit for computer and keyboard; computer mount includes plate base “D” ball,
medium “D” arm 215 mm (8.5 in), “D” ball for vehicle dock rear. Keyboard mount includes dock plate, “C” ball for dock plate, “C” arm 145 mm (5.7 in), keyboard mount plate with “C” ball.
Note: Kit includes metal plate with a “D” (57 mm/2.25 in) ball for mounting to the vehicle. Hardware for mounting to the dock is included. Hardware for mounting the base to the vehicle is not included. This mount typically requires drilling holes in the vehicle.

RAM Mount Kit for VMC and Keyboard – Plate Base, Long Arm
RAM mount kit for computer and keyboard; computer mount includes plate base “D” ball, long
“D” arm 330 mm (13 in), “D” ball for vehicle dock rear. Keyboard mount includes dock plate, “C” ball for dock plate, “C” arm 145 mm (5.7 in), keyboard mount plate with “C” ball.
Note: Kit includes metal plate with a “D” (57 mm/2.25 in) ball for mounting to the vehicle. Hardware for mounting to the dock is included. Hardware for mounting the base to the vehicle is not included. This mount typically requires drilling holes in the vehicle.

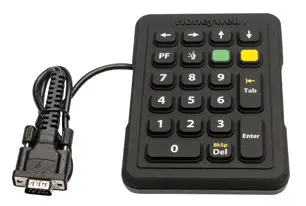

VM3 Accessory Mount
Thor VM3 RAM mount kit for numeric keypad or scanner holder, includes two RAM balls and arm 145 mm (5.7 in).
Note: Mounts to the rear of VM3001VMCRADLE or VMX004VMCRADLE and supports
numeric keypad or scanner holder.

Thor Scanner Holder
Scanner holder for vehicle mount, holder cup only.
Note: Use VM3010BRKTKIT to mount to rear of dock, or use standard “C” size RAM mount
hardware to mount elsewhere on vehicle.

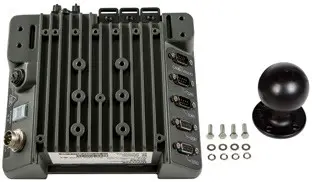

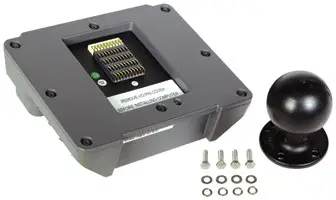

Dock Ball
Thor dock ball, “D”-size, with mounting hardware, for spare docks. Parts are included in Thor mounting kits.

Accessory Ball
Ball, “C”-size 38.1 mm (1.5 in), special base mounts to rear of VM3001VMCRADLE.

Mounting Ball
Ball, “D”-size 57.15 mm (2.25 in), round 93.47 mm (3.68 in) base, typically mounts to vehicle.

Mounting Ball
Ball, “D”-size 57.15 mm (2.25 in), flat 63.5 mm (2.5 in) clamp base, typically mounts to vehicle.

Mounting Ball
Ball, “D”-size 57.15 mm (2.25 in), 120.65 mm (4.75 in) square base, typically mounts to vehicle.

Mounting Ball
Ball, “D”-size 57.15 mm (2.25 in), clamp base for 31.75 mm (1.25 in) to 47.63 mm (1.875 in)
pipe mount, typically mounts to vehicle.

Mounting Ball
Ball, “D”-size 57.15 mm (2.25 in), clamp base for 50.8 mm to 63.5 mm (2 in to 2.5 in) pipe.

Mounting Ball
Ball, “C”-size 38.1 mm (1.5 in), 63.5 mm (2.5 in) round base.

Mounting Arm, Long
RAM medium arm, 145 mm (5.7 in), “C”-size 38.1 mm (1.5 in) balls.

Mounting Arm, Medium
RAM medium arm, 215 mm (8.5 in) for “D”-size 57.15 mm (2.25 in) balls.

Mounting Arm, Short
RAM short arm, 128 mm (5 in) for “D”-size 57.15 mm (2.25 in) balls.

Mounting Arm, Long
RAM long arm, 330 mm (13 in) for “D”-size 57.15 mm (2.25 in) balls.

Keyboard Mounting Plate
Keyboard, RAM Mount Plate.
Note: Contained in keyboard mounting kits.

RAM Metal Table Stand
RAM metal table stand. Purchase a RAM ball (VX89A037RAMBALL) and a RAM arm
(VX89A502RAMARM for Thor VM1, VM2, CV41; VX89A501RAMARM for Thor VM3) separately.

Mounting Plate
Mounting plate, truckside for attaching one “D”-size ball. No ball included.

Mounting Plate
Backup plate (set of 2).
Note: Hardware included. These two plates can be mounted on each side of the forklift roof. Various RAM balls can be attached to these plates to avoid having to drill mounting holes or weld to the forklift.

VM1A Replacement Front Panel
Thor VM1A front panel, standard temp, resistive.

VM1A Replacement Front Panel
Thor VM1A front panel, outdoor, resistive.

VM1A Replacement Front Panel
Thor VM1A front panel, cold storage, resistive.

VM1A Replacement Front Panel
Thor VM1A front panel, standard temp, capacitive.

VM1A Replacement Front Panel
Thor VM1A front panel, outdoor, capacitive.

VM1 Front Panel
Thor VM1 front panel, ANSI keyboard, standard temp.

VM1 Front Panel
Thor VM1 front panel, 3270 keyboard, standard temp.

VM1 Front Panel
Thor VM1 front panel, 5250 keyboard, standard temp.

VM1 Front Panel
Thor VM1 front panel, 12-key, standard temp.

VM1 Front Panel
Thor VM1 front panel, ANSI keyboard, cold storage.

VM1 Front Panel
Thor VM1 front panel, 3270 keyboard, cold storage.

VM1 Front Panel
Thor VM1 front panel, 5250 keyboard, cold storage.

VM2 Front Panel
Thor VM2 front panel, includes touchscreen and keys.

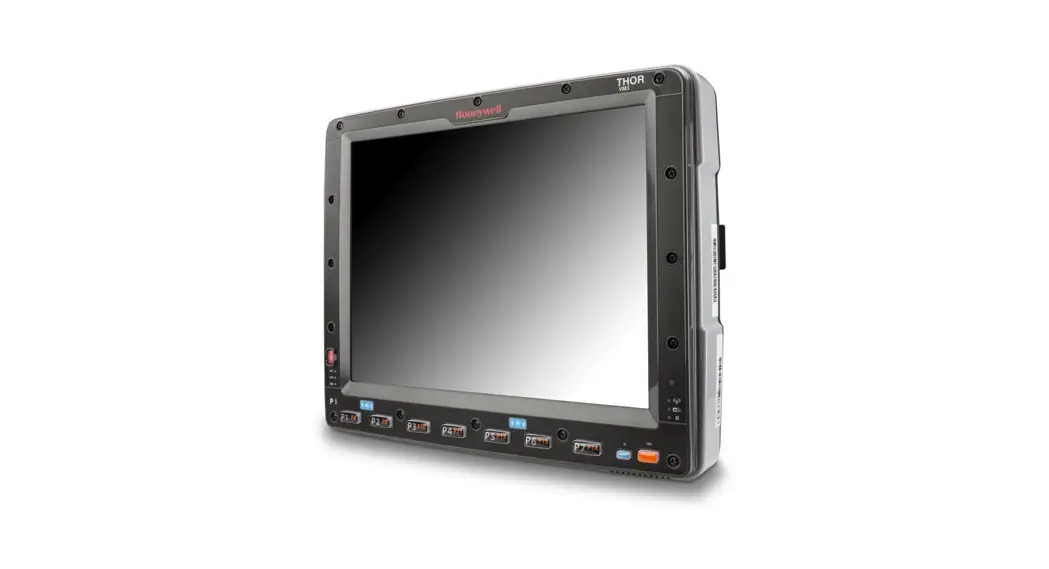

VM3 Front Panel
Thor VM3 front panel, standard temp, resistive touchscreen.

VM3 Front Panel
Thor VM3 front panel, cold storage, resistive touchscreen.

VM3 Front Panel
Thor VM3 front panel, standard temp, PCAP touchscreen.

VM3 Front Panel
Thor VM3 front panel, outdoor, resistive touchscreen.

VM3 Front Panel
Thor VM3 front panel, outdoor, PCAP touchscreen.

VM1 Protective Film
Removable touchscreen protective film for Thor VM1 and VM1A, anti-glare, 10-pack.

VM2 Protective Film
Removable touchscreen protective film for Thor VM2, anti-glare, 10-pack.

VM3 Protective Film, Resistive
Removable touchscreen protective film for Thor VM3 with resistive touchscreen, anti-glare, 10-pack.

VM3 Protective Film, PCAP
Removable touchscreen protective film for Thor VM3 with PCAP touchscreen, anti-glare, 10-pack.

Thor Stylus Kit
Resistive touchscreen stylus kit with tethers, 5-pack.

VM3 PCAP Stylus
Thor VM3 PCAP stylus kit with tethers, 5-pack.

Thor VM1 WES 2009 Recovery DVD
English

Thor VM2 WES 2009 Recovery DVD
English

Thor VM2 WES 2009 Recovery DVD
German

Thor VM2 WES 7 Recovery DVD
Multi-Language: English, Traditional Chinese, Simplified Chinese, Spanish, French, German, Italian, Korean, Japanese, Russian, Brazilian Portuguese, Thai

Thor VM2 Windows 7 Pro Recovery DVD
English

Thor VM2 Windows 7 Pro Recovery DVD
Simplified Chinese

Thor VM2 Windows 7 Pro Recovery DVD
Traditional Chinese

Thor VM2 Windows 7 Pro Recovery DVD
Spanish

Thor VM2 Windows 7 Pro Recovery DVD
French

Thor VM2 Windows 7 Pro Recovery DVD
Italian

Thor VM2 Windows 7 Pro Recovery DVD
German

Thor VM2 Windows 7 Pro Recovery DVD
Korean

Thor VM2 Windows 7 Pro Recovery DVD
Japanese

Thor VM2 Windows 7 Pro Recovery DVD
Russian

Thor VM2 Windows 7 Pro Recovery DVD
Brazilian Portuguese

Thor VM2 Windows 7 Pro Recovery DVD
Thai

VM2 Drivers DVD
Thor VM2 Windows 7 Drivers DVD

Thor VM3 WES 7 Recovery DVD

Thor VM3 Windows 7 Recovery DVD
English

Thor VM3 Windows 10 Recovery DVD

Thor VM3 Windows 7 Recovery DVD
Simplified Chinese

Thor VM3 Drivers DVD
Drivers DVD for Thor VM3 WES 7, Windows 7 and Windows 10 operating systems.
