Carrier RMAP-XL Air Purifier Filter Replacement

Filter Replacement Guide

How to Replace the Filter

Remove the plastic packaging from the filter before ude  Keep plastic packaging away from children as it may cause suffocation.

CAUTION • Be sure to unplug the unit before removing the filter packaging.
NOTE You cannot return the filter once the plastic packaging is removed.

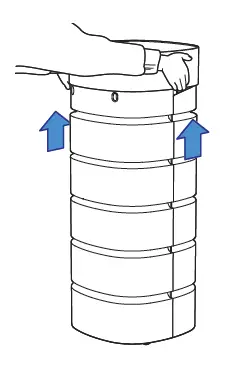

1. Hold the top cover of the product with both hands and pull up.

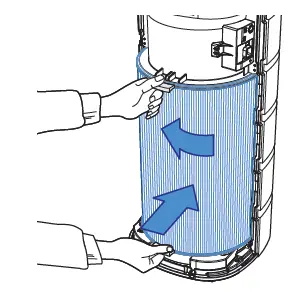

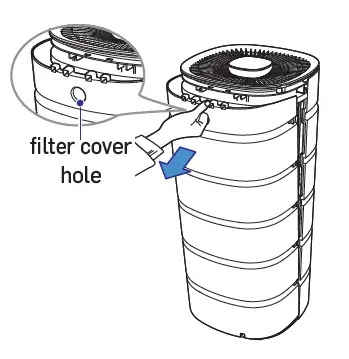

2. Grasp the filter cover hole on the rear filter cover and pull it forward. Remove the old filter by pulling it straight out of the unit.

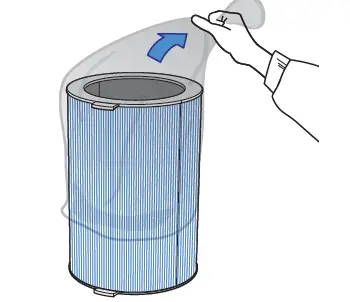

3. Remove the plastic packaging from the new filter.
4. Slide the new filter into the unit.
5. Replace the filter cover.

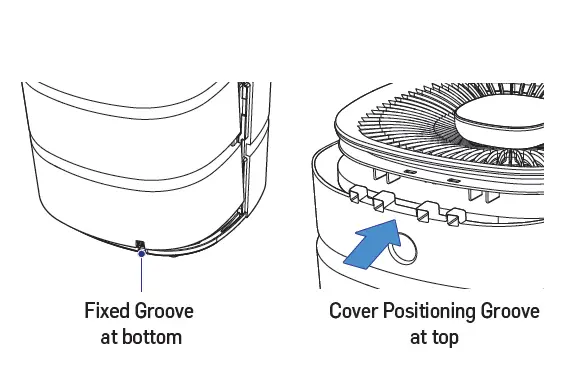

   ► Insert the cover into the fixedgroove at the bottom of the product.► Slide the cover forward so that the cover fits into the top grooves.
6. Hold the top cover of the product with both hands and slide it back in place, making sure the logo appears in the front.
7. When the filter installation is complete,  press the  Auto  ” button on the control panel for 5 seconds or more to reset the filter indicator light.
   ► The red filter light will turn off when the product is reset.

Cleaning the Filter

1. If the filter is extremely dirty, replace it. ► Filter contamination may vary depending on your environment. The timing of filter cleaning may vary accordingly.
2. In between filter replacements, clean the pre-filter with a vacuum cleaner or a soft brush.► Never wash the filter with water.
