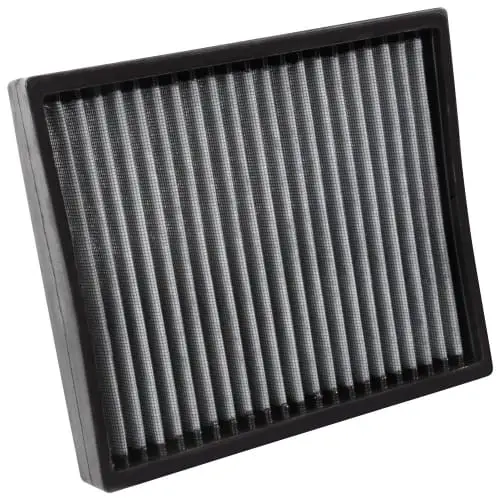

CAF90139P Cabin Air Filter
Part No.: CAF90139P Est.
Installation Time: less than 15 min.
INSTALLATION INSTRUCTIONS
The Cabin Air Filter is located behind the glove box.
- Open the glove box

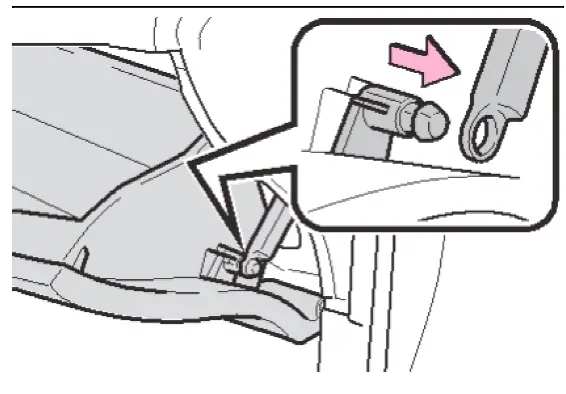

- Remove the two stoppers by turning counter-clockwise and remove the arm on the left of the glovebox.
- Allow for the glovebox to hang open.

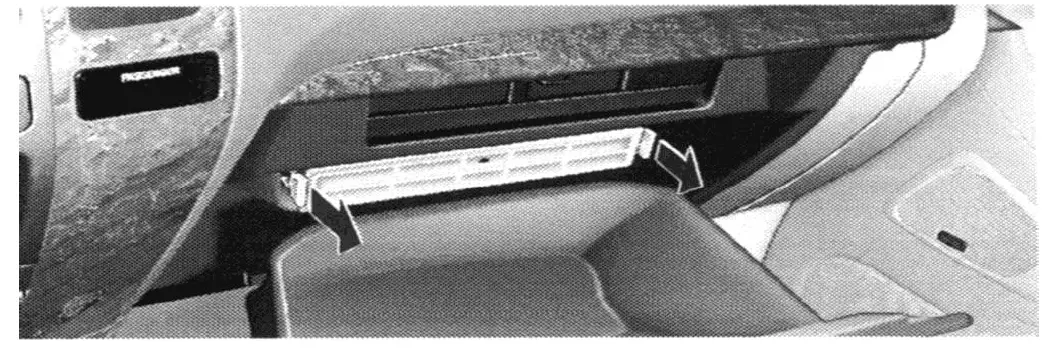

- Locate the filter housing access cover
- Remove the filter housing cover
- Pull out the old filter out
- Insert the new filter into the housing and reinstall the cover.
- Attach the arm to the left-side of the glovebox, and reinstall the two stoppers.
This is only a guide and may not be for exact model. See Owner’s manual and/or local mechanic for exact instructions for the particular model.
