Soclean Air Purifier Plus Filter Kit User Guide

QUICK START GUIDE

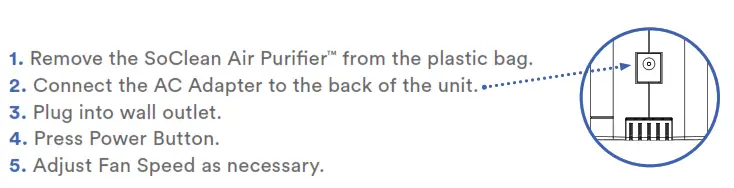

TO OPERATE:

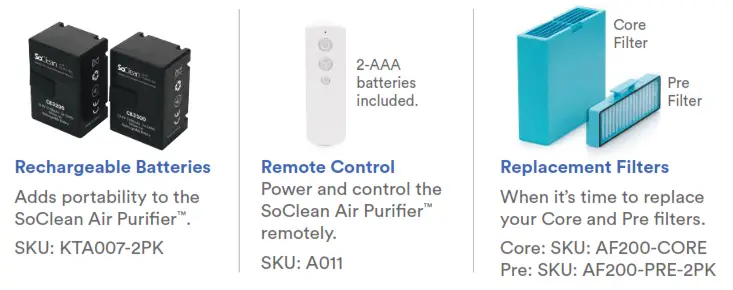

Available Accessories

Call 866-501-3705 to order.

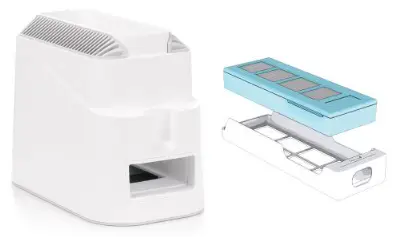

Main Stand
& Carbon Filter
Adds odor neutralization
to the SoClean Air Purifier ™ .
SKU: AF200-MCAR

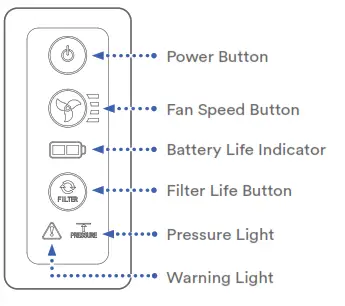

Core Panel Description

Alarms & Notifications

• If the SoClean Air Purifier ™ becomes blocked and there is no airflow, an alarm will sound.
• If the Core Filter is missing, not seated properly or has become saturated with filtered contaminants, an alarm will sound.

Fan Speeds

Fan Speed	Air Purification And Noise Level
Background Mode: Typically used while you are in the room
Speed 1	Ideal for desk-side use or other quiet settings
Speed 2	Perfect white noise level for sleep
Turbo Mode: Typically used while you are not in the room
Speed 3	Faster rate of air flow
Speed 4	Fastest rate of air flow

The SoClean Air Purifier ™ LED panel will display an alert when the filters are due to be changed.

Notification	Filter Life	Steps to Take
			Freq ency
			app c.. a ion	r/day ope atio
Filter Life Button is flashing yellow, and the alarm tone beeps every 60 seconds	50%	Replace the Pre filter, then reset the alarm using a quick press of the Filter Life Button. The alarm tone will stop and a solid yellow Filter Life Button will remain on.	4 months	2 months
Filter Life Button Is flashing red, and the alarm tone beeps every 60 seconds	20%	Order replacement filter kit if you haven’t already, and reset alarm using a quick press of the filter button on the Core Panel. The alarm tone will stop and the solid red light will remain on.	6 months	3 months
Filter Life Button AND the Warning Light are flashingred, and the alarm tone beeps every 60 seconds	10%	Replace both filters in the device, pre and core. Then reset the alarm using a long press on the filter button, about 15 seconds.	8 months	4 months

Under normal use (12 hours/day): The Pre Filter should be changed every 4 months, while the Core Filter should be changed every 8 months.
Under heavy use: (24 hours/day): The Pre Filter should be changed every 2 months, while the Core Filter should be changed every 4 months.

NOTES:

1. OVERALL DIMENSIONS 7.5” x 7.5“”
2. PRINT SPECIFICATION: 4-COLOR CMYK – 4-PANEL, 2 SIDED, FOLDED INSERT
3. SEE ATTACHED SHEET FOR ARTWORK

	UNLESS OTHERWISE SPECIFIED:	APPROVALS	12 Vose Farm Rd. SoClean, Inc. Peterborough, NH 03458
	DIMENSIONS ARE IN mm TOLERANCES: TWO PLACE DECIMAL ± N/A THREE PLACE DECIMAL ± N/A ANGULAR: ± ° N/A	SEE THE DCO REFERENCED IN THE REVISION HISTORY FOR APPROVAL SIGNATURES. DOCUMENT IS NOT APPROVED UNLESS APPROVAL DATE IS SHOWN IN REVISION HISTORY.
			TITLE: SCAP QUICK START GUIDE
	INTERPRET GEOMETRIC TOLERANCES PER: ASME Y14.5:2009
PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SOCLEAN, INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF SOCLEAN IS PROHIBITED.
		DIGITAL 3D FILE: A001383-1 1 Rev B- SCAP MINI QSG 080421
	MATERIAL N/A
			SIZE A	PART NO. A001383			REV B
	FINISH N/A
		DIGITAL 3D FILE ONLY VALID IF OBTAINED FROM SOCLEAN DOC CONTROL
			SCALE: 1:1			SHEET 1 OF 5
	DO NOT SCALE DRAWING

FORM 02-05 Rev 2
A-Size Metric-Page 1

A001383-11_Rev B
Featuring Celios Advanced Air Purification TechnologyA001383-11_Rev B-SCAP MINI QSG_080421.indd 1-2
A001383-11_Rev B-SCAP MINI QSG_080421.indd 1-2 C001384-11_Rev B
