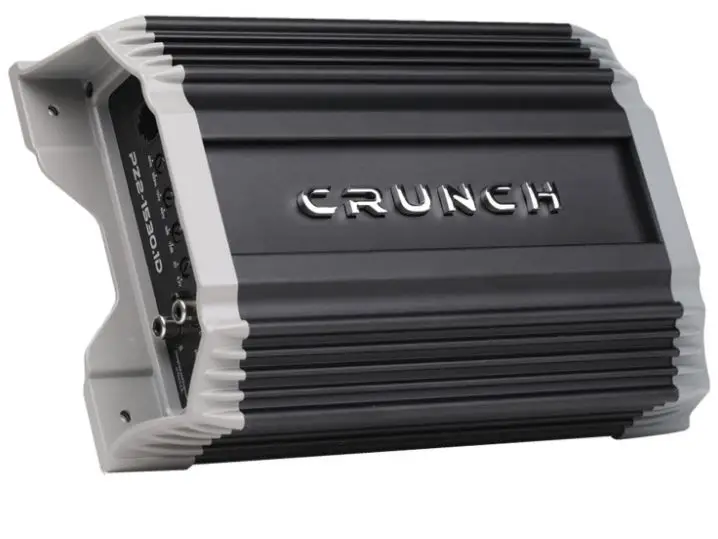

CRUNCH PZ2-1530.1D Powerzone 1500W Amplifier

CRUNCH PZ2-1530.1D PP

Before you start

CAUTION
Many new and factory radios require a reset code when disconnected from battery power. This is an anti-theft feature. Before unplugging power, you must determine if your radio/source unit requires a reset code. Check the operation manual for your vehicle or contact the dealer.

Power / Ground / cable size
It is critical to use the proper power and ground cable. Select the size listed here for your amplifier model. Always use high
quality copper cable. Cable size recommendations for multi amp systems are available on our website.

ModelFuse SizeCable Size
PZ2-1530.1DExternal 60A4ga
PZ2-2030.1DExternal 80A



PZ2-3030.1D



External 125A
PZ2- 4030.1D



External 150A



PZ2-1030.2D



External 40A



PZ2-1530. 2D



External 50A



PZ2-2030.2D



External 100A



PZ2-1530.4D



External 40A



PZ2-2030.4D



External 60A



PZ2-2030.5DExternal 100A

Installation

Disconnect negative battery terminal

CRUNCH PZ2-1530.1D fig 1

Place terminal in a secure position so that it won’t accidentally contact the negative battery post.

Run CablesCRUNCH PZ2-1530.1D fig 2

Properly route power, speaker and RCA cables through the vehicle.

Mount AmplifierCRUNCH PZ2-1530.1D fig 3

Choose a mounting location that will provide adequate air ventilation. Mount the amplifier to a secure surface. Do not mount the amplifier upside down.

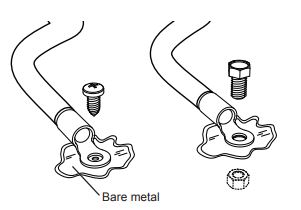

Chassis Ground

CRUNCH PZ2-1530.1D fig 4

The chassis ground connection is critical to the performance of the amplifier. Choose a location that is close to the
amplifier. Completely scrape away the paint and use a nut and bolt if possible.
DO NOT USE AN EXISTING FACTORY BOLT!

Power ConnectionsCRUNCH PZ2-1530.1D fig 5

Using spade terminals, connect the +12V to the power cable from the battery, the REM to the source unit turn-on wire and the GND to the  chassis ground.

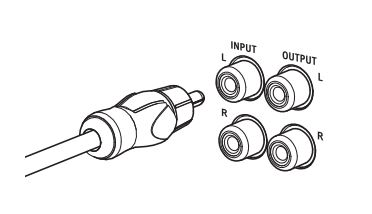

Signal Input Low Level RCACRUNCH PZ2-1530.1D fig 6

Connect the RCA cables to the INPUT connectors. The OUTPUT can be used to provide input for a second amplifier.

Level ControlCRUNCH PZ2-1530.1D fig 7Turn the LEVEL control completely counter-clockwise to minimum.

Signal Input High LevelCRUNCH PZ2-1530.1D fig 8The HI INPUT is for use with source units that do not offer RCA outputs.Use the supplied harness to connect to the source unit’s speaker output.

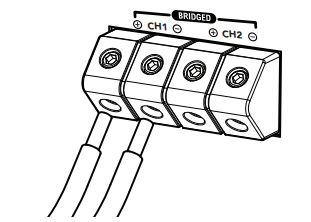

Speaker ConnectionCRUNCH PZ2-1530.1D fig 9

Using spade terminals,connect the speaker cables to the speaker output connectors. Follow the diagram below that best fits your speaker configuration.

  • StereoCRUNCH PZ2-1530.1D fig 10
  • BridgedCRUNCH PZ2-1530.1D fig 11
  • Monoblock single wooferCRUNCH PZ2-1530.1D fig 12
  • Monoblock multiple woofersCRUNCH PZ2-1530.1D fig 13

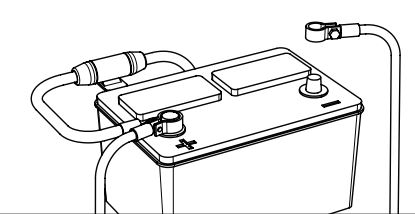

Positive Battery ConnectionCRUNCH PZ2-1530.1D fig 14

Connect the power cable to the positive battery terminal. The power cable must be fused within 18 inches of the battery
terminal.

Note: Be prepared to disarm your vehicle’s alarm and to enter your radio / source unit code.

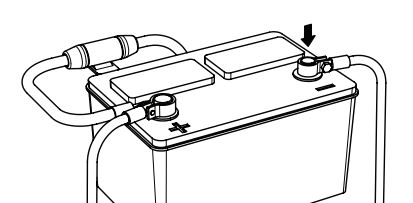

Re-connect Negative Battery TerminalCRUNCH PZ2-1530.1D fig 15
Re-connect the negative battery terminal making sure it is securely tightened.

INFORMATION: The information contained within this document is intended to offer some basic guidelines for a few of the most common installations. More complex audio systems should be installed by a competent professional. Additional installation information available at www.maxxsonics.com

Setup

Input ModeCRUNCH PZ2-1530.1D fig 16The input MODE switch will “sum” or combine the right and left channel signals in the MONO position to improve bass
performance. Select MONO only when the amp is being used for subwoofers.

Xover ModeCRUNCH PZ2-1530.1D fig 17The XOVER Mode switch sets the type of crossover that will be active. 4 channel models will have two switches, one for each set of channels.
High pass AdjustmentCRUNCH PZ2-1530.1D fig 18

The HPF(high pass filter) control will limit the output below the selected frequency. This is typically used to protect midrange and hi frequency speakers from damage and to allow a smooth transition from a subwoofer.

Low pass AdjustmentCRUNCH PZ2-1530.1D fig 19

The LPF(low pass filter) control will limit output above the selected frequency. This is used to allow a smooth transition to the higher frequency speakers.

Bass BoostCRUNCH PZ2-1530.1D fig 20The BASS BOOST or BASS EQ control will increase the output at 45Hz for more pronounced bass. Exercise caution. Increase the level in small amounts until distortion is noticed, then back off a little.

Remote Level ControlCRUNCH PZ2-1530.1D fig 21Some models include a bass remote. Avoid adjusting the bass remote while operating vehicle.

Level SettingCRUNCH PZ2-1530.1D fig 22

This is a critical step to insure your amplifier is properly adjusted to match the signal output level of your source unit.

THIS IS NOT A VOLUME CONTROL!

  • If possible, with the source unit off, confirm that the primary volume control is turned down (counter clockwise).
  • Turn on the source unit (CD, or MP3 player). Re-confirm that the volume is turned down. Make sure the source unit controls; balance, fader, bass and treble are all set to center or “0” adjustment. Make sure that the green LED on the end of the amplifier is illuminated.
  • Play a clean musical selection of which you are very familiar. CD is preferred. Do not use radio signals for level setting. Hit play and start turning the volume of the source unit up.
  • Stop increasing the source unit volume when you reach 3/4 (about 75%) or until you hear speakers begin to slightly start producing distortion.
  • Increase the amplifier level (clockwise) until distortion is heard, then back the level down (counter clockwise) until the distortion is eliminated. Small adjustments may need to be made to balance the levels of multiple amplifiers.

Common System Setup

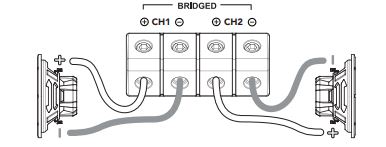

2ch – Full RangeCRUNCH PZ2-1530.1D fig 28CRUNCH PZ2-1530.1D fig 23

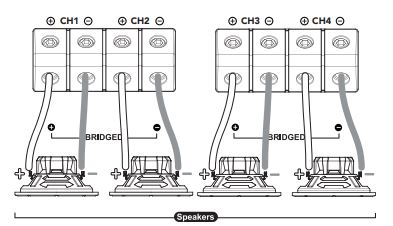

4ch – Full Range
CRUNCH PZ2-1530.1D fig 29CRUNCH PZ2-1530.1D fig 24

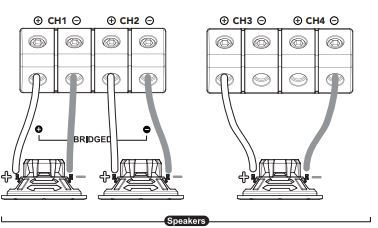

4ch – Mixed MonoCRUNCH PZ2-1530.1D fig 30CRUNCH PZ2-1530.1D fig 25

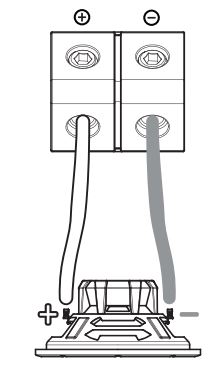

MonoCRUNCH PZ2-1530.1D fig 31CRUNCH PZ2-1530.1D fig 26

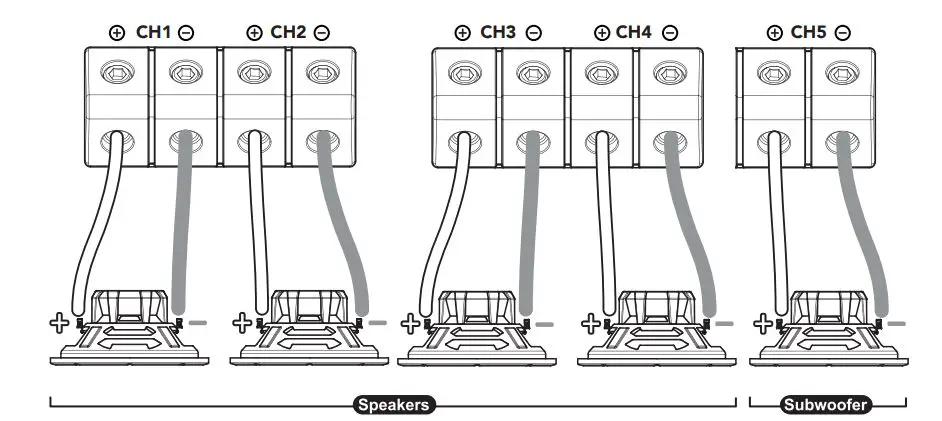

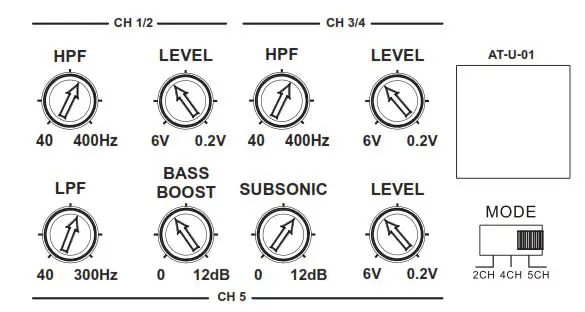

5chCRUNCH PZ2-1530.1D fig 32

CRUNCH PZ2-1530.1D fig 27

WARRANTY

Maxxsonics, LLC. warrants this product, to the original consumer purchaser, to be free from defects in material and workmanship for a period of one (1) year from the date of purchase. Maxxsonics, LLC. will, at it’s discretion, repair or replace defective products during the warranty period. Components that prove to be defective in materials and workmanship under proper installation and use must be returned to the original authorized Maxxsonics, LLC. retailer from where it was purchased. A photocopy of the original receipt must accompany the product being returned. The costs associated with removal, re-installation and freight are not the responsibility of Maxxsonics, LLC. This warranty is limited to defective parts and specifically excludes any incidental or consequential damages connected therewith. To view the full warranty, please visit the website.
Crunch products are designed and engineered in the USA by
www.maxxsonics.com
