SEVEN L238IPS 23.8 Inch FHD 1920×1080 IPS LED Monitor

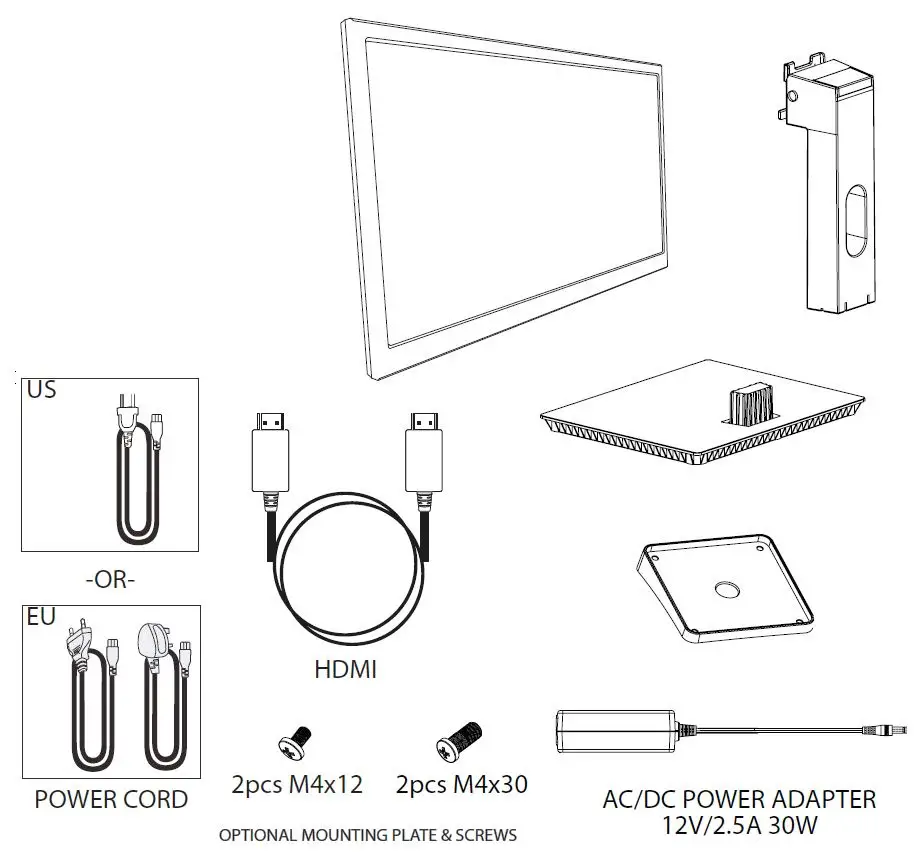

PACKAGE INCLUDES
GETTING STARTED

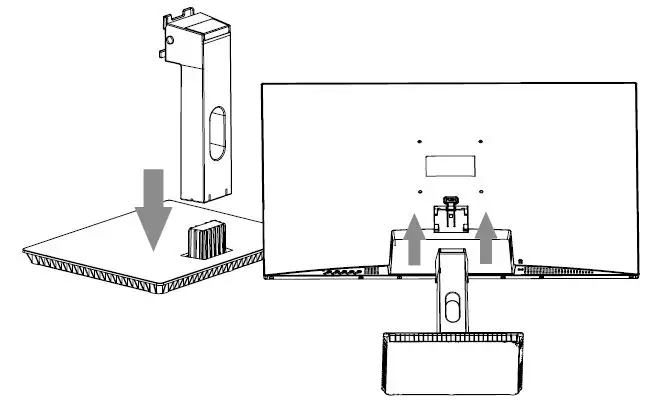

MOUNT OPTION (Wall Mount Sold Separately)

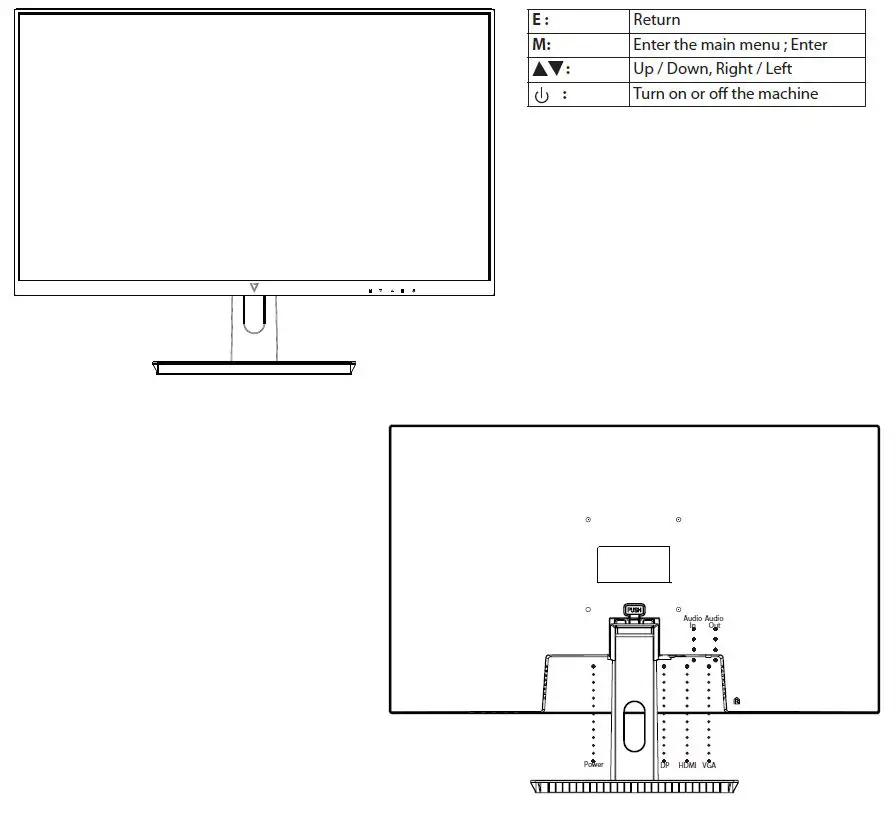

CONTROL PANEL
| E : | Return |
| M: | Enter the main menu ; Enter |
| : | Up / Down, Right / Left |
| : | Turn on or off the machine |
MAIN MENU

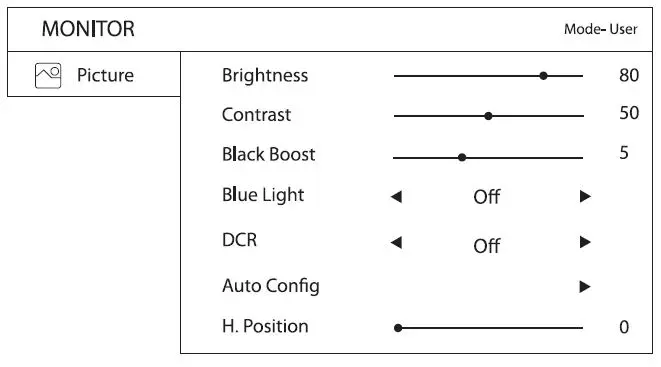

- Picture
- Color
- Audio
- OSD
- System

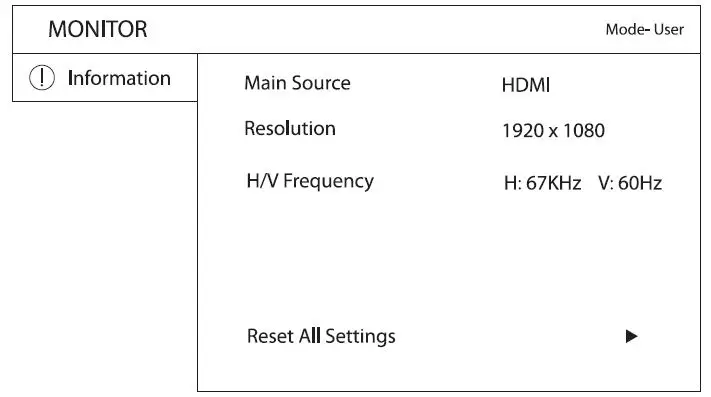

- Information
| Brightness: | To adjust the luminance of the video |
| Contrast: | To adjust the foreground white level of screen image |
| Black Boost: | To adjust black levels to display darker areas such as shadows to be more visible |
| Blue Light: | To adjust Blue Light levels OFF/25%/50%/75%/100%. Blue Light Disabled if DCR is ON |
| DCR: | Dynamic Contrast Ratio |
| Note: | Adjusting H. Position, V. Position, Focus, & Clock is grayed out if connected via HDMI or DisplayPort. |
| Auto Config: | Automatic configuration of the below parameters ONLY if connected via VGA Analog signal |
| H. Position: | To move image Horizontally |
| V. Position: | To move image Vertically |
| Focus: | To adjust the phase position of the analog signal |
| Clock: | To adjust the clock of analog signal |

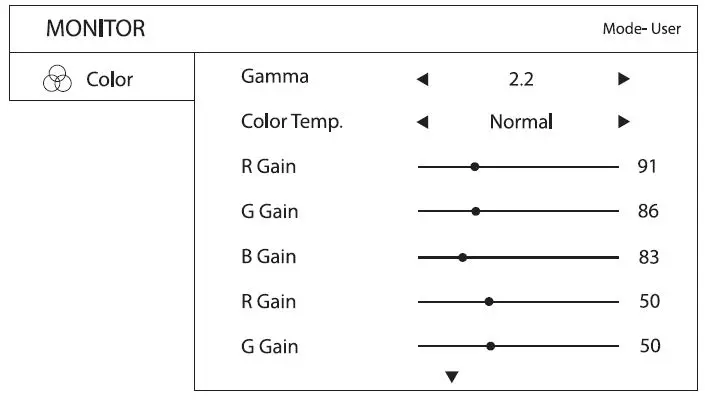

COLOR
| Gamma: | To adjust Gamma 1.8/2.2/2.4 |
| Color: | To adjust color temperature: Warm/Normal/Cool/Blue Light/User |
| RGB Values can be individually adjusted |

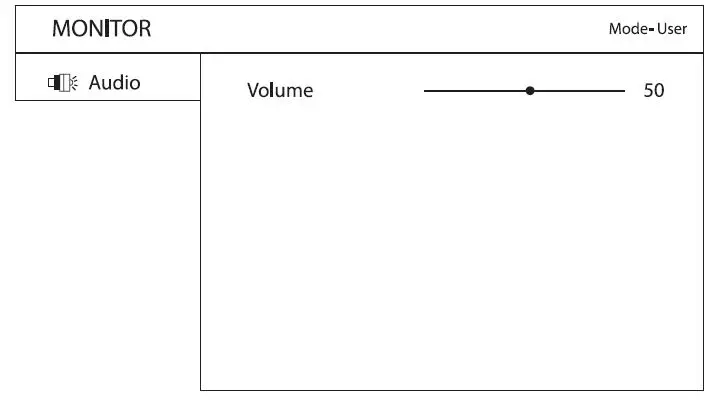

AUDIO
| Volume: | To adjust internal speakers |

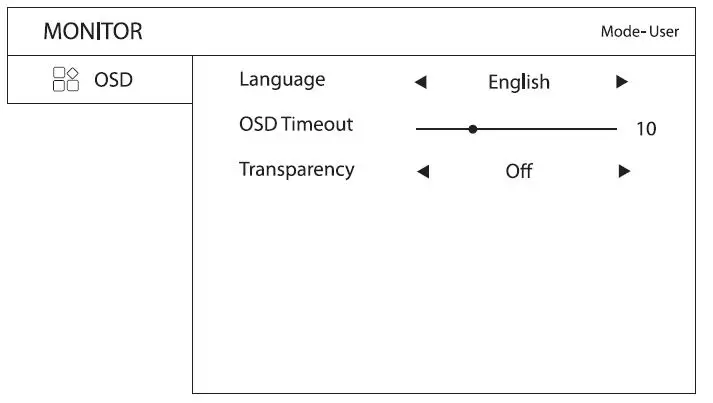

OSD
| Language: | To select desired language |
| OSD Time Out: | To adjust time limit of OSD |
| Transparency: | To adjust OSD visibility in foreground |

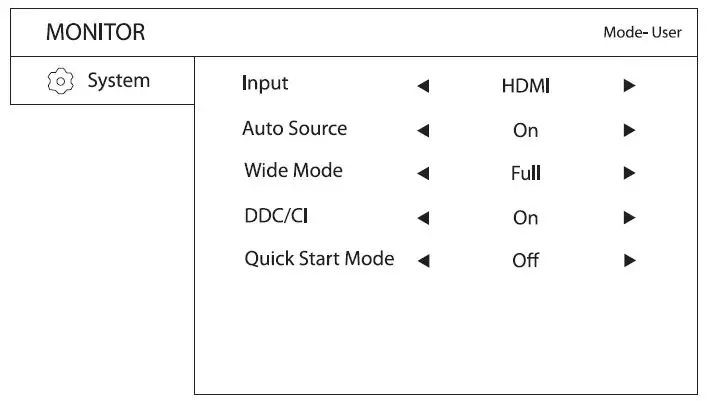

SYSTEM
| Input: | To select desired input source: HDMI/VGA/DP |
| Auto Source: | To select On/Off |
| Wide Mode: | To select Aspect/Full. When some input signals are 4:3 the display can extend to 16:9 full screen |
| mode. Full Screen mode does not apply at high resolution settings. | |
| DDC/CI: | To turn On/Off Display Data Channel (DDC) / Command Interface (CI) |
| Quick Start Mode: | Select On & Off VSeven Start up image |
TECHNICAL SPECS
| 23.8” FHD 1920×1080 IPS LED Monitor | |
| General: | Technical: |
| Warranty: 3 years | MTBF: 30,000 hrs |
| Compliance: CE, Energy Star, FCC, ICES, RoHS, UKCA, WEEE | Panel Size: 23.8 in |
| Country Of Origin: China | Panel Type: IPS |
| Package Includes: Monitor with Stand, 2 x M4x12, 2 | Power Input: AC 100V-240V 50-60Hz |
| x M4x30, Quick installation guide, HDMI Cable, | Aspect Ratio: 16:9 |
| Power Cord, Power Adapter, Warranty Card | Response Time: 14 ms |
| Package Dimensions: | Viewing Angle: 178°H / 178°V |
| Package Dimensions (L/W/H): 59.4 x 12.3 x 38.6 cm (23.4 x 4.8 x 15.2 in) | Brightness: 220 nits |
| Shipping Weight: 3.4 kg (7.5 lbs) | Color Depth: 16.7 million colors |
| Package Weight: 3.4 kg (7.5 lbs) | EU/UK Energy Rating: F |
| Product Dimensions: | Contrast Ratio: 1200:1 |
| Product Dim (L/W/H): 54.2 x 19 x 40.9 cm (21.3 x 7.4 x 16 in) | Input Port: DisplayPort, HDMI, VGA |
| Product Weight: 2.76 kg (6.1 lbs) | VESA Mount: 100 x 100 mm |
| Input AC Plug Type: UK, EU, US | |
| Stand: 18.8 cm (7.4 in) Height / 22.9 cm (9 in) x 18.9 cm (7.4 in) Base | |
| Speaker: 2 x 2W | |
| Monitor Dim (w/o Stand): 54.2 x 32.1 x 5.3cm (21.3 x 12.6 x 2.1in) | |
| Pixel Pitch (H/V): 0.2745 (H) x 0.2745 (V) | |
| Horizontal Frequency: 60Hz | |
| Display Area (H x L): 52.7 cm x 29.6 cm | |
CARE & MAINTENANCE
Care
- Avoid exposing your monitor directly to sunlight or another heat source. Place your monitor away from the sun to reduce glare.
- Put your monitor in a well-ventilated area.
- Do not place any heavy things on top of your monitor
- Make certain your monitor is installed in a clean and moisture-free area.
- Keep your monitor away from magnets, motors, transformers, speakers, and TV sets.
Safety Tips
- If smoke, noise or odor comes from the monitor – remove the power cord immediately and call tech support.
- Never remove the rear cover of your monitor cabinet. The display unit inside contains high-voltage parts and may cause electric shock.
- Never try to repair your monitor yourself. Always call your service center or a qualified technician.
TROUBLESHOOTING
No Power
- Make sure A/C power cord is securely inserted to both the AC-INLET socket on the monitor and wall outlet.
- Plug another electrical device into the power outlet to verify that the outlet is supplying proper voltage.
- Make sure all signal cables are installed.
Power on but no screen image
- Make sure the video cable supplied with the monitor is tightly secured to the video output port on back of the computer.
- Adjust brightness
Wrong or abnormal colors
- If any colors (red, green, blue) are missing, check the video cable to make sure it is securely connected. Loose or broken pins in the cable connector could cause an improper connection
- Connect the monitor to another computer
