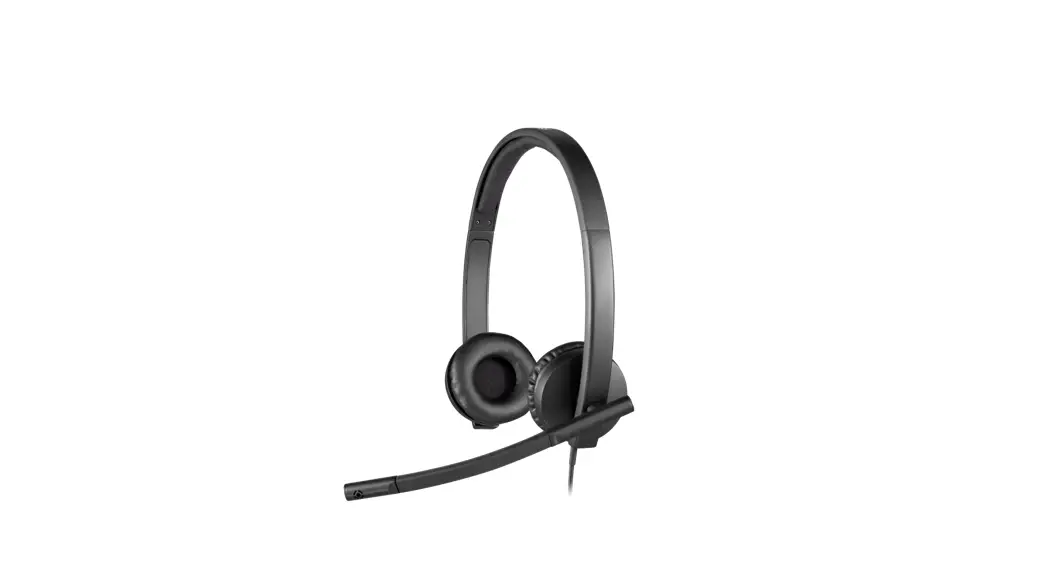

The Logitech USB Headset H570e
Enterprise-quality communication, comfortable fit and unmatched by the competition1.

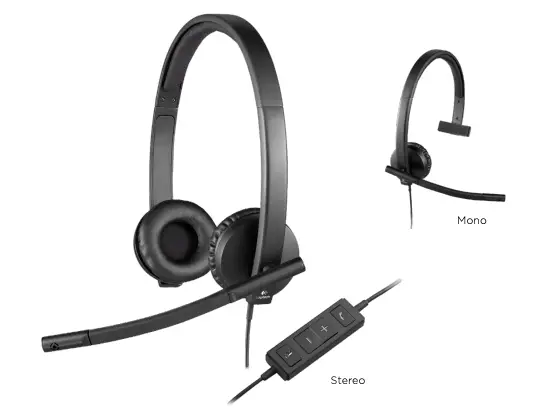

The Logitech USB Headset H570e, available in corded mono and stereo versions, delivers enterprise-quality audio at an affordable price. Along with the human-centric design Logitech is known for, the USB Headset H570e provides clear, comfortable communication with a feature set unmatched by competitive alternatives in the same price category1.
Features:
- Optimized for Microsoft® Lync™; Cisco® compatible2; Skype™ certified; compatible with most leading UC platforms
- Padded, metal-reinforced headband
- Replaceable leatherette ear pads
- Inline controls
- Incoming call indicator
- Digital Signal Processing (DSP)
- Acoustic echo cancelation
- Noise-cancelling microphone
- Dynamic equalizer
- Wideband audio
- Logitech Sound Protection
- Flexible microphone boom
- Stylish, lightweight design
- Plug-and-play USB connectivity
Product Specifications
Price: Mono: $44.99; Stereo: $49.99
Part #: Mono: 981-000570; Stereo: 981-000574
UPC Code: Mono: 097855107961; Stereo: 097855107978
Weight/Dimensions:
- Headset: 6.50 x 6.75 x 2 in (165 x 172 x 50 mm)
- In-line control: 0.75 x 2.38 x 0.38 in (21 x 62 x 10 mm)
- Headset Weight: Mono: 85 g / 3.0 oz; Stereo: 111 g / 3.9 oz
- Packaging: 7.09 x 7.87 x 2.36 in (180 x 200 x 60 mm)
- Packaging Weight: Mono: 194 g / 6.84 oz; Stereo: 219 g / 7.73 oz
System Requirements
- Windows® 7, Windows® 8 or Windows® 8.1 (32-bit or 64-bit)
- Mac OS® 10.6 or higher
- Available USB port
Inside the box
- Headset
- Quick Start Guide/warranty card
Technical Specifications
Microphone: (Tx)
- Type: Directional ECM
- Frequency response: 100 Hz – 18 kHz
- Sensitivity: -47 dB +/- 3 dB
- Distortion: <2% @ 1kHz, 94dB SPL
- Operating voltage: 1.4 – 5.0V DC
Speakers: (Rx)
- Frequency response: 31.5 Hz – 20 kHz ( Diffuse field )
- Sensitivity: 94dB ±3 dB at 1KHz, 0.01m, 0.01W
- Distortion: < 5% @ 1kHz, 10mW, 1kHz
- Compliant with EN60950-1
Warranty
2-year limited hardware
FEATURE SPOTLIGHT
Optimized for Microsoft® Lync™; Cisco® compatible2; Skype™ certified; Compatible with most leading UC platforms
Ensures enterprise-quality audio and an integrated experience with most all business-grade UC platforms.
Padded, metal-reinforced headband
Durable and adjustable padded headband can be worn comfortably all day while metal reinforcement provides strength, flexibility and “just the right” fit.
Replaceable leatherette ear pads
Built with high quality materials so the headset remains comfortable during long hours of use. Plus, the leatherette ear pads can be easily cleaned and are conveniently replaceable.
Inline controls
Convenient access to all call controls: volume up/down, microphone mute and call answer/end3.
Incoming call indicator
LED flashes with incoming calls3, providing a convenient visual cue to answer the phone.
Digital Signal Processing (DSP)
Enables precise tuning for both the mic and speaker so conversations are more life-like.
Acoustic echo cancelation
Blocks unwanted noise coming from the speaker from entering the mic path.
Noise-cancelling microphone
Blocks out distracting ambient noise from the surrounding environment.
Dynamic equalizer
Automatically switches between voice and music modes, delivering the best sound quality for what the user is listening to.
Wideband audio
Hear and be heard in true wideband audio, ensuring those on both sides of the call enjoy a lifelike listening experience.
Logitech Sound Protection
Designed for protection against sounds above 115dBA to deliver exceptional listening comfort for voice and music; compliant with EN60950-1.
Flexible microphone boom
The boom rotates up and down and can be bent in or out to enable optimal placement for voice pickup.
Stylish, lightweight design
Durable, lightweight materials provide a contemporary, stylish look.
Plug-and-play USB connectivity
Easily connects to a PC or Mac with no additional software required.
1 Price category based on MSRP of $44.99-49.99 as of 05/13/2014; Includes audio features similar to competitive products plus adjustable padded headband and premium replaceable leatherette ear pads.
2 See www.logitech.com/ciscocompatibility for the latest version.
3 With Microsoft® Lync™ and Cisco® deployments. See www.logitech.com/ciscocompatibility for the latest version. Works with Skype using plug-in (select the appropriate product and download at http://www.logitech.com/support/business-products).
4 With Microsoft® Lync™, Jabber® 9.6 and later deployments; Skype™ require a plug-in. Select the appropriate product and download at http://www.logitech.com/support/business-products.
Logitech USB Headset H570e User Manual – Optimized PDF
Logitech USB Headset H570e User Manual – Original PDF
