LOGITECH USB HEADSET H570e
Setup Guide
Guide d’installation

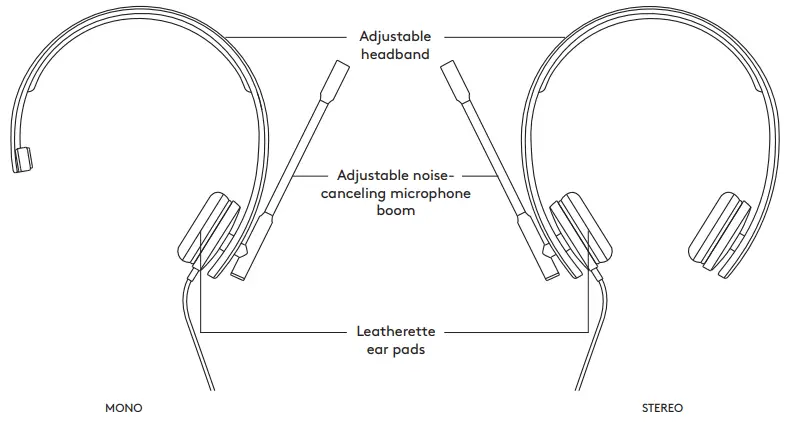

KNOW YOUR PRODUCT

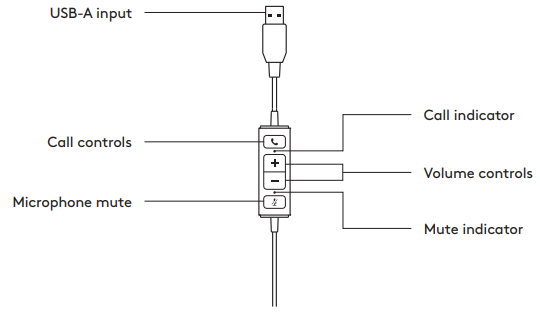

IN-LINE CONTROLLER
WHAT’S IN THE BOX
MONO
- Headset with In-line controller
and USB-A connector - User documentation
STEREO
- Headset with In-line controller
and USB-A connector - User documentation
CONNECTING THE HEADSET
Plug the USB-A connector into your computer USB-A port

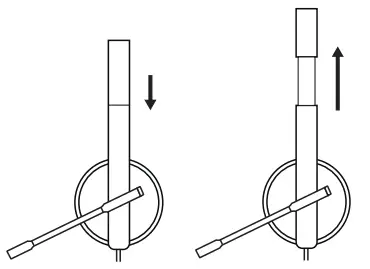

HEADSET FIT
Adjust headset by sliding headband open or closed

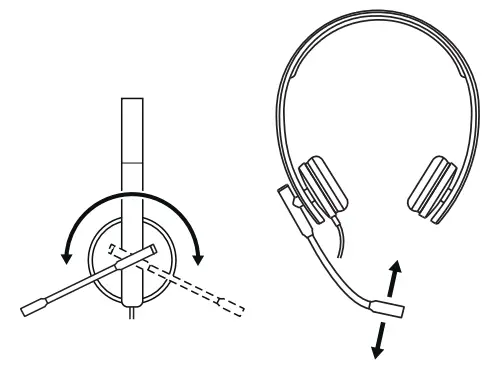

ADJUSTING THE MICROPHONE BOOM
- Microphone boom rotates 270 degrees Wear it on either left or right side
- Adjust flexible microphone boom location to capture voice better
| Button | Usage | Indicator Light | Action | |
| Controls | Incoming calls | Flashing WHITE | Short press to Answer calls |
| Ongoing calls | Solid WHITE | Short press to End calls | ||
+ | Volume | No light | Short press to Volume up | |
— | Short press to Volume down | |||
 | Mute | Mute On | Solid RED | Short press to Mute / Unmute |
| Mute Off | No light | |||
DIMENSIONS
HEADSET:
Height x Width x Depth:
165 mm x 172 mm x 50 mm
Weight:
MONO: 0 085 kg
STEREO: 0 111 kg
EARPAD:
Height x Width x Depth:
50 mm x 50 mm x 14 mm
SYSTEM REQUIREMENTS
Windows® 7 or higher macOS® 10 7 or higher Linux® One USB 2 0 port
TECHNICAL SPECIFICATIONS
Input Impedance: 32 Ohms
Sensitivity (headphone): 94 dB +/- 3 dB
Sensitivity (microphone): -47 dB +/- 3 dB
Frequency response (Headset): 31 5 Hz – 20 kHz
Frequency response (Microphone): 100 Hz – 18 kHz
Cable length: 1 5 m
www.logitech.com/support/mono-h570e
www.logitech.com/support/stereo-h570e
© 2020 Logitech, Logi, and the Logitech Logo are trademarks or registered trademarks of Logitech Europe S A and/or its affiliates in the US and other countries Logitech assumes no responsibility for any errors that may appear in this manual Information contained herein is subject to change
without notice
