Getting started with
Logitech® Stereo Headset H150
H150 Stereo Headset

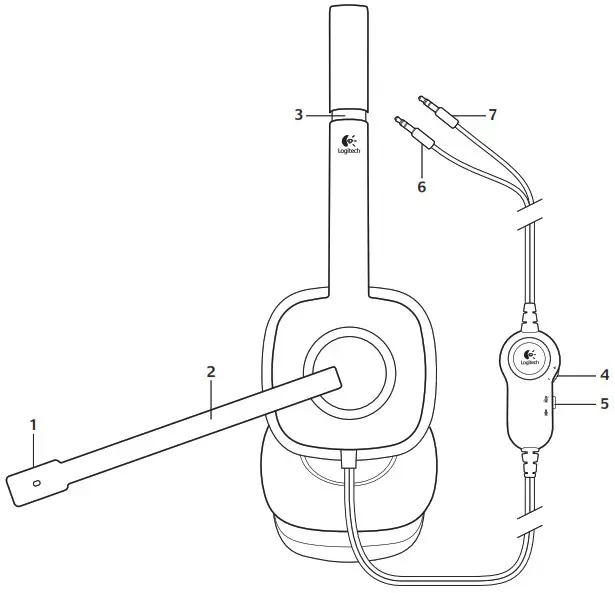

Headset features
| 1. Noise-canceling microphone 2. Rotating microphone boom 3. Adjustable headband 4. Volume control | 5. Mute switch 6. Headphone plug (green) 7. Microphone plug (pink) |

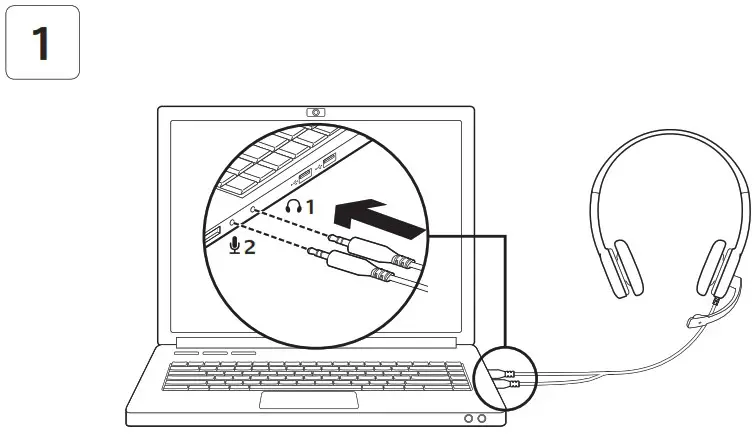

Connect the headset
- Insert the 3 5 mm headphone plug (green) into the headphone jack on your computer
- Insert the 3 5 mm microphone plug (pink) into the microphone jack on your computer
Help with setup: headset not working?
- Check both the headphone and microphone cable connections between the headset and your computer The 3 5 mm headphone plug (green) connects to the headphone jack on your computer, and the 3 5 mm microphone plug (pink) connects to the microphone jack
- Adjust the volume and microphone settings to an audible level in the application and operating system
- Try restarting the media application
- Close all media applications and check whether your computer soundcard has been selected in your
Windows operating system for playback and voice
Windows XP: Go to Start/Control Panel/ Sounds and Audio Devices/Audio tab Choose your sound card and click OK Go to the Voice tab, select your sound card, and click OK Restart your media application
Windows Vista and Windows 7: Go to Start/Control Panel/Sounds/ Playback Devices tab Choose your sound card and click OK Go to the Recording devices tab, choose your sound card, and click OK Restart the media application
For additional assistance, please visit www.logitech.com/support
Eastern Europe: 41-(0)22 761 40 25
United States +1 646-454-3200
© 2011 Logitech All rights reserved Logitech, the Logitech logo, and other Logitech marks are owned by Logitech and may be registered Microsoft, Windows, Windows Media, and the Windows logo are trademarks of the Microsoft group of companies All other trademarks are the property of their respective owners Logitech assumes no responsibility for any errors that may appear in this manual Information contained herein is subject to change without notice
620-003280.003
