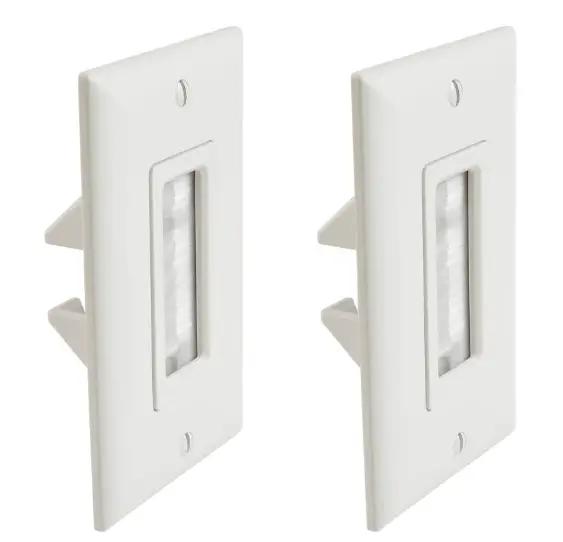

SANUS SAL-IWP2 In-Wall Power and Strap Wall Plate
Instruction
In-Wall Power & Strap Wall Plate
Model: SAL-IWP2
Installation Instructions
Doc. #1412968 04/21 Rev A
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ ENTIRE MANUAL PRIOR TO USE
– SAVE THESE INSTRUCTIONS
Legrand electrical products conform to and should be properly grounded in compliance with requirements of the current National Electrical Code or codes administered by local authorities. All electrical products may present a possible electric shock or fire hazard if improperly installed or used. Legrand electrical products may bear the mark of a Nationally Recognized Testing Laboratory and should be installed in conformance with current local and/or the National Electrical Code.
CAUTION: Avoid potential personal injuries and property damage!
- WARNING – IMPROPER WIRING OF ANY ELECTRICAL WIRING DEVICE CAN CAUSE SERIOUS INJURY OR DEATH. THESE WIRING DEVICES SHOULD BE INSTALLED ONLY BY AN ELECTRICIAN OR OTHER QUALIFIED PERSON IN ACCORDANCE WITH ALL APPROPRIATE CODES AND STANDARDS. IF YOU ARE NOT SURE ABOUT ANY PART OF THESE INSTRUCTIONS OR ASSEMBLY, CONSULT A QUALIFIED ELECTRICIAN.
- RISK OF FIRE AND SHOCK – Before installing, ensure power is off by switching off circuit breaker and test to confirm.
- Do not use this product for any purpose not explicitly specified by manufacturer.
- Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

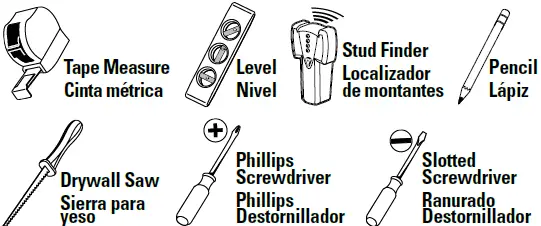

Tools Needed
- INSTALLATION PREPARATION

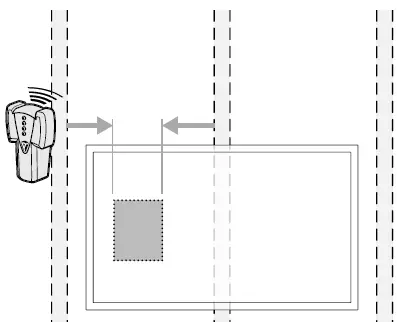

Find your desired locations (between studs).

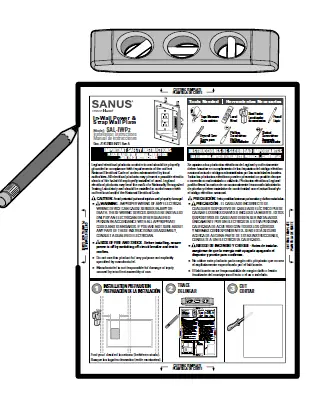

- TRACE DELINEAR

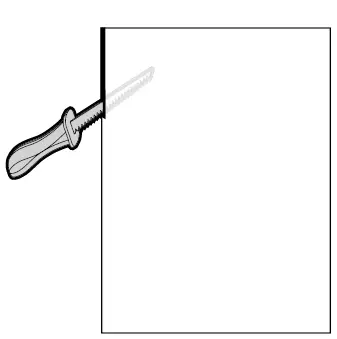

- CUT CORTAR

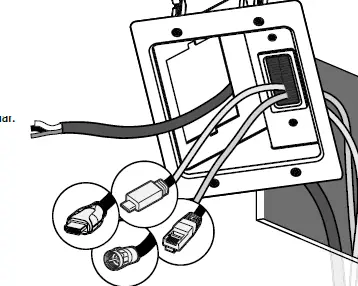

- RUN 14/2 w/GROUND FOR POWER and A/V CABLES PASAR LOS CABLES
RISK OF FIRE AND SHOCK – Before installing, ensure power is off by switching off circuit breaker and test to confirm.
CAUTION – For use with Copper or Copper Clad Wire. DO NOT use with Aluminum Wire.

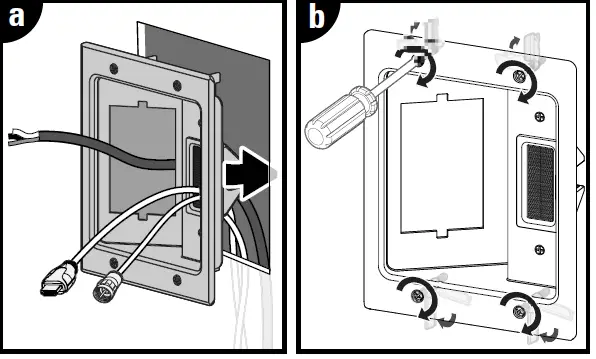

- SECURE FIJAR
Insert into the wall and secure the lock tabs by turning the scews.
- ASSEMBLE ENSAMBLAR
- CONNECT CABLES CONECTAR CABLES
Once all electrical connections are complete and the box is installed, turn on the breaker and finish connecting the wires.
Thank you for choosing SANUS!
Please take a moment to let us know how we did:
800-321-2343
Doc. #1412968 04/21 Rev A
©2021 Legrand AV Inc. All Rights Reserved. Made in China.
Legrand AV Inc. and its affiliated corporations and subsidiaries (collectively, “Legrand”), intend to make this manual accurate and complete. However, Legrand makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency
in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Legrand makes no representation of warranty, expressed or implied, regarding the information contained herein. Legrand assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
CUTTING TEMPLATE PLANTILLA DE CORTE
