Appendix D
Quick Start Guide: 750 Series Modular Switches
Rear Panel
This appendix displays the rear panel of all switches covered by this guide.

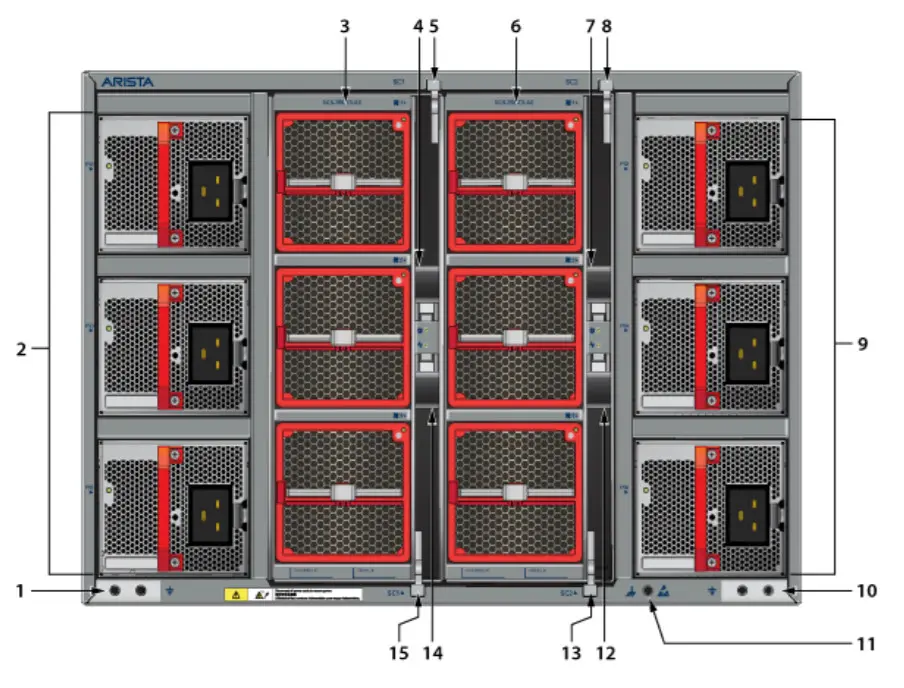

Figure D-1: CCS-755 rear panel (fully populated)
| 1. Chassis ground 2. PSUs (1, 3, 5 – From top) 3. Fans and switch card module 1 4. Switch card ejector – SC1 5. Ejector latch – SC1 | 6. Fans and switch card module 2 7. Switch card ejector – SC2 8. Ejector latch – SC2 9. PSUs (2, 4, 6 – From top) 10. Chassis ground | 11. ESD attachment point 12. Switch card ejector – SC2 13. Ejector latch – SC2 14. Switch card ejector – SC1 15. Ejector latch – SC1 |

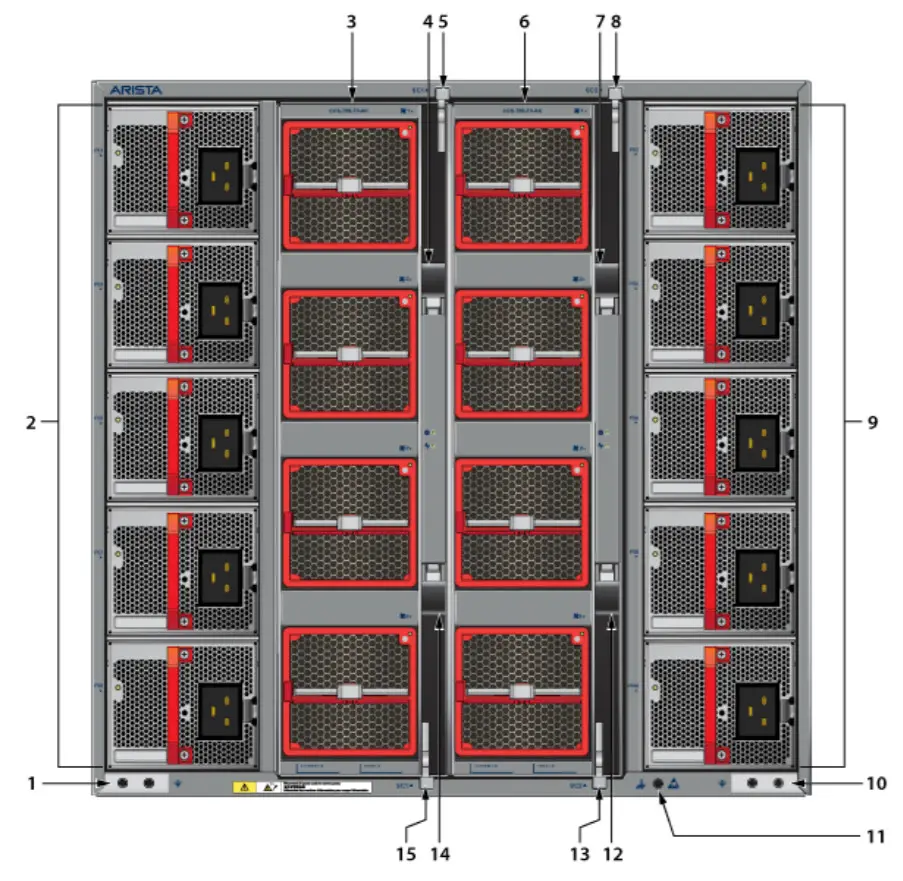

Figure D-2: CCS-758 rear panel (fully populated)
| 1. Chassis ground 2. PSUs (1, 3, 5, 7, 9 – From top) 3. Fans and switch card module 1 4. Switch card ejector – SC1 5. Ejector latch – SC1 | 6. Fans and switch card module 2 7. Switch card ejector – SC2 8. Ejector latch – SC2 9. PSUs (2, 4, 6, 8, 10 – From top) 10. Chassis ground | 11. ESD attachment point 12. Switch card ejector – SC2 13. Ejector latch – SC2 14. Switch card ejector – SC1 15. Ejector latch – SC1 |
