Bi-color Focusing LED Light
S60BiInstruction Manual

S60 Bi Color Focusing LED Light

Foreword
Thank you for purchasing Godox product!
Bi-Color Focusing LED Light S60Bi is a professional video light It has stable light resource ,high brightness ,ultra high color rendering index, and adjustable focus range from  6’to 55′, which make it quite suitable for commercial shooting, studio shooting, portrait shooting and interview.

Main Features:

• With specially designed lens to gain soft and even light effect from center to edge
• Adjustable focusing range and light brightness enable you to observe the variation of shadow’s hardness, dimension and edge contrast
• Precisely control the light and achieve more creative light effects when use in combination with abundant accessories
• Compact design offers great convenience, portability and wide application
• 2.4G, Bluetooth wireless transmission and OMX functions,
• Mute mode with no disturbance
• Separate design of light body and controller to achieve better cooling effect
• Stepless adjustments for CCT from 2800K to 6500K and brightness from Oto 100%

warning
  Do not disassemble or modify. Should the product break down, send the defective back to the authorized service center for inspection and maintenance.
If this product overheats, it will cease operation and resume working after cooling down. This is due to the built-in over-temperature protection.
As this product adopts make and break device, please keep it easy to be used.
Keep dry. Do not handle with wet hands, immerse in water, or expose to rain.
Do not place in high temperature or high humidity conditions.
Keep out of reach of children.
Disconnect from the power supply when it will not be used for an extended period.
Do not fire the flash directly into the eyes. Otherwise visual impairment may occur.
Please read and keep this instruction manual carefully for future instruction.

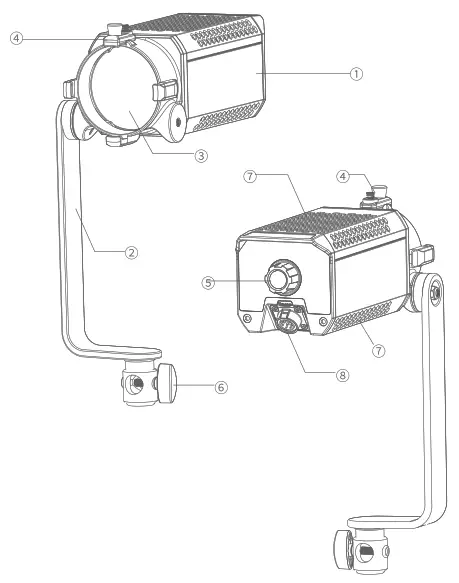

Name of Body
• Main Body

1.  Body
2. Direction Adjusting Bracket
3.  Lens
4. Accessory Latch
5. Focus Dial
6. Fixing Knob
7. Thermovent
8. DC Input Port

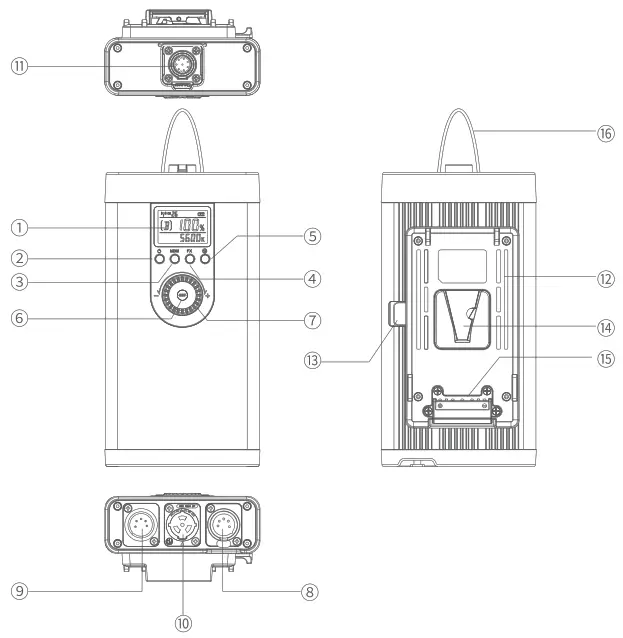

Controller

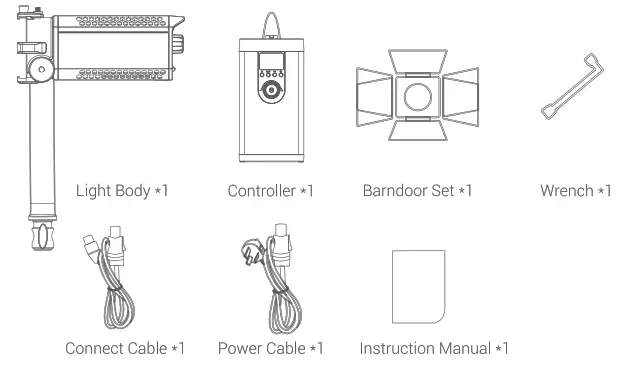

Included Items

Optional Accessory

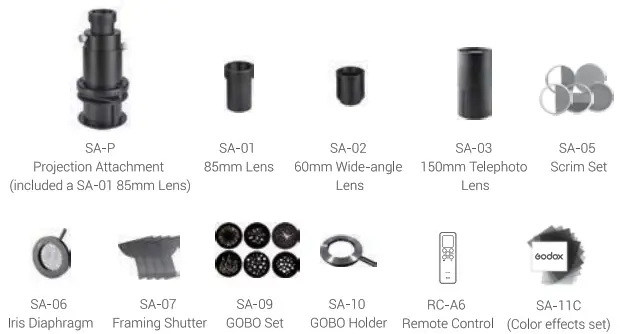

The product can be used in combination with the following accessories sold separately so as to achieve best photography effects

S4 IT (Color temperature adjustment set) Color Fter

Power Supply

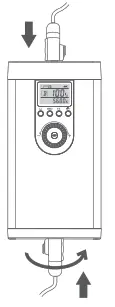

AC Power Supply

1. Press and hold the metal latch button of connect cable, insert the two ends of power source connect cable into the controller’s DC output port and light’s DC input port
   until a “click” can be heard.
2. Insert the power cable’s output end into the controller’s AC input port. Then, rotate it rightwards to 1 5° until a “click” can be heard.
   Pull out the power cable: press the PUSH button on the output end of power cable and rotate it leftwards to l 5°to pull out.
3. Connect power cable into the power source.Pull out the connect cable: press down the metal latch button of connect cable and pull out the cable simultaneous­ly.

V-port Battery Power Supply (Optional)
Install the V-port battery onto the controller’s battery compartment. Then, power the light on to operate.
Note: please use the standard V-port battery with 14.8V standard voltage. Do not supply power with the battery whose voltage is over 16.8V

Operation

• Power switch:
  Short press the power switch, and the LED light will be lighted on. Press the button again to turn off the light.
• Brightness adjustment:
  In the main interface, turn the select dial to adjust brightness from 0% to 100%.

Bi-color Setting
Bi-color Mode: CCT mode is on the main interface.
CCT Adjustment: Short press SET button on the main interface, the CCT number will blink,turn the select dial to adjust CCT from 2800K to 6500K,with 100 units change  in normal speed and 500 units change in fast speed.

• Light effects setting:
  In normal status, short press the FX button once to enter the setting interface. Then, turn the select dial to choose light effects from OFF and 1 to 11.

Short press the FX button or SET button to exit from light effects modes and back to the main interface after settings finished.
Note: If a light effect is selected from 1 to 11, the FX icon and light effects will be displayed on the main interface and. the brightness can be adjusted, while color  temperature is not available.If choose OFF, the color temperature will be displayed instead of FX icon.

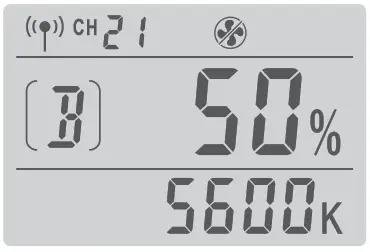

• Silent Mode:
  In normal status, short press the Fan button to turn it on or off. the icon is displayed,the fan is turned off, the LED light will enter silent mode. and the brightness will be adjusted from 0% to 50%.
  Note: the fan will be turned on by default and there is no icon appeared on the display.

MENU
1. 2.4G Wireless Control
With 2.4G wireless system, S60Bi focusing LED video light has remote grouping and control function.
It is recommended to purchase RC-A6 remote control (optional) to achieve wireless control. 16 groups of LED lights can be controlled. 32 channels and 99 IDs are available with strong anti-interference capability.

Note

1. Please make LED light’s channel, group and ID to the same as remote control’s
2. The wireless signals can only be received in the situation that the LED light is powered 0n

1.1CH Chanel Adjustment/GR Group Adjustment/Ip Value Adjustment
In main interface, short press MENU button once and turn the select dial to select channel, group, ID, bluetooth code display and DMX512 lop

In H channel setting interface, short press SET button and the channel icon will blink Then, turn the select dial to choose channel from 1 10 32. Press the SET button to exit  and the icon will gtop blinkingIn GR channel setting interface, short press SET button and the group icon will blink Then, turn the select dial to choose group from A to F and 0to 9.Press the SET button to exit and the icon will stop blinking In ID channel setting interface, short press SET button and the group icon wilt blink Then, turn the select dial to choose group from Orr and 1t0 99. press the SET button to  confer and the ion will stop blinking
After setting all these parameters, short press SET button to confirm and back to the main interface
Note: the LED light will auto return to the main interface if there’s no operation after 10 seconds

Bluetooth Control
2.1 Bluetooth Code Display & RESET Function
Check Bluetooth code: in main interface short press MENU button. Then, press the select dial to switch the ions. The Bluetooth code will be displayed after Bluetooth icon appeared Bluetooth reset function in the Bluetooth code interface long press the SET button for 2seconds and the Bluetooth icon will blink because of resetting. And the icon will stop  blinking after successfully reset. Then, short press the MENU button to return to main interface
Note The LED light’s Bluetooth function should be turned on. The APP can be used directly on the firstly installed device (smartphone or iPad. Whenchange to other  mobile device(smartphone or ad), the light shall be reset before the normal connection of APP

2.2San the QR code to download the Godox Light” smartphone APP(can be used in Android and Apple),
For more smartphone AP operations please open the help” in App t0 gain detailed guidance

http://www.guteleben.com/html/dl_app/c_ble/GodoxLight/index.html

0MX Control Mode
In main interface, short press MENU button once and turn the select dial to switch until the DMX icon is displayed. Short press the SET button and the icon will be blinking Then, turn the select dial to set the DMX channel from 1 to 512. Adjustment in 1g values quickly or l value normally Then, short press the SET button to confirm and the  icon will stop blinking. Short press the MENU button to return to main interface

DMX Parameters:

llluminance Data of S60B1

Note: The above tests are all based on the condition of 100% brightness.

Technical Data

+ Product design and specifications are subject to change without notice.

Declaration of Conformity:
GODOX Photo Equipment Co,Ltd. hereby declares that the This equipment are in compliance with the essential requirements and other relevant provisions of EU Directive  2014/53/EU. They are allowedto be used in all EU member states. For more information of DoC, Please click this web  link:http://www.godox.com/DOC/Godox­_$60Bi_DOC.pdf

Maintenance

This product, except consumables e.g. battey, powecable and connect cable, 1s supported with a one-yea warranty.
Avoid sudden impacts and the product should be dedusted regularly.
Maintenance of the flash must be peformed by ou authorized maintenance department which can provide original accessories Unauthorized service will void the warranty.
If the poduct had fa1lues or was wetted, do not use 1t until 1t 1s epa1ed by professionals.
Changes made to the speccations or designs may not be reflected 1n this manual.

FCC compliance statement

This product, except consumables e.g. battey, powecable and connect cable, 1s supported with a one-yea warranty.
Avoid sudden impacts and the product should be dedusted regularly.
Maintenance of the flash must be peformed by ou authorized maintenance department which can provide original accessories.
Unauthorized service will void the warranty
If the poduct had fa1lues or was wetted, do not use 1t until 1t 1s epaired by professionals.
Changes made to the speccations or designs may not be eflected in this manual
This device complies with Part 15 of the FCC Rules. Operation 1s subject to the following two conditions:

1. this device may not cause harmful interfeence, and
2. this device must accept any interfeence eceived, including interference that may cause undesired operation.

changes or modifications not expressly approved by the paty esponsible for compliance could vo,d the user’s authority to operate the equipment
This equipment has been tested and found to comply with the limits lo a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment geneates, uses and can radiate radio fequency energy and, if not installed and used in accordance with the instructions, may cause hamful interference to radio communications. However, there is no guarantee that inteference will not occu,n a particular installation.
If this equipment does cause hamful inteference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to coreel the interference by one o more of the following measures

• Reorient or elocate the receiving antenna Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different fom that to which the eceiver is connected
• Consult the dealer or an experienced radio/TV technician for help RF Exposure Compliance

To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.
Warranty
Dear customers, as this warranty card is an important certificate to apply for our maintenance service, please fill in the following form in coordination with the seller and safe-keep it. Thank you!

Note: This form shall be sealed by the seller.

 Applicable Products
The document applies to the products listed on the Product Maintenance Information (see below for further information). Other products or accessories (e.g. promotional  items, giveaways and additional accessories attached, etc.) are not included in this warranty scope.
Warranty Period
The warranty period of products and accessories is implemented according to the relevant Product Maintenance Information. The warranty period is calculated from the day(purchase date) when the product is bought for the first time, And the purchase date is considered as the date registered on the warranty card when buying the product.

How to Get the Maintenance Service
If maintenance service is needed, you can directly contact the product distributor or authorized service institutions. You can also contact the Godox after-sale service call and  we will offer you service. When applying for maintenance service, you should provide valid warranty card. If you cannot provide valid warranty card, we may offer you maintenance service once confirmed that the product or accessory is involved in the maintenance scope, but that shall not be considered as our obligation.

Inapplicable Cases

The guarantee and service offered by this document are not applicable in the following cases: CD. The product or accessory has expired its warranty period; 2. Breakage or damage caused by inappropriate usage, maintenance or preservation, such as improper packing, improper usage, improper plugging in/out external equipment, falling off or squeezing by external force, contacting or exposing to the improper temperature, solvent, acid, base, flooding and damp environments, etc; 3). Breakage or damage caused by non-authorized institution or staff in the process of installation, maintenance, alternation, addition and detachment; 0. The original identifying information of product or accessory is modified, alternated, or removed; 5). No valid warranty card; 6). Breakage or damage caused by using illegally authorized, nonstan­ dard or non-public released software; <J). Breakage or damage caused by force majeure or accident; (8). Breakage or damage that could not be attributed to the product itself. Once met these situations above, you should seek solutions from the related responsi­ ble parties and Godox assumes no responsibility. The damage caused by parts, accessories and software that beyond the warranty period or scope is not included in our maintenance scope. The normal discoloration, abrasion and consumption are not the breakage within the maintenance scope.

QC PASS
GODOX Photo Equipment Co., Ltd.
Add Building 2 Yaochuan Industrial Zone, Tangwe1 Community, Fuhai Street Bao’an
District, Shenzhen 518103, China Tel: +86 755 29609320(8062)
Fax. +86-755 25723423 Email [email protected]

godox.com
Made in china
