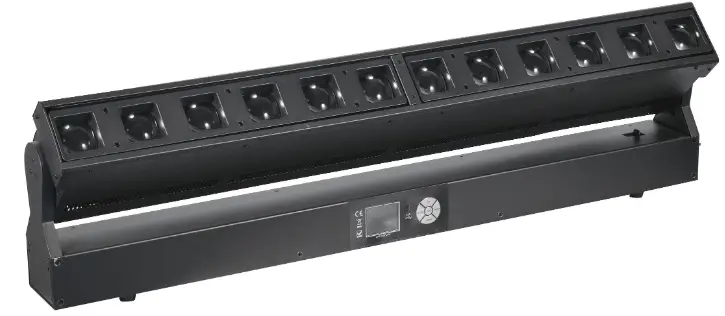

AUDIBAX Bar 123 Pixel Beam
![]()
| No. | Display | Function Description |
| Addr | A001-A512 | 512 Address Set |
| CHnd | 6Channel Set–8CH–12CH | |
| 21Channel Set–60CH | ||
| SLnd | MAST | Master Mode |
| SL 1 | DMX512 Mode | |
| SL 2 | Slave Mode | |
| Soud | Su0-Su59 | Sound Control Effect Choose |
| Sp0-SP99 | Adjust Sound control sensitivity | |
| Auto | Au0-Au59 | Auto mode selection |
| Sp0-SP9 | Auto mode speed selection | |
| Colo | Co1-Co15 | Color macro function |
| nanu | Red | 0-255 |
| Gree | 0-255 | |
| Blue | 0-255 | |
| White | 0-255 | |
| dISP | no | Display reverse |
| YES | Display forward | |
| uer | U12 | Current Version |
Channel description
| CH | Numerical value | Function |
| 1 | 0-255 | Dimming red 0~100% |
| 2 | 0-255 | Dimming green 0~100% |
| 3 | 0-255 | Dimming blue 0~100% |
| 4 | 0-255 | Dimming white 0~100% |
|
5 | 000-007 | No function |
| 008-12 | Built-in effects 1 | |
| 13-16 | Built-in effects 2 | |
| 17-20 | Built-in effects 3 | |
| 21-24 | Built-in effects 4 | |
| 。。。。。。 | 。。。。。。 | |
| 227-247 | Built-in effects 59 | |
| 248-255 | Stand-alone sound control | |
| 6 | Sound control speed from slow to fast | |
| Mode 1~16 are valid |
Technical parameter
- Voltage: AC100-240V 50Hz/60Hz
- Power: 50W
- Light source: 14pcs 3W warm white point control, 56pcs full-color RGB dyeing
- light source
- Control mode: voice control, self-propelled, DMX512, master-slave
- Effect: point control + horse racing, dyeing + beam
- Dimming: Linear and nonlinear focusing
- Protection class: IP20
- Material: cast aluminum + plastic
60CH
| CH | Numerical value | Function |
| 1 | 0-255 | Total dimming |
| 2 | 0-255 | Strobe |
| 3 | 0-255 | Red 1 0~100% |
| 4 | 0-255 | Green 1 0~100% |
| 5 | 0-255 | Blue 1 0~100% |
| 6 | 0-255 | White 1 0~100% |
| 7 | 0-255 | Red 2 0~100% |
| 8 | 0-255 | Green 2 0~100% |
| 9 | 0-255 | Blue 2 0~100% |
| 10 | 0-255 | White 2 0~100% |
| 11 | 0-255 | Red 3 0~100% |
| 12 | 0-255 | Green 3 0~100% |
| 13 | 0-255 | Blue 3 0~100% |
| 14 | 0-255 | White 3 0~100% |
| 15-49 | No function | |
| 50 | 0-255 | Red 11 0~100% |
| 51 | 0-255 | Green 11 0~100% |
| 52 | 0-255 | Blue 11 0~100% |
| 53 | 0-255 | White 12 0~100% |
| 55 | 0-255 | Red 12 0~100% |
| 56 | 0-255 | Green 12 0~100% |
| 57 | 0-255 | Blue 12 0~100% |
| 58 | 0-255 | White 12 0~100% |
|
59 | 000-007 | No function |
| 008-012 | Built-in effects 1 | |
| 013-016 | Built-in effects 2 | |
| 017-020 | Built-in effects 3 | |
| 021-24 | Built-in effects 4 | |
| 。。。。。。 | 。。。。。。 | |
| 223-226 | Built-in effects 58 | |
| 227-247 | Built-in effects 59 | |
| 248-255 | Stand-alone sound control | |
| 60 | 0-255 | Switching speed from slow to fast |
8CH
| CH | Numerical value | Function |
| 1 | 0-255 | Total dimming 0–100% |
| 2 | 0-255 | Strobe |
| 3 | 0-255 | Dimming red 0~100% |
| 4 | 0-255 | Dimming green 0~100% |
| 5 | 0-255 | Dimming blue 0~100% |
| 6 | 0-255 | Dimming white 0~100% |
|
7 | 000-007 | No function |
| 008-12 | Built-in effects 1 | |
| 13-16 | Built-in effects 2 | |
| 227-247 | Built-in effects 59 | |
| 248-255 | Stand-alone sound control | |
| 8 | 000-255 | Sound control speed from slow to fast |
| Mode 1~16 are valid |
|
Color | 0-15 | Close |
| 16-31 | R | |
| 32-47 | G | |
| 48-255 | B | |
| 64-255 | W | |
| 80-255 | R+G | |
| 96-255 | R+B | |
| 112-255 | R+W | |
| 128-255 | G+B | |
| 144-255 | G+W | |
| 160-255 | B+W | |
| 176-255 | R+G+B | |
| 192-255 | R+G+W | |
| 208-255 | R+B+W | |
| 224-256 | G+B+W | |
| 240-255 | R+G+B+W |
12CH
| CH | Numerical value | Function |
| 1 | 0-255 | Total dimming |
| 2 | 0-255 | Strobe |
| 3 | 0-255 | Red 1 0~100% |
| 4 | 0-255 | Green 1 0~100% |
| 5 | 0-255 | Blue 1 0~100% |
| 6 | 0-255 | White 1 0~100% |
| 7 | 0-255 | Red 2 0~100% |
| 8 | 0-255 | Green 2 0~100% |
| 9 | 0-255 | Blue 2 0~100% |
| 10 | 0-255 | White 2 0~100% |
|
11 | 000-007 | No function |
| 008-012 | Built-in effects 1 | |
| 013-016 | Built-in effects 2 | |
| 017-020 | Built-in effects 3 | |
| 021-24 | Built-in effects 4 | |
| 223-226 | Built-in effects 58 | |
| 227-247 | Built-in effects 59 | |
| 248-255 | Stand-alone sound control | |
| 12 | 0-255 | Switching speed from slow to fast |
21CH
| CH | Numerical value | Function |
| 1 | 0-255 | Total dimming |
| 2 | 0-255 | Strobe |
| 3 | 0-255 | Dot matrix effect 1 0-100% |
| 4 | 0-255 | Dot matrix effect 2 0-100% |
| 5 | 0-255 | Dot matrix effect 3 0-100% |
| 6 | 0-255 | Dot matrix effect 4 0-100% |
| 7 | 0-255 | Dot matrix effect 5 0-100% |
| 8 | 0-255 | Dot matrix effect 6 0-100% |
| 9 | 0-255 | Dot matrix effect 7 0-100% |
| 10 | 0-255 | Dot matrix effect 8 0-100% |
| 11 | 0-255 | Dot matrix effect 9 0-100% |
| 12 | 0-255 | Dot matrix effect 10 0-100% |
| 13 | 0-255 | Dot matrix effect 11 0-100% |
| 14 | 0-255 | Dot matrix effect 12 0-100% |
| 15 | 0-255 | Dot matrix effect 13 0-100% |
| 16 | 0-255 | Dot matrix effect 14 0-100% |
| 17 | 0-255 | Red 0-100% |
| 18 | 0-255 | Green 0-100% |
| 19 | 0-255 | Blue 0-100% |
|
20 | 000-007 | No function |
| 008-012 | Dot matrix effect 1 | |
| 013-016 | Dot matrix effect 2 | |
| 017-020 | Dot matrix effect 3 | |
| 021-24 | Dot matrix effect 4 | |
| 。。。。。。 | 。。。。。。 | |
| 223-226 | Dot matrix effect 58 | |
| 227-247 | Dot matrix effect 59 | |
| 248-255 | Stand-alone sound control | |
| 21 | 0-255 | Switching speed from slow to fast |
