VT-2437 Wall Panel Remote
Instruction Manual

TECHNICAL DATA:

INTRODUCTION & WARRANTY

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this  manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and  ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or  abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for  10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.

WARNING!

1. Please make sure to turn off the power before starting the installation.
2. Installation should only be done by a certified electrician.
3. For Indoor use only
4. Please check the cable, and make the circut is correct before power on.
5. Please do not use lighting fixtures around the mental area and high magnetic field, otherwise, it will badly affect the control distance.

IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected]
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST
DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B

This marking indicates that this product should not be disposed of with other household wastes.
Caution, risk of electric shock.

http://vtac.store/vt2437

MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code to access the manual in multiple languages.

FUNCTION OF KEYS
Remark: When touching the button, LED indicating lamp will flash once with different sound (Touch slider with no sound).

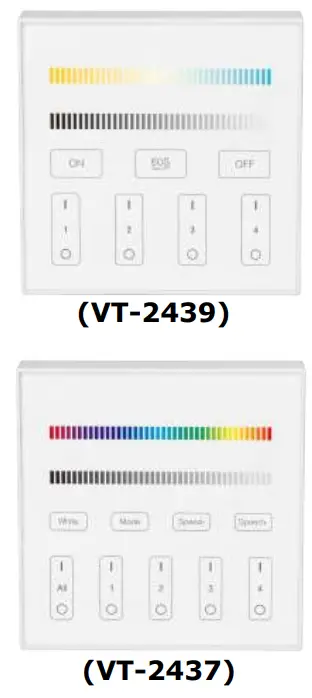

PARTS OF DESCRIPTION

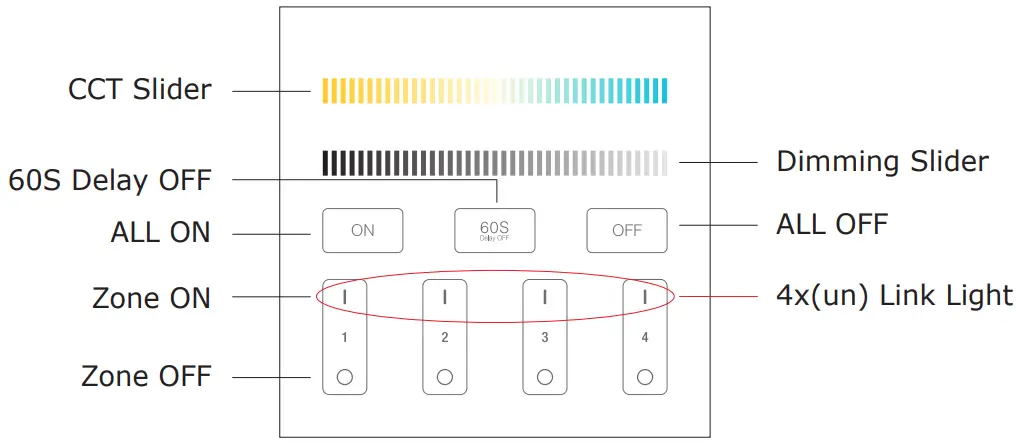

BUTTON FUNCTIONS

	Touch the slider to change color temperature.
	Touch dimming slider to change the brightness from 1~100%.
	Touch master ON, turn on all linked lights. Long press 5 seconds to turn ON the indicating sound.
	When the light is ON, press “60S Delay OFF”, the light will be OFF. Automatically after 60 seconds.
	Touch master OFF, turn off all linked lights. Long press 5 seconds to turn OFF the indicating sound.
	Touch Zone ON, turn on zone-linked lights.
	Touch Zone OFF, turn off zone-linked lights.

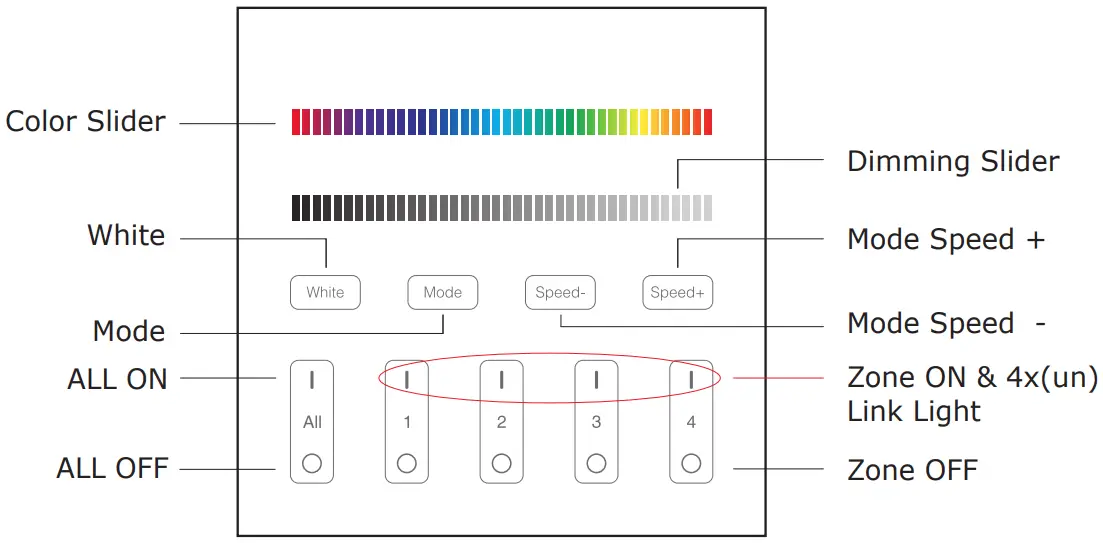

CONTROLLER FUNCTIONS

	Touch color slider, choose the color you want.
	Touch dimming slider to change the brightness from 1~100%.
	ALL ON: Touch to turn on all linked lights. Long press 5 seconds to turn ON the indicating sound. Zone(1-4) ON: Touch zone ON, turn on zone-linked lights.
	ALL OFF: Touch to turn off all linked lights. Long press 5 seconds to turn OFF the indicating sound. Zone(1-4) OFF: Touch zone OFF, turn off zone-linked lights.
	Slow the speed on present dynamic mode.
	Accelerate the speed on present dynamic mode.
	Touch white button to white light mode.
	Switching modes.

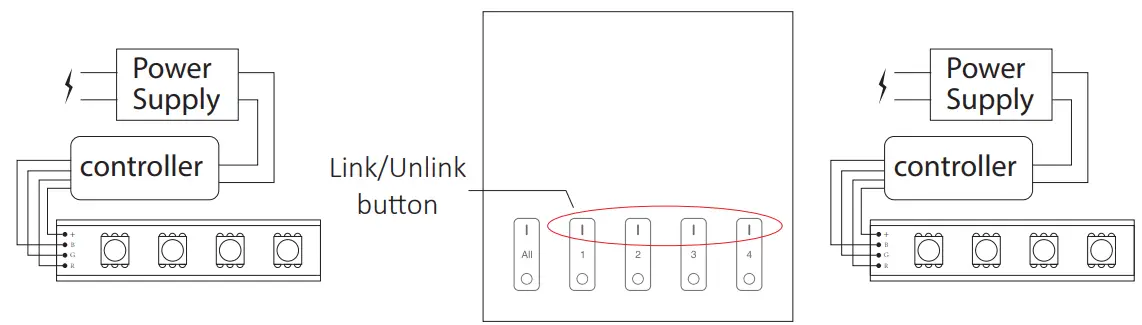

LINKING INSTRUCTION

LINK

• Switch off the light, after 10 seconds switch on again.
• When the light on, short press any zone of ” ” 3 times within 3 seconds.
• The light blink 3 times slowly means the linking is done successfully.

If the light not blink slowly, the linking failed, please switch off the light again, and follow the above steps again.

UNLINKING INSTRUCTION

UNLINK

• Switch off the light, after 10 seconds switch on again.
• Switch off the light, after 10 seconds switch on again. Unlinking must be the same zone with the Linking
• The light blinking 10 times quickly, means the unlinking successfully.

If the light not blink quickly, the unlink failed, pls switch off the light again, and follow the above steps to unlink again.

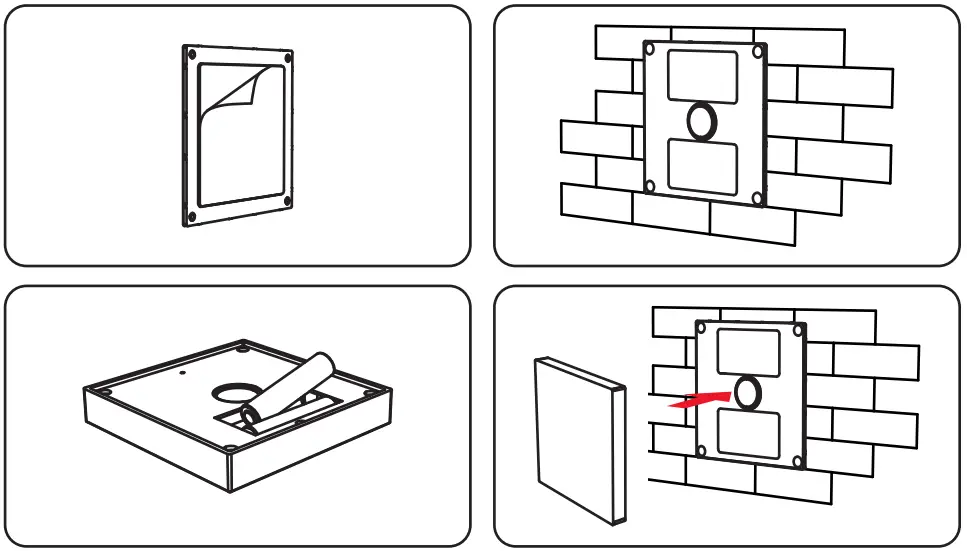

INSTALLATION DIAGRAM

INSTALLATION

1. Tear out the back tape.
2. Stick the holder on the position where you want.
3. Install 2*AAA battery.
4. Put the rotating switch on the front of holder.

LINKING/UNLINKING DEVICES

Compatible with the below devices (Not included; available to buy separately)
