VIKVIZ Wi-Fi Face Recognition Body Temperature Measurement System
Product Specification

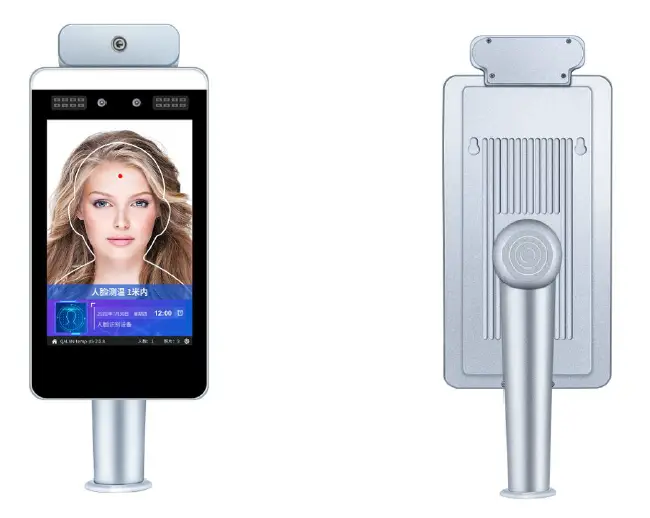

Product SpecificationAppearance
Application scenarios
It is suitable for office areas, hotels, access gates, office buildings, schools, shopping malls, shops, communities, public services and management projects and other places where human faces and temperature measurement access control are required.
Product Features
- Support the camera to capture the face to activate the device;
- Adopt dynamic face detection and tracking recognition algorithm based on video stream;
- Support local storage of 10,000 face libraries on the device;
- When the face database is 3000, the accuracy of 1:N recognition is 99.7% under the condition that the false recognition rate is three out of ten thousand;
- Fast recognition speed:
- Face tracking and detection take about 20ms
- Face feature extraction takes about 200ms
- Face comparison takes 0.2ms (1000 people base, multiple recognition takes the average), 0.5ms (10000 people base, multiple recognition takes the average);
- Binocular with the infrared light camera;
- Support for saving on-site photos during face recognition or stranger detection;
- Support interface docking in HTTP mode;
- Support the deployment method of public network and local area network;
- Support the comparison function of strangers’ personal certificates;
- Support human body temperature detection, support human body temperature measurement under indoor conditions;
- Support external QR code; Precautions for use: The temperature measurement environmenttemperature is between 0 degrees and 35 degrees. This product is not used as a medical device!
Product Specification Sheet
| MFD Flat face recognition terminal | ||
| Product number | MFD-10S-U | |
| Screen | Size | 8 inch，IPS LCD screen |
| Brightness | 500 LU | |
| Resolution | 800*1280 HD screen | |
|
Camera | Resolution | 200W*200W |
| Number of cameras | 2 | |
| Type | RGB camera | |
| Aperture | F2.0 | |
| Focal length | 4.3mm | |
| White balance | Auto | |
| Wide dynamic | Support | |
|
Vertical wide angle | 52° | |
|
Horizontal angle | 29° | |
| Core parameter | CPU | 4 Nuclear，1.8GHz |
| Device interface | Memory 2GB, storage 8GB | |
| Audio | 1 channel audio output（line out） | |
| Video | HDMI2.0 Type-A interface 1 | |
| Relay output | 1 relay interface | |
| Network Interface | 1 RJ45 10M/100M adaptive Ethernet port，WIFI | |
|
Features | Face Detection | Support detection and tracking of 5 people at the same time |
| 1：N Face recognition | Under the condition that the false recognition rate is three out of ten thousand, the recognition accuracy rate is 99.7% | |
| Stranger detection | Support | |
| Recognition distance configuratio n | Support | |
| Live detection | Support | |
| UI interface configuratio n | Support | |
| Remote upgrade of equipment | Support | |
| Deployment method | Support public network and local area network use | |
| Personal identification | Support(Purchase ID card reader separately) | |
| Human body temperature detection | Support | |
| Temperature detection distance | Within 1 meter | |
| Temperature measurement accuracy | ≤ ±0.3℃ | |
| Temperature range | 30℃~42.5℃ | |
| Temperature range | Yes | |
| The visitor’s temperature is normal and let go | Support | |
| Body temperature alarm value can be set | Support | |
| Mask recognize | Support |
| High temperature alarm | Support | |
| QR code recognition | Support | |
| Second-generation ID card recognition | Support | |
| Touch screen function | Touch screen function | Partial model support |
|
General parameters | Protection level | IP42，Certain dust and water resistance |
| Power supply | DC12V（±10%） | |
| Operating temperature | -10℃～60℃ | |
| Working humidity | 10%～90 % | |
| Power consumption | 10W MAX | |
| Size | 275*125*24（mm） | |
| Weight | ≈2kg |

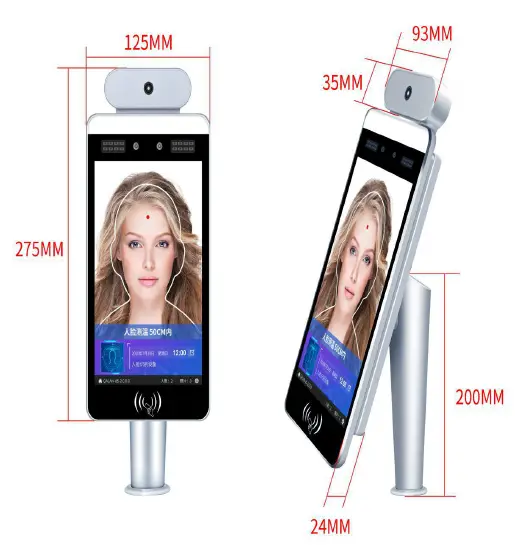

Size description
Interface Description
Power connector
In the tail line of the device
is the power inputinterface. The detailed description is as follows:
| Signal name | Signal direction | Function description |
| 12V | Uchimas a | 12VDC±10% DC input |
| GND | Negative | Power ground |
The internal power input of the equipment has reverse polarity protection and surge protection.
Relay output
The alarm output is a passive relay switch output, the contact voltage capacity is: 220V DC, 250V AC; the contact current capacity is 1 A; the power capacity is 30W.
WG input and WG output
Wiegand input can be connected to Wiegand reading head, used for swiping card to open the gate. Wiegand output can be used to output recognition results, connect to other WG input devices, access control panels, etc.
Ethernet interface
The device tail line indicates that the network interface is the face device Ethernet interface, and the user can configure the face device parameters through the configuration tool.
USB interface
Two USB ports can be used to connect USB devices such as ID card readers.
Audio output
Can be connected to an external power amplifier to output audio.
232 serial port
Used for communication between face machine and external equipment, output card number, ID number, and personnel ID number.
