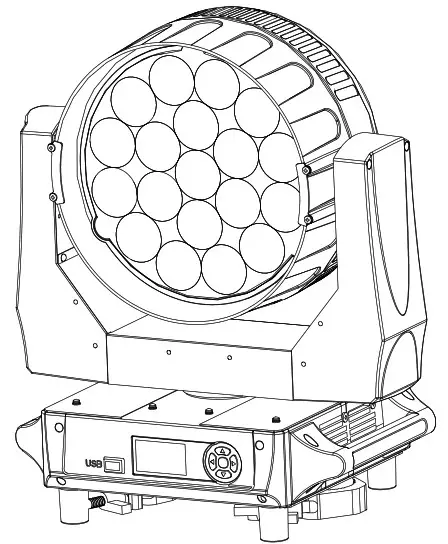

TX1940D Fly Dragon Lighting Equipment

Please read these user manual carefully before use!

http://weixin.qq.com/r/tnXYwCrEencFrW6j9yCk

CHANNEL FUNCTION

Standard(21CH)

Channel	DNX	Percentage	function	Note
1	0-255		Pan
2	0-255		Pan Fine
3	0-255		Tilt
4	0-10		Tilt Fine
5	0-25		No Function
	26-30		Zoom Reset
	31-40		P/T Reset
	41-50		System Reset
	51-255		No Function
6	0-255		Zoom
7	0-255		Dimmer
8	0-255		Dimmer Fine
9	0-9	0-3.5	NO Function
	10-49	3.9-19.2	Slow closing, Fast opening, slow →fast
	50-89	19.6-34.9	Fast closing, Slow opening, Slow →Fast
	90-119	35.3-46.7	Slow closing, Slow open, Slow → Fast
	120-179	47.1-70.2	Random strobe, Slow → Fast
	180-249	70.6-97.6	Synchronous strobe, slow → fast
	250-255	98-100	NO Function
10	0-255		Macro
11	0-255		CCT
12	0-255		Stat ir Efferl-
13	0-255		Mnve 17ffert
14	0-255		Mnve Pffert Spepti
15	0-255		I RD Effect Delay
16	0-255		Background Color
17	0-255		Background Dimmer
18	0-255		Red
19	0-255		Green
20	0-255		Blue
21	0-255		White

Mode2(40CH)

Channel	DMX	Percentage	function	Note
1	0-255		Pan
2	0-255		Pan Fine
3	0-255		Tilt
4	0-255		Tilt Fine
5	0-25		No Function
	26-30		Zoom Reset
	31-40		P/T Reset
	44-50		System Reset
	51-255		No Function
6	0-255		Zoom
7	0-255		Dimmer
8	0-255		Dimmer Fine
9	0-9	0-3.5	NO Function
	10-49	3.9-19.2	Slow closing, Fast opening, slow → fast
	50-89	19.6-34’9	Fast closing, Slow opening, Slow → Fast
	90-119	35.3-46.7	Slow closing, Slow open, Slow → Fast
	120-179	47.1-70.2	Random strobe, Slow → Fast
	180-249	70.6-97.6	Synchronous strobe, slow → fast
	250-255	98-100	NO Function
10	0-255		Macro
11	0-255		CCT
12	0-255		StaticEffect
13	0-255		Move Effect
14	0-255		Move EffectSpeed
15	0-255		LED EffectDelay
16	0-255		Background Color
17	0-255		Background Dimmer
18	0-255		Red
19	0-255		Green
20	0-255		Blue
21	0-255		White
22	0-255		Color’
23	0-255		Color2
24	0-255		Color3
25	0-255		Color4
26	0-255		Color5
27	0-255		Color6
28	0-255		Color?
29	0-255		Color8
30	0-255		Color9
31	0-255		Color10
32	0-255		Color11
33	0-255		Color12
34	0-255		Color13
35	0-255		Color14
36	0-255		Color15
37	0-255		Color16
38	0-255		Color17
39	0-255		Color18

40	0-255		Color19

Mode3(93CH)

Channel	DMX	Percentage	function	Note
1	0-255		Pan
2	0-255		Pan Fine
3	0-255		Tilt
4	0-255		Tilt Fine
5	0-25		No Function
	26-30		Zoom Reset
	31-40		P/T Reset
	41-50		System Reset
	51-255		No Function
6	0-255		Zoom
7	0-255		Dimmer
8	0-255		Dimmer Fine
9	0-9	0-3.5	NO Function
	10-49	3.9-19.2	Slow closing, Fast opening, slow → fast
	50-89	19.6-34.9	Fast closing, Slow opening, Slow → Fast
	90-119	35.3-46.7	Slow closing, Slow open, Slow → Fast
	120-179	47.1-70.2	Random strobe, Slow → Fast
	180-249	70.6-97.6	Synchronous strobe, slow → fast
	250-255	98-100	NO Function
10	0-255		Macro
11	0-255		CCT
12	0-255		StaticEffect
13	0-255		Move Effect
14	0-255		Move Effect Speed
15	0-255		LED Effect Delay
16	0-255		Background Color
17	0-255		Background Dimmer
18	0-255		Red
19	0-255		Green
20	0-255		Blue
21	0-255		White
22	0-255		Red
23	0-255		Green
24	0-255		Blue
25	0-255		White
26	0-255		Red
27	0-255		Green
28	0-255		B1ue
29	0-255		White
30	0-255		Red
31	0-255		Green
32	0-255		Blue
33	0-255		White
34	0-255		Red
35	0-255		Green
36	0-255		Blue
37	0-255		White
38	0-255		Red
39	0-255		Green

40	0-255		Blue
41	0-255		White
42	0-255		Red
43	0-255		Green
44	0-255		B1ue
45	0-255		White
46	0-255		Red/
47	0-255		Green
48	0-255		B1ue
49	0-255		White
50	0-255		Red
51	0-255		Green
52	0-255		B1ue
53	0-255		White
54	0-255		Red
55	0-255		Green
56	0-255		B1ue
57	0-255		White
58	0-255		Red
59	0-255		Green
60	0-255		B1ue
61	0-255		White
62	0-255		Red
63	0-255		Green
64	0-255		Blue
65	0-255		White
66	0-255		Red
67	0-255		Green
68	0-255		Blue
69	0-255		White
70	0-255		Red
71	0-255		Green
72	0-255		B1ue
73	0-255		White
74	0-255		Red
75	0-255		Green
76	0-255		B1ue
77	0-255		White
78	0-255		Red
79	0-255		Green
80	0-255		B1ue
81	0-255		White
82	0-255		Red
83	0-255		Green
84	0-255		B1ue
85	0-255		White
86	0-255		Red
87	0-255		Green
88	0-255		Blue
89	0-255		White
90	0-255		Red
91	0-255		Green
92	0-255		B1ue
93	0-255		White

Mode4(74CH)

Channel	DMX	Percentage	function	Note
1	0-255		Pan
2	0-255		Pan Fine
3	0-255		Tilt
4	0-255		Tilt Fine
5	0-25		No Function
	26-30		Zoom Reset
	31-40		l’/T Reset
	41-50		System Reset
	51-255		No Function
6	0-255		Zoom
7	0-255		Dimmer
8	0-255		Dimmer Fine
9	0-9	0-3.5	NO Function
	10-49	3.9-19’2	Slow closing, Fast opening, slow -• fast
	50-89	19.6-34.9	Fast closing, Slow opening, Slow -• Fast
	90-119	35.3-46’7	Slow closing, Slow open, Slow — Fast
	120-179	47.1-70.2	Random strobe, Slow — Fast
	180-249	70.6-97.6	Synchronous strobe, slow -• fast
	250-255	98-100	NO Function
10	0-255		Macro
11	0-255		CCT
12	0-255		StaticEffect
13	0-255		Move Effect
14	0-255		Move EffectSpeed
15	0-255		LED EffectDelay
16	0-255		Background Color
17	0-255		Background Dimmer
18	0-255		Red
19	0-255		Green
20	0-255		Blue
21	0-255		Red
22	0-255		Green
23	0-255		Blue
24	0-255		Red
25	0-255		Green
26	0-255		Blue
27	0-255		Red
28	0-255		Green
29	0-255		Blue
30	0-255		Red
31	0-255		Green
32	0-255		Blue
33	0-255		Red
34	0-255		Green
35	0-255		Blue
36	0-255		Red
37	0-255		Green
38	0-255		Blue
39	0-255		Red

40	0-255		Green
41	0-255		Blue
42	0-255		Red
43	0-255		Green
44	0-255		Blue
45	0-255		Red
46	0-255		Green
47	0-255		Blue
48	0-255		Red
49	0-255		Green
50	0-255		Blue
51	0-255		Red
52	0-255		Green
53	0-255		Blue
54	0-255		Red
55	0-255		Green
56	0-255		Blue
57	0-255		Red
58	0-255		Green
59	0-255		Blue
60	0-255		Red
61	0-255		Green
62	0-255		Blue
63	0-255		Red
64	0-255		Green
65	0-255		Blue
66	0-255		Red
67	0-255		Green
68	0-255		B1ue
69	0-255		Red
70	0-255		Green
71	0-255		B1ue
72	0-255		Red
73	0-255		Green
74	0-255		Blue

Mode5(17CH)

Channel	DMX	Percentage	function	Note
1	DMX		Pan
2	0-255		Pan Fine
3	0-255		Tilt
4	0-255		Tilt Fine
5	0-25		No Function
	26-30		Zoom Reset
	31-40		P/T Reset
	41-50		System Reset
	51-255		No Function
6	0-255		Zoom
7	0-255		Dimmer
8	0-255		Dimmer Fine
9	0-9	0-3.5	NO Function
	10-49	3.9-19’2	Slow closing, Fast opening, slow → fast
	50-89	19.6-34″9	Fast closing, Slow opening, Slow → Fast
	90-119	35.3-46″7	Slow closing, Slow open, Slow → Fast
	120-179	47.1-70.2	Random strobe, Slow → Fast
	180-249	70.6-97.6	Synchronous strobe, slow → fast
	250-255	98-100	NO Function
10	0-255		Macro
11	0-255		CCT
12	0-255		StaticEffecta
13	0-255		Move Effect
14	0-255		Move EffectSpeed
15	0-255		LED EffectDelay
16	0-255		Background Color
17	0-255		Background Dimmer

Mode6(11CH)

Channel	DMX	Percentage	function	Note
1	DMX		Pan
2	0-255		Pan Fine
3	0-255		Tilt
4	0-255		Tilt Fine
5	0-25		No Function
	26-30		Zoom Reset
	31-40		P/T Reset
	41-50		System Reset
	51-255		No Function
6	0-255		Zoom
7	0-255		Dimmer
8	0-255		Dimmer Fine
9	0-9	0-3.5	NO Function
	10-49	3.9-19’2	Slow closing, Fast opening, slow → fast
	50-89	19.6-34’9	Fast closing, Slow opening, Slow → Fast
	90-119	35.3-46.7	Slow closing, Slow open, Slow → Fast
	120-179	47.1-70.2	Random strobe. Slow → Fast
	180-249	70.6-97.6	Synchronous strobe, slow → fast
	250-255	98-100	NO Function
10	0-255		Macro
11	0-255		CCT
