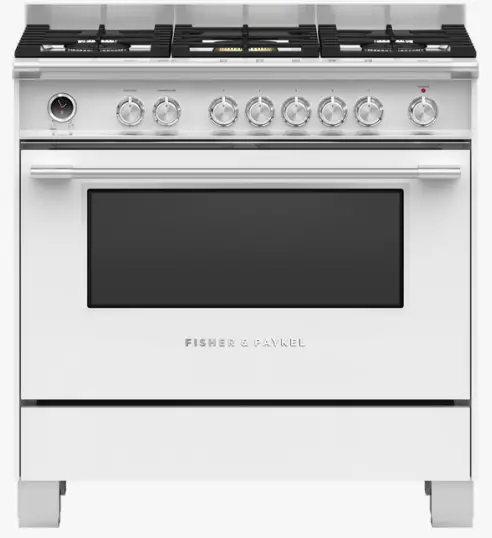

OR90SCG6W1 Freestanding Cooker Dual Fuel 90cm 5 Burners Self-cleaning
QUICK REFERENCE GUIDE > OR90SCG6W1
Freestanding Cooker, Dual Fuel, 90cm, 5 Burners, Self-cleaning
Series 9 | Classic
White
Get the best of both worlds with dual fuel. A gas cooktop with a wok burner is paired with a nine-function convection oven.
- Five burner cooktop with dual wok burner and rotisserie
- Convection oven with 140L capacity and nine oven functions plus rotisserie including
- Pastry Bake with Pizza mode
- Non-tip full-extension shelves for safe removal of hot dishes
- Pyrolytic self-clean that breaks down food residue for an easy clean

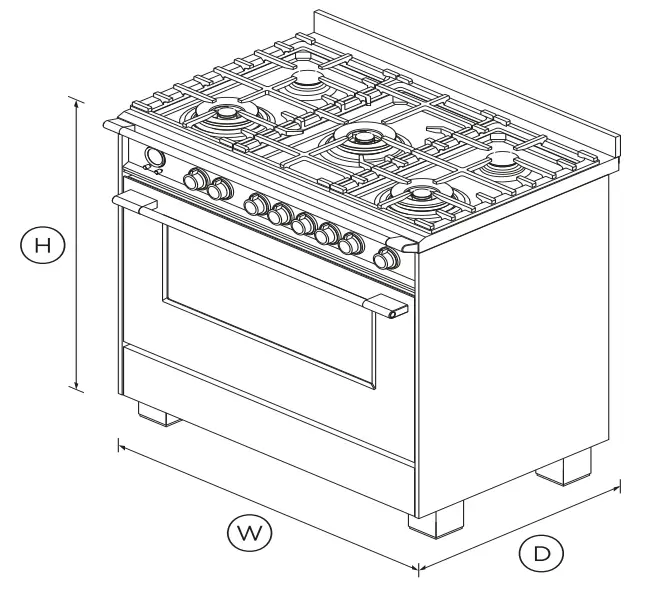

DIMENSIONS
| Height | 898 – 946mm |
| Width | 897mm |
| Depth | 600mm |
FEATURES & BENEFITS
Multi-shelf cooking
Our AeroTechTM system circulates air evenly throughout the entire oven so dishes on the top shelf turn out just as perfectly as food cooking on the bottom shelf.
Quality and durability
Every detail has been carefully crafted. The solid, perfectly balanced soft-close door, durable cooktop trivets and glowing halo dials all add up to an exceptional, premium range.
Easy cleaning
Cleaning up spills is effortless. Your cooktop simply needs a quick wipe to keep it looking good as new. The pyrolytic selfclean oven cycle breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth.
Burner power & control
Instant and immediate control from the highest to the gentlest heat. The finely tuned cooktop controls let you sear, stir fry, or simmer a delicate sauce to perfection.
Large capacity oven
The generous 140L total capacity oven gives you plenty of space to cook multiple dishes at once.
Even heat
Accurate, electronically-controlled oven heat ensures a great result every time.
SPECIFICATIONS
| Accessories | |
| Flat wire shelf | 1 |
| Full Extension Telescopic | 2 sets (part 578744) |
| Full extension sliding shelves | 2 sets (part 578744) |
| Grill rack | • |
| Kick strip, white (optional) | KICKOR90W1 |
| Roasting dish | 1 |
| Rotisserie set | 1 set |
| Small pot support | 1 (part 533981 cast) |
| Step down wire shelf | • |
| Burner ratings | |
| Dual wok burner inner/outer | 14.9MJ/h |
| Dual wok burner inner/outer | 16.2MJ/h |
| Maximum burner power | 16.2MJ/h |
| Semi-rapid burner (LPG) | 5.8MJ/h |
| Semi-rapid burner (natural | 6.5MJ/h |
| Total cooktop power | 58.0MJ/h |
| Triple ring wok burner (LPG) | 14.4MJ/h |
| Triple ring wok burner (natural | 14.4MJ/h |
| Capacity | |
| Capacity usable | 120L |
| Shelf positions | 6 |
| Total capacity | 140L |
| Cleaning | |
| Acid-resistant graphite enamel | • |
| Drop-down grill element | • |
| Pyrolytic proof shelf runners | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
| Controls | |
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic clock | • |
| High-resolution display | • |
| Laser etched graphics | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Turned stainless steel clock | • |
| Turned stainless steel clock | • |
| Oven Features | |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Bright chromed, cast zinc dials | • |
| Electronic oven control | • |
| Internal light | 4 x 25W halogen (2 side & 2 |
| Soft open/close door | • |
| Twin cavity fans | • |
| Warming drawer | • |
| Oven functions | |
| Bake | • |
| Fan bake | • |
| Fan forced | • |
| Fan grill | • |
| Grill | • |
| Number of functions | 9 |
| Pastry Bake with Pizza mode | • |
| Rapid proof | • |
| Roast | • |
| Rotisserie | • |
| True convection | • |
| Oven performance | |
| CoolTouch door | Quadruple glazed |
| Warming drawer power | 202W |
| Power requirements | |
| Amperage | 23A |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 600mm |
| Height | 898 – 946mm |
| Width | 897mm |
| Cooktop Features | |
| Brass burner spreader (power | • |
| Embossed brass burner cap | • |
| Hob rail | • |
| LPG/Natural gas compatible | • |
| Sealed range top | • |
| Cooktop Performance | |
| Number of burners | 5 |
| Safety | |
| Advanced cooling system | • |
| Anti-tilt bracket | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| CoolTouch door | • |
| Flame failure system | • |
| Full extension telescopic | • |
| Non-tip shelves | • |
| Warranty | |
| Parts and labour | 2 years |
| SKU | 81690 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
