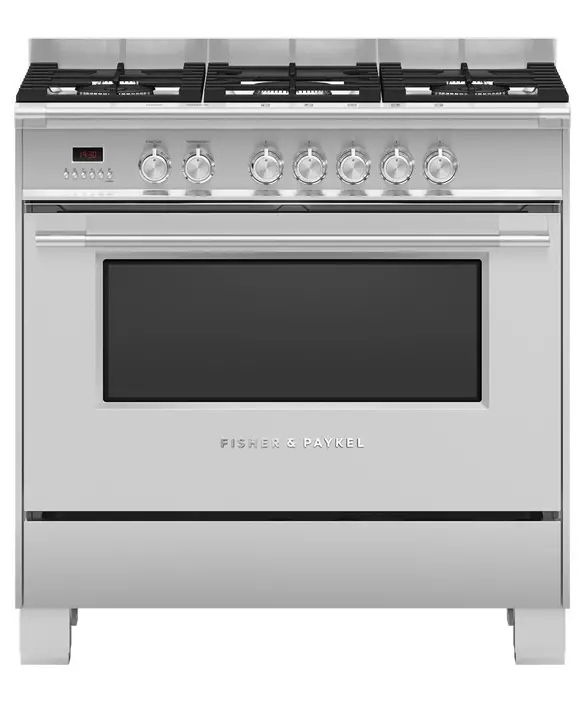

OR90SCG2X1 90cm Dual Fuel Freestanding Cooker
User Guide
Get the best of both worlds with dual fuel. A gas cooktop with
wok burner is paired with a nine-function convection oven.
- Five burner gas cooktop, with precise heat control
- Convection oven with 140L total capacity and nine oven functions including Pastry Bake and Rapid Proof
- Non-tip full-extension shelves for safe removal of hot dishes

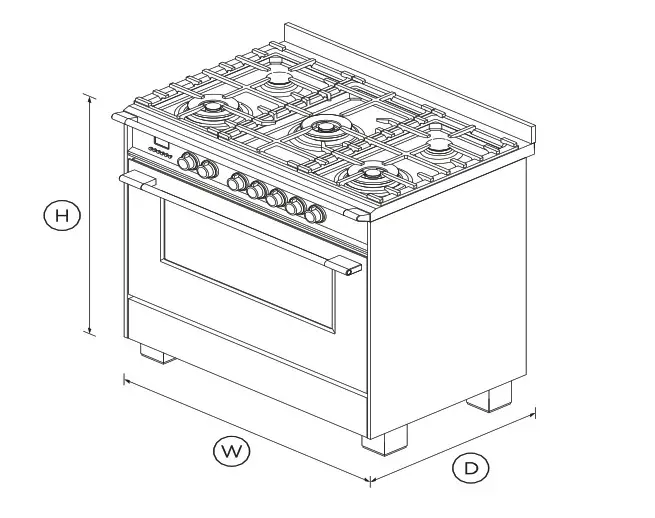

DIMENSIONS
| Height | 898 – 946mm |
| Width | 897mm |
| Depth | 600mm |
FEATURES & BENEFITS
Multi-shelf cooking
Our AeroTech™ system circulates air evenly throughout the entire oven so dishes on the top shelf turn out just as perfect as food cooking on the bottom shelf.
Quality and durability
Every detail has been carefully crafted. The solid, perfectly balanced soft-close door and durable cooktop trivets all add up to an exceptional, premium range.
Burner power & control
Instant and immediate control from the highest to the gentlest heat. The finely tuned cooktop controls let you sear, stir fry or simmer a delicate sauce to perfection.
Large capacity oven
The generous 140L total capacity oven gives you plenty of space to cook multiple dishes at once.
Easy to clean
Your cooktop simply needs a quick wipe to keep it looking good as new for years to come, as the gas cooktop is made from a single piece of stainless steel that contains spills. The oven door, its inner pane of glass and runners can also be removed for easy cleaning.
Even heat
Accurate, electronically-controlled oven heat ensures a great result every time.
SPECIFICATIONS
| Accessories | |
| Chromed shelf runners | 1 set |
| Flat wire shelf | 1 |
| Full Extension Telescopic | Optional (part 578744) |
| Full-extension sliding shelves | Optional (part 578744) |
| Kick strip, stainless steel | KICKOR90X1 |
| Roasting dish | 1 |
| Small pot support | 1 (part 533981 cast) |
| Step down wire shelf | • |
| Burner ratings | |
| Dual wok burner inner/outer | 14.9MJ/h |
| Dual wok burner inner/outer | 16.2MJ/h |
| Maximum burner power | 16.2MJ/h |
| Semi-rapid burner (natural | 5.8MJ/h |
| Semi-rapid burner (natural | 6.5MJ/h |
| Total cooktop power | 58.0MJ/h |
| Triple ring wok burner (LPG) | 14.4MJ/h |
| Triple ring wok burner (natural | 14.4MJ/h |
| Capacity | |
| Capacity usable | 121L |
| Shelf positions | 6 |
| Shelf positions | 6 |
| Total capacity | 140L |
| Usable capacity | 121L |
| Cleaning | |
| Acid-resistant graphite enamel | • |
| Drop-down grill element | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
| Controls | |
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic clock | • |
| Laser etched graphics | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Oven features | |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Bright chromed, cast zinc dials | • |
| Electronic oven control | • |
| Full extension telescopic | • |
| Internal light | 4 x 25W halogen (2 side & 2 |
| Storage compartment | • |
| True convection | • |
| Twin cavity fans | • |
| Oven functions | |
| Bake | • |
| Classic bake | • |
| Fan bake | • |
| Fan forced | • |
| Fan grill | • |
| Grill | • |
| Number of functions | 9 |
| Pastry Bake with Pizza mode | • |
| Rapid proof | • |
| Roast | • |
| True convection | • |
| Oven performance | |
| CoolTouch door | Triple glazed |
| Power requirements | |
| Amperage | 22A |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 600mm |
| Height | 898 – 946mm |
| Width | 897mm |
| Cooktop Features | |
| Hob rail | • |
| LPG/Natural gas compatible | • |
| Sealed range top | • |
| Cooktop Performance | |
| Number of burners | 5 |
| Safety | |
| Advanced cooling system | • |
| Anti-tilt bracket | • |
| Balanced oven door | • |
| CoolTouch door | • |
| Flame failure system | • |
| Full extension telescopic | Optional (part 578744) |
| Non-tip shelves | • |
| Warranty | |
| Parts and labour | 2 years |
| SKU | 81680 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
