Fisher Paykel Or90scg6r1 Freestanding Cooker User Guide (+ PDF)

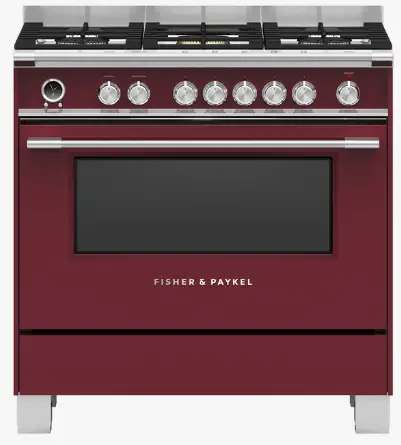

OR90SCG6R1 Freestanding Cooker
User Guide
Series 9 | Classic
Red

Get the best of both worlds with dual fuel. A gas cooktop with a wok burner is paired with a nine-function convection oven.

Five burner cooktop with dual wok burner and rotisserie
Convection oven with 140L capacity and nine oven functions plus rotisserie including Pastry Bake with Pizza mode
Non-tip full-extension shelves for safe removal of hot dishes
Pyrolytic self-clean that breaks down food residue for an easy clean

Contents hide

1 DIMENSIONS

2 FEATURES & BENEFITS

3 SPECIFICATIONS

4 Documents / Resources

4.1 References

5 Related Posts

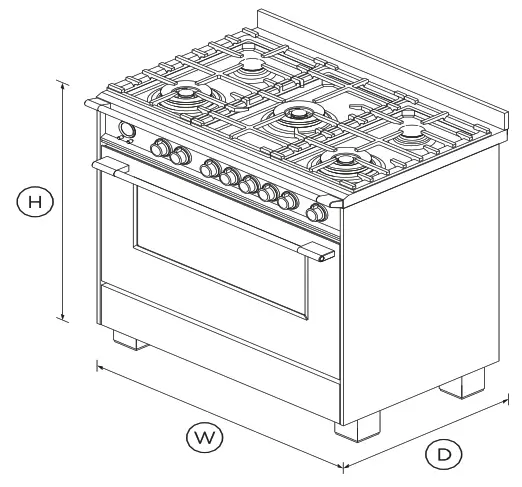

DIMENSIONS

Height	898 – 946mm
Width	897mm
Depth	600mm

FEATURES & BENEFITS

Multi-shelf cooking
Our AeroTech™ system circulates air evenly throughout the entire oven so dishes on the top shelf turn out just as perfect as food cooking on the bottom shelf.
Quality and durability
Every detail has been carefully crafted. The solid, perfectly balanced soft-close door, durable cooktop trivets, and glowing halo dials all add up to an exceptional, premium range.
Easy cleaning
Cleaning up spills is effortless. Your cooktop simply needs a quick wipe to keep it looking good as new. The pyrolytic self-clean oven cycle breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth.
Burner power & control
Instant and immediate control from the highest to the gentlest heat. The finely tuned cooktop controls let you sear, stir fry, or simmer a delicate sauce to perfection.
Large capacity oven
The generous 140L total capacity oven gives you plenty of space to cook multiple dishes at once.
Even heat
Accurate, electronically-controlled oven heat ensures a great result every time.

SPECIFICATIONS

Accessories
Flat wire shelf	1
Full Extension Telescopic	2 sets (part 578744)
Full-extension sliding shelves	2 sets (part 578744)
Grill rack	•
Kick strip, red (optional)	KICKOR90R1
Roasting dish	1
Rotisserie set	1 set
Small pot support	1 (part 533981 cast)
Step down wire shelf	•
Burner ratings
Dual wok burner inner/outer	14.9MJ/h
Dual wok burner inner/outer	16.2MJ/h
Maximum burner power	16.2
Semi-rapid burner (LPG)	5.8MJ/h
Semi-rapid burner (natural	6.5MJ/h
Total cooktop power	58
Triple ring wok burner (LPG)	14.4MJ/h
Triple ring wok burner (natural	14.4MJ/h
Capacity
Capacity usable	120L
Shelf positions	6
Total capacity	140L
Cleaning
Acid-resistant graphite enamel	•
Drop-down grill element	•
Pyrolytic-proof shelf runners	•
Pyrolytic self-clean	•
Removable oven door	•
Removable oven door inner	•
Removable shelf runners	•
Controls
Audio feedback	•
Automatic cooking/minute	•
Automatic pre-set	•
Celsius/Fahrenheit	•
Electronic clock	•
High-resolution display	•
Laser etched graphics	•
Precise electronic temperature	•
Sabbath mode	•
Turned stainless steel clock	•
Turned stainless steel clock	•
Oven Features
AeroTech™ technology	•
Automatic rapid pre-heat	•
Bright chromed, cast zinc dials	•
Electronic oven control	•
Internal light	4 x 25W halogen (2 side & 2
Soft open/close door	•

Twin cavity fans	•
Warming drawer	•
Oven functions
Bake	•
Fan bake	•
Fan forced	•
Fan grill	•
Grill	•
Number of functions	9
Pastry Bake with Pizza mode	•
Rapid proof	•
Roast	•
Rotisserie	•
True convection	•
Oven performance
CoolTouch door	Quadruple glazed
Warming drawer power	202W
Power requirements
Amperage	23A
Supply frequency	50Hz
Supply voltage	220 – 240V
Product dimensions
Depth	600mm
Height	898 – 946mm
Width	897mm
Cooktop Features
Brass burner spreader (power	•
Embossed brass burner cap	•
Hob rail	•
LPG/Natural gas compatible	•
Sealed range top	•
Cooktop Performance
Number of burners	5
Safety
Advanced cooling system	•
Anti-tilt bracket	•
Balanced oven door	•
Catalytic venting system	•
CoolTouch door	•
Flame failure system	•
Full extension telescopic	•
Non-tip shelves	•
SKU	81691
