QUICK REFERENCE GUIDE > OR90SCI1X1
Freestanding Cooker, Induction, 90cm, 4 Zones
Series 5 | Classic Stainless Steel

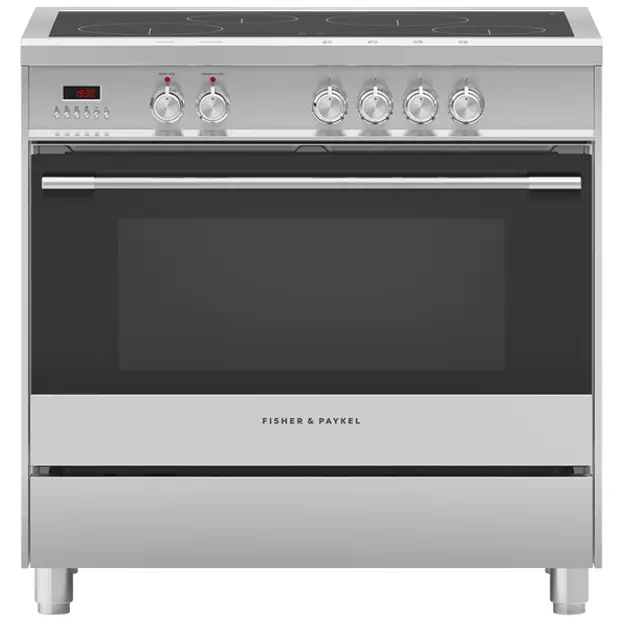

OR90SCI1X1 Freestanding Cooker
Heritage styling paired with contemporary performance, in a freestanding cooker with large convection oven and induction cooktop.
- Large induction cooktop with four cooking zones
- Convection oven with 140L total capacity and seven oven functions including Fan Bake
- Optional non-tip full-extension shelves for safe removal of hot dishes
DIMENSIONS
| Height | 898 – 946mm |
| Width | 897mm |
| Depth | 600mm |
FEATURES & BENEFITS
QUALITY AND DURABILITY
This freestanding cooker has been carefully crafted in every detail from performance to durability, using quality materials including the balanced soft-close door and turned stainless steeldials.
IMPRESSIVE CAPACITY
With an extra large 140L capacity, this freestanding cooker has plenty of space for cooking multiple dishes at the same time.
POWER & CONTROL
Instant and immediate control from the highest to the gentlest heat. The finely tuned cooktop controls let you sear and stir fry over powerful heat, or simmer a delicate sauce to perfection.
EVEN HEAT
Dishes on the top shelf turn out as perfectly as the ones on the bottom, due to our AeroTech™ convection system that circulates air evenly throughout the entire oven.
EASY TO CLEAN
Cleaning up spills is effortless. Your cooktop simply needs a quick wipe to keep it looking good as new for years to come.
SAFE AND SOUND
The door and cavity cooling system keeps the heat on the inside, protecting your hands and surrounding cabinetry.
SPECIFICATIONS
| Accessories | |
| Chromed shelf runners | 1 set |
| Flat wire shelf | 1 |
| Full Extension Telescopic | Optional (part 578744) |
| Full extension sliding shelves | Optional (part 578744) |
| Grill rack | • |
| Kick strip, stainless steel | KICKOR90X1 |
| Roasting dish | 1 |
| Rotisserie set | 1 set |
| Square foot covers, stainless | 1 |
| Step down wire shelf | • |
| Capacity | |
| Capacity usable | 121L |
| Shelf positions | 6 |
| Shelf positions | 6 |
| Total capacity | 140L |
| Usable capacity | 120L |
| Cleaning | |
| Acid resistant graphite enamel | • |
| Drop down grill element | • |
| Flat easy clean glass surface | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
| Controls | |
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic clock | • |
| High resolution display | • |
| Laser etched graphics | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Toughened fused glass | • |
| Turned stainless steel clock | • |
| Turned stainless steel clock | • |
| Oven features | |
| AeroTech™ technology | • |
| Electronic oven control | • |
| Full extension telescopic | • |
| Internal light | 2 x 25W halogen (side) |
| Soft open/close door | • |
| Storage compartment | • |
| True convection | • |
| Twin cavity fans | • |
| Warming drawer | • |
| Oven functions | |
| Bake | • |
| Defrost | • |
| Fan bake | • |
| Fan forced | • |
| Fan grill | • |
| Grill | • |
| Number of functions | 7 |
| Pastry Bake with Pizza mode | • |
| Rapid proof | • |
| Roast | • |
| Rotisserie | • |
| True convection | • |
| Warm | • |
| Oven performance | |
| Cool Touch door | Double glazed |
| Power requirements | |
| Amperage | 46A |
| Supply frequency | 50Hz |
| Product dimensions | |
| Depth | 600mm |
| Height | 898 – 946mm |
| Width | 897mm |
| Cooktop Features | |
| Auto heat reduce | • |
| Dual color display | • |
| Gentle heat | • |
| Heat settings | 9 |
| Hob rail | • |
| Induction cooking technology | • |
| SmartZone | • |
| Zone bridging | • |
| Cooktop Performance | |
| Centre | 2300W |
| Left front | 1600W |
| Left rear | 2100W |
| Power Boost | • |
| Safety | |
| Advanced cooling system | • |
| Anti-tilt bracket | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Child lock | • |
| Cool Touch door | • |
| Full extension telescopic | 2 sets (part 578744) |
| Non-tip shelves | • |
| Pan detection system | • |
| Safety time out | • |
| Spillage auto off | • |
| Surface hot indicators | • |
| SKU | 81679 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
