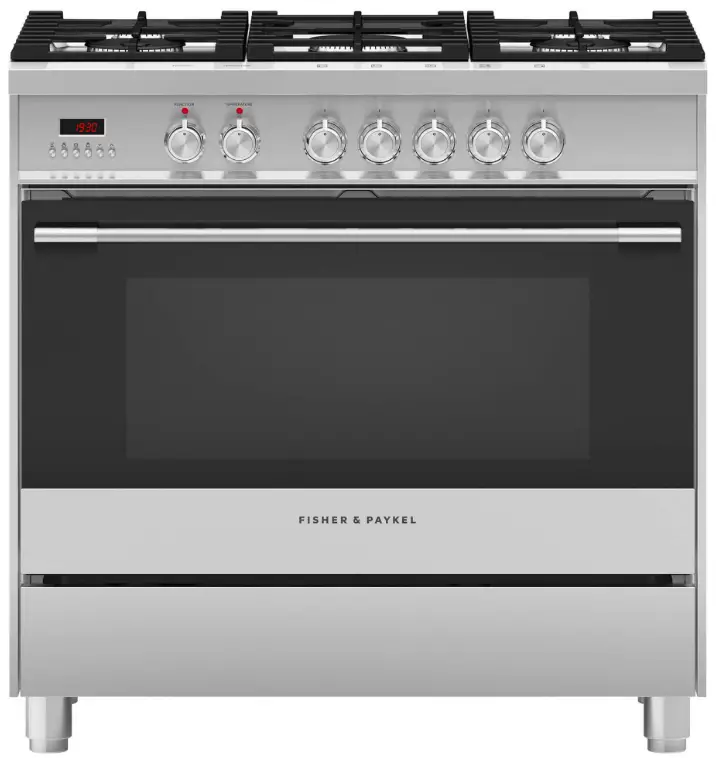

FISHER PAYKEL OR90SCG1X1 90cm Dual Fuel Freestanding Cooker
Freestanding Cooker, Dual Fuel, 90cm, 5 Burners Series 5 Classic Stainless Steel
Get the best of both worlds with dual fuel. A gas cooktop with a wok burner is paired with a seven-function convection oven. Five burner gas cooktop, with precise heat control Convection oven with 140L total capacity and seven oven functions Optional non-tip full-extension shelves for safe removal of hot dishes

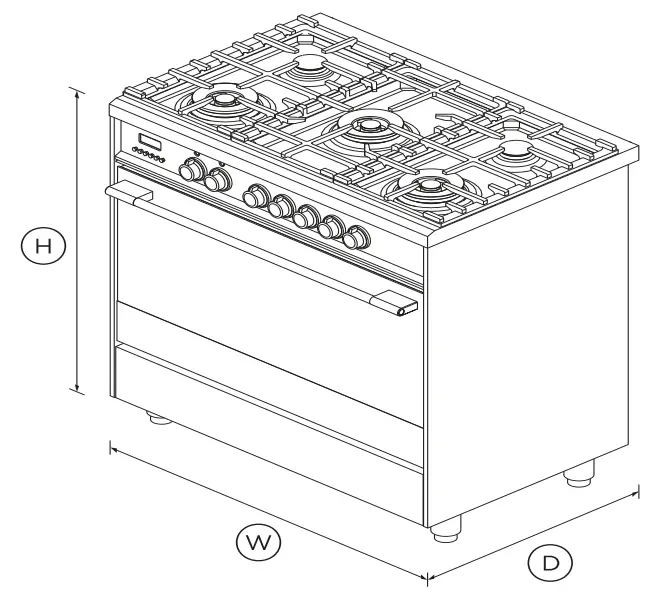

DIMENSIONS
| Depth | 600mm |
| Height | 898 – 946mm |
| Width | 897mm |
FEATURES & BENEFITS
- Quality and durability Every detail has been carefully crafted, from the solid balanced door to the durable cooktop trivets and large capacity oven.
- Impressive capacity With an extra large 140L capacity, this range has plenty of space for cooking multiple dishes at the same time.
- Burner power & control Instant and immediate control from the highest to the gentlest heat. The finely tuned cooktop controls let you sear and stir fry over powerful heat, or simmer a delicate sauce to perfection.
- Even heat Dishes on the top shelf turn out as perfectly as the ones on the bottom, due to our AeroTechTM convection system that circulates air evenly throughout the entire oven.
Easy to clean Your cooktop simply needs a quick wipe to keep it looking good as new, as the gas cooktop is made from a single piece of stainless steel that contains spills. The oven door, its inner pane of glass, and runners can also be removed for easy cleaning. - Safe and sound The door and cavity cooling system keeps the heat on the inside, protecting your hands and surrounding cabinetry. The flame failure safety device automatically turns off the gas if the flame is accidentally extinguished.
SPECIFICATIONS
Accessories
| Chromed shelf runners | 1 set |
| Flat wire shelf | 1 |
| Full Extension Telescopic | Optional (part 578744) |
| Full extension sliding shelves | Optional (part 578744) |
| Kick strip, stainless steel | KICKOR90X1 |
| Roasting dish | 1 |
| Small pot support | 1 (part 573752) |
| Square foot covers, stainless | 1 |
| Step down wire shelf | • |
Burner ratings
| Auxiliary burner (LPG) | 3.9MJ/h |
| Auxiliary burner (natural gas) | 3.9MJ/h |
| Maximum burner power | 16.2MJ/h |
| Rapid burner (LPG) | 11.8MJ/h |
| Rapid burner (natural gas) | 11.5MJ/h |
| Semi-rapid burner (LPG) x2 | 5.8MJ/h |
| Semi-rapid burner (natural | 6.5MJ/h |
| Total cooktop power | 44.6MJ/h |
| Wok burner (LPG) | 14.9MJ/h |
| Wok burner (natural gas) | 16.2MJ/h |
Capacity
| Capacity usable | 121L |
| Shelf positions | 6 |
| Shelf positions | 6 |
| Total capacity | 140L |
| Usable capacity | 121L |
Cleaning
| Acid-resistant graphite enamel | • |
| Drop-down grill element | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
Controls
- Audio feedback
- Automatic cooking/minute
- Celsius/Fahrenheit
- Electronic clock
- Laser etched graphics
- Turned stainless steel clock
Oven features
| AeroTech™ technology | • |
| Full extension telescopic | • |
| Internal light | 2 x 25W halogen (side) |
| Storage compartment | • |
| True convection | • |
| Twin cavity fans | • |
Oven functions
| Bake | • |
| Defrost | • |
| Fan bake | • |
| Fan forced | • |
| Fan grill | • |
| Grill | • |
| Number of functions | 7 |
| True convection | • |
| Warm | • |
Oven Performance
| CoolTouch door | Double glazed |
Power Requirement
| Amperage | 14A |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
Cooktop Features
| LPG/Natural gas compatible | • |
| Sealed range top | • |
Cooktop Performance
| Number of burners | 5 |
Safety
| Advanced cooling system | • |
| Anti-tilt bracket | • |
| Balanced oven door | • |
| CoolTouch door | • |
| Flame failure system | • |
| Full extension telescopic | Optional (part 578744) |
| Non-tip shelves | • |
Warranty
| Parts and labor | 2 years |
SKU
81678
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
