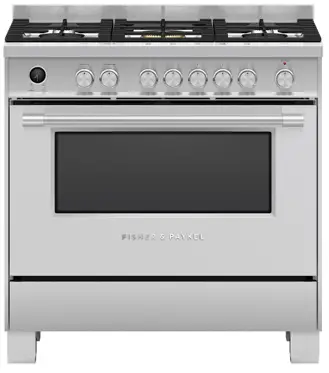

OR90SPG6X1 90cm 5 Burners Selfcleaning Dual Fuel Freestanding Cooker
User Guide
Series 9 | Professional
Stainless Steel
OR90SPG6X1 90cm 5 Burners Selfcleaning Dual Fuel Freestanding Cooker
Get the best of gas and convection technology with dual fuel. Designed to match our Professional style family of appliances.
- Five burner gas cooktop with three wok burners
- Convection oven with 140L total capacity and nine functions plus Rotisserie, including Pastry Bake, Pizza Mode and Rapid Proof
- Non-tip full-extension shelves for safe removal of hot dishes
- Pyrolytic self-cleaning oven cycle breaks down food residue for an easy clean
DIMENSIONS
| Height | 898 – 946mm |
| Width | 897mm |
| Depth | 600mm |
FEATURES & BENEFITS
MULTI-SHELF COOKING
Our AeroTech™ system circulates heat evenly for a consistent temperature throughout the cavity, helping you achieve perfect results even when using multiple shelves.
QUALITY AND DURABILITY
Every detail has been carefully crafted. The solid, perfectly balanced soft-close door, durable cooktop and glowing halo dials all add up to a premium freestanding cooker.
EASY CLEANING
The gas cooktop is made from a single piece of stainless steel to contain spills for easy cleaning. The pyrolytic self-clean oven cycle breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth.
BURNER POWER & CONTROL
Instant control from the highest to the gentlest heat. The finely tuned cooktop controls let you sear, stir fry, or simmer a delicate sauce to perfection.
LARGE CAPACITY OVEN
The generous 140L total capacity oven gives you plenty of space to cook multiple dishes at once.
EVEN HEAT
Accurate, electronically controlled oven heat ensures a great result every time.
SPECIFICATIONS
| Accessories | |
| Flat wire shelf | 1 |
| Full extension sliding shelves | 2 sets (part 578744) |
| Pyrolytic proof shelf runners | 1 set |
| Roasting dish and grill rack set | 1 set |
| Rotisserie set | 1 set |
| Small pot support | I (part 533981 cast) |
| Step down wire shelf | • |
| Wok stand | 1 |
| Accessories (sold separately) | |
| Full extension sliding shelves | 2 sets (part 578744) |
| Kick strip, stainless steel | KICKOR90X1 |
| Burner ratings | |
| Dual wok burner inner/outer | 2.4 – 14.9MJ/h |
| Dual wok burner inner/outer | 2.4 – 16.2MJ/h |
| Maximum burner power | 16.2MJ/h |
| Semi-rapid burner (LPG) | 2.5 – 5.8MJ/h |
| Semi-rapid burner (natural | 2.5 – 6.5MJ/h |
| Total cooktop power | 58.0MJ/h |
| Triple ring wok burner (LPG) | 6.5 – 14.4MJ/h |
| Triple ring wok burner (natural | 6.5 – 14.4MJ/h |
| Capacity | |
| Shelf positions | 6 |
| Total capacity | 140L |
| Usable capacity | 120L |
| Cleaning | |
| Acid resistant graphite enamel | • |
| Dishwasher proof trivets | • |
| Drop down grill element | • |
| Pyrolytic proof shelf runners | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
| Controls | |
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic clock | • |
| High resolution display | • |
| Laser etched graphics | • |
| Metal illuminated dials | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Turned stainless steel clock | • |
| Turned stainless steel clock | • |
| Oven features | |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Convection | • |
| Electronic oven control | • |
| Full extension telescopic | • |
| Internal light | 4 x 25W halogen (2 side & 2 |
| Soft open/close door | • |
| Twin cavity fans | • |
| Warming drawer | • |
| Oven functions | |
| Bake | • |
| Fan bake | • |
| Fan forced | • |
| Fan grill | • |
| Grill | • |
| Number of functions | 9 + rotisserie |
| Pastry Bake with Pizza mode | • |
| Pyrolytic self-clean | • |
| Rapid proof | • |
| Roast | • |
| Rotisserie | • |
| Oven performance | |
| Cool Touch door | Quadruple glazed |
| Grill power | 4500W |
| Warming drawer power | 202W |
| Power requirements | |
| Amperage | 23A |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 600mm |
| Height | 898 – 946mm |
| Width | 897mm |
| Cooktop Features | |
| Brass burner spreader (power | • |
| Embossed brass burner cap | • |
| Hob rail | • |
| LPG/Natural gas compatible | • |
| Sealed range top | • |
| Cooktop Performance | |
| Number of burners | 5 |
| Safety | |
| Advanced cooling system | • |
| Anti-tilt bracket | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Cool Touch door | • |
| Flame failure system | • |
| Full extension telescopic | • |
| Non-tip shelves | • |
| Warranty | |
| Parts and labour | 2 years |
| SKU | 82725 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
