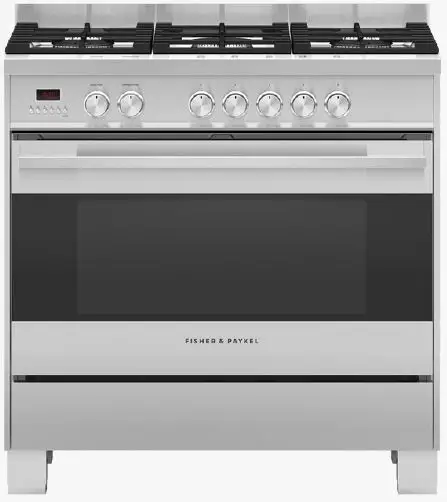

FISHER PAYKEL OR90SDG4X1 90cm 5 Burners Freestanding Range Cooker
Get the best of both worlds with dual fuel. A gas hob with wok burner is paired with a convection oven with 9 functions.
- Five burner cooktop with with dual wok burner and two powerful triple ring burners
- Convection oven with 140L total capacity and nine oven functions including Pastry Bake with pizza mode
- Non-tip full-extension shelves for safe removal of hot dishes

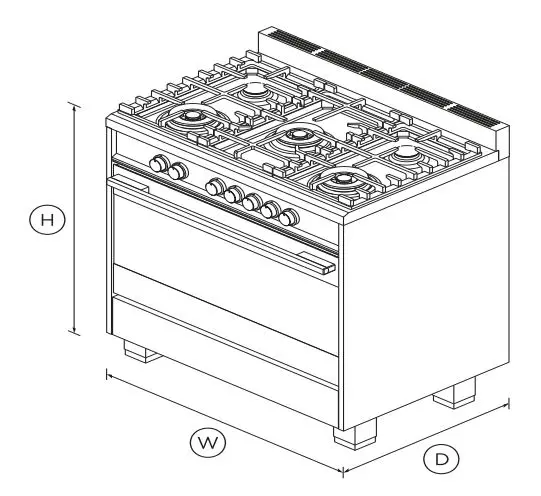

DIMENSIONS
| Height | 898 – 946mm |
| Width | 897mm |
| Depth | 600mm |
FEATURES & BENEFITS
Multi-shelf cooking
Our AeroTech™ system circulates air evenly throughout the entire oven so dishes on the top shelf turn out just as perfect as food cooking on the bottom shelf.
Quality and durability
Every detail has been carefully crafted. The solid, perfectly balanced soft-close door, precise electric temperature control and chromed cast zinc dials all add up to an exceptional, premium range.
Burner power & control
Instant and immediate control from the highest to the gentlest heat. The finely tuned hob controls let you sear, stir fry or simmer a delicate sauce to perfection.
Easy to clean
Cleaning up spills is effortless. Your hob simply needs a quick wipe to keep it looking good as new. The pyrolytic self-clean oven cycle breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth.
Even heat
Accurate, electronically-controlled oven heat ensures a great result every time.
Large capacity oven
The generous 140L total capacity oven gives you plenty of space to cook multiple dishes at once.
SPECIFICATIONS
Accessories
| Chromed shelf runners | 1 set |
| Flat wire shelf | 1 |
| Full extension sliding shelves | 1 set (part 578744) |
| Grill rack | • |
| Kick strip, stainless steel | KICKOR90X1 |
| Roasting dish | 1 |
| Small pot support | 1 (part 533981 cast) |
| Step down wire shelf | • |
Burner ratings
| Dual wok burner inner/outer | 0.3 – 4.5kW |
| Dual wok burner inner/outer | 0.4 – 4.5kW |
| Maximum burner power | 4.5kW |
| Semi-rapid burner (LPG) | 1.2kW |
| Semi-rapid burner (natural | 1.75kW |
| Total cooktop power | 14.9kW |
| Triple ring wok burner (LPG) | 4.0kW |
| Triple ring wok burner (natural | 4.0kW |
Capacity
| Capacity total | 140L |
| Capacity usable | 120L |
| Shelf positions | 6 |
| Shelf positions | 6 |
| Total capacity | 140L |
| Usable capacity | 121L |
Cleaning
| Acid resistant graphite enamel | • |
| Drop down grill element | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
Controls
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic clock | • |
| Laser etched graphics | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Turned stainless steel clock | • |
| Turned stainless steel dials | • |
Oven features
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Electronic oven control | • |
| Full extension telescopic | • |
| Internal light | 4 x 25W halogen (2 side & 2 |
| Soft open/close door | • |
| Storage drawer | • |
| True convection | • |
| Twin cavity fans | • |
Oven functions
| Bake | • |
| Classic bake | • |
| Energy slow cook | • |
| Fan bake | • |
| Fan forced | • |
| Fan grill | • |
| Grill | • |
| Number of functions | 9 |
| Pastry Bake with Pizza mode | • |
| Roast | • |
| True convection | • |
Oven performance
| CoolTouch door | Quadruple glazed |
Power requirements
| Amperage | 22A |
| Supply frequency | 50Hz |
Product dimensions
| Depth | 600mm |
| Height | 898 – 946mm |
| Width | 897mm |
Hob Features
| LPG/Natural gas compatible | • |
| Sealed range top | • |
Hob Performance
| Number of burners | 5 |
Safety
| Advanced cooling system | • |
| Anti-tilt bracket | • |
| Balanced oven door | • |
| CoolTouch door | • |
| Flame failure system | • |
| Full extension telescopic | 1 set (part 578744) |
| Full extension telescopic | • |
| Non-tip shelves | • |
Warranty
| Parts and labour | 5 years |
| SKU | 81723 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
