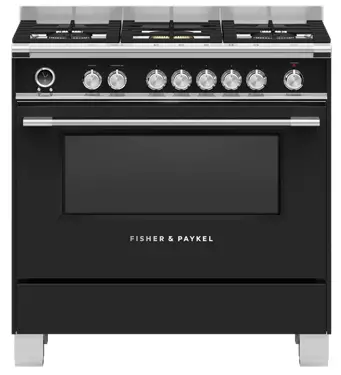

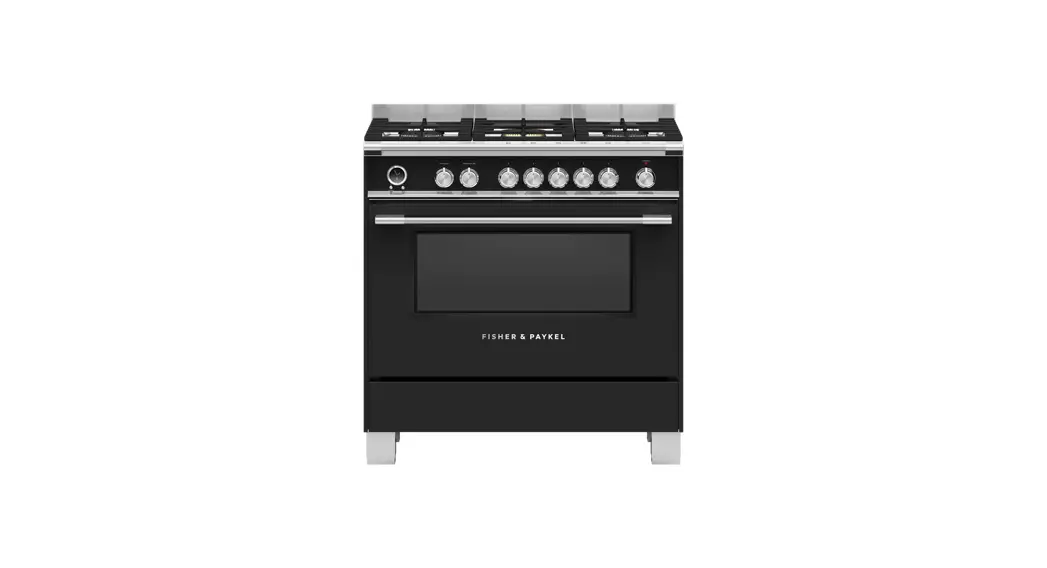

OR90SCG6B1 Self Cleaning 5 Burners Freestanding Cooker
User Guide
Series 9 | Classic
Black
OR90SCG6B1 Self Cleaning 5 Burners Freestanding Cooker
Get the best of both worlds with dual fuel. A gas cooktop with wok burner is paired with a nine-function convection oven.
- Five burner cooktop with with dual wok burner and two powerful triple ring burners
- Convection oven with 140 L capacity and nine oven functions plus rotisserie including Pastry Bake with pizza mode
- Non-tip full-extension shelves for safe removal of hot dishes
- Pyrolytic self-clean that breaks down food residue for an easy clean

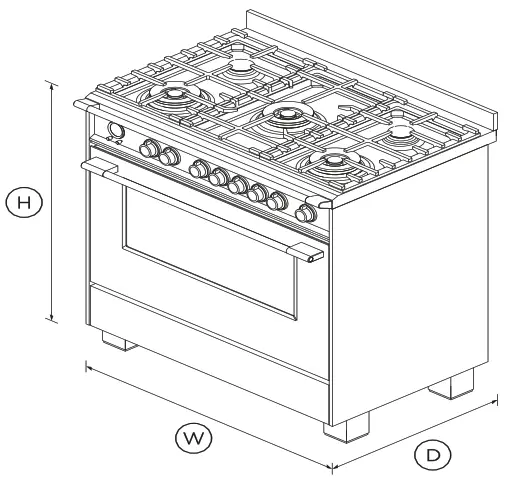

DIMENSIONS
| Height | 898 – 946 mm |
| Width | 897 mm |
| Depth | 600 mm |
FEATURES & BENEFITS
MULTI-SHELF COOKING
Our AeroTech™ system circulates air evenly throughout the entire oven so dishes on the top shelf turn out just as perfectly as food cooking on the bottom shelf.
QUALITY AND DURABILITY
Every detail has been carefully crafted. The solid, perfectly balanced soft-close door, precise electric temperature control and chromed cast zinc dials all add up to an exceptional, premium range.
EASY CLEANING
Cleaning up spills is effortless. Your cooktop simply needs a quick wipe to keep it looking good as new. The pyrolytic self clean oven cycle breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth.
BURNER POWER & CONTROL
Instant and immediate control from the highest to the gentlest heat. The finely tuned cooktop controls let you sear, stir fry, or simmer a delicate sauce to perfection.
LARGE CAPACITY OVEN
The generous 140 L total capacity oven gives you plenty of space to cook multiple dishes at once.
EVEN HEAT
Accurate, electronically-controlled oven heat ensures a great result every time.
SPECIFICATIONS
| Accessories | |
| Flat wire shelf | 1 |
| Full Extension Telescopic | 2 sets (part 578744) |
| Full extension sliding shelves | 2 sets (part 578744) |
| Grill rack | • |
| Kick strip, black (optional) | KICKOR90B1 |
| Roasting dish | 1 |
| Rotisserie set | 1 set |
| Small pot support | 1 (part 533981 cast) |
| Step down wire shelf | • |
| Burner ratings | |
| Dual wok burner inner/outer | 14.9 MJ/h |
| Dual wok burner inner/outer | 16.2 MJ/h |
| Maximum burner power | 16.2 MJ/h |
| Semi-rapid burner (LPG) | 5.8 MJ/h |
| Semi-rapid burner (natural | 6.5 MJ/h |
| Total cooktop power | 58.0 MJ/h |
| Triple ring wok burner (LPG) | 14.4 MJ/h |
| Triple ring wok burner (natural | 14.4 MJ/h |
| Capacity | |
| Capacity usable | 120 L |
| Shelf positions | 6 |
| Total capacity | 140 L |
| Cleaning | |
| Acid resistant graphite enamel | • |
| Drop down grill element | • |
| Pyrolytic proof shelf runners | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
| Controls | |
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic clock | • |
| High resolution display | • |
| Laser etched graphics | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Turned stainless steel clock | • |
| Turned stainless steel clock | • |
| Oven features | |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Bright chromed, cast zinc dials | • |
| Electronic oven control | • |
| Internal light | 4 x 25 W halogen (2 side & 2 |
| Soft open/close door | • |
| Twin cavity fans | • |
| Warming drawer | • |
| Oven functions | |
| Bake | • |
| Fan bake | • |
| Fan forced | • |
| Fan grill | • |
| Grill | • |
| Number of functions | 9 |
| Pastry Bake with Pizza mode | • |
| Rapid proof | • |
| Roast | • |
| Rotisserie | • |
| True convection | • |
| Oven performance | |
| Cool Touch door | Quadruple glazed |
| Warming drawer power | 202 W |
| Power requirements | |
| Amperage | 23 A |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 600mm |
| Height | 898 – 946 mm |
| Width | 897 mm |
| Cook top Features | |
| Brass burner spreader (power | • |
| Embossed brass burner cap | • |
| Hob rail | • |
| LPG/Natural gas compatible | • |
| Sealed range top | • |
| Cook top Performance | |
| Number of burners | 5 |
| Safety | |
| Advanced cooling system | • |
| Anti-tilt bracket | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Cool Touch door | • |
| Flame failure system | • |
| Full extension telescopic | • |
| Non-tip shelves | • |
| Warranty | |
| Parts and labour | 2 years |
| SKU | 81689 |
Other product downloads available at fisherpaykel.com
Service & WarrantyUser GuideInstallation Guide – Kick StripInstallation Guide
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 0800 372 273 W www.fisherpaykel.com
Date: 16.11.2022 > 3
