My Coffee Shop Jura Giga X3c Coffee Machine Instruction Manual

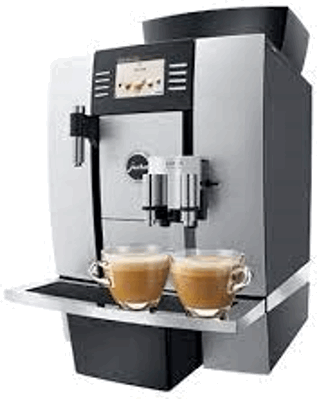

COFFEE SHOP Jura GIGA X3C Coffee Machine
Instruction Manual

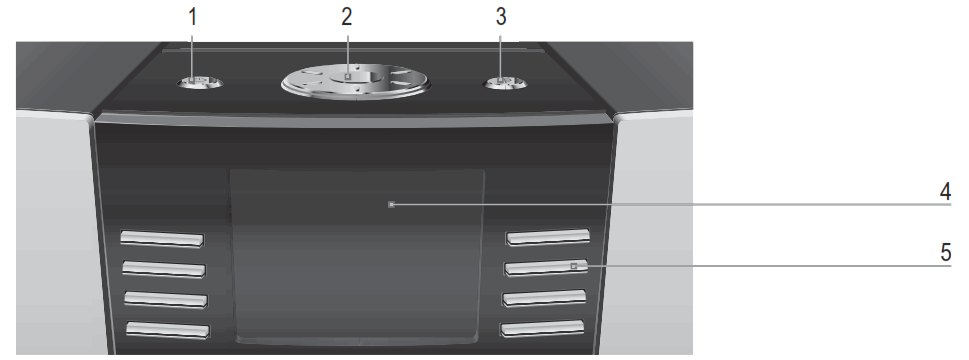

Control elements

Top of the machine

1. On/Off button
2. Rotary Switch
3. P P button (programming)
   Front
4. Display
5. Multi-function buttons (button function depends on what is shown in the display)

Back of the machine

1. Service cover (open by pressing with your finger)
2. Locking device
3. Sliding catch
4. Service socket (underneath the cover)

Cleaning Products – GIGA (Filtered mains water)

Daily
See procedure – Daily milk system clean
Must be performed at the end of each day just before the machine is turned off Purpose: To ensure the milk system is clean overnight so the milk does not go off blocking the pathways

Use Cafetto daily milk cleaner 1-liter bottle (Prod no. 71144) or Jura Milk System Cleaner Mini Tabs 180g (Prod no. 71150)
Weekly
See procedure – Weekly milk system clean Performed once per week
Purpose: To remove any build-up of milk fats to ensure the milk frother works correctly

Use Cafetto weekly milk cleaner – 1-liter bottle (Prod no. 71145)
When prompted
Clean machine – See procedure (Coffee system clean) Performed only when prompted (Every 220 coffees)
Purpose: Removes coffee oil from the brewing unit and coffee path to maintain the quality of the coffee
Use Jura cleaning tablets

• 6 pk (Prod no. 71111)
• 25 pk (Prod no. 71112)

Change the filter – Contact service on 1300 365 487 Performed when prompted by the machine, based on water volume, or during regular service
Purpose: Protects against limescale build-up inside the machine maintaining water & steam paths

BWT Mains water filter Prod no. BWT Filter (V)

GIGA X3c Professional

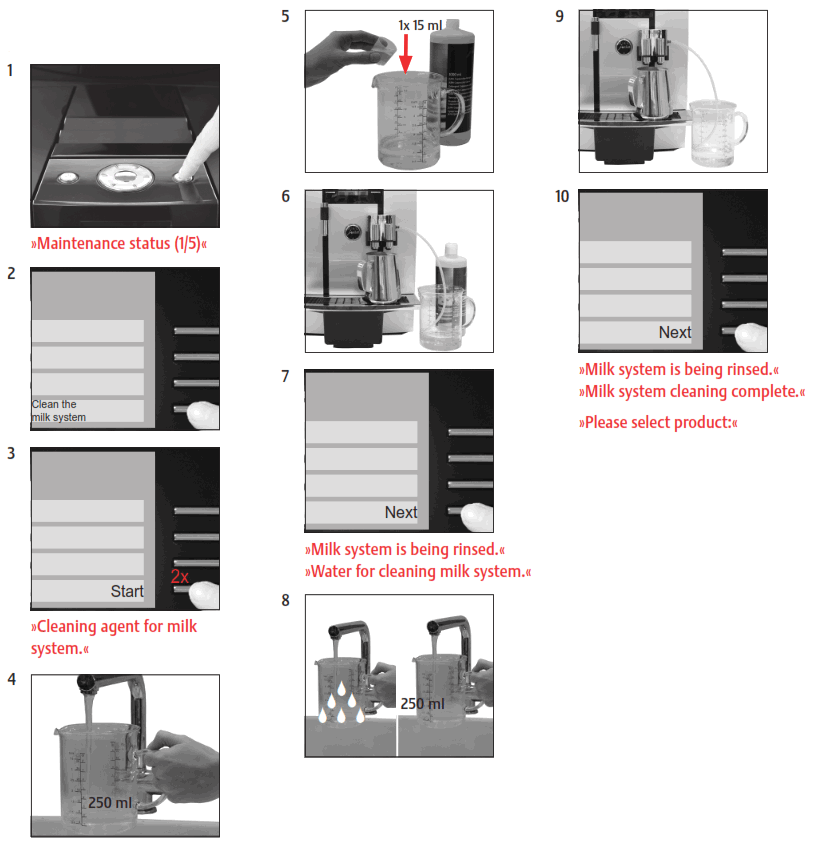

Daily milk system clean
Milk system cleaner Solution Prod no. 71144 or Mini tabs Prod no. 71150

These short instructions do not replace the ‘GIGA X3c Professional Instructions for Use. Make sure you read and observe the safety information and warnings first in order to avoid hazards.
Precondition: »Please select product:«

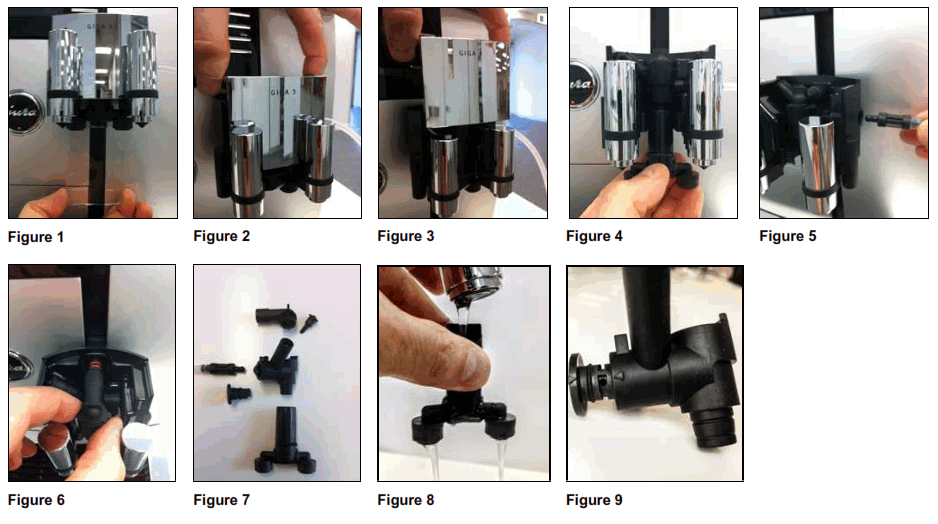

Weekly milk system clean
Complete this procedure once a week after the daily milk system clean

1. Remove the splash guard. (Fig 1)
2. Remove spout cover. Press the black releasing buttons and lift. (Fig 2 – 3)
3. Pull the milk outlet down (Fig 4) and the milk hose out. (Fig 5)
4. Remove the auto frother by pulling it towards you. (Fig 6)
5. Separate the auto frother into 6 parts. (Fig 7)
6. Soak all 6 parts in 250ml of warm water & 15ml of Cafetto red weekly solution (71145) for 20 min.
7. Remove the parts from the solution and rinse under cold tap water.
8.  Check that water flows through the milk outlet freely. (Fig 8)
9. Re-assemble the auto frother ensuring the arrow tips line up. (Fig 9)
10. Refit the auto frother, spout cover, and splash guard.

Important:
The splash guard protects the coffee spout slide ribbon behind it from milk splatters and must be fitted. Be careful not to press on the coffee spout slide ribbon as it can be damaged.

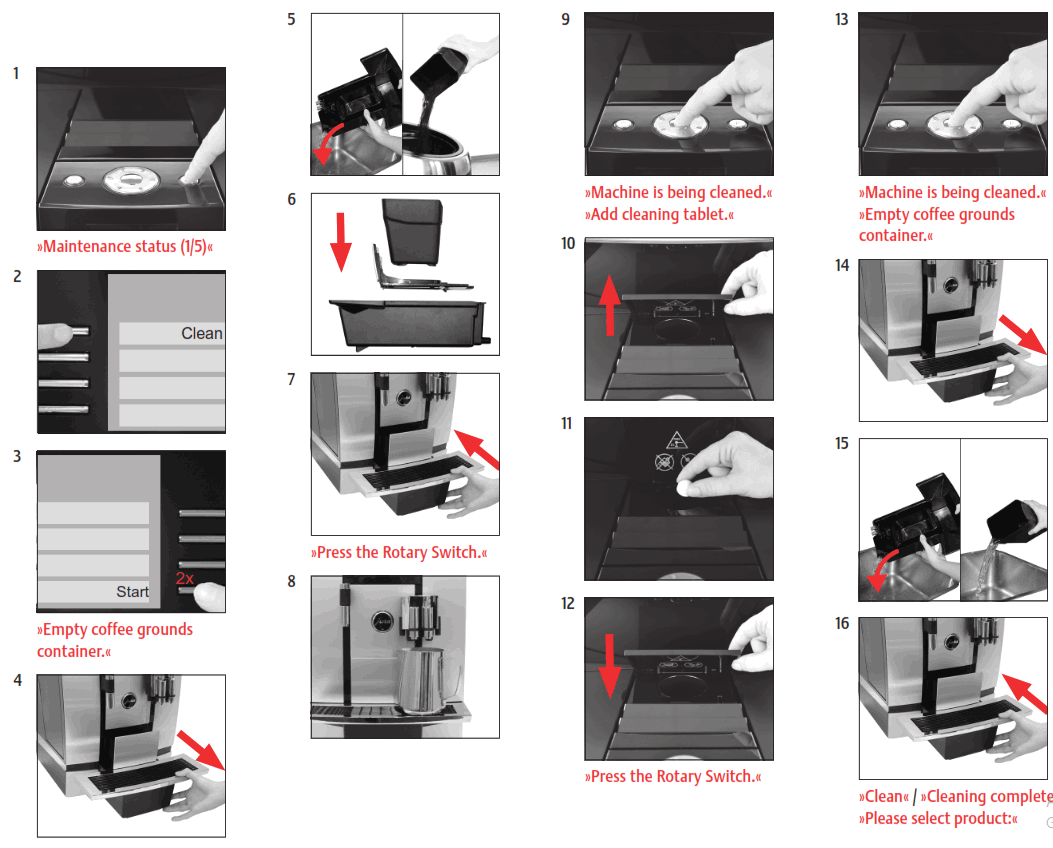

Coffee system clean
Approximate duration 20 min.
3-phase cleaning tablets
Tub of 25 (Prod no. 71112)
Pack of 6 (Prod no. 71111)
These short instructions do not replace the ‘GIGA X3c Professional Instructions for Use. Make sure you read and observe the safety information and warnings first in order to avoid hazards.
Precondition: »Clean machine.« (or: »Please select product:«)

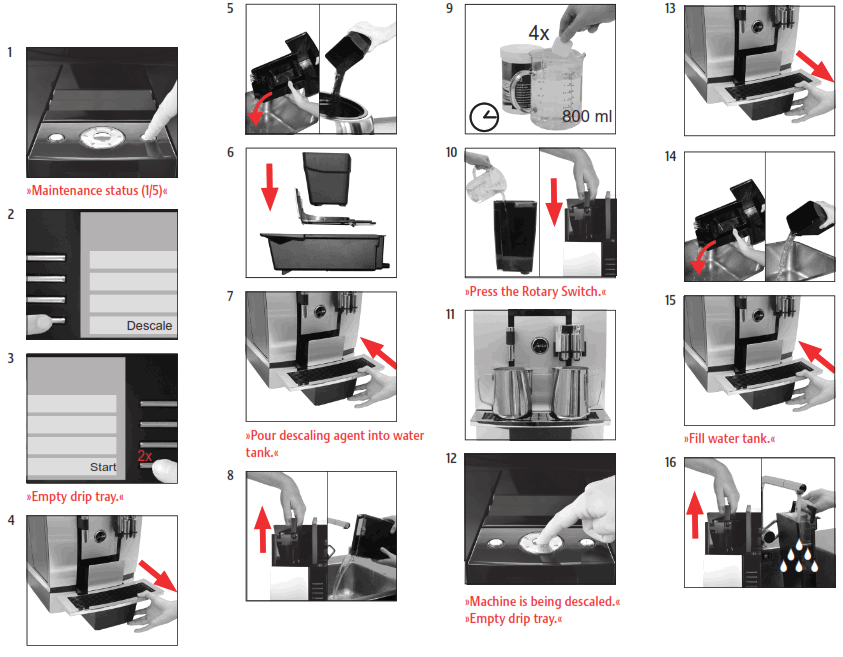

Descaling the machine
Approximate duration 50 min.
Descaling tablets
Tub of 36 (Prod no. 71122)
Pack of 9 (Prod no. 71121)
These short instructions do not replace the ‘GIGA X3c Professional Instructions for Use. Make sure you read and observe the safety information and warnings first in order to avoid hazards.
Precondition: »Decalcify machine.« (or »Please select product:«)

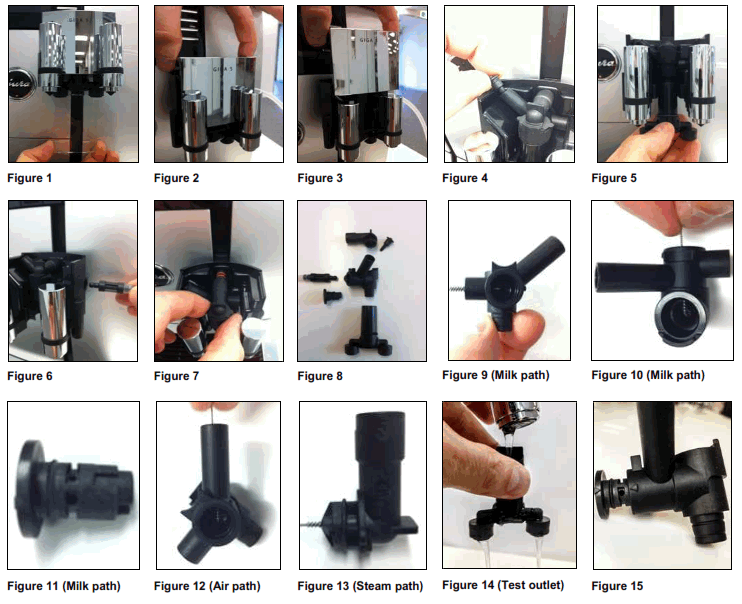

Troubleshooting:

Milk flow

• No milk Spluttering milk Not filling cups Froth milk is flat

Solution:

1. Remove the splash guard. (Fig 1)
2. Press the black releasing buttons on the sides of the spout cover and lift the cover off. (Fig 2 – 3)
3. If the flat milk is flowing normally and the problem is with the frothed milk only, replace the air suction (Fig 4), refit the cover, and test the milk again. If the problem has been solved, purchase spare air action (Part no. 70008). If the problem has not been solved go to step 4.
4. Remove the auto frother by pulling the milk outlet down (Fig 5) and pulling the milk hose connector out (Fig 6). Now you will be able to remove the auto frother by pulling it towards you (Fig 7).
5. Separate the auto frother into 6 parts (Fig 8).
6. Soak 6 parts (Fig 8) in 250ml of warm water and 15 ml of Cafetto red weekly cleaning solution (71145) for 30 min.
7. Remove the parts from the solution and rinse under tap water.
8. Clean the milk, air and steam paths using the cleaning brushes. See 2 x milk path holes in Fig 11.(Fig 9 – 13)
9. Pour tap water into the top of the milk outlet (Fig 14). If water does not pour from the two outlets as shown, soak it for another 30 min and retest. If you are not able to clean the outlet, order in another outlet. (Part no. 70007)
10. Re-assemble the auto frother ensuring that the arrow tips line up. (Fig 15)
11. Refit the auto frother, cover, splash guard, and test. If the problem has not been solved ph 1300 365 487.
