SHOP Jura GIGA X8C Gen II Coffee Maker Machine
Instruction Manual

Control elements

1. Bean container with aroma preservation cover
2. Water tank cover
3. Water tank
4. Power switch (back of the machine)
5. Plug-in mains cable (back of the machine)
6. Coffee grounds container
7. Drip tray
8. Cup grille
9. Filler funnel for ground coffee
10. Ventilation slats (Venti Ports)
11. Storage compartment cover
12. Measuring spoon for ground coffee
13. Height-adjustable dual spout
14. Height-adjustable hot-water spout
15. Coffee grounds container cover (pivoting)
16. Insert for drip tray

Control elements

1. Rotary Switch
2.  On/Off button (undercover)
3. Touchscreen display

Back of the machine

1. Service cover (open by pressing with your finger)
2. Locking device
3. Sliding catch
4. Service socket with JURA Smart Connect

Accessories

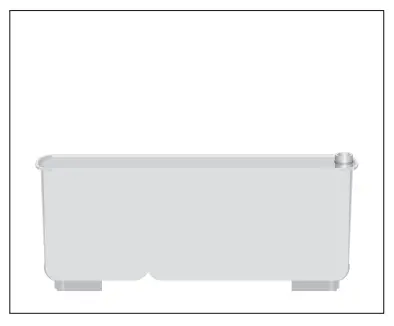

Container for milk system cleaning

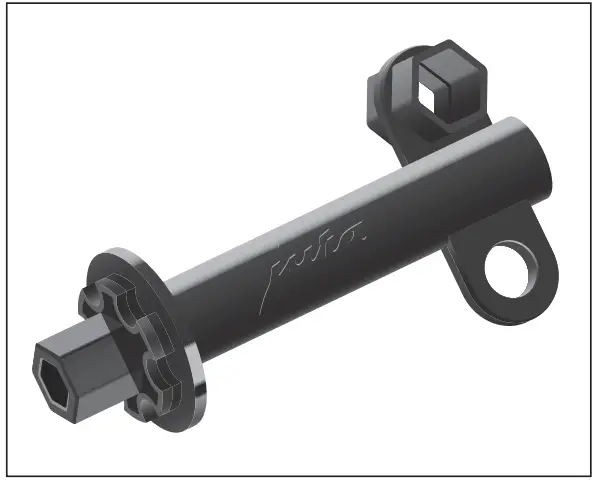

Spanner with hexagonal hole (for milk system)
Cleaning Products – GIGA (Filtered mains water)
Daily
See procedure – Daily milk system clean
Must be performed at the end of each day just before the machine is turned off
Purpose: To ensure the milk system is clean overnight so milk does not go off blocking the pathways

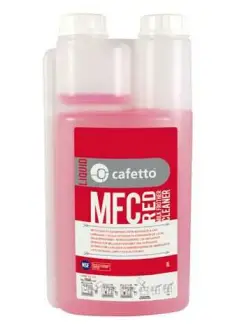

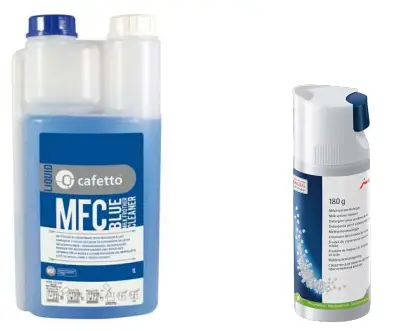

Use Cafetto daily milk cleaner 1 litre bottle (Prod no. 71144) or Jura Milk System Cleaner Mini Tabs 180g (Prod no. 71150)
Weekly
See procedure – Weekly milk system clean
Performed once per week
Purpose: To remove any build-up of milk fats to ensure the milk frother works correctly
Use Cafetto weekly milk cleaner – 1-liter bottle (Prod no. 71145)
When prompted
Clean machine – See procedure (Coffee system clean)
Performed only when prompted (Every 220 coffees)
Purpose: Removes coffee oil from the brewing unit and coffee path to maintain the quality of the coffee

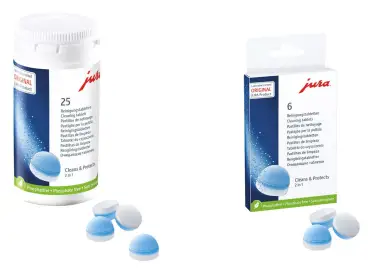

Use Jura cleaning tablets
– 6 pk (Prod no. 71111)
– 25 pk (Prod no. 71112)
Change the filter – Contact service on 1300 365 487
Performed when prompted by the machine, based on water volume, or during regular service

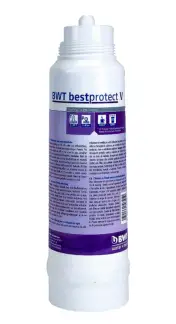

Purpose: Protects against limescale build-up inside the machine maintaining water & steam paths BWT Mains water filter
Prod no. BWT Filter (V)

GIGA X8c/X8

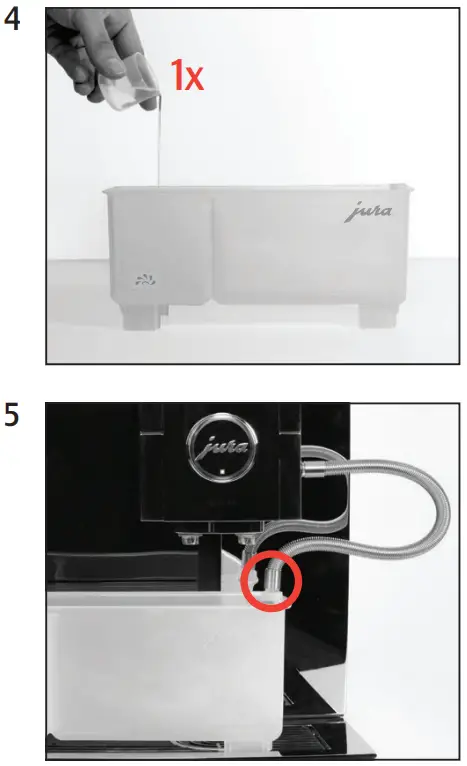

Cleaning the milk system

Prod no. 71144 OR Prod no. 71150
These short instructions do not replace the ‘GIGA X8c/X8 Instructions for Use’. Make sure you read and observe the safety information and warnings first in order to
avoid hazards. ‘Display’

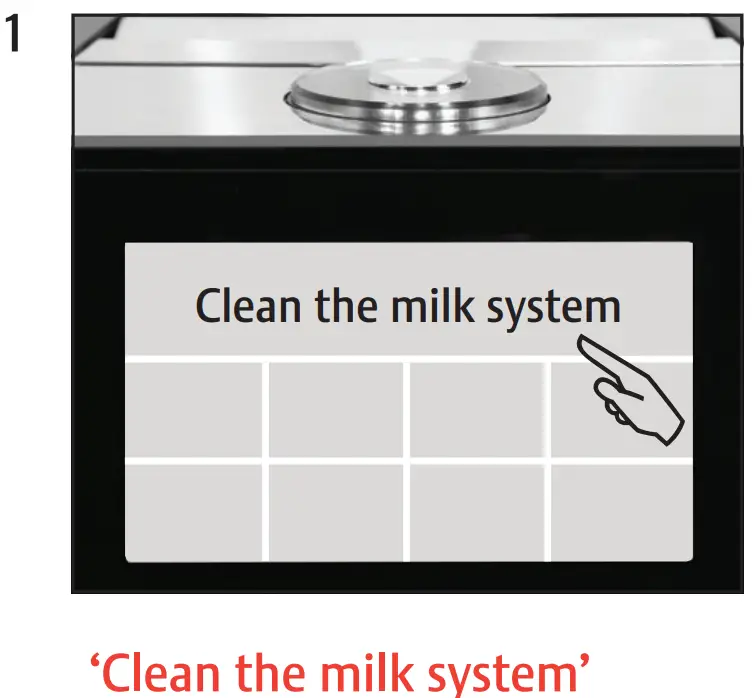

Precondition: ‘Clean the milk system’

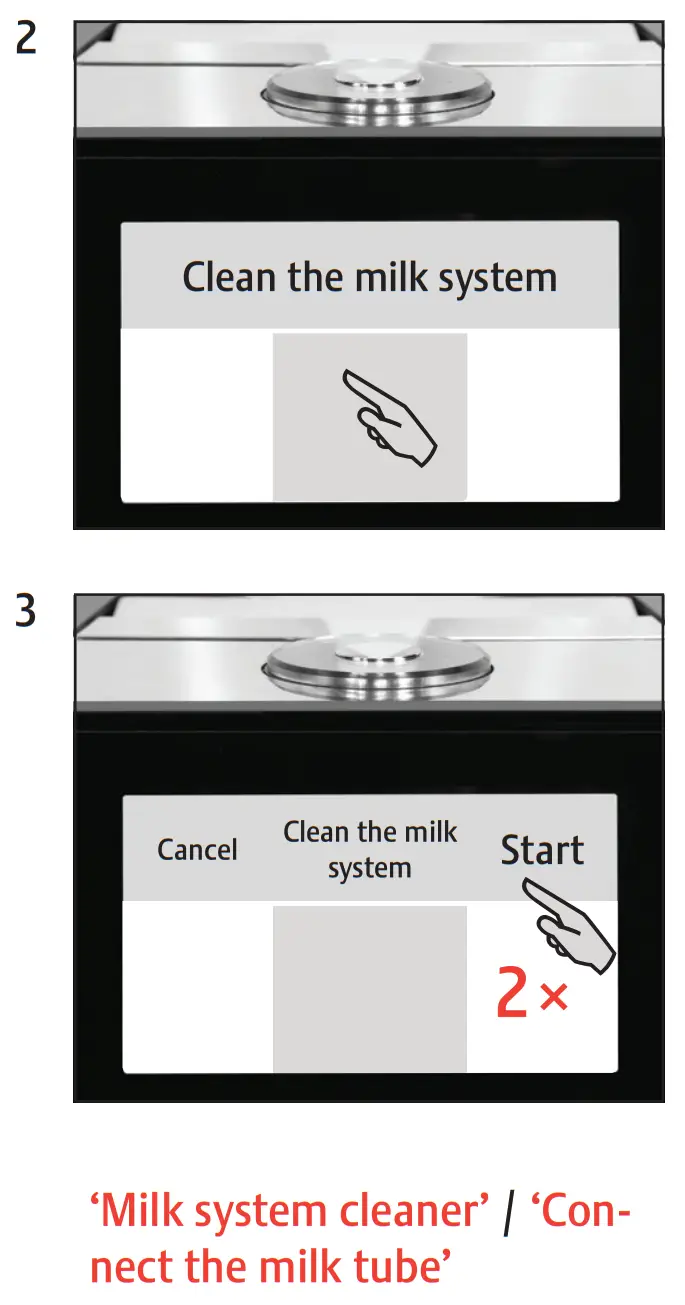

‘Milk system is being cleaned’ ‘Milk system cleaning complete’
GIGA X8c/X8

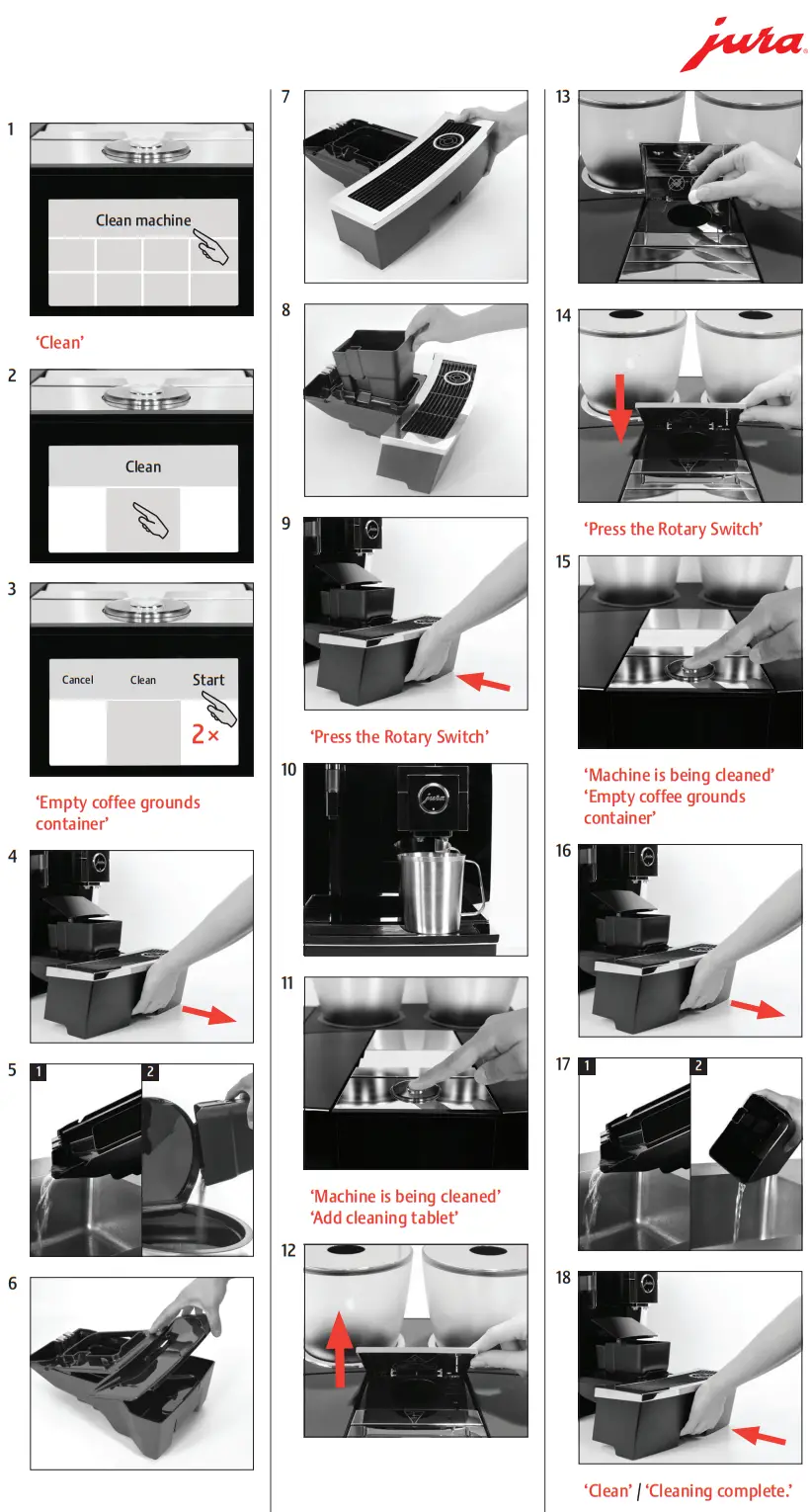

Cleaning the machine

Approximate duration 20 min.
Equipment required: 3-phase-cleaning tablets

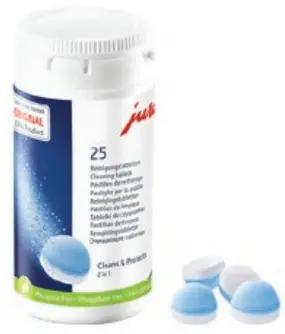

Box containing 25 pcs (Prod 71112)

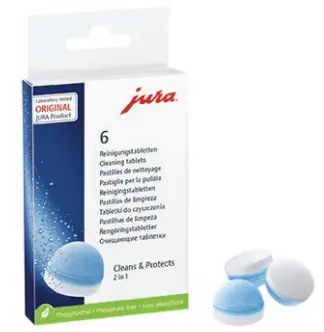

A pack containing 6 pcs (Prod 71111)
These short instructions do not replace the ‘GIGA X8c/X8 Instruc tions for Use’. Make sure you read and observe the safety information and warnings fi rst in order to avoid
hazards.
‘Display’

Precondition: ‘Clean machine’

GIGA X8c

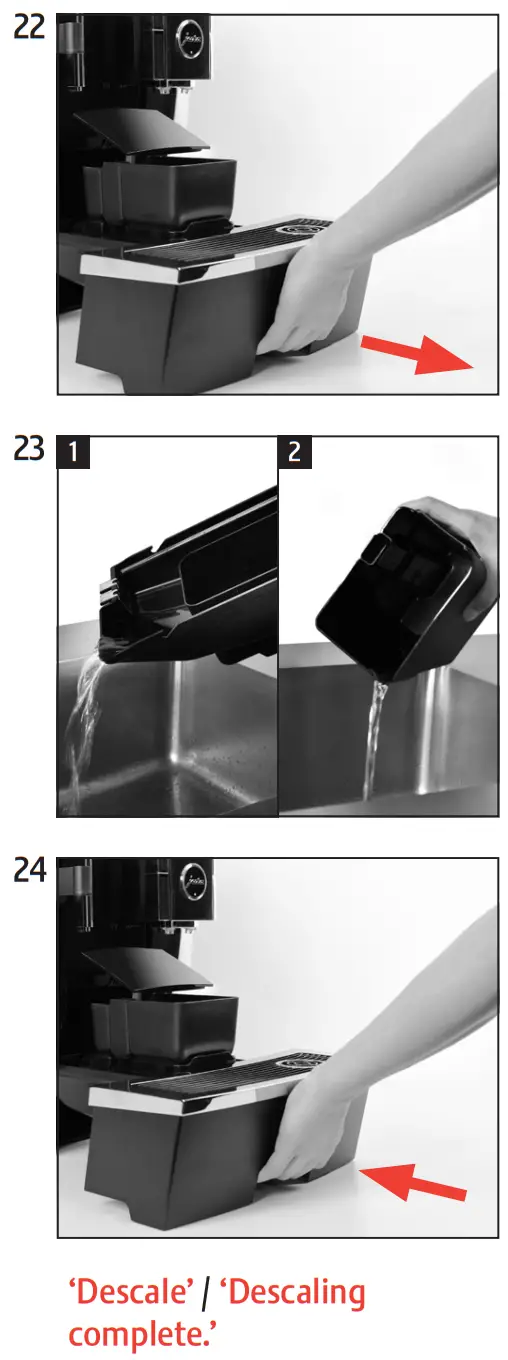

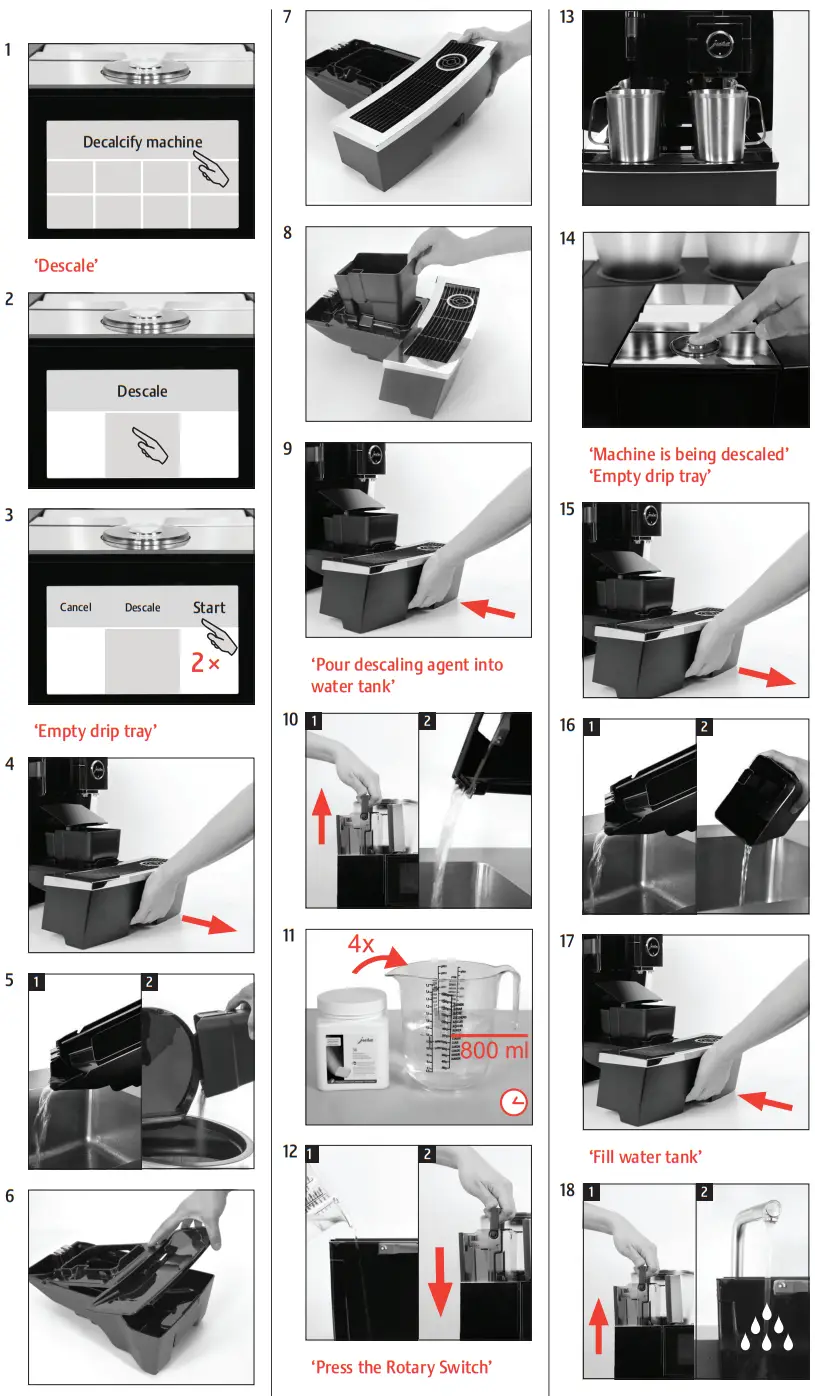

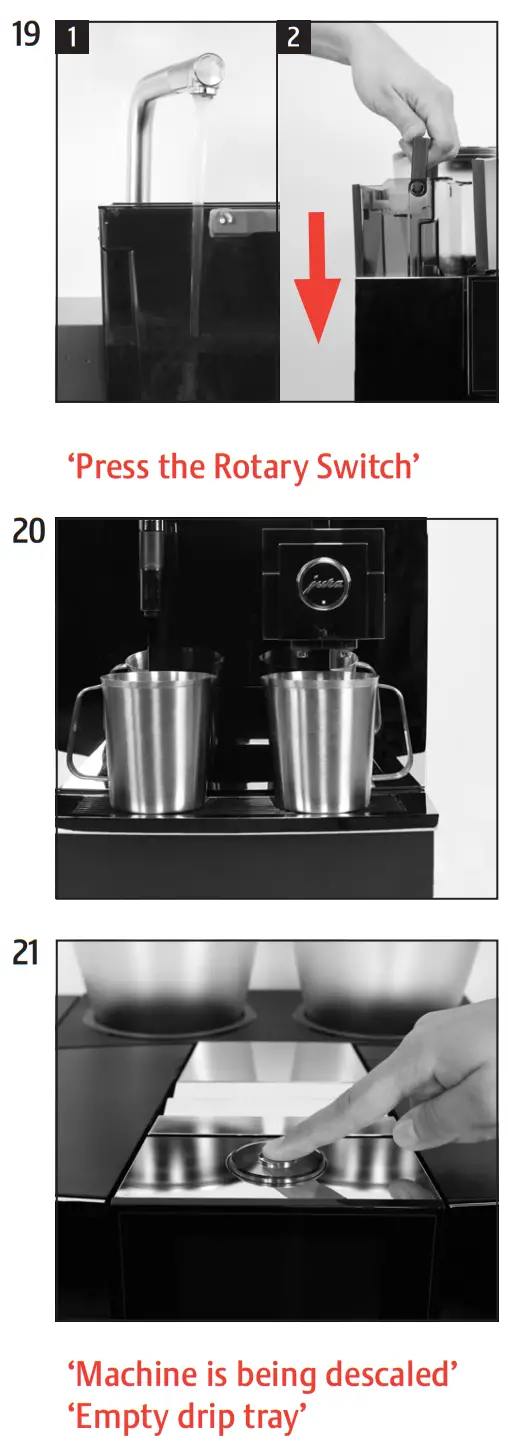

Descaling the machine
Approximate duration 45 min.
Equipment required:
Descaling tablets
Box containing 36 pcs (Prod. 71122)
These short instructions do not replace the »GIGA X8c Instructions for Use«. Make sure you read and observe the safety information and warnings fi rst in order to avoid hazards.
»Display«
