MY COFFEE

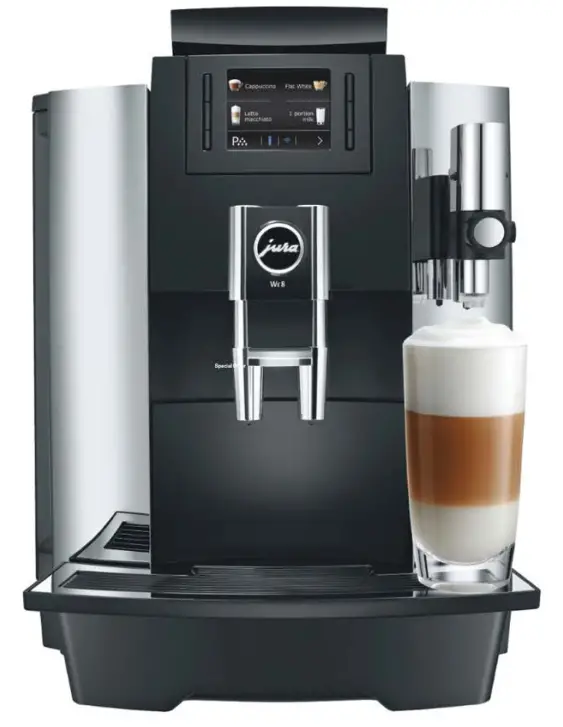

SHOP Jura WE8 Coffee Machine
Instruction Manual MY COFFEE SHOP Jura WE8 Coffee Machine - logo 2MY COFFEE SHOP Jura WE8 Coffee Machine

Jura WE8 Coffee Machine

Operating & Cleaning Instructions

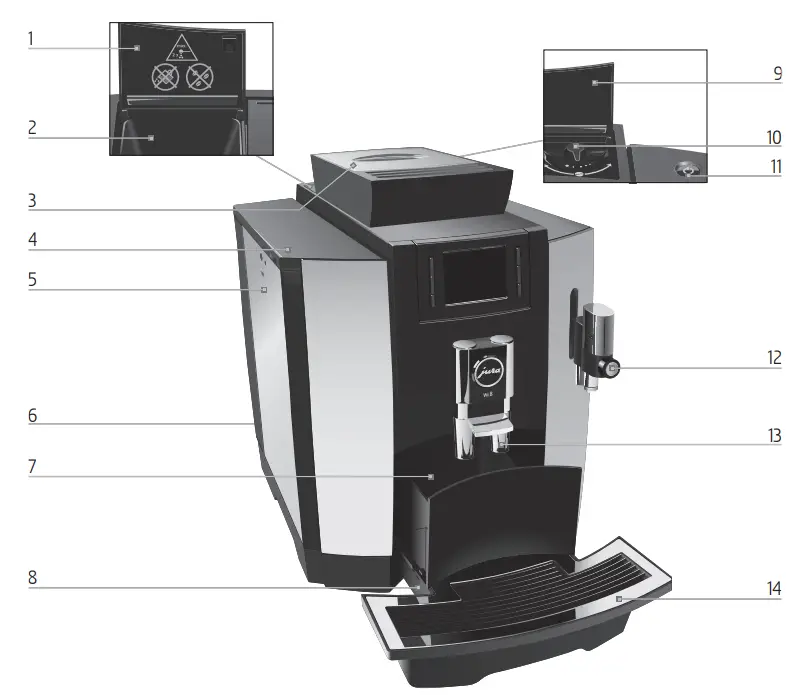

MY COFFEE SHOP Jura WE8 Coffee Machine - overview

1 Filler funnel cover
2 Filler funnel for ground coffee
3 Bean container with aroma preservation cover
4 Water tank cover
5 Water tank
6 Plug-in mains cable (back of the machine)
7 Coffee grounds container
 8 Drip tray
9 Cover cap for grinder adjustment switch
10 Grinder adjustment switch
11 On/Off button Power-Button-Icon.png
12 Milk system with fine foam frother
13 Height-adjustable coffee spout
14 Cup grille

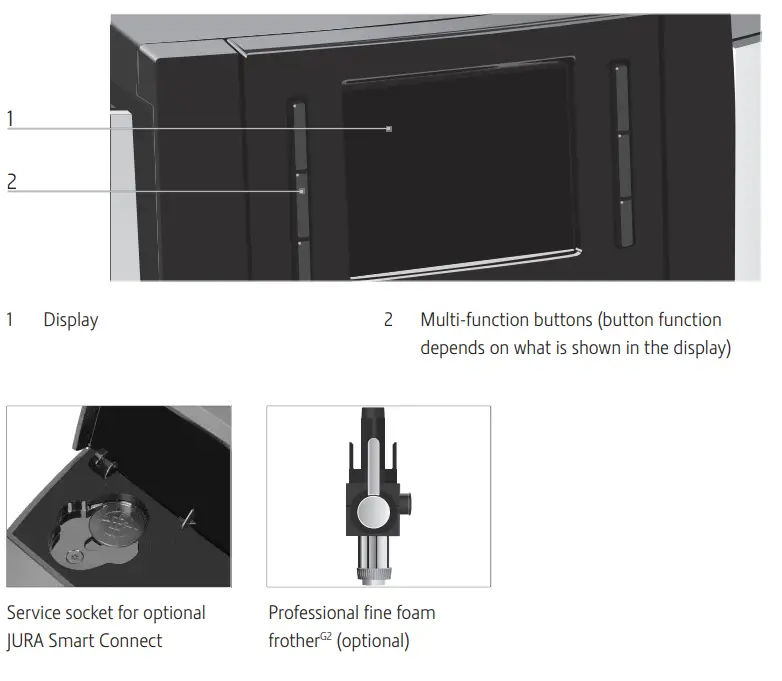

MY COFFEE SHOP Jura WE8 Coffee Machine - overview 2

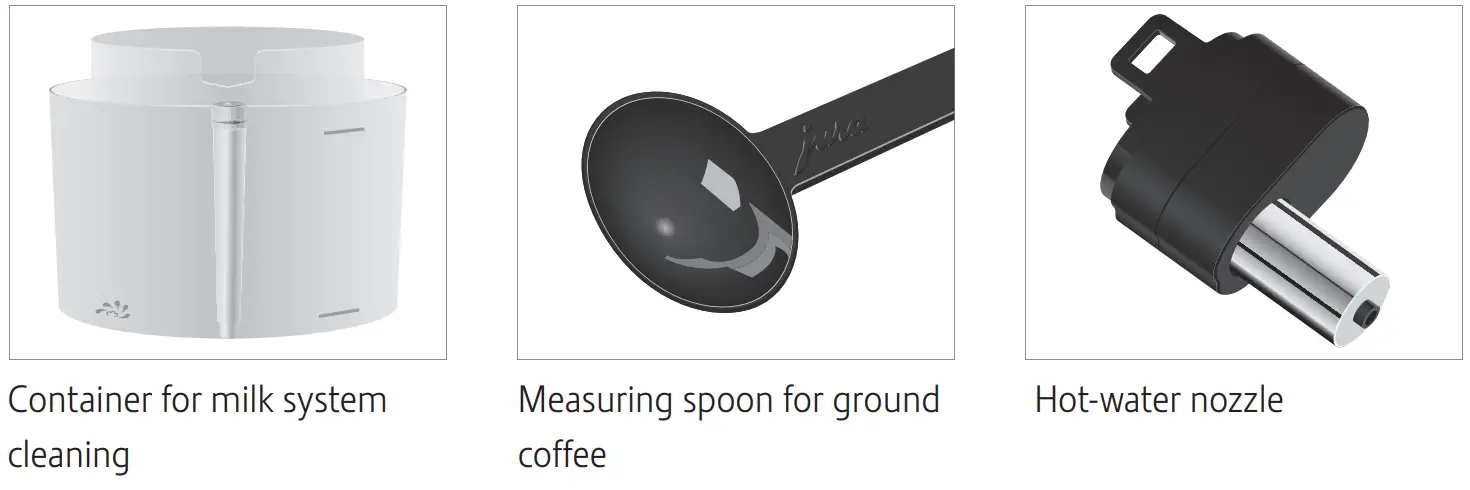

AccessoriesMY COFFEE SHOP Jura WE8 Coffee Machine - overview 3

Cleaning Products – GIGA Gen II

Daily
See procedure – Daily milk system clean
Must be performed at the end of each day just before the machine is turned off
Purpose: To ensure the milk system is clean overnight so milk does not go off blocking the pathways

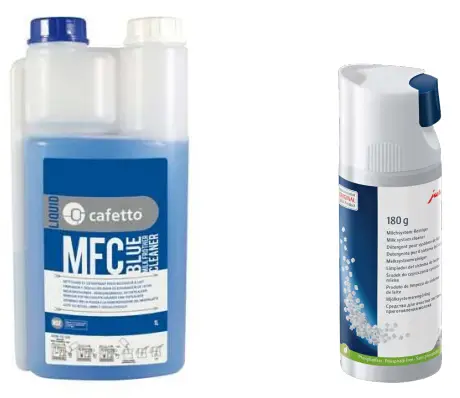

MY COFFEE SHOP Jura WE8 Coffee Machine - fig 1Use Cafetto daily milk cleaner 1 litre bottle (Prod no. 71144) or Jura Milk System Cleaner Mini Tabs 180g (Prod no. 71150)

Weekly
See procedure – Weekly milk system clean
Performed once per week
Purpose: To remove any build-up of milk fats to ensure the milk frother works correctly

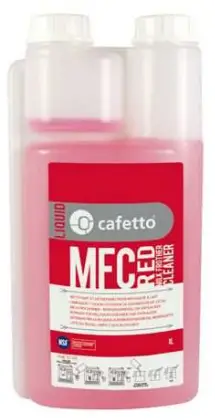

MY COFFEE SHOP Jura WE8 Coffee Machine - fig 2 Use Cafetto weekly milk cleaner – 1 liter bottle (Prod no. 71145)
When prompted

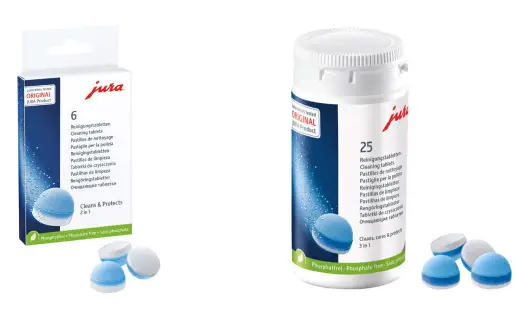

See procedure – Coffee system clean
Performed only when prompted (Every 200 coffees)
Purpose: Removes coffee oil from the brewing unit and coffee path to maintain the quality of the coffee MY COFFEE SHOP Jura WE8 Coffee Machine - fig 3

See procedures – Changing the filter or Descaling the machine
Perform a filter change or descale only when prompted.
Purpose: Protects against limescale build-up inside the machine maintaining water & steam paths
MY COFFEE SHOP Jura WE8 Coffee Machine - fig 4 Std – Prod no.71137
MY COFFEE SHOP Jura WE8 Coffee Machine - fig 69 pk – Prod no. 71121
36 pk – Prod no. 71122

Cleaning the milk system

DELL Command Power Manager Apps - icon 2 These short instructions do not replace the Instructions for Use. Make sure you read and observe the safety information and warnings fi rst in order to avoid hazards.MY COFFEE SHOP Jura WE8 Coffee Machine - fig 8

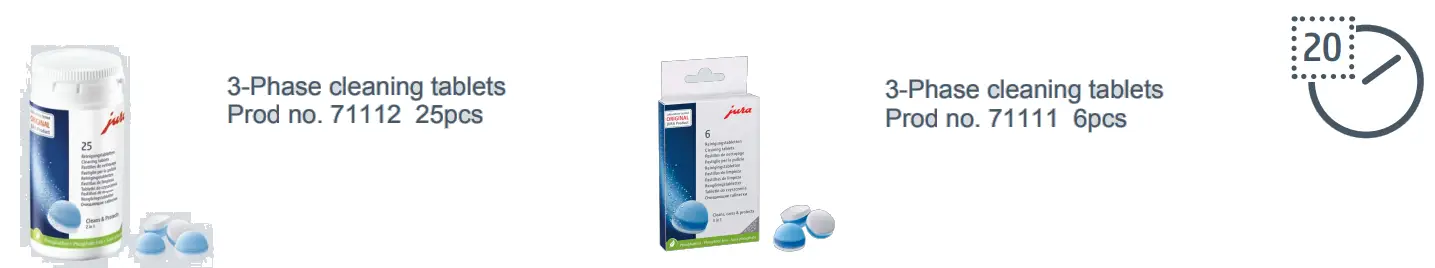

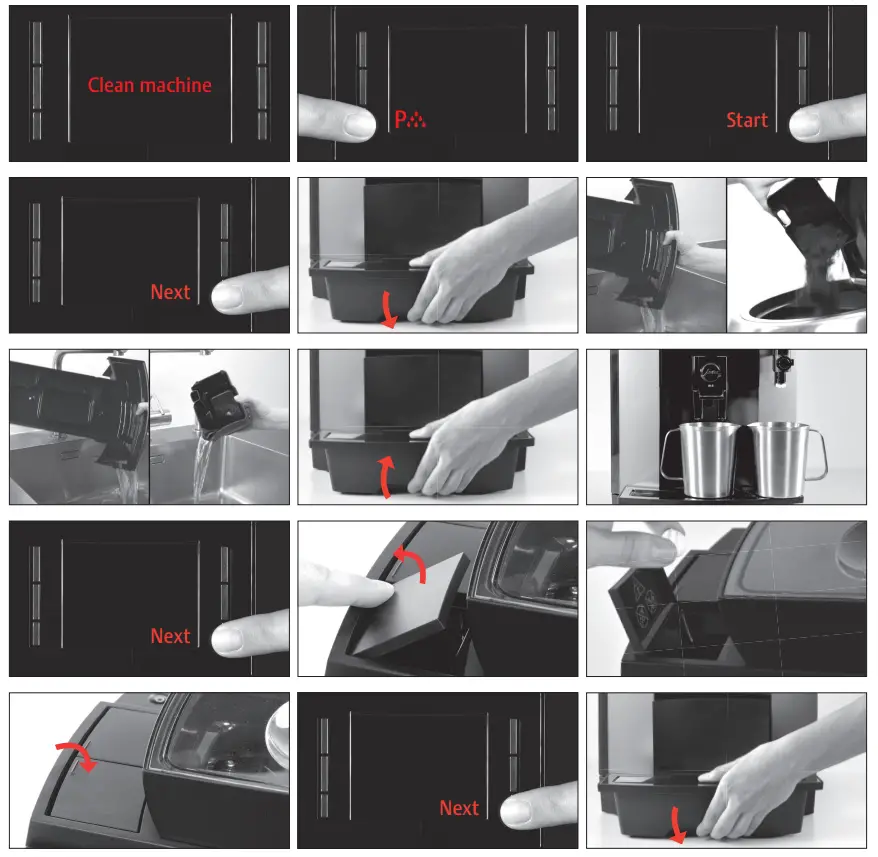

Cleaning the machine

DELL Command Power Manager Apps - icon 2 These short instructions do not replace the Instructions for Use. Make sure you read and observe the safety information and warnings fi rst in order to avoid hazards.MY COFFEE SHOP Jura WE8 Coffee Machine - fig 9MY COFFEE SHOP Jura WE8 Coffee Machine - fig 10

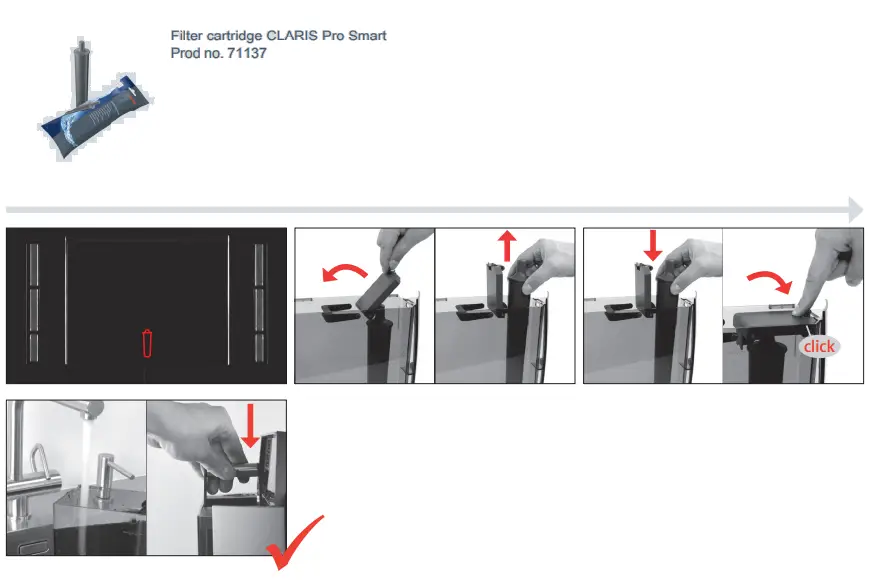

Changing the filter

DELL Command Power Manager Apps - icon 2 These short instructions do not replace the Instructions for Use. Make sure you read and observe the safety information and warnings first in order to avoid hazards.MY COFFEE SHOP Jura WE8 Coffee Machine - fig 11

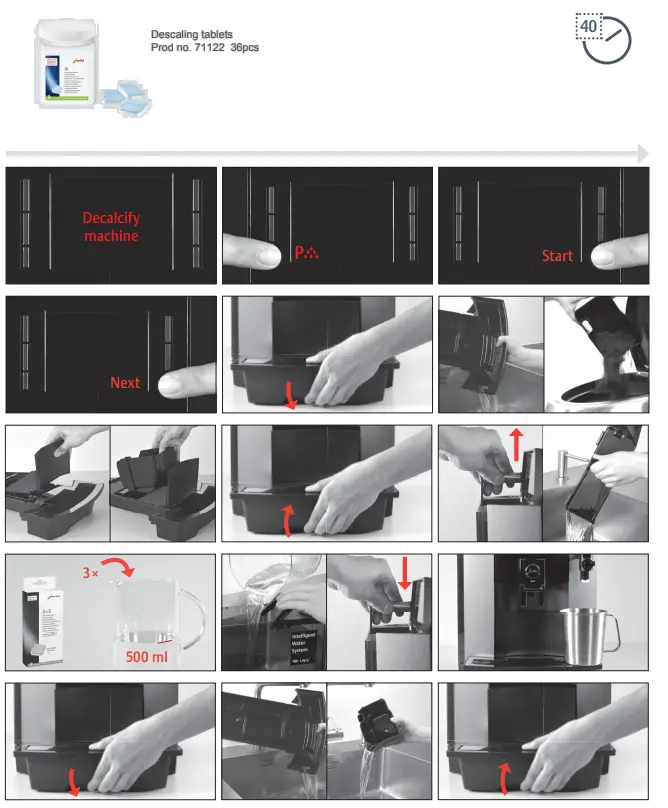

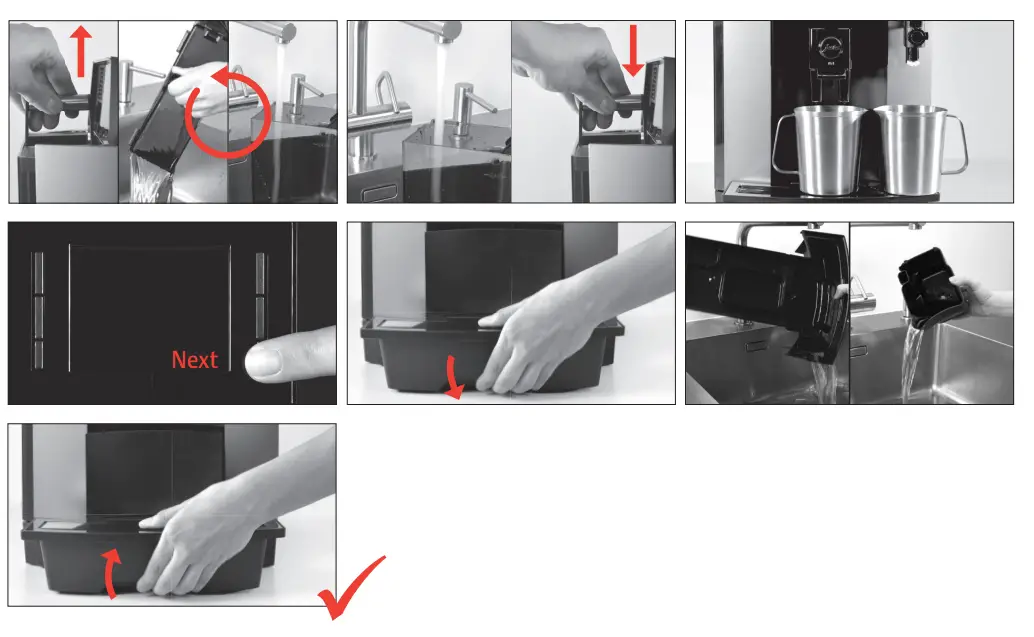

Descaling the machine

DELL Command Power Manager Apps - icon 2  These short instructions do not replace the Instructions for Use. Make sure you read and observe the safety information and warnings first in order to avoid hazards.MY COFFEE SHOP Jura WE8 Coffee Machine - fig 12MY COFFEE SHOP Jura WE8 Coffee Machine - fig 13

Welcome to My Coffee Shop!
Our hours of operation are Monday – Friday 9 am to 5 pm. Or you can visit us at your convenience on the web at www.mycoffeeshop.com.au. Orders and service requests can
be placed by:
Phone: 1300 365 487
E-mail: [email protected]
Online: www.mycoffeeshop.com.au/shop-online
Remittances: [email protected]
Service inquiries: [email protected]

Next business day delivery via courier to:
Adelaide Canberra Melbourne Sydney for product orders placed by 1.30 pm
Please note you will be advised when ordering if delivery charges apply to your order
Once again, welcome to My Coffee Shop and remember we are here to help. If you have any questions please don’t hesitate to contact us.
We look forward to exceeding your expectations and making your day easier and more enjoyable.
Kind regards,
My Coffee Shop
Client Services
My Coffee Shop Pty Ltd

MY COFFEE SHOP Jura WE8 Coffee Machine - figMy Coffee Shop Pty Ltd
ACN 102 850 037
390 Johnston St
Abbotsford VIC 3067
ph: 03 9946 4160
97 / 1-5 Harwood St
Pyrmont NSW 2009
ph: 02 9034 6580
