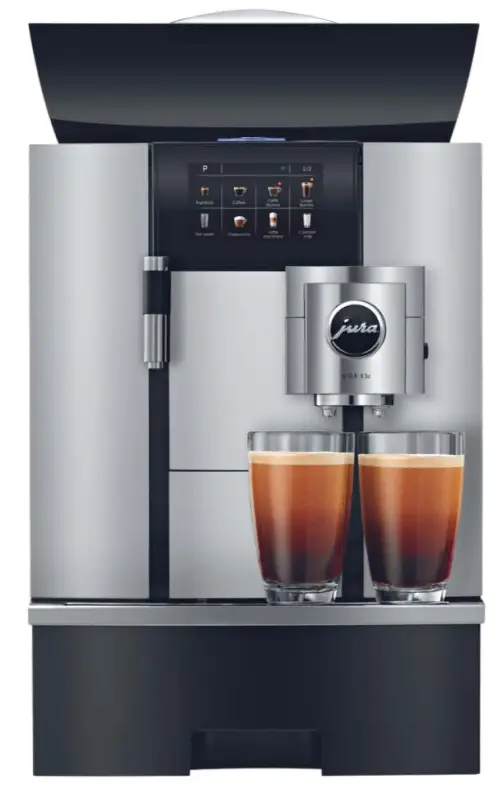

Jura GIGA X3C Gen II
Operating & cleaning instructions

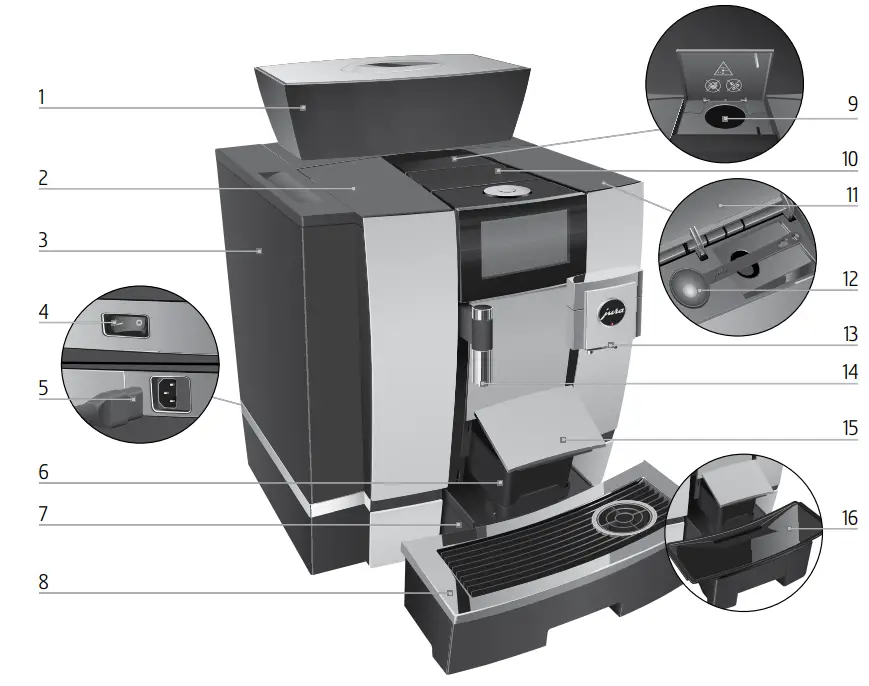

Control elements
- Bean container with aroma preservation cover
- Water tank cover
- Water tank
- Power switch (back of the machine)
- Plug-in mains cable (back of the machine)
- Coffee grounds container
- Drip tray
- Cup grille
- Filler funnel for ground coffee
- Ventilation slats (Venti Ports)
- Storage compartment cover
- Measuring spoon for ground coffee
- Height-adjustable dual spout
- Height-adjustable hot-water spout
- Drip tray cover (pivoting)
- Insert for the drip tray

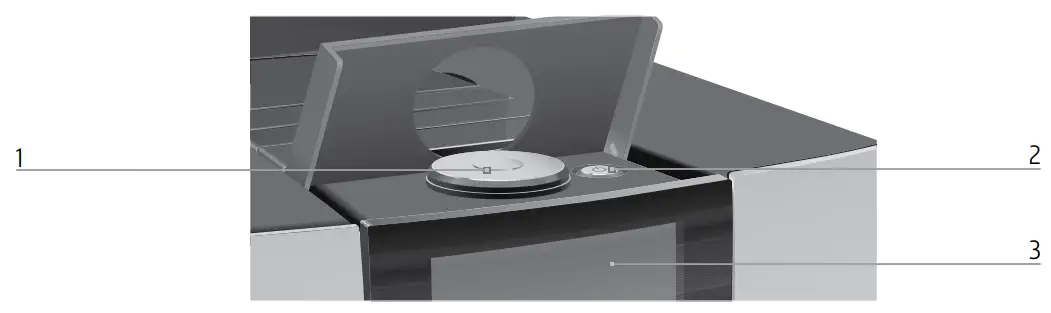

- Rotary Switch
- On/Off button Q (undercover)
- Touchscreen display
Back of the machine

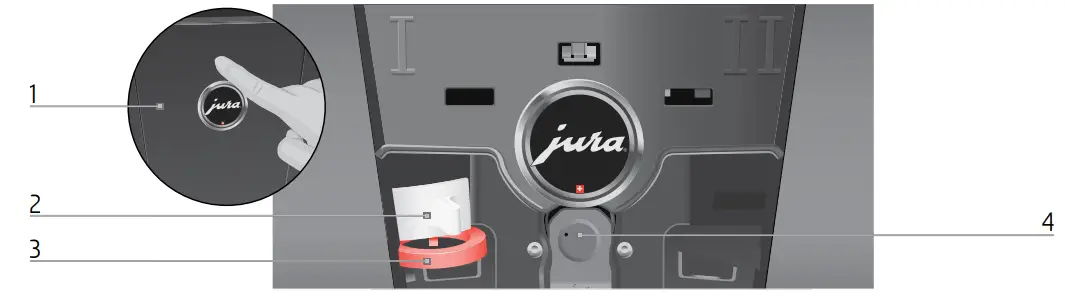

- Service cover (open by pressing with your finger)
- Locking device
- Sliding catch
- Service socket with JURA Smart Connect
Accessories
 |  |

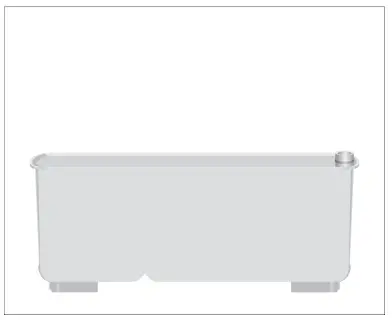

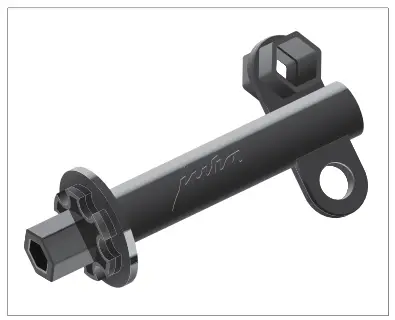

| Container for milk system cleaning | Spanner with hexagonal hole (for milk system) |
Cleaning Products – Jura GIGA X3C Gen II
Daily
See procedure – Daily milk system clean
Must be performed at the end of each day just before the machine is turned off
Purpose: To ensure the milk system is clean overnight so the milk does not go off blocking the pathways

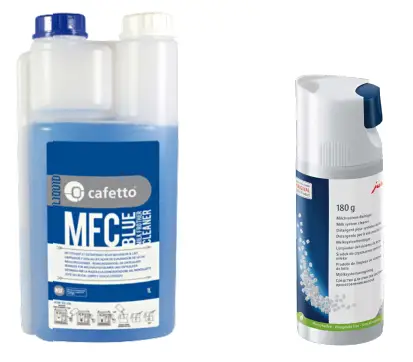

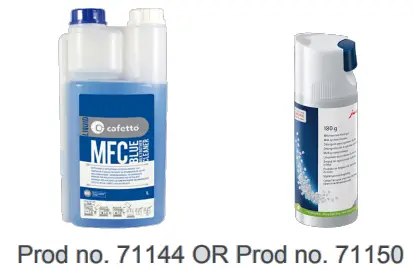

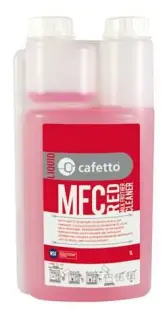

 | Use Cafetto daily milk cleaner 1-liter bottle (Prod no. 71144) or Jura Milk System Cleaner Mini Tabs 180g (Prod no. 71150) |
Weekly
See procedure – Weekly milk system clean
Performed once per week
Purpose: To remove any build-up of milk fats to ensure the milk frother works correctly
 | Use Cafetto weekly milk cleaner – 1 litre bottle (Prod no. 71145) |
When prompted
Clean machine – See procedure (Coffee system clean)
Performed only when prompted (Every 220 coffees)
Purpose: Removes coffee oil from the brewing unit and coffee path to maintain the quality of the coffee

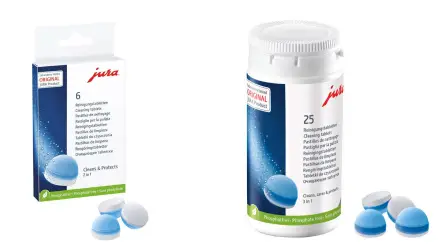

 | Use Jura cleaning tablets – 6 pk (Prod no. 71111) – 25 pk (Prod no. 71112) |
Change the filter – Contact service on 1300 365 487
Purpose: Protects against limescale build-up inside the machine maintaining water & steam paths

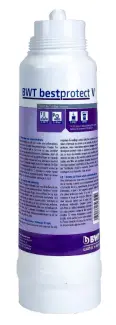

 | BWT mains water filter Prod no. BWT Filter (V) |

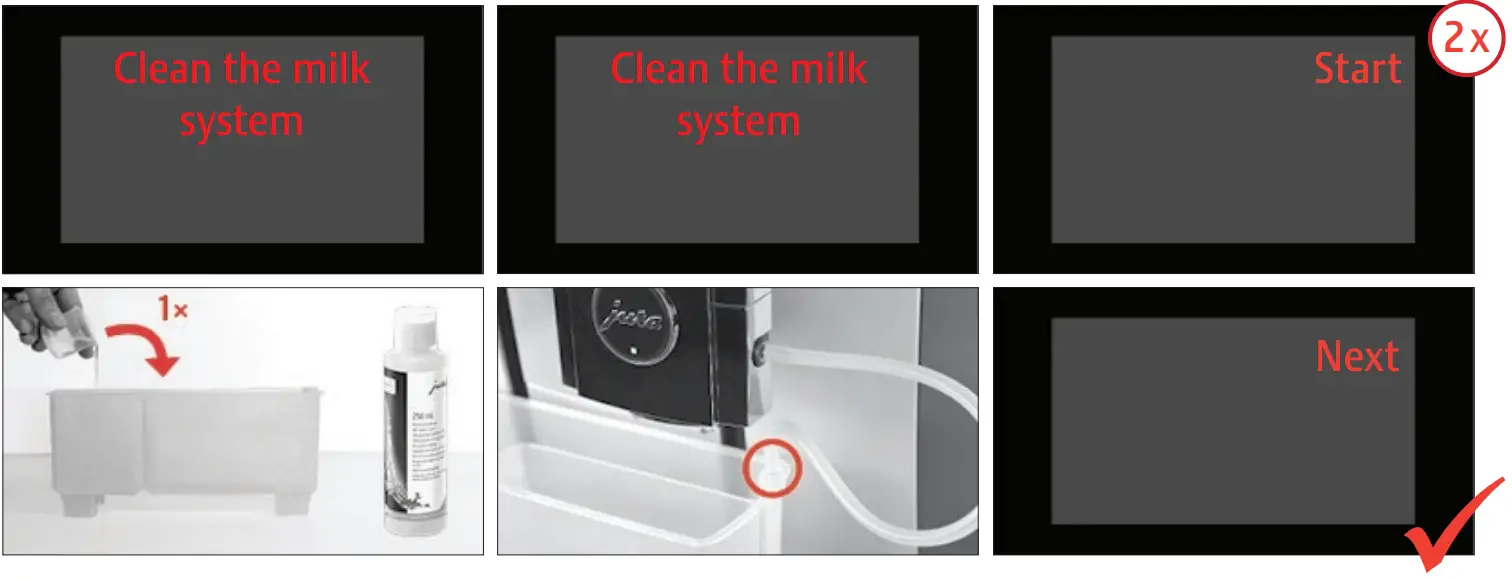

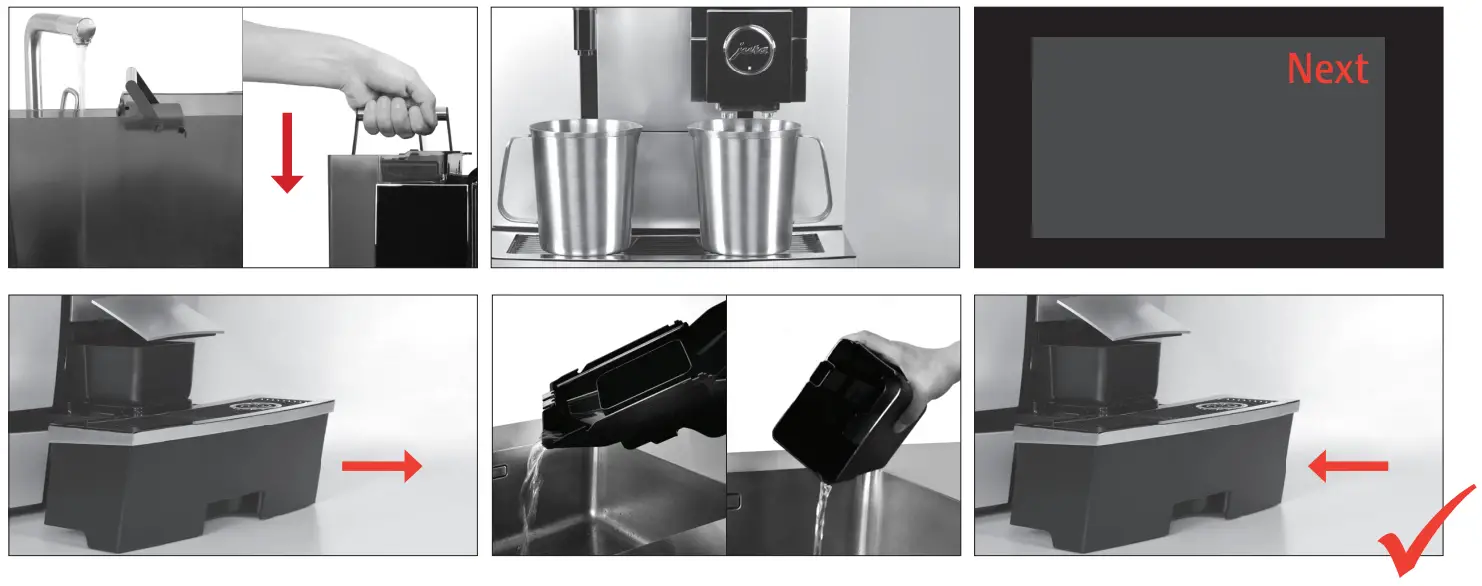

Daily milk system clean
J These short instructions do not replace the Instructions for Use.
Make sure you read and observe the safety information and warnings fi rst in order to avoid hazards.
Weekly milk system clean
Procedure
| Weekly milk system cleaner Prod. no 71145 1000ml bottle |

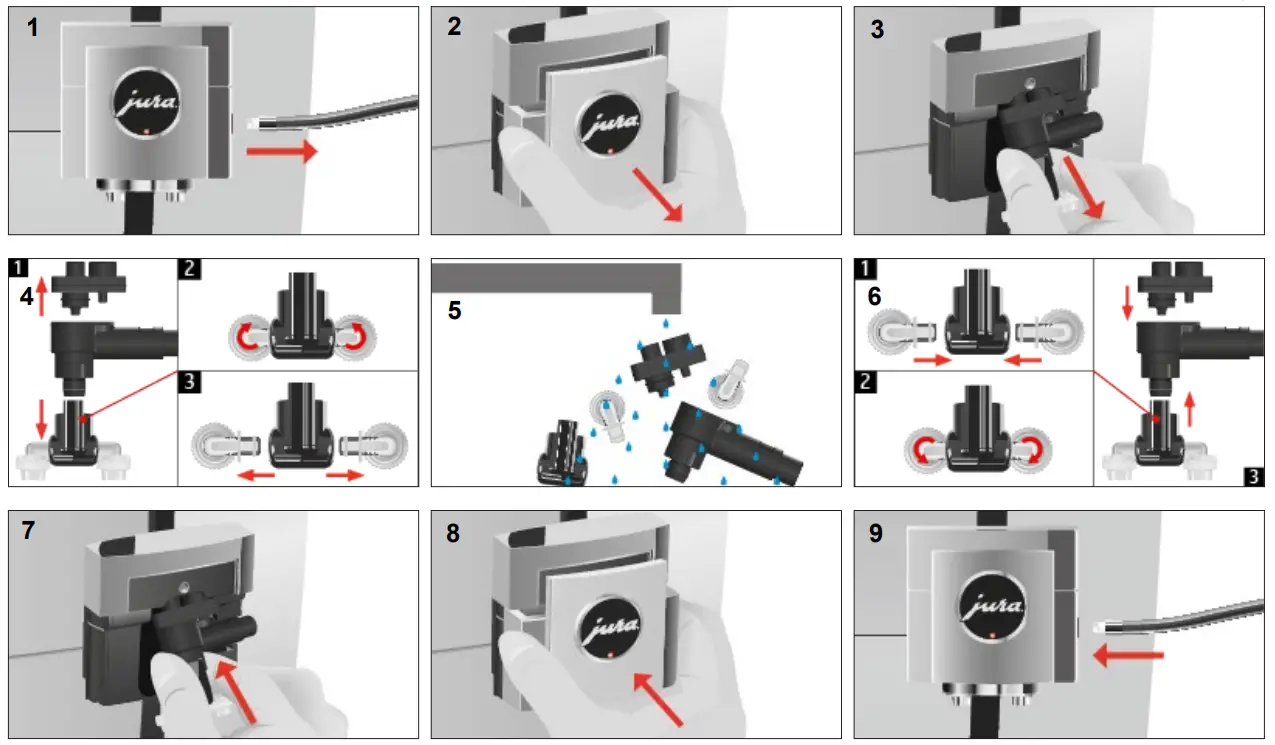

- Remove milk tube (Fig 1)
- Remove milk frother cover (Fig 2)
- Remove milk frother (Fig 3)
- Dismantle milk frother (Fig 4)
- Soak frother parts and milk tube in 250ml of cold water (not hot) & 15ml weekly milk cleaner for 30min
- Rinse frother parts and milk tube under cold running water (Fig 5)
- Re-assemble milk frother (Fig 6)
- Fit milk frother onto the coffee machine (Fig 7)
- Replace cover and insert milk tube (Fig 8 – 9)

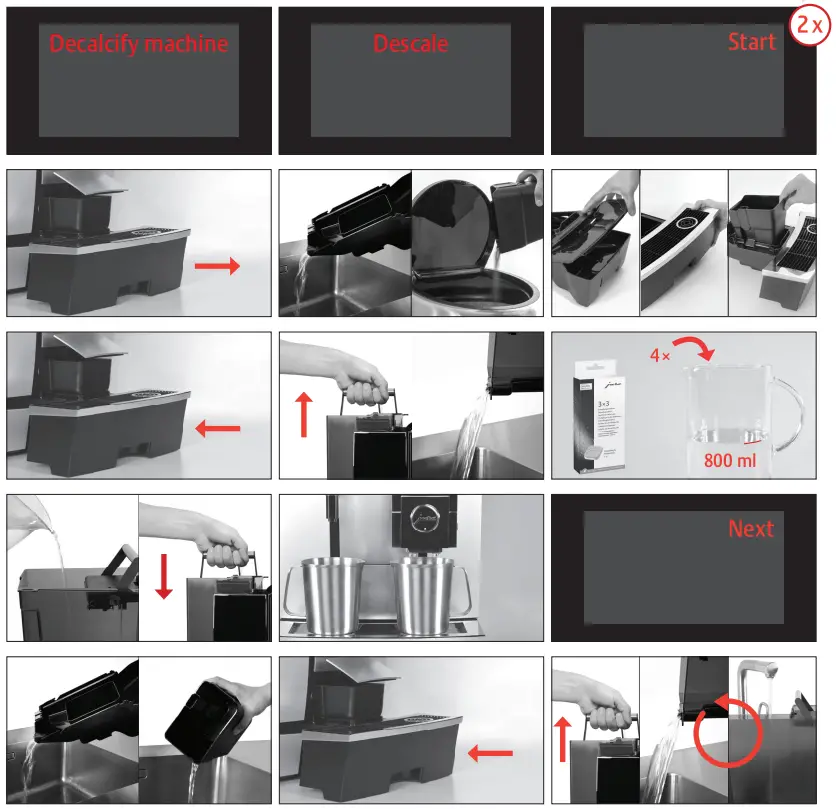

Coffee system clean
 | 3-phase cleaning tablets Prod no. 71112 25pcs |
 | 3-phase cleaning tablets Prod no. 71111 6pcs |
 | Descaling tablets Prod no. 71122 36pcs |
 | 2045 Descaling tablets Prod no. 71121 9pcs |
