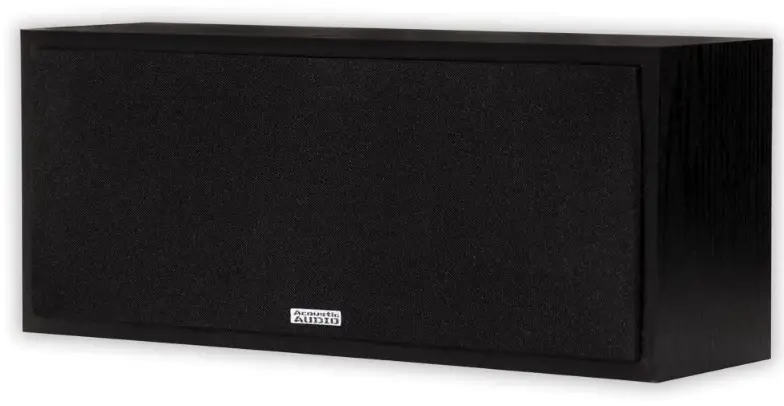

Acoustic Audio Psc-43 4 Center Channel Loudspeaker
Acoustic Audio Psc-43 4 Center Channel Loudspeaker
INTRODUCTION
Congratulations on your purchase and welcome to the world’s finest brand of audio equipment. If you ever have questions on your product, please contact your authorized dealer and their highly experienced staff will be more than willing to help.
SPECIFICATIONS
- RECOMMENDED POWER 15 -150 Watts
- FREQUENCY RESPONSE 85 – 25,000 Hz(+/- 3dB)
- SENSITIVITY 89d B
- IMPEDANCE 8 Ohms
- DIMENSIONS (W X H X D) inch (13.85 x 5.74 x 4.01) mm (352 x 146 x 102)
FEATURES
- Video-Shielded
- 3-way Passive Design
- Digitally Tuned Bass Reflex Cabinet Enclosure
- Dual 4″ Cone Woofer
- 1″ Mylar Dome Tweeter
- Quick Release Speaker Terminals
- Acoustically Transparent Grills
- Black Ash Wood Grain Finish
INSTALLATION

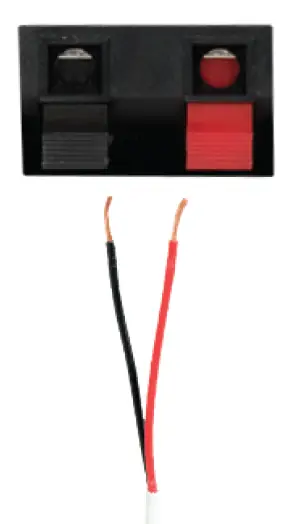

Run speaker wires to each speaker cabinet (a minimum of 16 gauge wire is recommended.) Red is positive(+) and black is negative(-). Make sure that both leads are correct from the back of your source unit as well as to the speakers. Incorrect polarity can cause the sound to be diminished or less in quality.
LOCATION

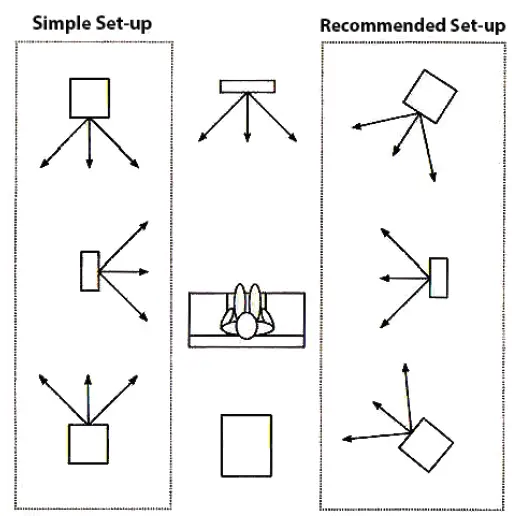

Find a location that suits your listening needs. Make sure that there is enough room around the speakers to allow you to rotate and aim the speaker to a center located in the room. Below is a diagram showing the Simple Set-up vs. Recommended Set-up.
- SIMPLE SET-UP will allow you to hear the sound but will not be directed toward the listener in the center of the room.
- RECOMMENDED SET-UP will direct the sound to the center of the room where the listener can achieve the best surround sound in a listening environment.
FAQs
Can you use any speaker for an Acoustic Audio Psc-43 center channel?
For your centre channel, you can use any speaker (aside from a subwoofer), but ideally, you should select a speaker with a horizontal cabinet design as opposed to a vertical or square one, like the one from Aperion Audio seen below.
Can I use two speakers for the Acoustic Audio Psc-43 center channel?
Generally speaking, using two bookshelf speakers as the center channel is a bad choice because audio cancellation can happen due to nulls. A line array of three similar speakers can create a more realistic effect when the music pans from side to side, therefore choosing one speaker as the center channel is acceptable.
How high should an Acoustic Audio Psc-43 center channel speaker be?
If you’re fortunate enough to have a projection screen that is acoustically transparent, place the centre channel speaker’s tweeter exactly where your ears are (typically 38 to 42 inches off the ground).
Can the center Acoustic Audio Psc-43 channel speaker go above the TV?
Center speakers can be put easily on a shelf either above or below the TV or on top of an entertainment cabinet. For optimal performance, simply ensure that the speaker is tilted up or down toward the listener.
Can you use an Acoustic Audio Psc-43 center speaker alone?
The centre channel speaker can still be used independently and still produce excellent sound.
Can you use Acoustic Audio Psc-43 center channel speakers for left and right?
Yes, you can utilize three speakers that are advertised as “centre” speakers in place of the three front speakers. The good news is that having three front speakers that are exactly alike is a terrific idea. Dolby Laboratories and I both utilise this setup.
Can you use a soundbar as an Acoustic Audio Psc-43 center speaker?
Can you utilize a soundbar as your surround sound system’s centre channel speaker? No, a soundbar cannot replace a centre speaker without lowering sound quality, to put it succinctly.
Can you put Acoustic Audio Psc-43 center speaker ceiling?
You can place the centre on the ceiling depending on the height of your ceiling. As long as the speaker isn’t too distant from the TV and is angled toward the listening position, as we previously described, this can be fairly successful. Utilizing an in-ceiling speaker for your centre channel is an additional choice.
Why do Acoustic Audio Psc-43 center channel speakers have two woofers?
Because the centre speakers have two woofers, the tweeter can be placed in the middle instead of to one side, which would again interfere with the left-right soundstage.
How do I angle my Acoustic Audio Psc-43 center channel speaker?
Your center channel speaker can be tilted in one of two ways: either you can tilt the stands up, or you can put something on top of the supports to tilt the speaker up while keeping the stands level.
What is a Acoustic Audio Psc-43 2 way center channel speaker?
A 2-way speaker uses two separate components—the mid-range, woofer, and tweeter drivers—to produce sound. Each of these has a unique level of efficiency throughout a wide spectrum of sound frequencies.
Can I connect Acoustic Audio Psc-43 center speaker to stereo amplifier?
Yes, you can test it by plugging either the left or right terminals into the speaker. The sound for the channel you plug into it will be played back. The only way it may get damaged is if you had the volume too high and it was made for a different impedance than your existing speakers.
Can you use two Acoustic Audio Psc-43 center channel speakers?
Even while you can use two centre channel speakers, this is frequently not recommended or able to provide audio of superior quality. Instead, using two centre channel speakers might cause audio distortion due to comb filtering, altered timing of the identical audio signals, and other factors that cause sound confusion.
Where do you connect Acoustic Audio Psc-43 center channel speaker?
Connect the AV receiver to the TV’s CENTER SPEAKER IN connector using a speaker cable (not included). Be sure to twist the speaker cable ends before inserting them into the TV and AV receiver’s connection terminals while connecting. Depending on the model, there are different CENTER SPEAKER IN terminals.
How high should a Acoustic Audio Psc-43 center channel speaker be?
If you’re fortunate enough to have a projection screen that is acoustically transparent, place the centre channel speaker’s tweeter exactly where your ears are (typically 38 to 42 inches off the ground).
