Kef R Series Loudspeaker Installation Guide (+ PDF)

Thank you for purchasing the R Series. We are confident that it will provide reliability. high-performance sound for many years to come. Please read this manual fully before you attempt any connections to the R Series.

Using the manual

The following icons are used throughout this manual to help you safely install your new speakers. Please follow them carefully.

	Correct
	Wrong
	Adjustment
	Positive/RED
	Negative/BLACK
	Caution /Warning
	Switch off appliance

Important points

Follow this manual carefully for the best results from your speakers
Read and return the warranty card
Clean with a dry lint free cloth
Do not use spirit-based cleaners. Avoid damp
Avoid temperature extremes
Avoid direct sunlight
SAFETY NOTICE! trailing cables are dangerous, secure all cables

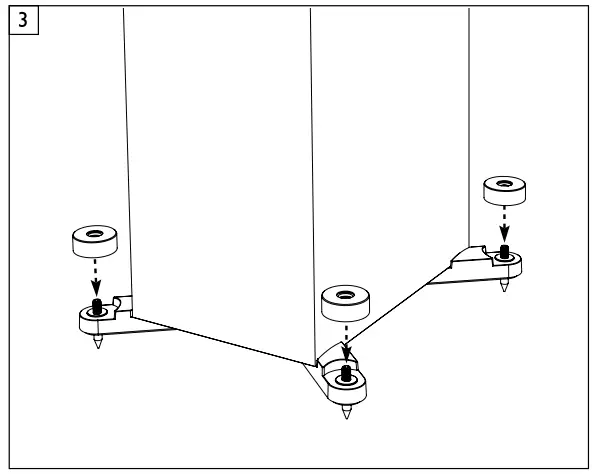

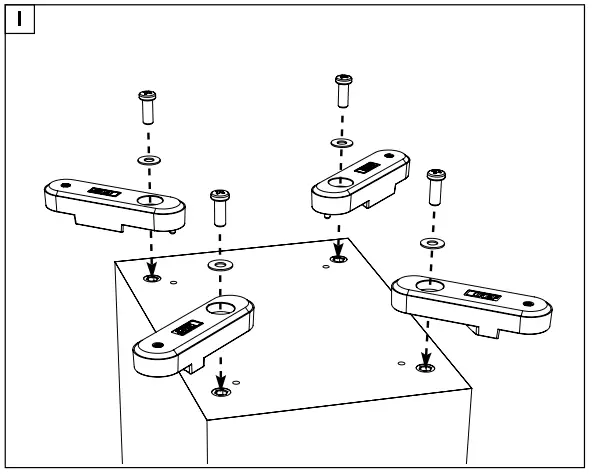

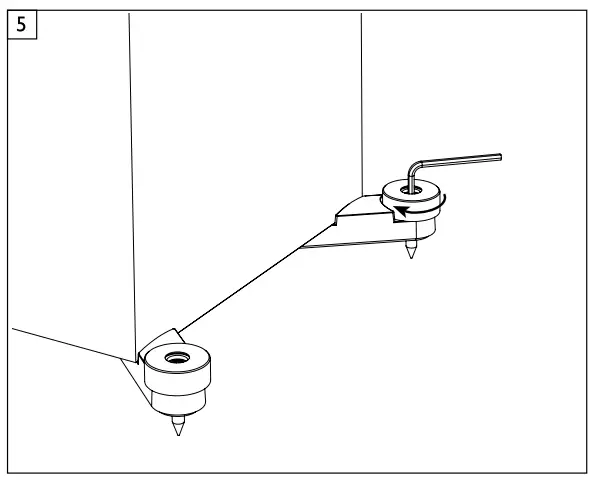

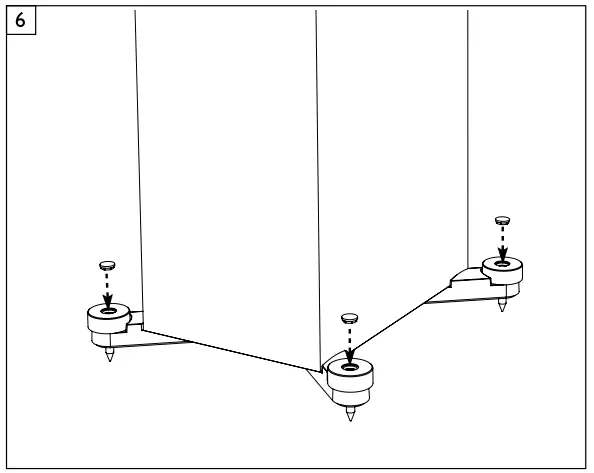

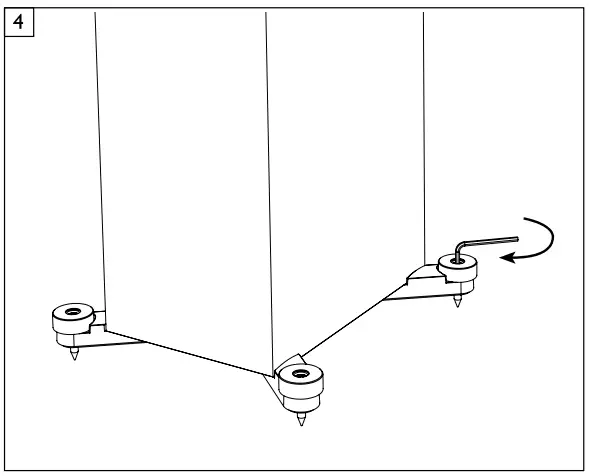

Plinth – R500/R700/R900

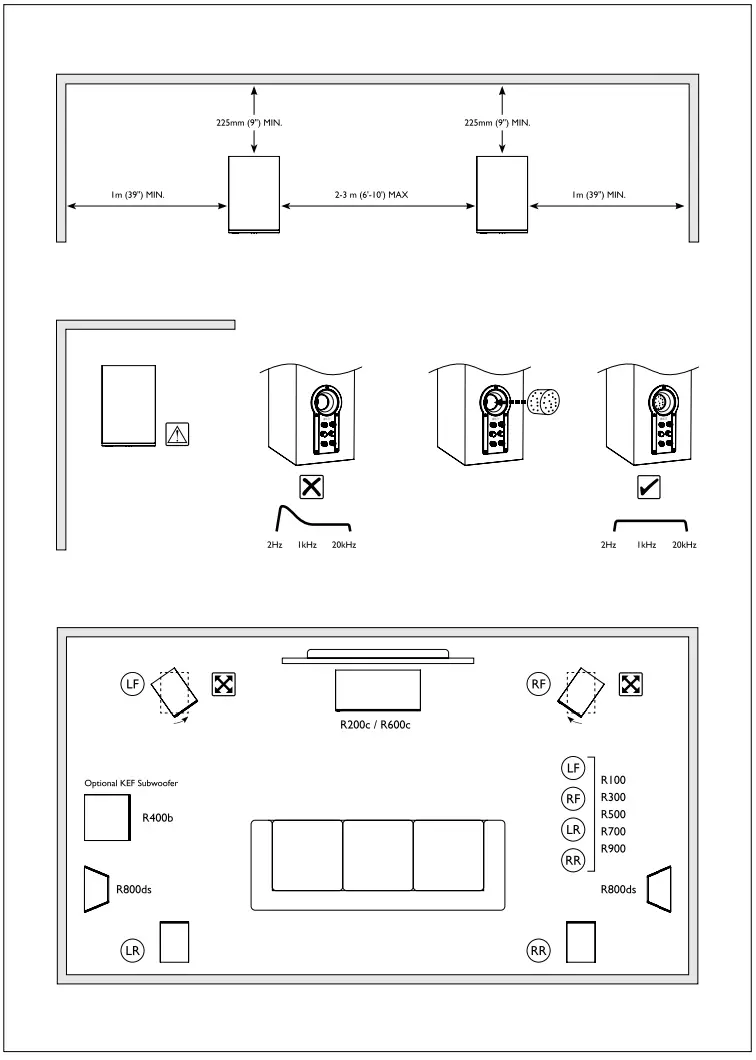

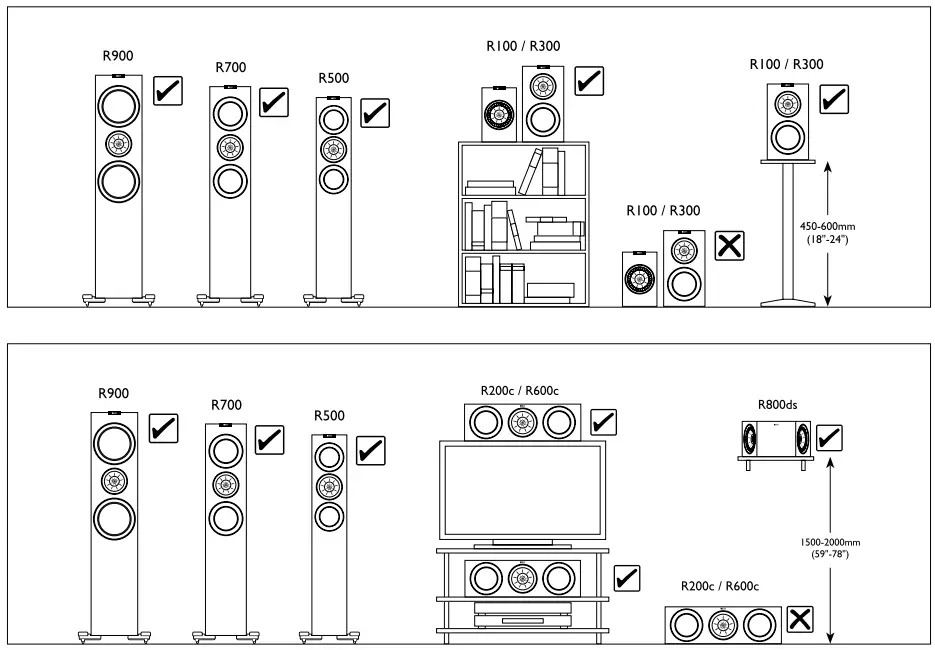

Positioning

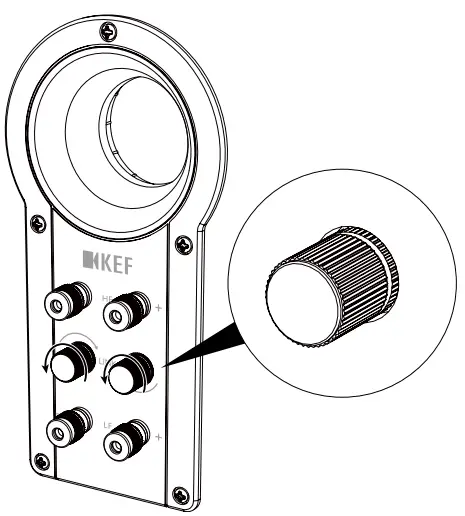

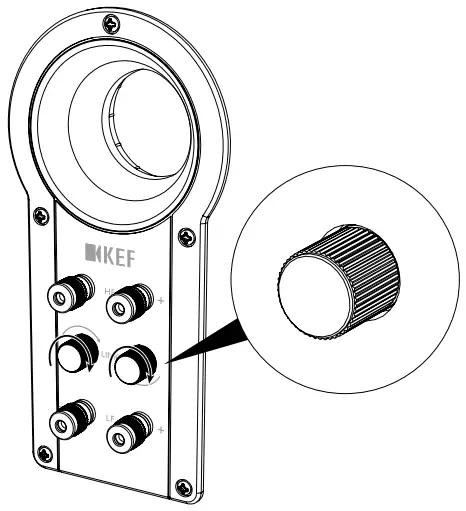

Link Connection

Single wire setting

Bi-wired setting

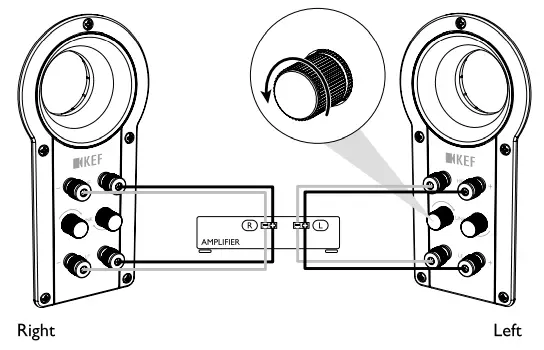

Connections

R100 / R300 / R500 / R700 / R900

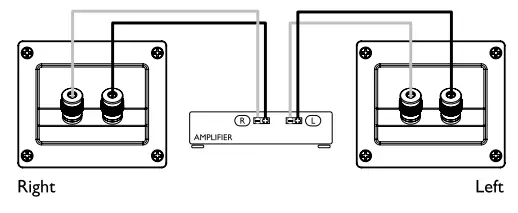

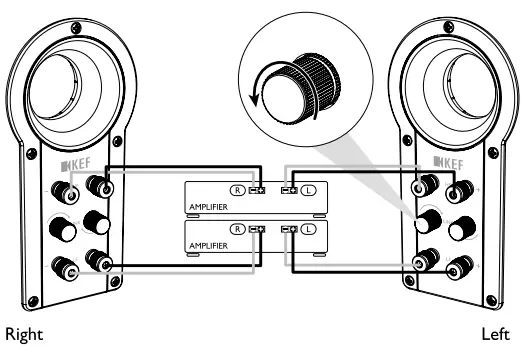

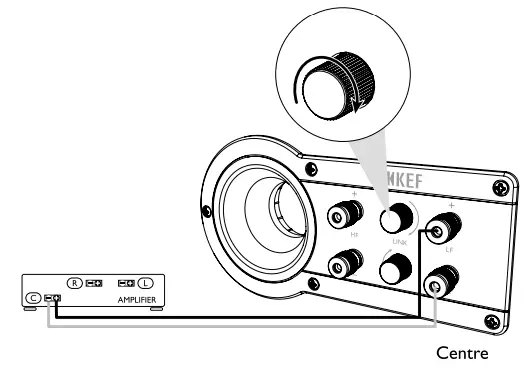

Single wire connectionsBi – wired connections Bi- amplified connections

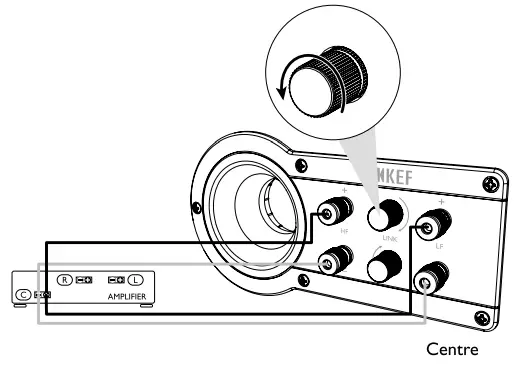

R200c/R600c

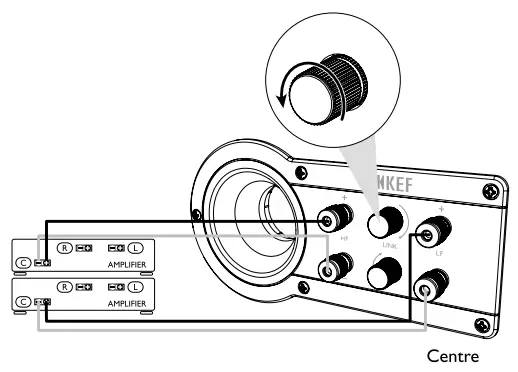

Single wire connectionBi – wired connectionBi – amplified connectionsR800ds
Single wire connections

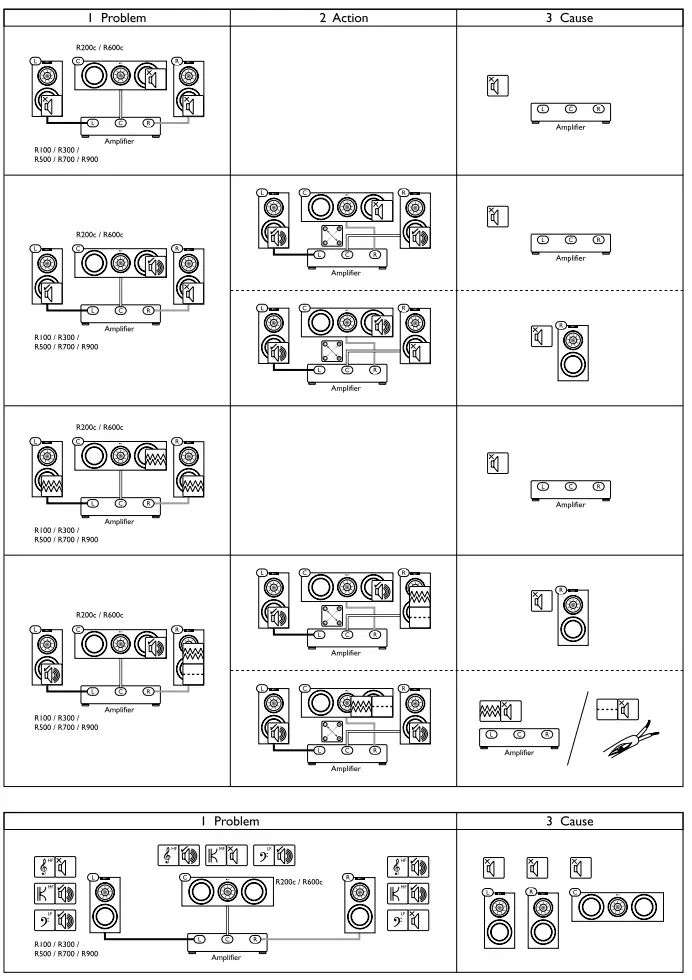

Fault finding – I Problem / 2 Action / 3 Cause

	Working
	Treble/HF
	Intermittent sound
	Not working
	Mid-range/MF
	Distorted sound
	Switch cables
	Bass/LF

Specifications

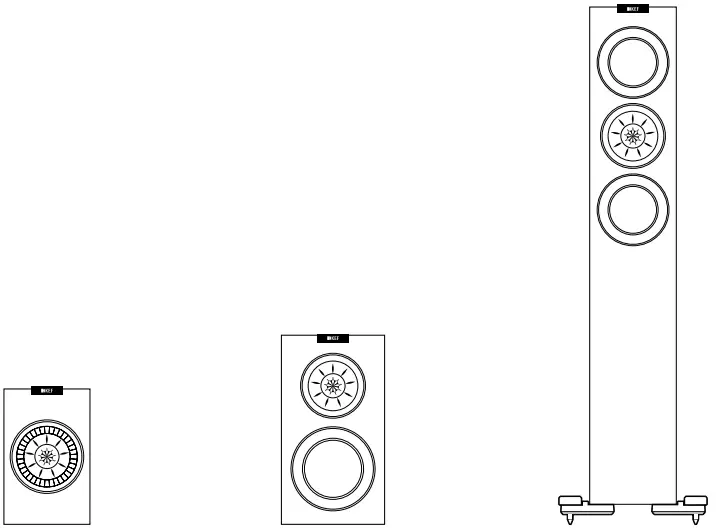

Model	R100	R300	R500
Design	Two-way bass reflex	Three-way bass reflex	Three-way bass reflex
Drive units	Uni-Q driver array HF: 25mm (I in.) vented aluminium dome MF: 130mm (5.25in.) aluminium	Uni-Q driver array HF: 25mm (I in.) vented aluminium dome MF: 125mm (Sin.) aluminium Bass units: LF: 165mm (6.5in.) aluminium	Uni-Q driver array HF: 25mm (I in.) vented aluminium dome MF: 125mm (Sin.) aluminium Bass units: LF: 2 x 130mm (5.25in.) aluminium
Frequency range (-6dB)	49Hz – 45kHz	42Hz – 45kHz	39Hz – 45kHz
Frequency response (±3dB)	56Hz – 28kHz	50Hz – 28kHz	46Hz – 28kHz
Crossover frequency	2.5kHz	500Hz, 2.8kHz	500Hz, 2.8kHz
Amplifier requirements	25 – 100W	25 – 120W	25 – 150W
Sensitivity (2.83V/1m)	86dB	88dB	88dB
Harmonic distortion 2nd & 3rd harmonics (90dB, I m)	<0.4% I 50Hz-20kHz	<0.4% 130Hz-20kHz	<0.4% 120Hz-20kHz
Maximum output	107dB	11048	111dB
Nominal impedance	80 (min. 3.20)	80 (min. 3.20)	80 (min. 3.20)
Weight	6.6kg (14.5Ibs.)	12kg (26.4lbs.)	2 I.8kg (481bs.)
Dimension (H xW x D) (with grille and terminal)	280 x 180 x 289 mm (I I x 7.1 x 11.4 in.)	385 x 210 x 345 mm (15.2 x 8.3 x 13.6 in.)	1015 x 180 x 305 mm (40 x 7.1 x 12 in.)
Dimension (H xW x D) (with grille, terminal & plinth)	N/A	N/A	1066 x 299x 328 mm (42 x 11.8 x 12.9 in.)

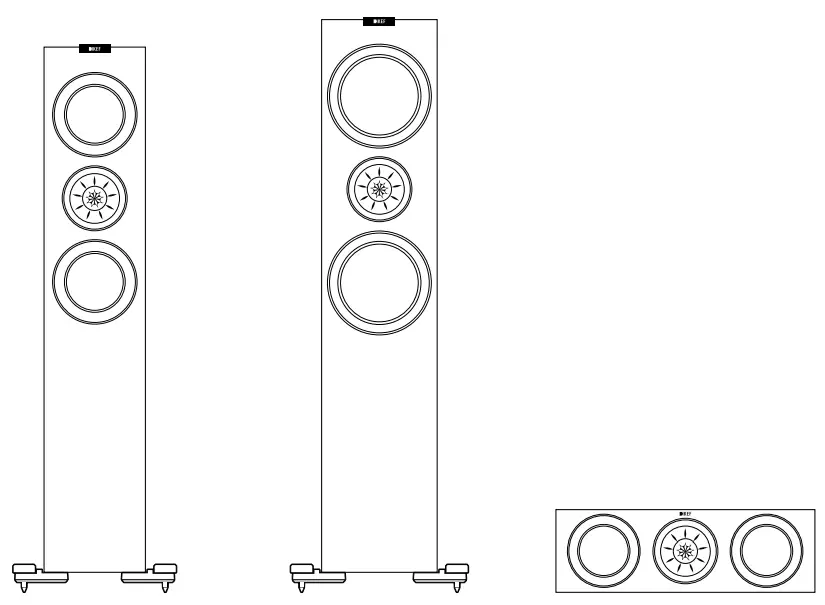

Model	R700	R900	R200c
Design	Three-way bass reflex	Three-way bass reflex	Three-way bass reflex
Drive units	Uni-Q driver array: HF: 25mm (I in.) vented aluminium dome MR 125mm (5in.) aluminium Bass units: LF: 2 x 165mm (6.5in.) aluminium	Uni-Q driver array HF: 25mm (I in.) vented aluminium dome MR 125mm (5in.) aluminium Bass units: LF: 2 x 200mm (8in.) aluminium	Uni-Q driver array HF: 25mm (I in.) vented aluminium dome MR 125mm (5in.) aluminium Bass units: LF: 2 x 130mm (5.25in.) aluminium
Frequency range (-6dB)	37Hz – 45kHz	35Hz – 45kHz	52Hz – 45kHz
Frequency response (±3dB)	42Hz – 28kHz	40Hz – 28kHz	65Hz – 28kHz
Crossover frequency	500Hz, 2.9kHz	400Hz, 2.9kHz	500Hz, 2.8kHz
Amplifier requirements	25 – 200W	25 – 250W	25 – 150W
Sensitivity (2.83V/Im)	89dB	90dB	87dB
Harmonic distortion 2nd & 3rd harmonics (90dB, Im)	<0.4% 100Hz-20kHz	<0.4% 80Hz-20kHz	<0.4% 120Hz-20kHz
Maximum output	I I3dB	1 I 5dB	111dB
Nominal impedance	80 (min. 3.20)	80 (min. 3.70)	80 (min. 3.20)
Weight	25.9kg (57.1 lbs.)	29.5kg (65Ibs.)	14.4kg (3 I .7Ibs.)
Dimension (H x W x D) (with grille and terminal)	1070 x 210 x 345 mm (42.1 x 8.3 x 13.6 in.)	1130 x 240 x 36Smm (44.5 x 9.4 x 14.4 in.)	170 x 530 x 305 mm (6.7 x 20.9 x 12 in.)
Dimension (H x W x D) (with grille, terminal & plinth)	1121 x 329 x 368 mm (44.1 x 13.0 x 14.5 in.)	1181 x 359 x 388 mm (46.5 x 14.1 x 15.3 in.)	N/A

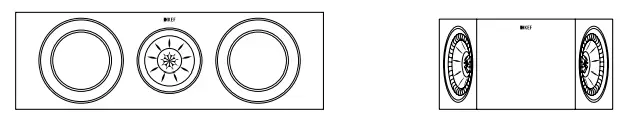

Model	R600c	R800ds
Design	Three-way bass reflex	Three-way dipole
Drive units	Uni-Q driver array: HF: 25mm (I in.) vented aluminium dome MF: 125mm (Sin.) aluminium Bass units: LF: 2 x 165mm (6.5in.) aluminium	Uni-Q driver array: HF:2 x 25mm (I in.) vented aluminium dome MF .2 x 130mm (5.2Sin.) aluminium
Frequency range (-6dB)	50Hz – 45kHz	90Hz – 45kHz
Frequency response (±3dB)	60Hz – 28kHz	I 00Hz – 28kHz
Crossover frequency	500Hz, 2.9kHz	300Hz, 2.5kHz
Amplifier requirements	25 – 200W	25 – 100W
Sensitivity (2.83V/I m)	89dB	85dB
Harmonic distortion 2nd & 3rd harmonics (90dB, 1 m)	<0.4% 100Hz-20kHz	<0.4% I 50Hz-20kHz
Maximum output	113dB	107dB
Nominal impedance	80 (min. 3.20)	80 (min. 3.20)
Weight	I 7.2kg (37.9Ibs.)	7.4kg (16.3Ibs.)
Dimension (H xW x D) (with grille and terminal)	200 x 630 x 335 mm (7.9 x 24.8 x 13.2 in.)	180 x 350 x 184 mm (7.1 x 13.8 x 7.2 in.)
Dimension (H xW x D) (with grille, terminal & plinth)	N/A	N/A

KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.

www.kef.com
USA
GP Acoustics (US) Inc.
I 0 Timber Lane, Marlboro
New Jersey 07746 U.S.A.
Tel: + I (732) 683 2356
Fax: + I (732) 683 2358
KEF and Uni-Q are registered trademarks. Uni-Q and other KEF technologies are protected by worldwide patents. All text and image copyrights are reserved. KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
Issue 2: 09.2011
P/N: 4301-5414+ I
