Klaxon Sonos Pss-0089 Dc Sounder Installation Guide

Sonos DC Sounder
Installation Instructions

Sonos PSS-0089 DC Sounder

TONE	TONE TYPE	TONE DESCRIPTION/ APPLICATION	DIP SWITCH 1 – 2 – 3 – 4 – 5	dBA @ 1m	mA
1.		970Hz	O – O – O – O – O	99	21
2.		800Hz/970Hz @ 2Hz	O – O – O – O – I	100	20
3.		800Hz – 970Hz @ 1Hz	O – O – O – I – O	100	20
4.		970Hz 1s OFF/1s ON	O – O – O – I – I	99	14
5.		970Hz, 0.5s/ 630Hz, 0.5s	O – O – I – O – O	99	19
6.		554Hz, 0.1s/ 440Hz, 0.4s (AFNOR NF S 32 001 )	O – O – I – O – I	97	13
7.		500 – 1200Hz, 3.5s/ 0.5s OFF (NEN 2575:2000 Dutch Slow Whoop)	O – O – I – I – O	99	16
8.		420Hz 0.6s ON/0.6s OFF (Australia AS1670 Alert tone)	O – O – I – I – I	96	9
9.		1000 – 2500Hz, 0.5s/ 0.5s OFF x 3/1.5s OFF ( AS1670 Evacuation)	O – I – O – O – O	104	14
10.		550Hz/440Hz @ 0.5Hz	O – I – O – O – I	97	14
11.		970Hz, 0.5s ON/0.5s OFF x 3/ 1.5s OFF (ISO 8201 )	O – I – O – I – O	98	12
12.		2850Hz, 0.5s ON/0.5s OFF x 3/1.5s OFF (ISO 8201)	O – I – O – I – I	94	21
13.		1200Hz – 500Hz @ 1Hz (DIN 33 404)	O – I – I – O – O	99	17
14.		400Hz	O – I – I – O – I	95	13
15.		550Hz, 0.7s/1000Hz, 0.33s	O – I – I – I – O	98	17
16.		1500Hz – 2700Hz @ 3Hz	O – I – I – I – I	104	34
17.		750Hz	I – O – O – O – O	99	18
18.		2400Hz	I – O – O – O – I	106	45
19.		660Hz	I – O – O – I – O	96	17
20.		660Hz 1.8s ON/1.8s OFF	I – O – O – I – I	96	12
21.		660Hz 0.15s ON/0.15s OFF	I – O – I – O – O	96	11
22.		510Hz, 0.25s/ 610Hz, 0.25s	I – O – I – O – I	98	15
23.		800/1000Hz 0.5s each (1Hz)	I – O – I – I – O	100	21
24.		250Hz – 1200Hz @ 12Hz	I – O – I – I – I	98	13
25.		500Hz – 1200Hz @ 0.33Hz	I – I – O – O – O	99	17
26.		2400Hz – 2900Hz @ 9Hz	I – I – O – O – I	101	40
27.		2400Hz – 2900Hz @ 3Hz	I – I – O – I – O	104	40
28.		500 – 1200Hz, 0.5s/ 0.5s OFF x 3/1.5s OFF ( AS1670 Evacuation)	I – I – O – I – I	98	10
29.		800Hz – 970Hz @ 9Hz	I – I – I – O – O	99	20
30.		800Hz – 970Hz @ 3Hz	I – I – I – O – I	100	20
31.		800Hz, 0.25s ON/1s OFF	I – I – I – I – O	99	8
32.		500Hz – 1200Hz, 3.75s/0.25s OFF (AS2220)	I – I – I – I – I	99	17

Technical Data Doc.18-186213
Type A: For indoor use (Shallow Base)
Fire Alarm Device – Sounder
Type B: For outdoor use (Deep Base)

Installation

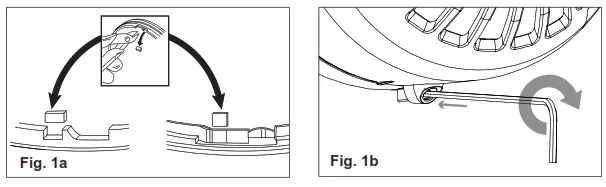

If required, the mechanism for locking the sounder to the base can be activated by removing the thin section of plastic shown in Fig. 1a with side cutters or a similar tool. To open a locked head, remove the small rubber bung from the hole on the side of the sounder, insert a tool into the hole and depress the clip whilst twisting the head. The O-ring and bung must be re-fitted to maintain the weatherproofing.
An alternative locking method is shown in Fig. 1b. Drive the hexagonal locking screw forward by turning a 1.5mm hexagonal key clockwise until the head is locked.

Wiring

Line	Terminal Marking
Positive Supply (9 to 60V DC)	(3) IN+
Negative Supply (OV)	(2) – or COM –
2nd Stage Alarm Control (if required)	(1)

The second stage alarm (‘remote tone switching’) is activated by connecting terminal to Negative (OV) Supply.
A separate earth terminal is provided on the deep base for connecting the screen or functional earth. On the shallow base, terminal 5 can be used for this purpose.
Tone Selection and Volume Control
a) The tone is selected using the 5 way dipswitch on the bottom of the sounder head. Refer to the table overleaf for details of the available tones and the switch settings required to select them.
b) The sound output of the unit can be reduced by adjusting the potentiometer on the bottom of the sounder.

Technical Specification

*depends on selected tone and input voltage. See tone table for details.
EN54-3 certified on tones 1,2,3,6,7 & 13 & > 17v DC only.

Telecom Ltd (Incorporating Klaxon Signals)
St Crispin Way, Haslingden, BB4 4PW, UK.
Tel: +44 1706 233879
Issue 20 (Dec 2014) INS533-20
Copyright © Telecom Ltd.
[email protected]
www.klaxonsignals.com
