User manual
67677 Flourish Flourish White Color LED Pendant Lamp
IMPORTANT SAFETY INSTRUCTIONS

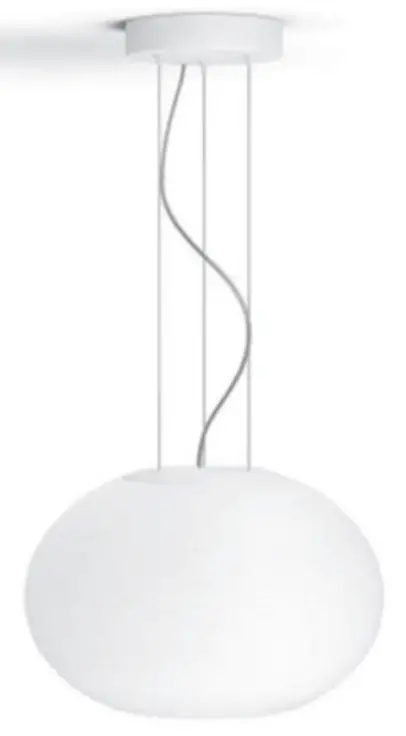

Product appearance may vary from the image shown.
CAUTION – RISK OF FIRE
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.

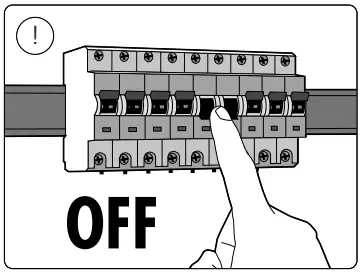

DANGER – RISK OF SHOCK – DISCONNECT POWER BEFORE INSTALLATION.

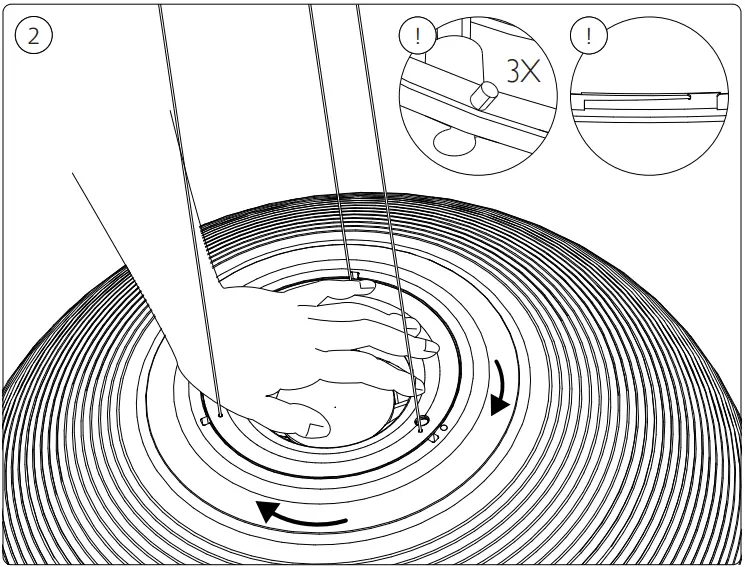

Disassemble luminaire before installation

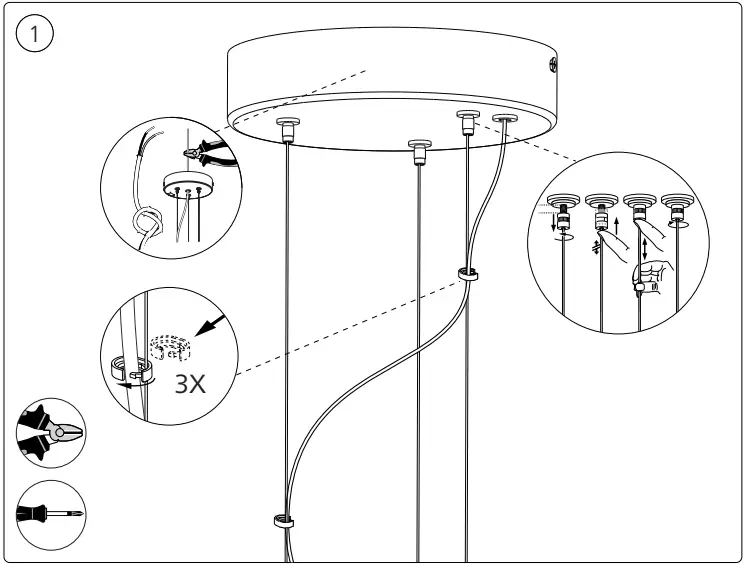

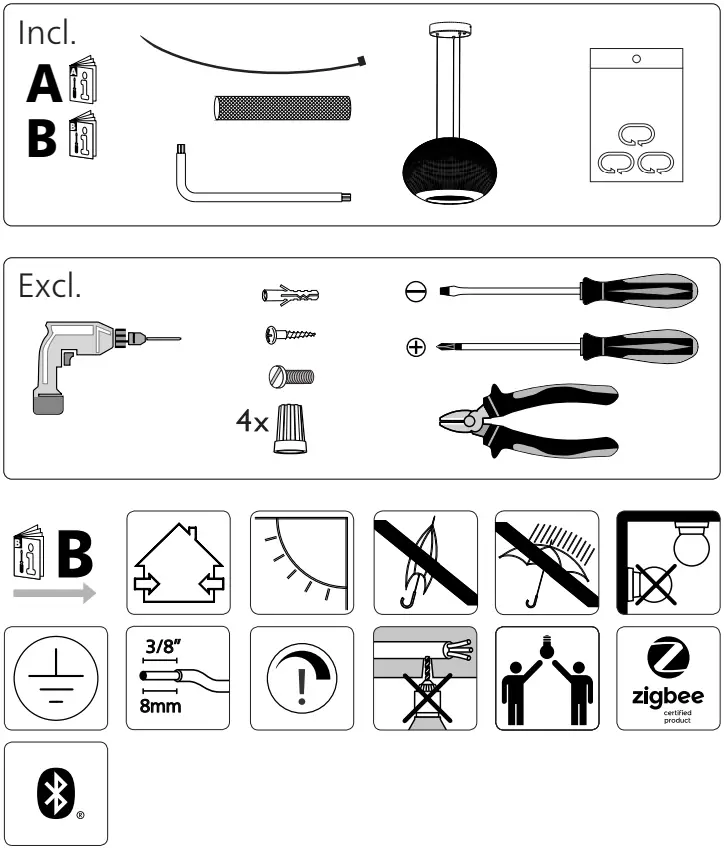

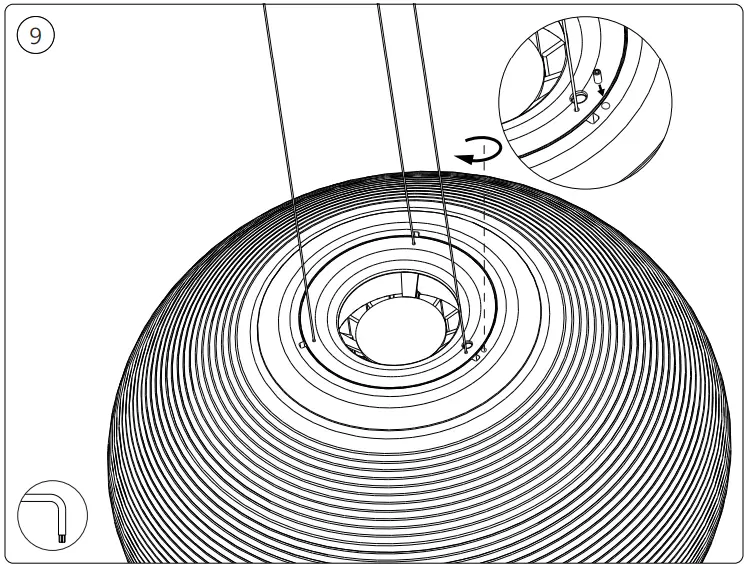

Mounting instructions

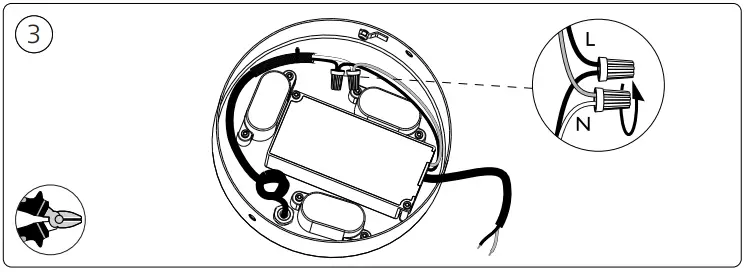

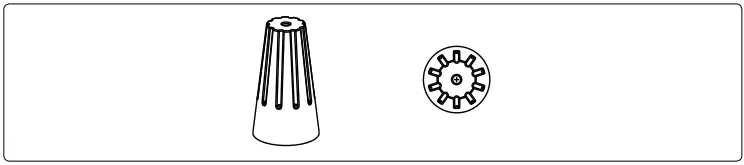

Wire Connectors Instructions:
- Turn off the power before installing or removing connectors.

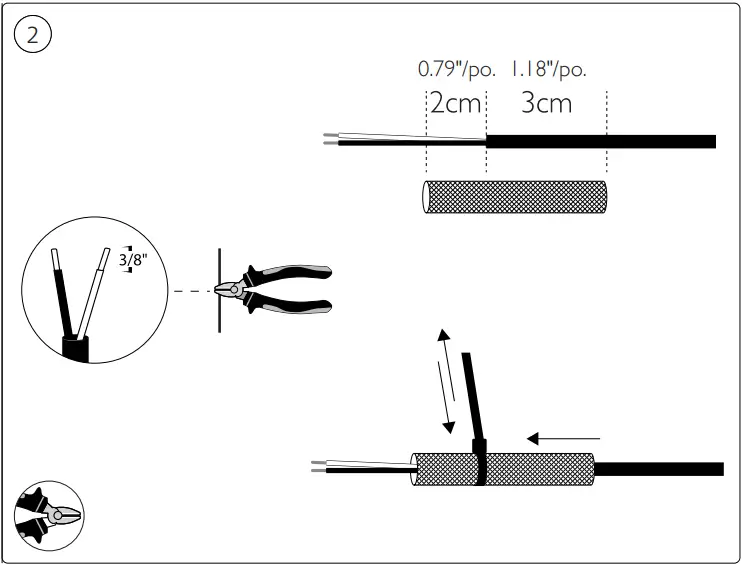

- Strip wires 5/16″(7.9mm). For #16 and smaller wires, strip 3/8″(9.5mm).
- Pre-twisting is unnecessary, hold stripped wires together with ends even.
Lead stranded wires slightly. - Align any frayed strands or conductors.
- Push wires into the connector and screw on until two twists are visible in the wires.
For use with copper to copper conductor
Temperature Rating: 105°C(221 °F) Max.
Voltage Rating: 600V Max. building wiring; 1000V Max. in fixtures and signs
Listed as a PRESSURE-TYPE wire connector on the following Solid and /or Stranded wire combinations:
For UL Listed, CSA and CQC Certified
| 2#16 2to4#18 1#14 w/1#16 1#14 w/1#16 w/1#18 1#14 w/1 or 2#18 | 1#14 w/1 to 3#20 or #22 1#16 w/1 or 2#18 1#16 w/1#18 w/1#22 1#16 w/1 to 3#20 or #22 1 or 2#16 w/1#20 w/1#22 | 2#16 w/1#18 2#16 w/1 or 2#20 2#16 w/1 to 3#22 1#18 w/2 to 4#20 | 1#18 w/3 or 4#22 1 or 2#18 w/1#20 w/1#22 2#18 w/1 or 2#20 or #22 3#18 w/1#20 or #22 |
Signify North America Corporation
400 Crossing Blvd, Suite 600
Bridgewater, NJ 08807, USA
Signify Canada Ltd.
281 Hillmount Road,
Markham, ON, Canada L6C 2S3
Questions or Comments
1-800-555-0050
© 2022 Signify Holding
All rights reserved
www.philips-hue.com
4404 029 13303
Last update: 04/2022
