Antec A400i Cpu Cooler Instruction Manual

Antec A400i Cpu Cooler Instruction Manual

Antec-A400i-CPU-Cooler-LOGO

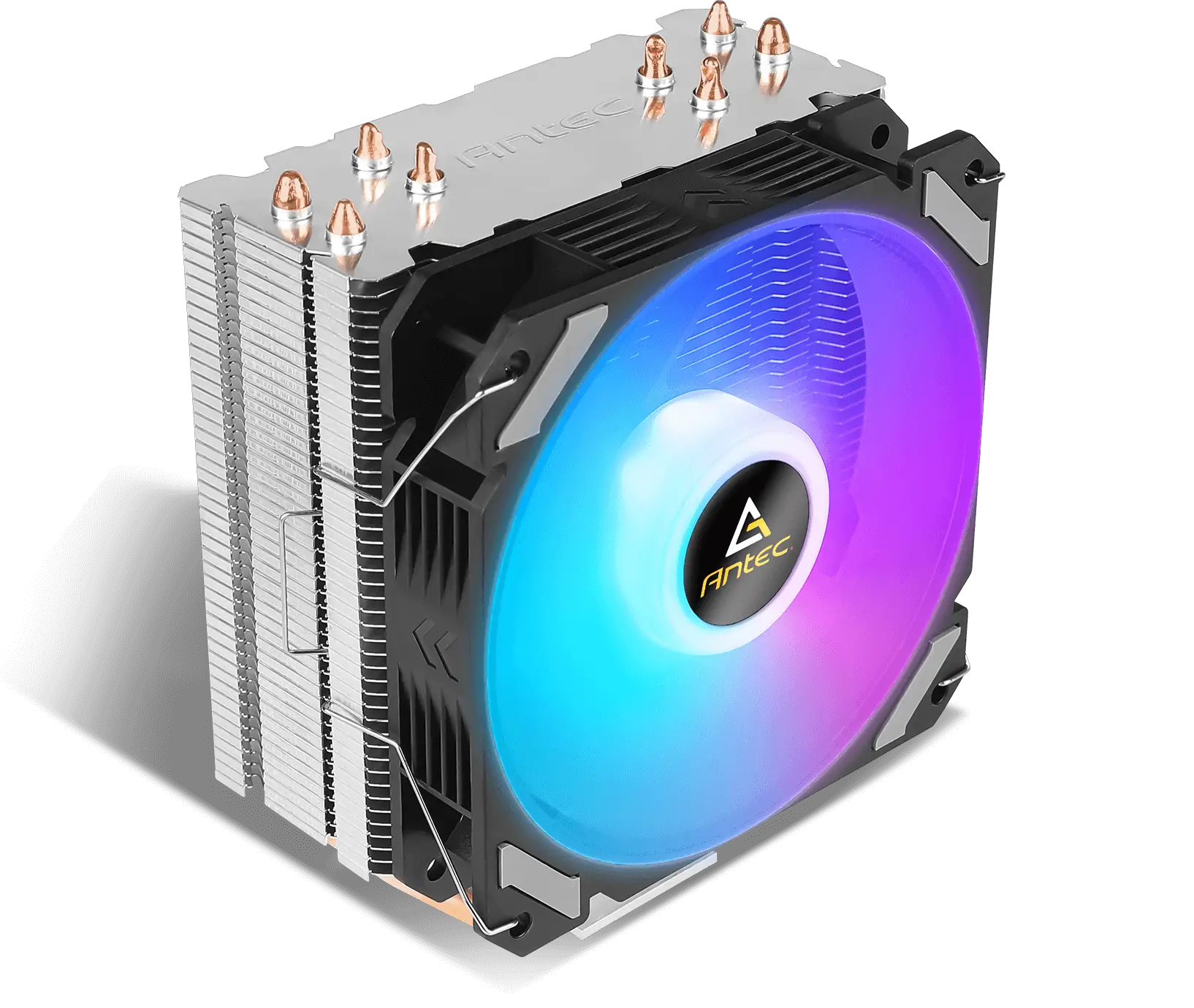

Antec A400i CPU Cooler

Antec-A400i-CPU-Cooler-PRODUCT-IMAGE

EASY INSTALLATION
The installation will be much easier with the metal fastenings

SPECIFICATION

  • Cooling Type  Air Cooling
  • Product Dimension 128 x 76 x 155 mm (DWH)
  • Fan Dimensions 120 x 120 x 25 mm
  • Fan Type PWM RGB LED Fan
  • Fan Speed 800-1800 RPM (PWM) ❗ 10%
  • Fan Airflow 72 CFM max.
  • Fan Noise 20-36db(A)
  • Air Pressure 2.1mmH2o (Max)
  • Connector Fan: 4 pin
  • Rated Voltage 12VDC
  • Rated Current 0.16A
  • Heat Pipe Dimension ¢>6 mm
  • Heat Sink Material 4 Heat Pipes, Aluminum Fins
  • Socket Compatibility Intel:
    LGA 1151 / 1150 / 1155 / 1156 /1366/2011/ LGA1200/LGA1700
    AMO: AM4/ AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1
  • Warranty 1year
  • UPC# 0-761345-10913-0

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
