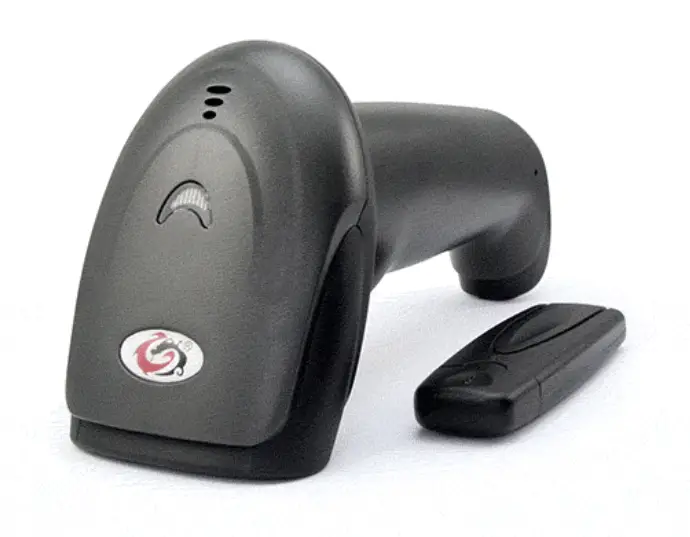

SUNLUX XL-9309 Wireless Scanner
Instructions
- 300m communication distance
- Simple pairing by scanning one code
- 1 base frame can support 99 scanners
- Ensure 100% succesful data transmission
- With memory, can store 100,000 ENA-13 code
- Full independent intellectual property rights
- One full charge support 100,000 times scanning
| Light Source | Visible Laser Diode 650m | Size | L × W × H:170mm × 71mm × 98mm |
| Scan Pattern | Single Scan & Manual | Charge Mode | Wired charging |
| Working Frequency | 433 MHz ISM frequency | Weight | 180g |
| Communication distance | Up to 300m at open places | Material | ABS+PC |
| Scan Precision | 3mil(pcs0.9) | Voltage | 2200 mAh/DC 5V |
| Scan Rate | 300 times/scend | Operating Current | 110mA/35mA |
| Scan Width | 30mm@scan window,220mm@200m | EMC | CE & FCC DOC compliance |
| Depth of Scan Field | 0-280mm(0.33mm pcs0.9) | IP Standard | IP54 |
| Scan Angle | 30° &65° & 55° | Decoding Capability | all 1D barcode including GS1 |
| Communication Distance | 300m | Humidity | 5% to 95% relative humidity |
| Print Contrast | 20% UPC/EAN 100% | Shock | 1.5M drops |
| Decoding Capability | EAN-8,EAN-13,UPC-A,UPC-E,Code11,Code 32,Code39 Standard,Code39 Full Ascii,Code 93,Code128,EAN128, UPC-A, UPC-E,EAN/UPC +2/+5,Codabar, Industrial 25,Industrial 2of 5,Interleave 25, Interleave 2of5, Matrix 25, Matrix 2 of 5,MSI/Plessey, UK/Plessey,ISBN,ISSN,GS1-rss14,GS1-Limited,GS1-Expended,GS1 STACKChina post 25,etc. | ||
SUNLUX IOT Technology (Guangdong) Inc.
Office Add: 4F,No.7 ,Kehui First Street ,Science Road,Science City,Guangzhou,China
Tel: +86-20-32053765 Fax: +86-20-82115390 Site: www.xl-scan.com E-mail: [email protected]
