Wireless Headphone
Model: BTH15
User Manual

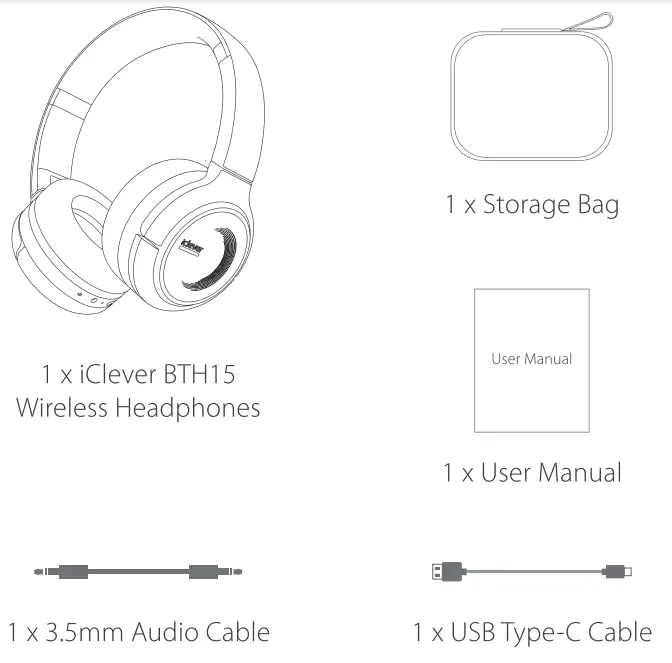

Package Contents

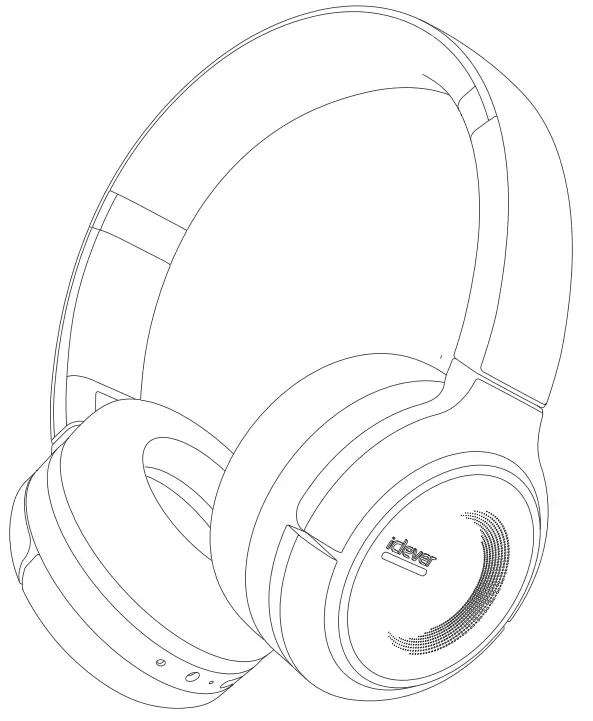

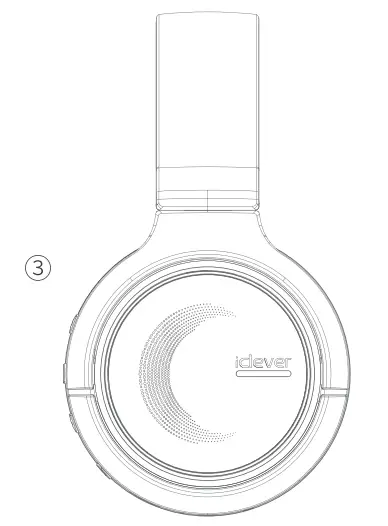

Product Diagram
On/oof
 |  |

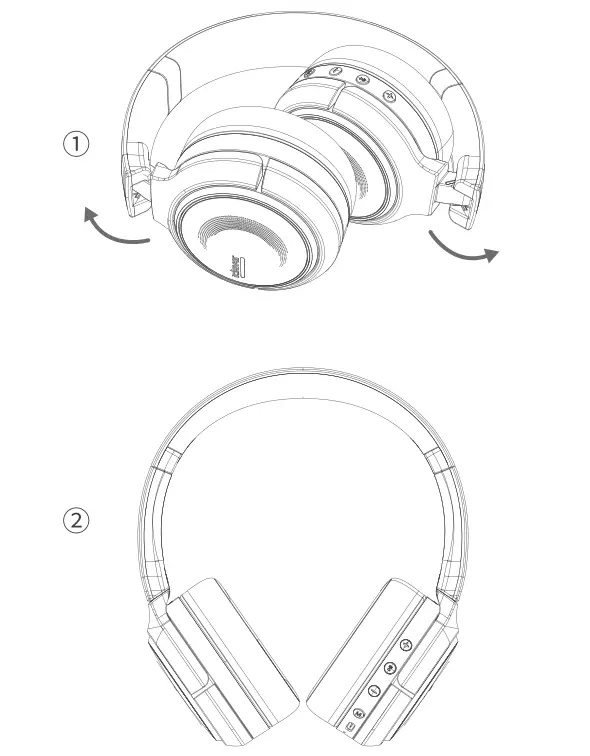

- If the headphone is folded, just unfold it. Then it will be auto-on, the colorful lights will be also on, and the headphone will enter the pairing mode.

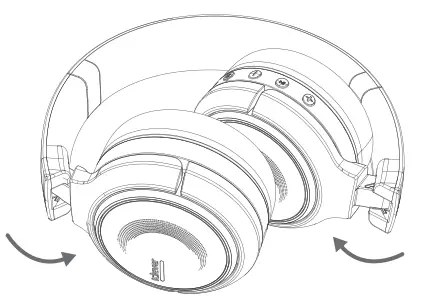

- When the headphone is folded as shown below, it will be auto-off.
Note: If there is an abnormal situation, press and hold the MFB button for 3-55 to turn the headphone on and enter the pairing mode.
Note: If there is an abnormal situation, press and hold the MFB button for 3-55 to turn the headphone on and enter the pairing mode.Bluetooth Pairing
- In the power-on state, the colorful lights are on; Bluetooth enters the pairing state, and the red and blue lights flash alternately.
- Turn on the Bluetooth of the mobile phone. Then find and select the “iClever-BTH15” Bluetooth pairing name in the device list for Bluetooth pairing connection.
Light Mode Switching
Short press the “Light Mode Switch Button” to turn on/off the light.
Volume Limit Gear Switching
- Press and hold the “+”&”-” buttons at the same time to switch the volume limit to the safe volume of 85dB, and the voice broadcast will be “Safe Volume”.
- Press and hold the”+”&”2 buttons at the same time to switch the volume limit to the normal volume mode, and the voice broadcast will be “Normal Volume”.
| Volume Up | Short press the “+” button. |
| Volume Down | Short press the them= button. |
| Next Track | Press and hold the “+” button for 2 seconds. |
| Previous Track | Press and hold the’-” button for 2 seconds. |
| Play / Pause | Press the MFB button once. |
| Answer / End A Call | Press the MFB button once. |
| Reject A Call | Keep pressing the MFB button for seconds. |
| Activate Ski | Press the MFB button twice. |
| Clear The Pairing List | After the Bluetooth is turned on, in any state, press and hold the “multi-function button”and “-” button at the same time for 5 seconds to clear the pairing list in the headphone. |
Voice Prompt
| Power On | Power on |
| Power Off | Power off |
| Pairing | Pairing |
| Successful Pairing | Connected |
| Disconnection | Disconnected |
| Low Power | Battery Low |
Specification
| Frequency band | 2.4GHz-2.482GHz |
| Maximum transmission power | 4dBm |
How to Charge the Headphone
Connect the Type-C cable to the Type-C port on the headphone, and a 5V power outlet (a power adapter is not included). The indicator light will glow red to indicate charging. When the headphone is fully charged, the indicator light will change from red to blue.
FCC Statement
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular install-lation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions
- This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation.
IC Caution
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
